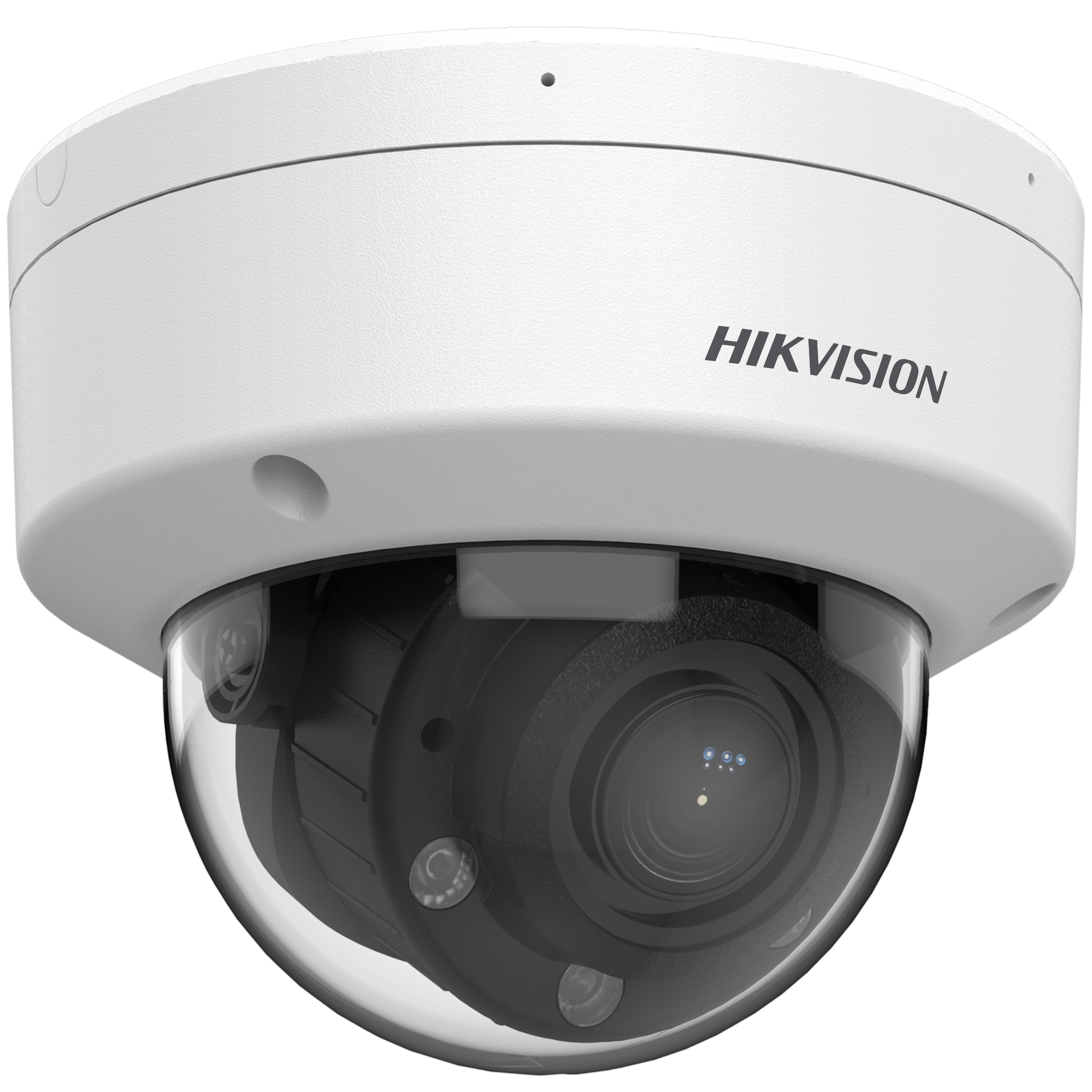

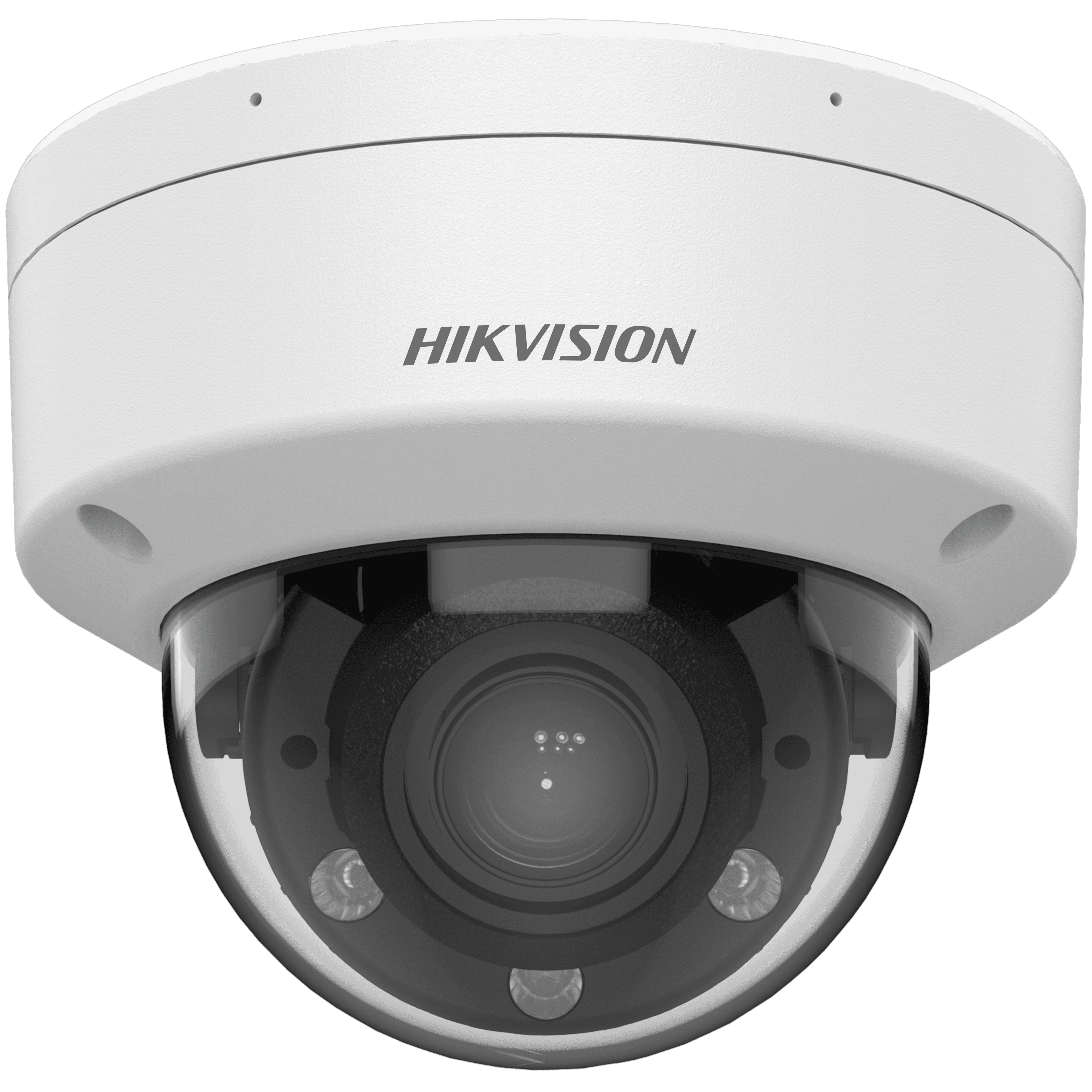

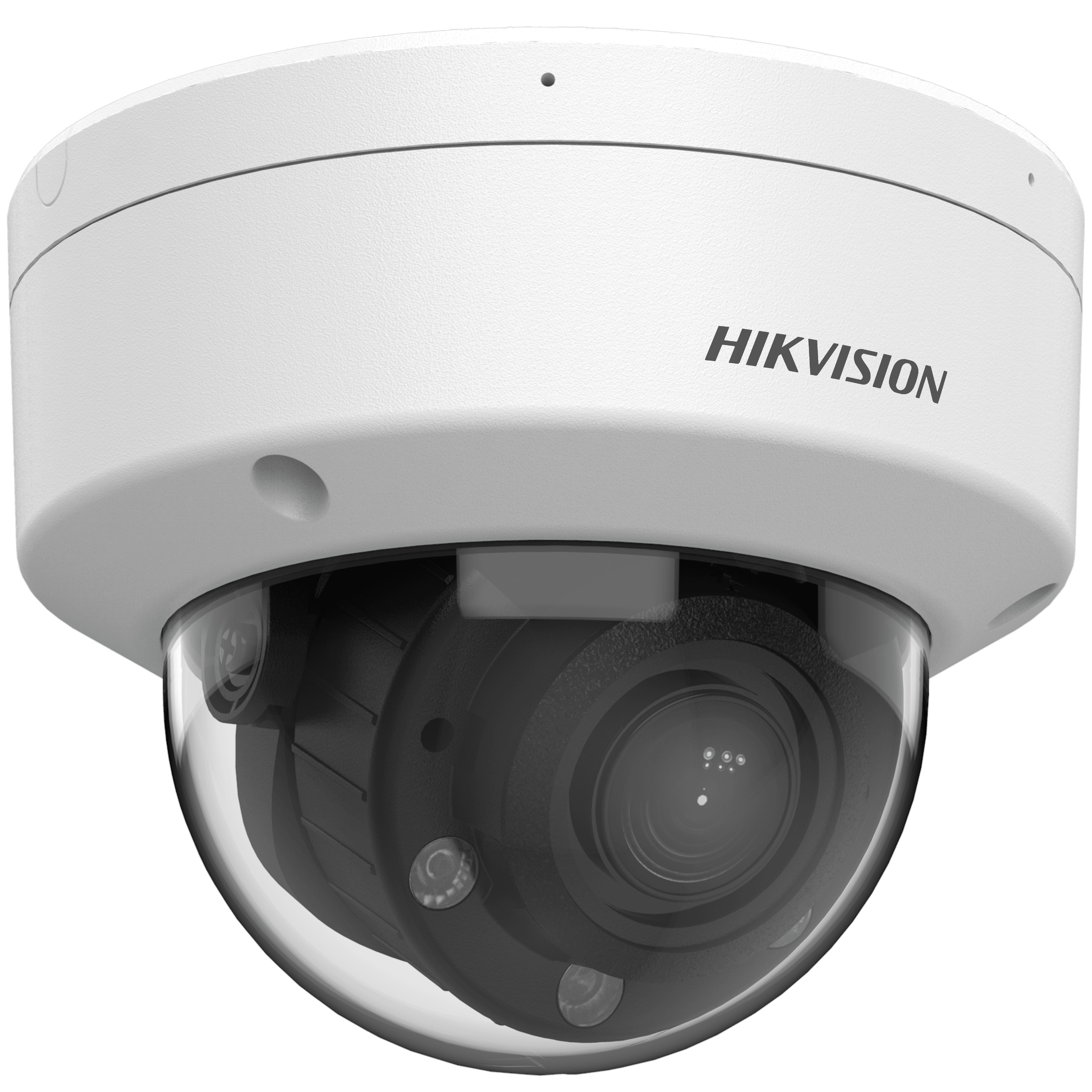

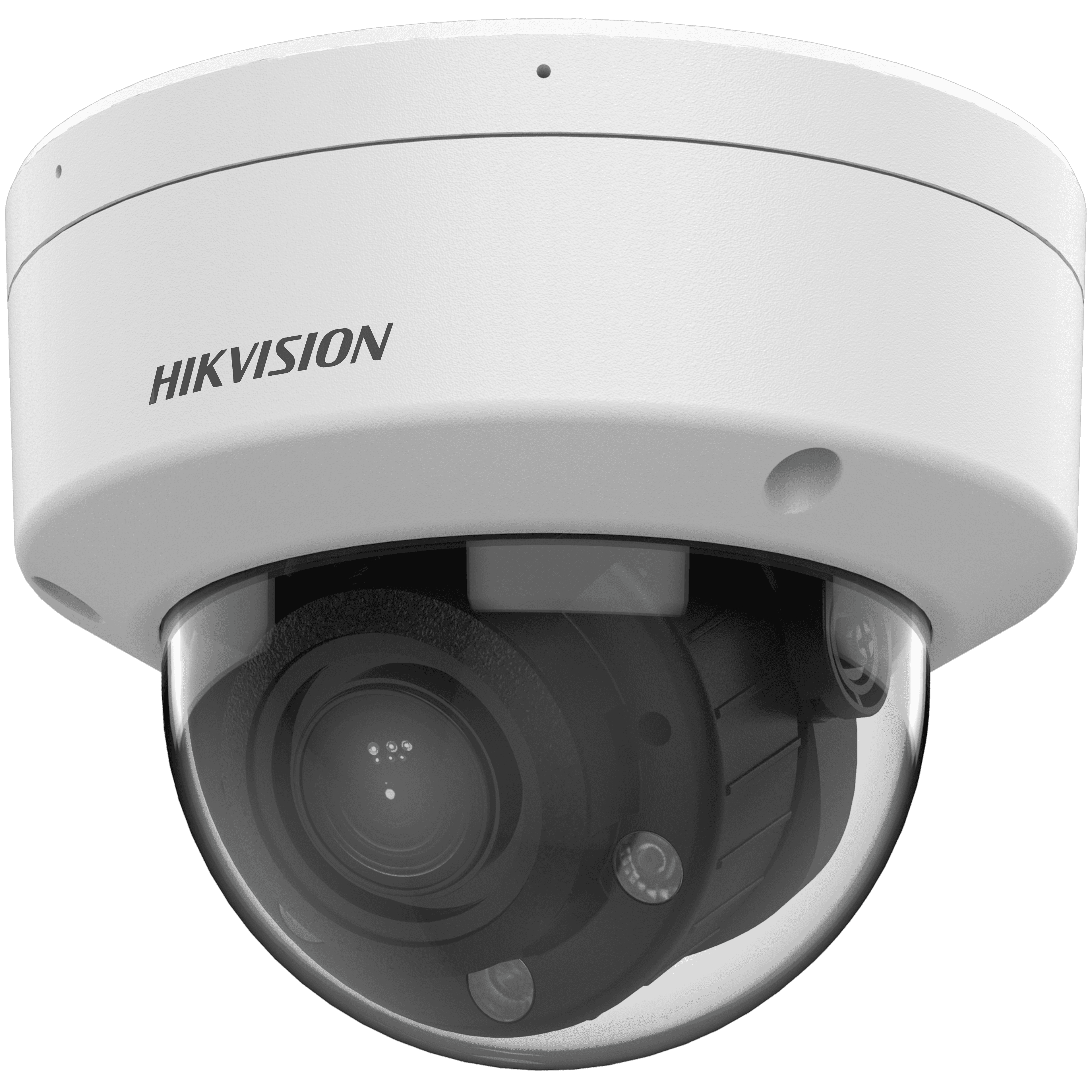

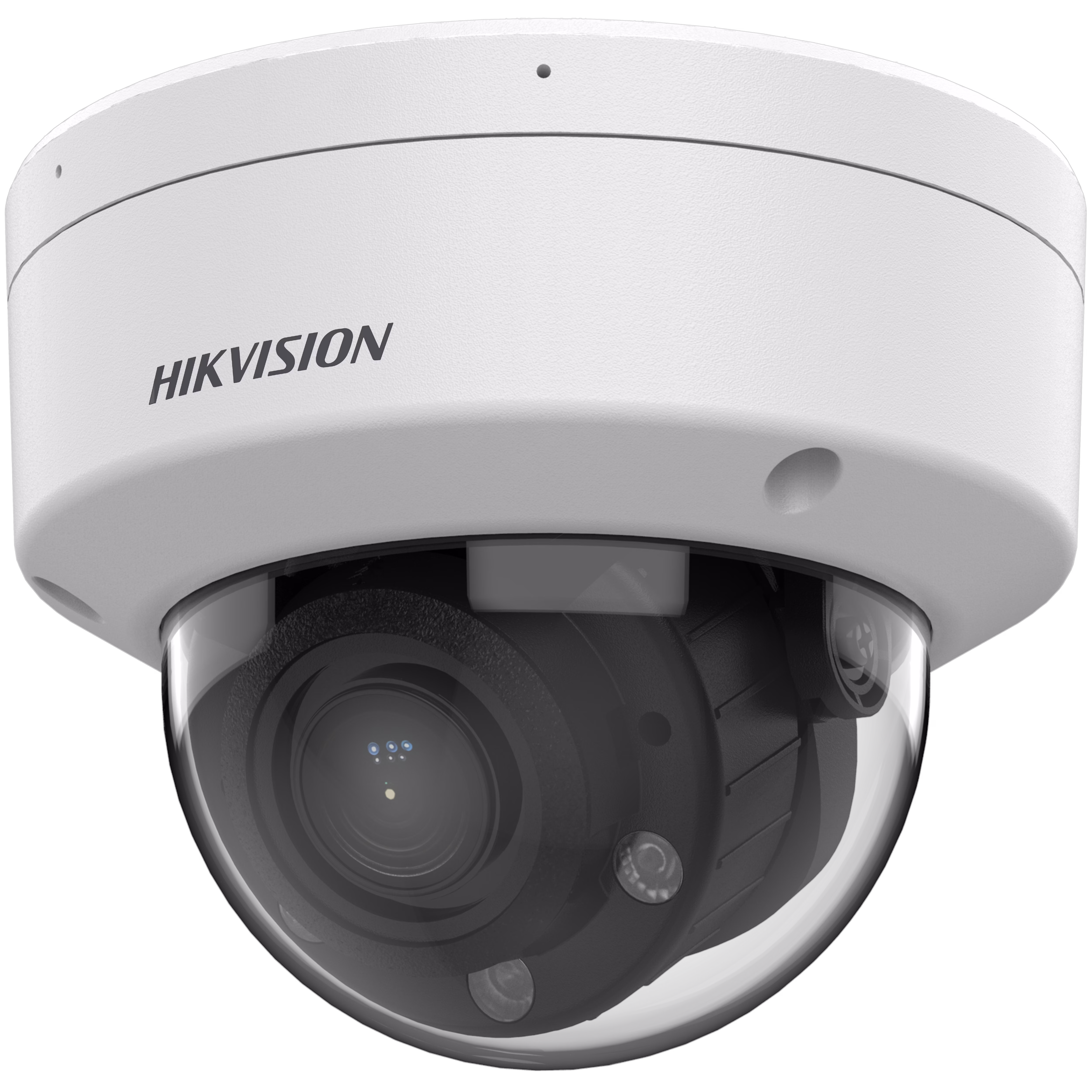

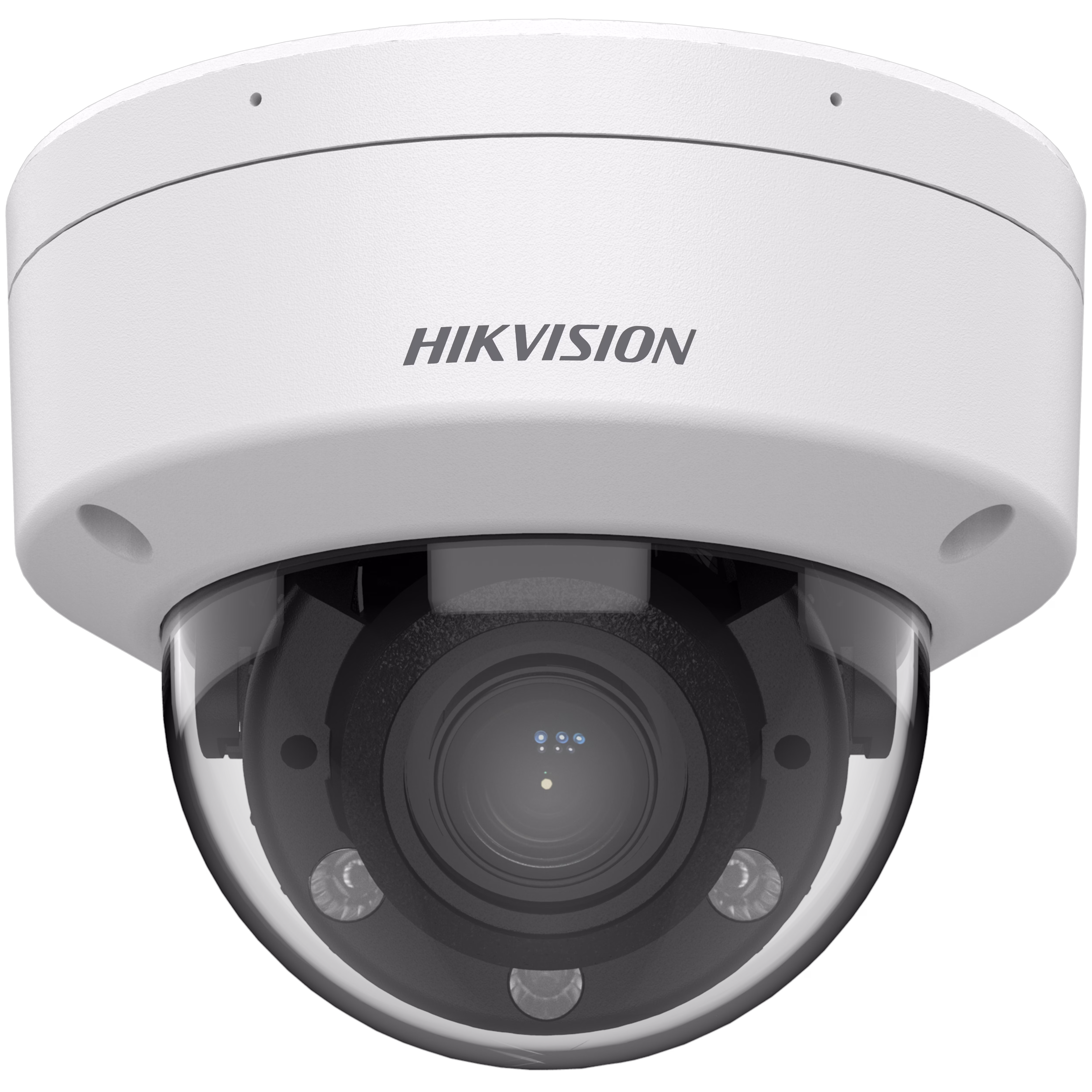

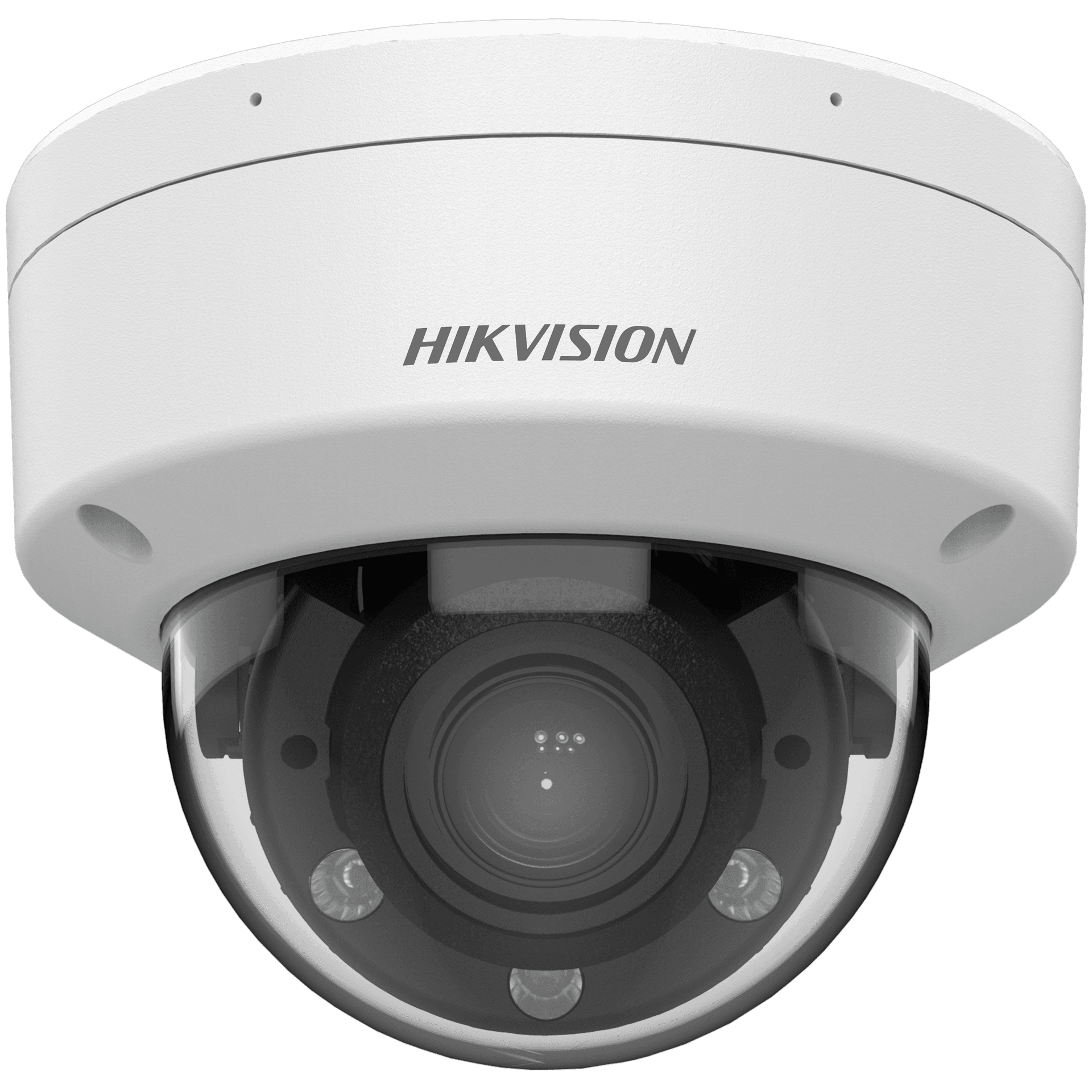

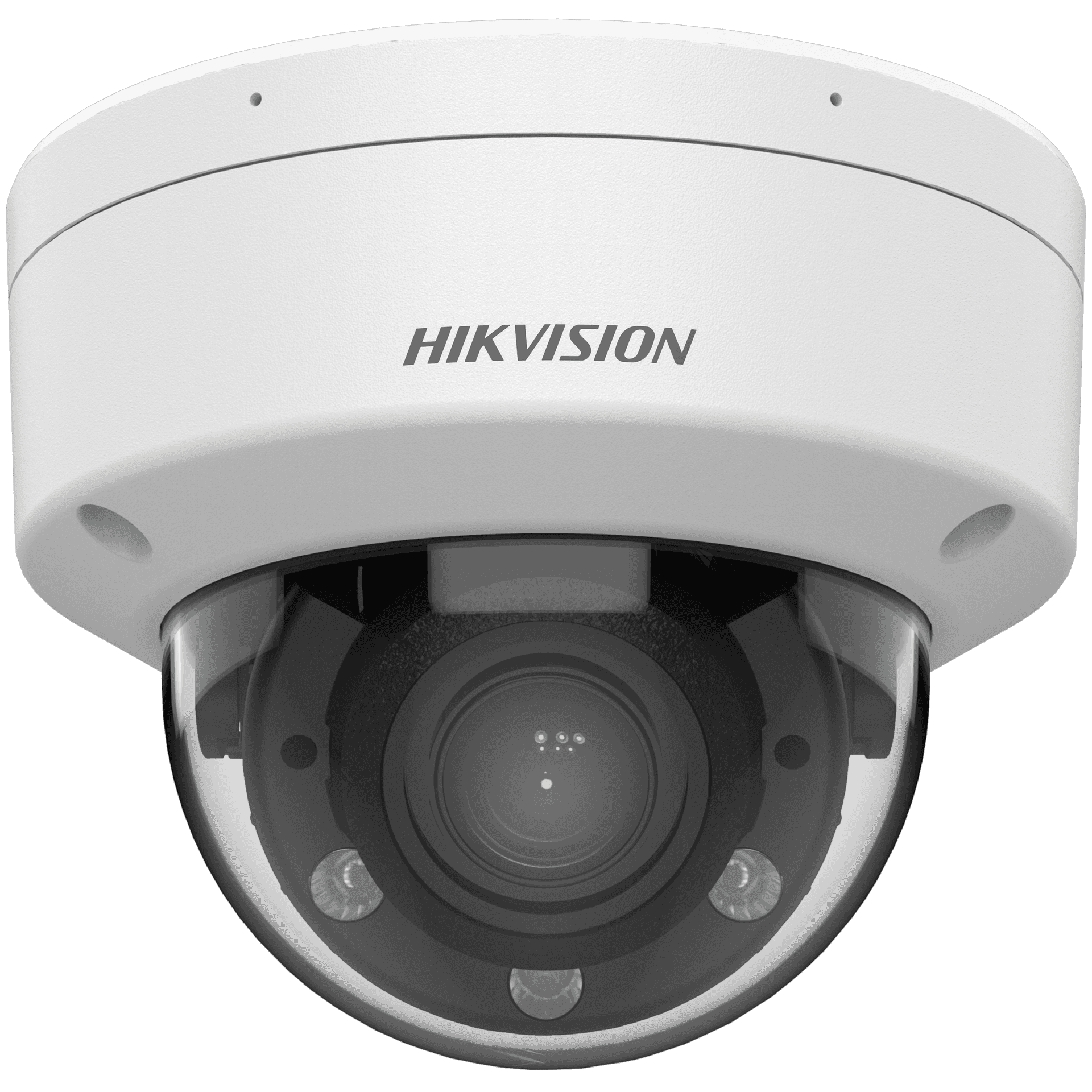

Hikvision DS-2CD1743G2-LIZU 4 MP Dual Light MD 2.0 Varifocal Dome Network Camera
Model :
SKU : DS-2CD1743G2-LIZU(2.8-12
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–70°, Rotate: 0°–355° |
| Lens Type | Varifocal, motorized, 2.8 to 12 mm |
| Focal Length & FOV | 2.8–12 mm, H: 96.7°–29.7°, V: 51.7°–16.7°, D: 114.3°–34° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | D: 64.0–198.0 m, O: 25.4–78.6 m, R: 12.8–39.6 m, I: 6.4–19.8 m |
| Supplement Light Type | IR, White Light |
| Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (2560×1440), 25 fps (1920×1080/1280×720) 60 Hz: 20 fps (2560×1440), 24 fps (1920×1080/1280×720) |
| Sub Stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 24 fps (1280×720, 640×480, 640×360) |
| Compression | H.265+/H.265/H.264+/H.264, Sub: H.265/H.264/MJPEG |
| Bit Rate | 32 Kbps–16 Mbps |
| H.264 Type | Baseline, Main, High |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264/H.265 encoding |
| ROI | 1 fixed region for main stream |
| Type | Mono sound |
| Compression | G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Sampling Rate | 8 kHz/16 kHz |
| Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/G/T), ISAPI, SDK |
| Security | Password protection, watermark, authentication, audit log |
| Users | Up to 32 (Admin, Operator, User) |
| Clients | iVMS-4200, Hik-Connect |
| Web Browser | IE10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ |
| Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Enhancements | BLC, HLC, 3D DNR |
| Privacy Mask | 4 polygonal masks |
| Ethernet | 1 RJ45 10/100M self-adaptive port |
| Storage | MicroSD/SDHC/SDXC, up to 512 GB |
| Built-in Mic | Yes |
| Audio I/O | 1 in, 1 out (line, terminal block) |
| Alarm I/O | 1 in, 1 out |
| Reset Key | Yes |
| Basic Events | Motion detection, video tampering, exception |
| Linkage | FTP upload, memory card, email, recording, snapshot, audible warning, alarm output (-S) |
| Power | 12 VDC ±25%, 0.8 A (max 9.6 W), PoE IEEE 802.3af (max 12 W) |
| Material | Base: Metal, Cover: Plastic |
| Dimension | Ø121.5 × 97.6 mm (Ø4.78 × 3.84") |
| Package Dimension | 150 × 150 × 141 mm (5.90" × 5.90" × 5.55") |
| Weight | 540 g (1.2 lb), with package 740 g (1.6 lb) |
| Conditions | Operating/Storage: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% |
| Language | English, Ukrainian |
| Functions | Heartbeat, anti-banding, mirror, password reset via email |
| EMC | CE, RCM, IC |
| Safety | UL, CB, CE-LVD, BIS |
| Environment | CE-RoHS, WEEE, Reach |
| Protection | IP67, IK08 |
