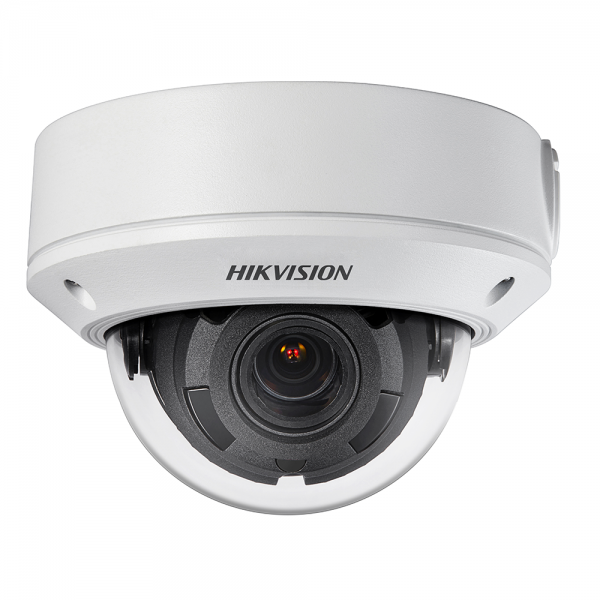

HIKVISION, DS-2CD1743GO-IZ, 4MP MOTORIZED VERIFOCAL DOME NETWORK CAMERA.

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 ?? 1440
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR


Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0?? to 355??, tilt: 0?? to 70??, rotation: 0?? to 355??

Lens
Lens TypeVarifocal Lens, motoried lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 102?? to 31??, vertical FOV 54?? to 17??, diagonal FOV 123?? to 35??
Lens Mount??14
Iris TypeFixed
ApertureF1.6

Illuminator
IR Wavelength850 nm
IR RangeUp to 30 m

Video
Main Stream50 Hz: 20 fps (2560 ?? 1440)

25 fps (1920 ?? 1080, 1280 ?? 720)

60 Hz: 20 fps (2560 ?? 1440)

30 fps (1920 ?? 1080, 1280 ?? 720)
Sub-Stream50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)

60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region Of Interest (ROI)1 fixed region for main stream


Audio
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP???, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels


APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Audio-S:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium
Alarm-S: 1 input,1 output, max. 12 VDC, 30 mA


Reset KeyYes

Event
Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General
Power12 VDC ?? 25%, 0.8 A, max. 10 W, ??5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Camera MaterialMetal
Camera Dimension??141 mm ?? 99.9 mm (??5.6" ?? 3.9")
Package Dimension140 mm ?? 140 mm ?? 154 mm (5.5" ?? 5.5" ?? 6.1")
Camera WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 ??C to 60 ??C (22 ??F to +140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ??C to 60 ??C (22 ??F to +140 ??F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian


General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Electrical Safety ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
