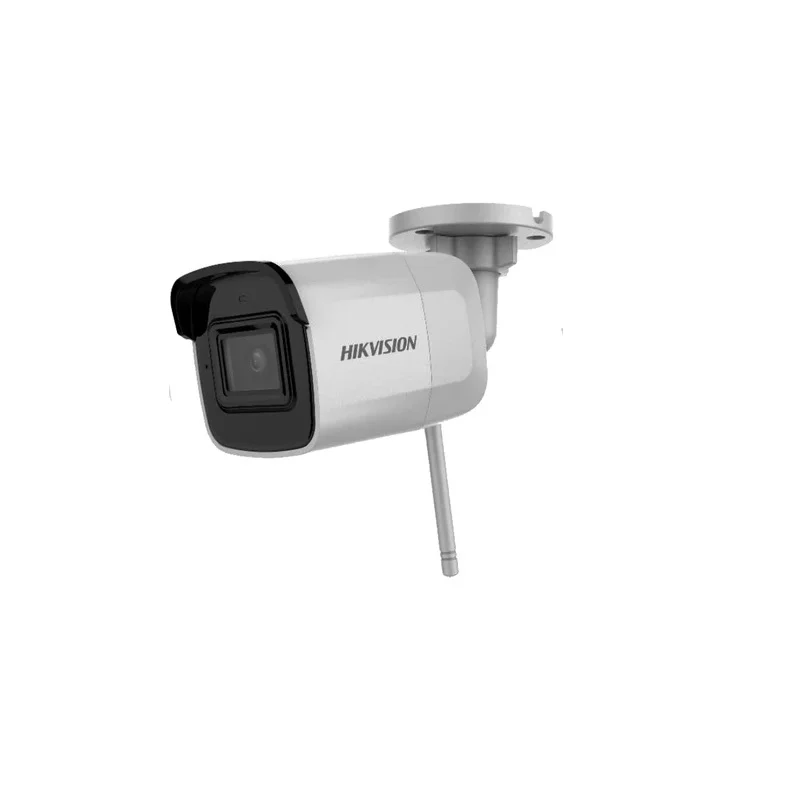

Hikvision DS-2CD2021G1-IDW 2 MP IR Fixed Network WiFi Bullet Camera, 1/2.8" Progressive Scan CMOS, IR Cut Filter, Up to 30 m, 2.8/4 mm Lens, Up to 128 GB SD card slot for storage, H.265+, IP66
Model :
SKU : DS-2CD2021G1-IDW1
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-2CD2021G1-IDW 2 MP IR Fixed Network Bullet Camera, 1/2.8" Progressive Scan CMOS, IR Cut Filter, Up to 30 m, 2.8/4 mm Lens, Up to 128 GB SD card slot for storage, H.265+, IP66
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | DWDR |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| DNR | 3D DNR |
| Lens | 2.8/4 mm |
| Aperture | F2.0 |
| FOV | 2.8 mm: horizontal FOV: 114??, vertical FOV: 62??, diagonal FOV: 135?? |
| 4 mm: horizontal FOV: 86??, vertical FOV: 46??, diagonal FOV: 102?? | |
| Lens Mount | M12 |
| Illuminator | IR Range: Up to 30 m |
| Wavelength: 850 nm | |
| Video | Max. Resolution: 1920 ?? 1080 |
| Main Stream | 50Hz: 25 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) |
| 60Hz: 30 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) | |
| Sub Stream | 50Hz: 25 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) |
| 60Hz: 30 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) | |
| Video Compression | Main stream: H.265/H.264 |
| Sub-stream: H.265/H.264/MJPEG | |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Smart Feature-Set | Region of Interest: Support 1 fixed region for main stream |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Saturation, brightness, contrast and sharpness are adjustable via client software and web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Wi-Fi | Protocol: 802.11b/g/n |
| Channel Bandwidth: 20/40 MHz | |
| Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK | |
| Transfer Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps | |
| Wireless Range: Up to 50 m | |
| Frequency Range: 2.4 GHz to 2.4835 GHz | |
| Standard: IEEE802.11b/g/n | |
| Network | Network Storage: Support microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour | |
| API: ONVIF (PROFILE S, PROFILE G), ISAPI | |
| Simultaneous Live View: Up to 6 channels | |
| User/Host: Up to 32 users. 3 levels: administrator, operator and user | |
| Client | Wired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500 |
| Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500 | |
| *Wi-Fi connection with Hik-Connect directly is not possible. | |
| Web Browser | IE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Interface | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Audio I/O: 1 Built-in mic, mono sound | |
| Approval | Protection: Ingress protection: IP66 (IEC 60529-2013) |
| Compression Standard | H.264+ Main stream supports, H.265+ Main stream supports |
| General | Firmware Version: V5.5.98 |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Reset: Yes | |
| Startup and Operating Conditions | -30 ??C to +60 ??C (-22 ??F to +140 ??F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ?? 25%, ?? 5.5 mm coaxial plug power |
| Power Consumption and Current: 12 VDC, 0.4 A, max. 4.8 W | |
| Material | Front cover: plastic, back cover: metal |
| Dimensions | Camera: 69.7 mm ?? 67.9 mm ?? 171.4 mm (2.7" ?? 2.7" ?? 6.7") |
| With package: 216 mm ?? 121 mm ?? 118 mm (8.5" ?? 4.8" ?? 4.6") | |
| Weight | Camera: approx. 372 g (0.8 lb.) |
| With package: approx. 659 g (1.5 lb.) |
Specification
Hikvision DS-2CD2021G1-IDW 2 MP IR Fixed Network Bullet Camera, 1/2.8" Progressive Scan CMOS, IR Cut Filter, Up to 30 m, 2.8/4 mm Lens, Up to 128 GB SD card slot for storage, H.265+, IP66
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | DWDR |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| DNR | 3D DNR |
| Lens | 2.8/4 mm |
| Aperture | F2.0 |
| FOV | 2.8 mm: horizontal FOV: 114??, vertical FOV: 62??, diagonal FOV: 135?? |
| 4 mm: horizontal FOV: 86??, vertical FOV: 46??, diagonal FOV: 102?? | |
| Lens Mount | M12 |
| Illuminator | IR Range: Up to 30 m |
| Wavelength: 850 nm | |
| Video | Max. Resolution: 1920 ?? 1080 |
| Main Stream | 50Hz: 25 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) |
| 60Hz: 30 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) | |
| Sub Stream | 50Hz: 25 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) |
| 60Hz: 30 fps (640 ?? 480, 640 ?? 360, 320 ?? 240) | |
| Video Compression | Main stream: H.265/H.264 |
| Sub-stream: H.265/H.264/MJPEG | |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Smart Feature-Set | Region of Interest: Support 1 fixed region for main stream |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Saturation, brightness, contrast and sharpness are adjustable via client software and web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Wi-Fi | Protocol: 802.11b/g/n |
| Channel Bandwidth: 20/40 MHz | |
| Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK | |
| Transfer Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps | |
| Wireless Range: Up to 50 m | |
| Frequency Range: 2.4 GHz to 2.4835 GHz | |
| Standard: IEEE802.11b/g/n | |
| Network | Network Storage: Support microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour | |
| API: ONVIF (PROFILE S, PROFILE G), ISAPI | |
| Simultaneous Live View: Up to 6 channels | |
| User/Host: Up to 32 users. 3 levels: administrator, operator and user | |
| Client | Wired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500 |
| Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500 | |
| *Wi-Fi connection with Hik-Connect directly is not possible. | |
| Web Browser | IE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Interface | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Audio I/O: 1 Built-in mic, mono sound | |
| Approval | Protection: Ingress protection: IP66 (IEC 60529-2013) |
| Compression Standard | H.264+ Main stream supports, H.265+ Main stream supports |
| General | Firmware Version: V5.5.98 |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Reset: Yes | |
| Startup and Operating Conditions | -30 ??C to +60 ??C (-22 ??F to +140 ??F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ?? 25%, ?? 5.5 mm coaxial plug power |
| Power Consumption and Current: 12 VDC, 0.4 A, max. 4.8 W | |
| Material | Front cover: plastic, back cover: metal |
| Dimensions | Camera: 69.7 mm ?? 67.9 mm ?? 171.4 mm (2.7" ?? 2.7" ?? 6.7") |
| With package: 216 mm ?? 121 mm ?? 118 mm (8.5" ?? 4.8" ?? 4.6") | |
| Weight | Camera: approx. 372 g (0.8 lb.) |
| With package: approx. 659 g (1.5 lb.) |
