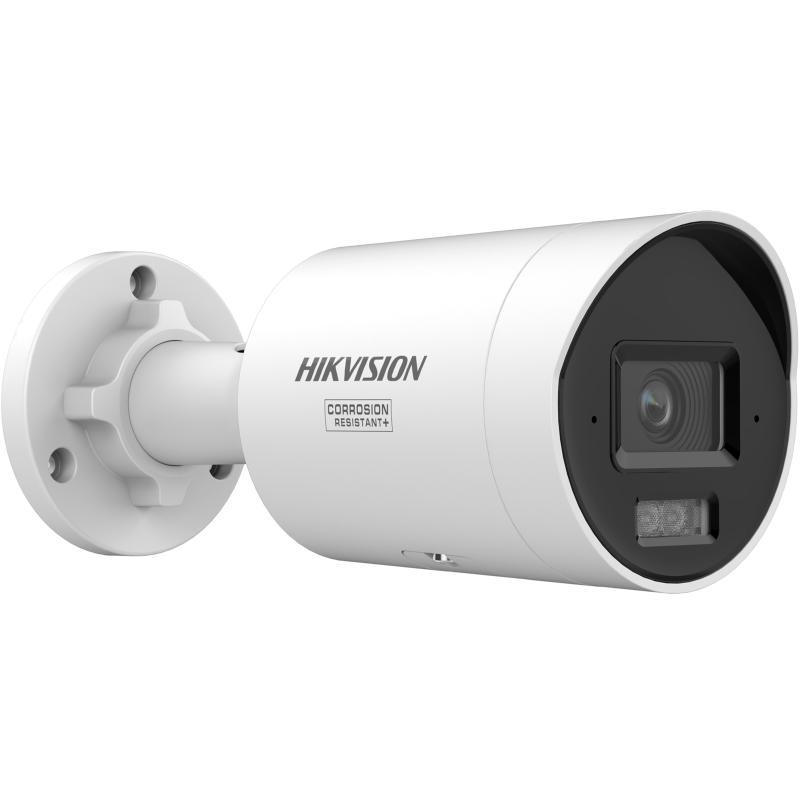

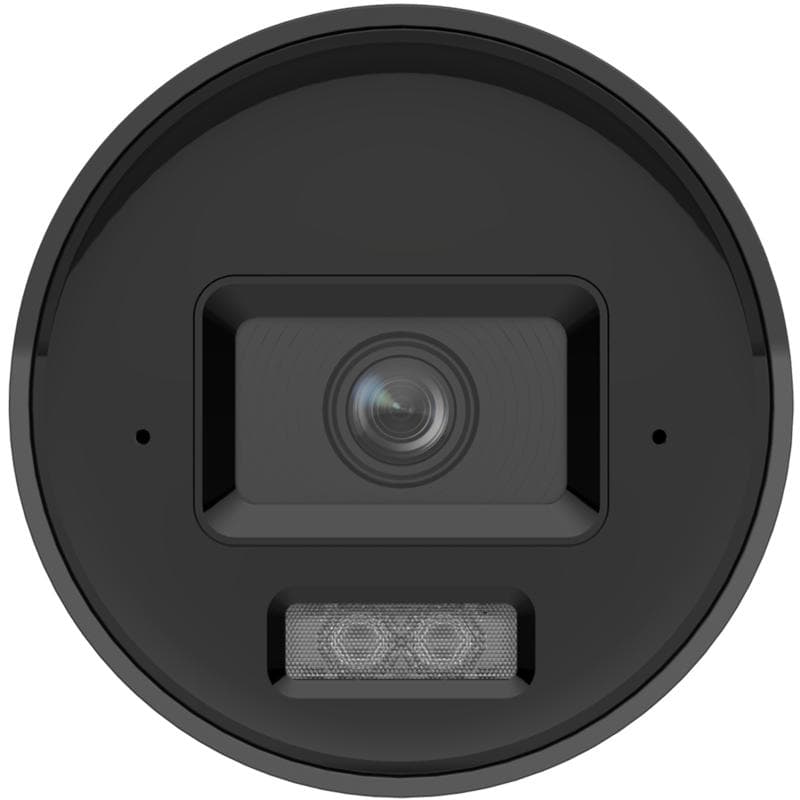

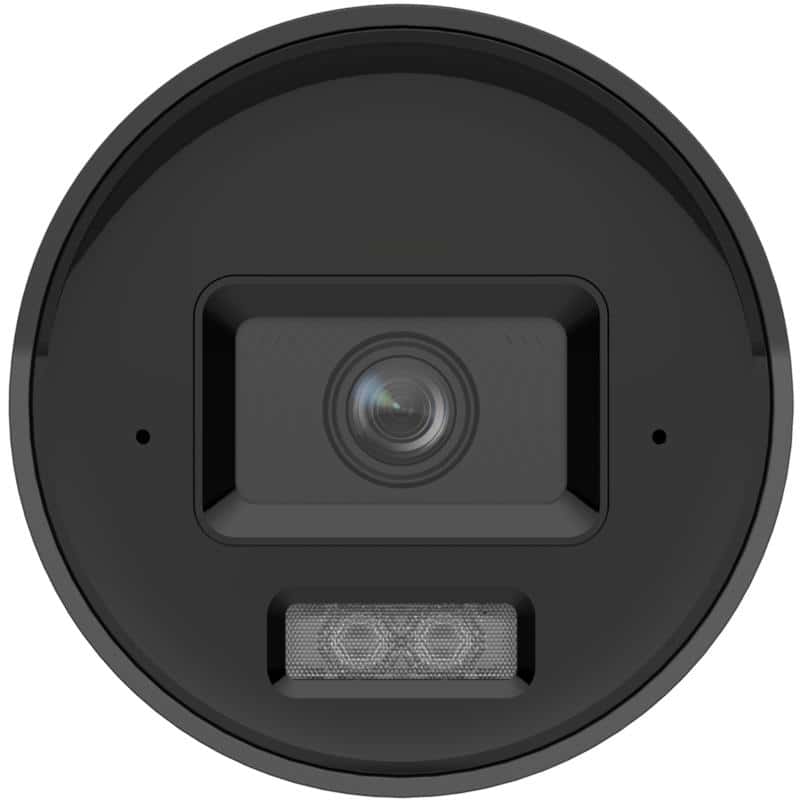

Hikvision DS-2CD2047G3-LI(2U)Y 4 MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera DS-2CD2047G3-LI2UY 2.8MM
Model :
SKU : DS-2CD2047G3-LI2UY 2.8MM
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Camera Specifications
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens | Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional Focal Length & FOV: - 2.8 mm: Horizontal FOV 111.1??, Vertical FOV 57.6??, Diagonal FOV 138.5?? - 4 mm: Horizontal FOV 95.2??, Vertical FOV 48.3??, Diagonal FOV 117.4?? Lens Mount: M16 Iris Type: Fixed Aperture: F1.0 Depth of Field: - 2.8 mm: 2.5 m to ??? - 4 mm: 3.1 m to ??? |
| DORI | 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m |
| Illuminator | Supplement Light Type: White Light, IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720); 60 Hz: 30 fps Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360); 60 Hz: 30 fps Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480); 60 Hz: 10 fps *The third stream is supported under certain settings. Video Compression: Main: H.265/H.264/H.264+/H.265+, Sub: H.265/H.264/MJPEG, Third: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline, Main, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR ROI: 1 fixed region for main stream |
| Audio | Audio Type: Mono Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), AAC-LC: 16-64 Kbps Audio Compression: G.711, G.722.1, G.726, MP2L2, MP3, AAC-LC Audio Sampling Rate: 8/16/32/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, etc. Simultaneous Live View: Up to 6 channels API: ONVIF (Profile S/G/T), ISAPI, SDK User/Host: Up to 32 users (3 levels: admin, operator, user) Security: Password protection, HTTPS encryption, TLS 1.1/1.2/1.3, and more Network Storage: NAS, ANR Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Chrome 80+, Firefox 80+, Edge 89+ |
| Image | Image Parameters Switch: Yes Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain Day/Night Switch: Day, Night, Auto, Schedule Enhancement: BLC, HLC, 3D DNR, Defog, Distortion Correction WDR: 130 dB Privacy Mask: 4 programmable regions |
| Interface | Ethernet: 1 RJ45 10M/100M port On-Board Storage: Supports up to 512 GB microSD Audio: Built-in microphone (dual array) Reset Key: Yes |
| Event | Basic Event: Motion detection, tampering alarm, exceptions Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, email Smart Event: Scene change detection |
| General | Power: 12 VDC ?? 25%, PoE: IEEE 802.3af Material: Metal (front cover, body, bracket) Dimensions: ??74.4 mm ?? 176.3 mm Weight: Approx. 530 g (1.2 lb.) Startup Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F), Humidity ??? 95% Languages: 33 languages supported Approval: CE, UL, IP67, NEMA 4X |
