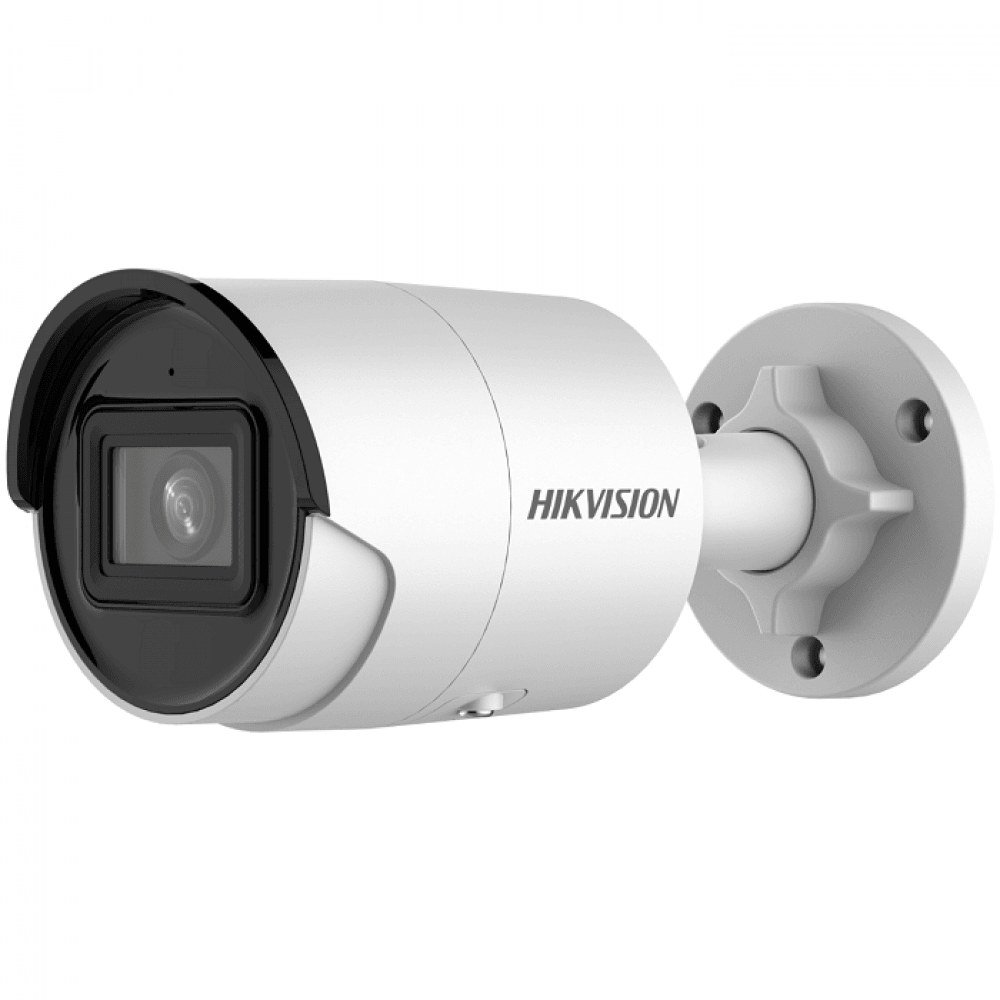

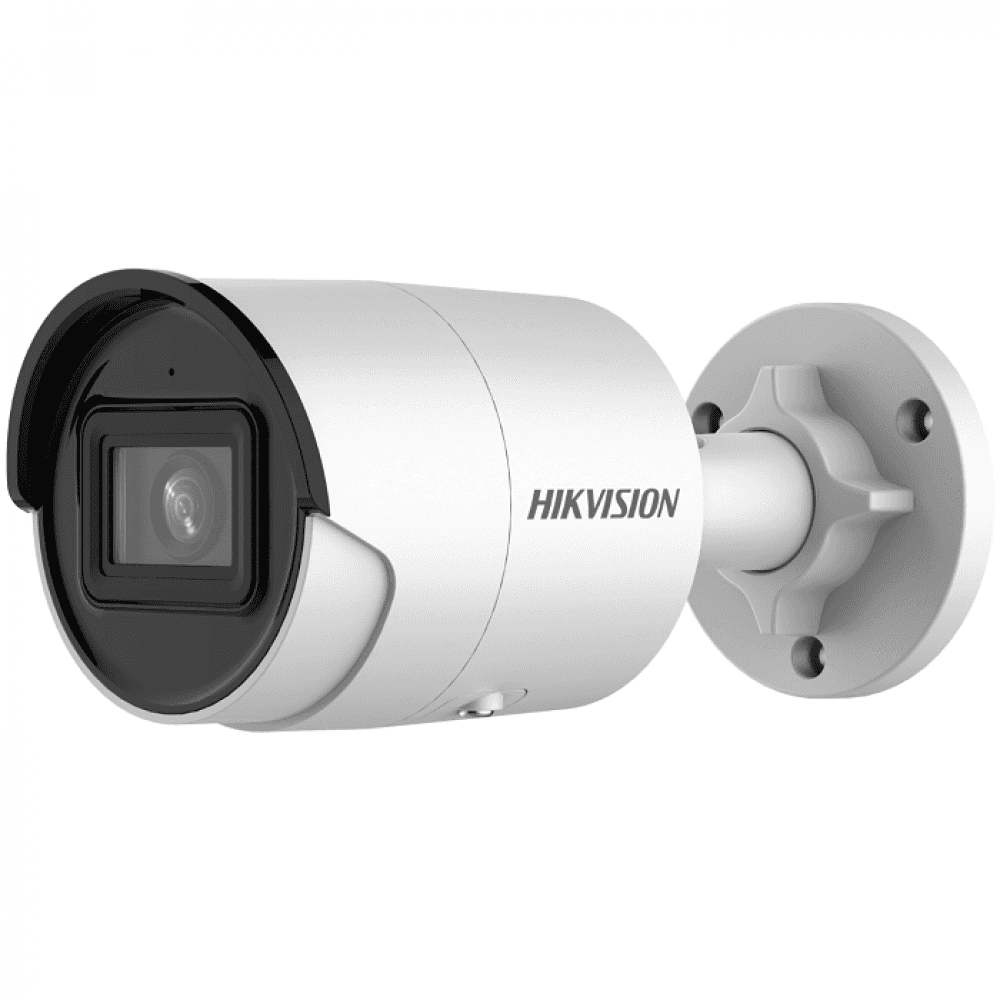

HIKVISION, DS-2CD2063G2-IU, 6 MP AcuSense Fixed Bullet Network Camera High quality imaging with 6 MP resolution.

Camera

Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 x 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360??

Lens
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 105??, vertical FOV 55??, diagonal FOV 127??

4 mm, horizontal FOV 78??, vertical FOV 38??, diagonal FOV 96??

6 mm, horizontal FOV 51??, vertical FOV 26??, diagonal FOV 59??
Lens MountM12
Iris TypeFixed
ApertureF1.6

DORI
DORI2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)

60 Hz: 30 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
Sub-Stream50 Hz: 25 fps (1280 x 720, 640 ?? 480, 640 ?? 360)

60 Hz: 30 fps (1280 x 720, 640 ?? 480, 640 ?? 360)
Third Stream50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)

60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)

*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-U: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR??? 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
Built-In Microphone-U: Yes
Reset KeyYes

Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

Face detection
LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General
Power12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.2 W
Dimension??70 mm ?? 161.7 mm (??2.8" ?? 6.4")
Package Dimension216 mm ?? 121 mm ?? 118 mm (8.6" ?? 4.8" ?? 4.7")
WeightApprox. 485 g (1.1 lb.)
With Package WeightApprox. 744 g (1.6 lb.)
Storage Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat, mirror, heartbeat, password reset via email, pixel counter, anti-flicker
Language33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
