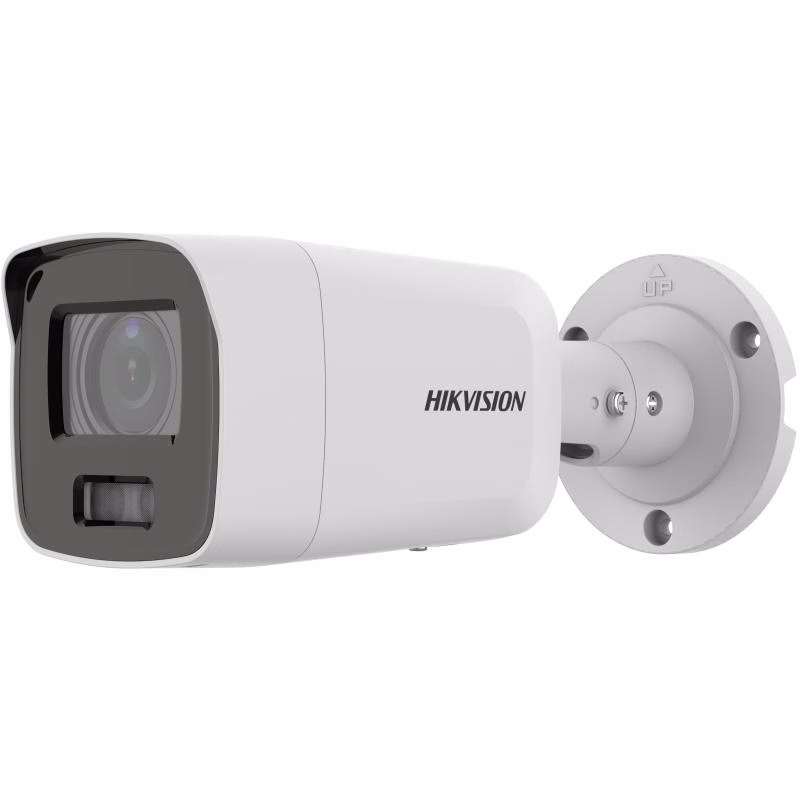

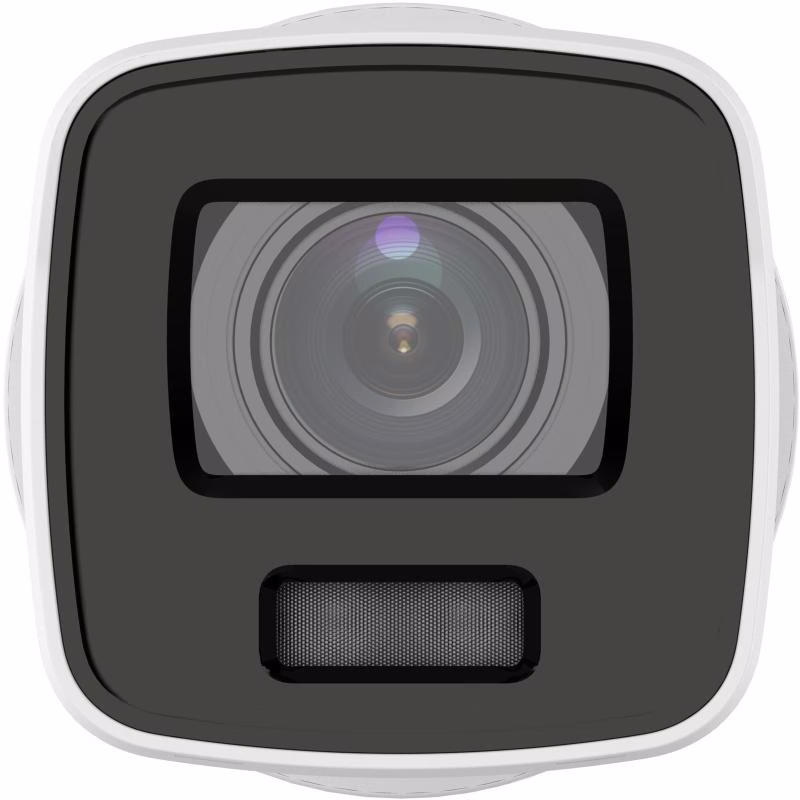

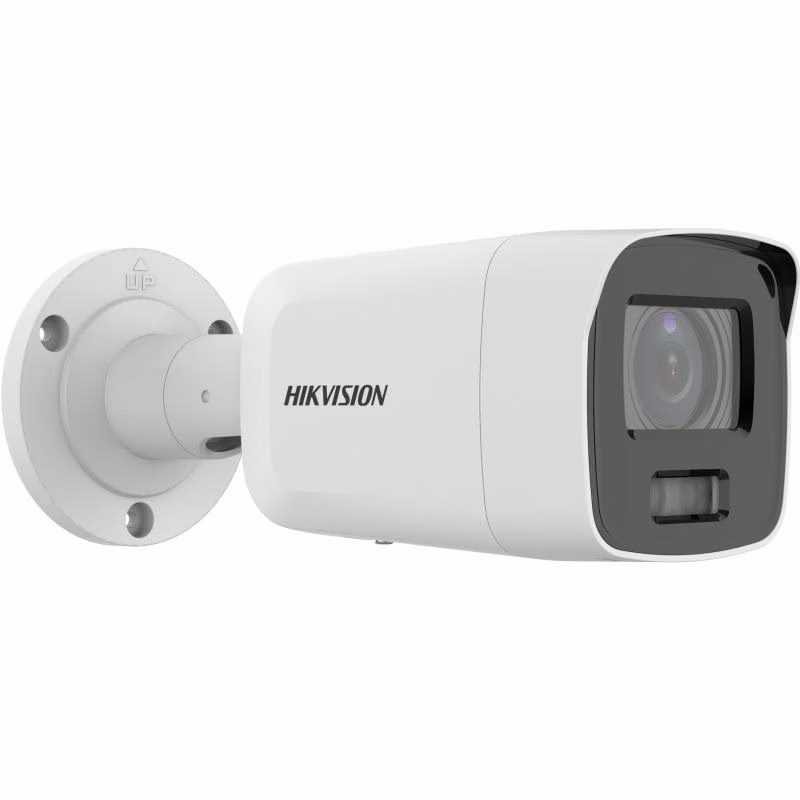

HIKVISION DS-2CD2087G2-L 2.8MM, 8MP 24/7 Color Outdoor Fixed Bullet Network AI Camera with 2.8mm Lens and Smart Supplement Light, Built-in microphone, 24/7 colorful imaging
Model :
SKU : DS-2CD2087G2-LU 2.8MM
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
HIKVISION DS-2CD2087G2-L 2.8MM, 8MP 24/7 Color Outdoor Fixed Bullet Network Camera With 2.8mm Lens And Smart Supplement Light, RJ45 Connection
| Image Sensor | 1/1.2" Progressive Scan CMOS |
| Max. Resolution | 3840 ?? 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm: horizontal FOV 102??, vertical FOV 52??, diagonal FOV 124?? 4 mm: horizontal FOV 88??, vertical FOV 47??, diagonal FOV 104?? 6 mm: horizontal FOV 54??, vertical FOV 30??, diagonal FOV 62?? |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2.8 mm: 4.5 m to ??? 4 mm: 7 m to ??? 6 mm: 13 m to ??? |
| DORI | 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m |
| Supplement Light Type | White light |
| Supplement Light Range | 40 m |
| Smart Supplement Light | Yes |
| Main Stream Video | 50 Hz: 25 fps (3840 ?? 2160, 3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 24 fps (3840 ?? 2160) 30 fps (3200 x 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream Video | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Third Stream Video | 50 Hz: 10 fps (1920 x 1080 , 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 x 1080 , 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
Specification
HIKVISION DS-2CD2087G2-L 2.8MM, 8MP 24/7 Color Outdoor Fixed Bullet Network Camera With 2.8mm Lens And Smart Supplement Light, RJ45 Connection
| Image Sensor | 1/1.2" Progressive Scan CMOS |
| Max. Resolution | 3840 ?? 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm: horizontal FOV 102??, vertical FOV 52??, diagonal FOV 124?? 4 mm: horizontal FOV 88??, vertical FOV 47??, diagonal FOV 104?? 6 mm: horizontal FOV 54??, vertical FOV 30??, diagonal FOV 62?? |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2.8 mm: 4.5 m to ??? 4 mm: 7 m to ??? 6 mm: 13 m to ??? |
| DORI | 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m |
| Supplement Light Type | White light |
| Supplement Light Range | 40 m |
| Smart Supplement Light | Yes |
| Main Stream Video | 50 Hz: 25 fps (3840 ?? 2160, 3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 24 fps (3840 ?? 2160) 30 fps (3200 x 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream Video | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Third Stream Video | 50 Hz: 10 fps (1920 x 1080 , 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 x 1080 , 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
