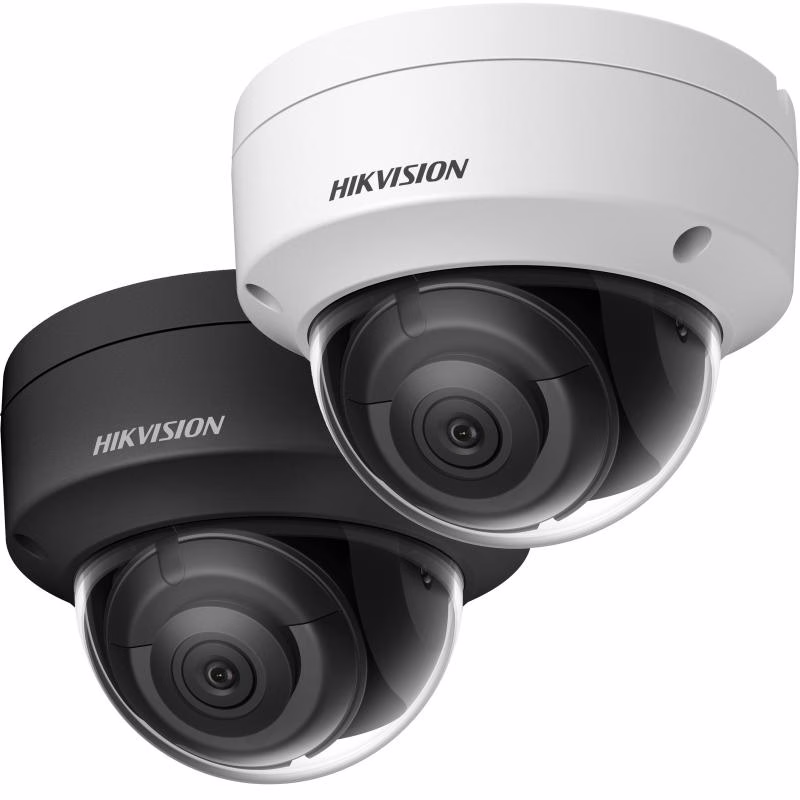

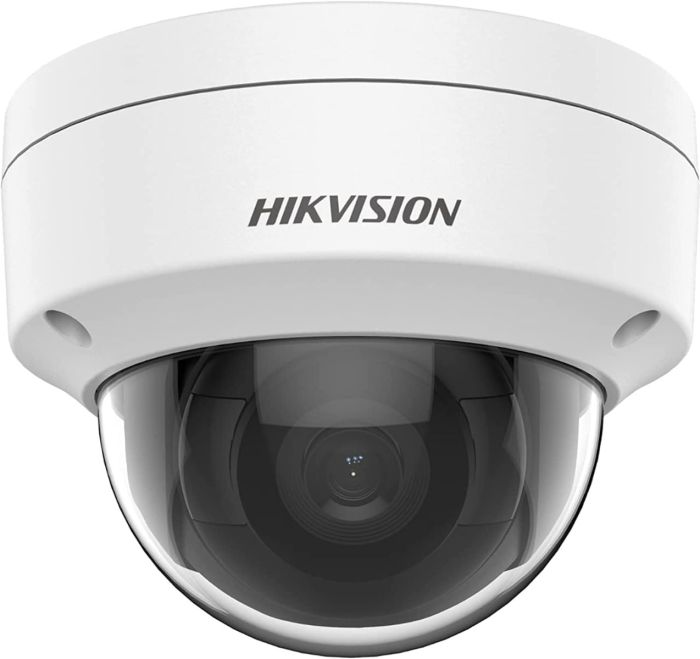

Hikvision DS-2CD2123G2-I 2MP Dome Camera
Model :
SKU : DS-2CD2123G2-I 2.8MM
About this item
Description
Camera Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 107??, Vertical FOV 57??, Diagonal FOV 127?? 4 mm: Horizontal FOV 87??, Vertical FOV 46??, Diagonal FOV 104?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1 m to ??? 4 mm: 1.2 m to ??? |
Illuminator
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | H.265/H.264/H.264+/H.265+ |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF, ISAPI, SDK |
| Security | Password protection, HTTPS encryption, IP address filter |
General
| Power | 12 VDC ?? 25%, PoE: IEEE 802.3af, Class 3 |
| Material | Body: aluminum alloy, Bubble: plastic |
| Dimension | ??110.8 mm ?? 84.7 mm |
| Weight | Approx. 530 g |
| Storage Conditions | -30 ??C to 60 ??C, Humidity 95% or less |
Specification
Camera Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
Lens
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 107??, Vertical FOV 57??, Diagonal FOV 127?? 4 mm: Horizontal FOV 87??, Vertical FOV 46??, Diagonal FOV 104?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1 m to ??? 4 mm: 1.2 m to ??? |
Illuminator
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | H.265/H.264/H.264+/H.265+ |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF, ISAPI, SDK |
| Security | Password protection, HTTPS encryption, IP address filter |
General
| Power | 12 VDC ?? 25%, PoE: IEEE 802.3af, Class 3 |
| Material | Body: aluminum alloy, Bubble: plastic |
| Dimension | ??110.8 mm ?? 84.7 mm |
| Weight | Approx. 530 g |
| Storage Conditions | -30 ??C to 60 ??C, Humidity 95% or less |
