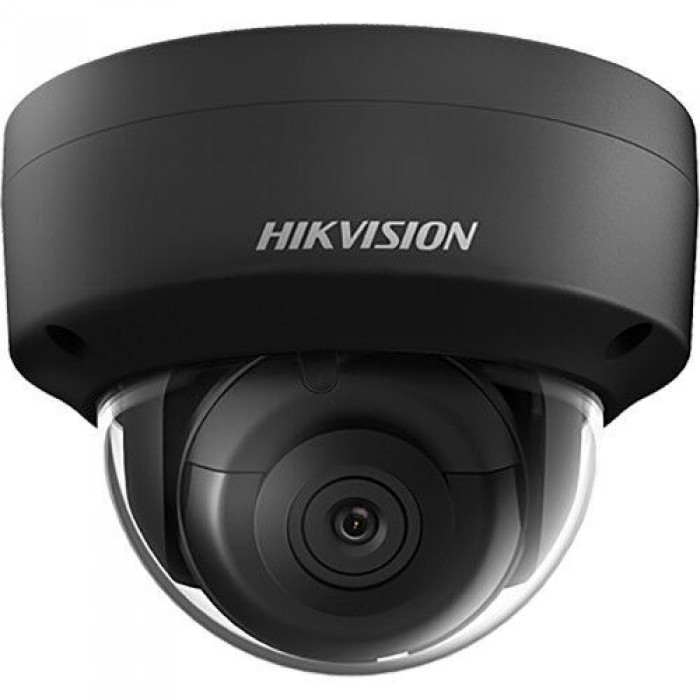

Hikvision DS-2CD2143G0-I(S) 4 MP IR Fixed Dome Black Network Camera, 1/3" Progressive Scan CMOS, 2688 ?? 1520 @30fps, 2.8/4/6/8 mm fixed lens, H.265+, 2 Behavior analyses, and face detection, H.265+, IP67, IK10, 3-Axis adjustment,
Model :
SKU : DS-2CD2143G0-I black
About this item
Description
Hikvision DS-2CD2143G0-I(S) 4 MP IR Fixed Dome Black Network Camera, 1/3" Progressive Scan CMOS, 2688 ?? 1520 @30fps, 2.8/4/6/8 mm fixed lens, H.265+, 2 Behavior analyses, and face detection, H.265+, IP67, IK10, 3-Axis adjustment,
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75??, rotate: 0?? to 355?? |
| Lens | Focus: Fixed Lens Type: 2.8/4/6/8 mm FOV: 2.8 mm, horizontal FOV: 103??, vertical FOV: 58??, diagonal FOV: 123??; 4 mm, horizontal FOV: 83??, vertical FOV: 45??, diagonal FOV: 99??; 6 mm, horizontal FOV: 51??, vertical FOV: 29??, diagonal FOV: 58??; 8 mm, horizontal FOV: 39??, vertical FOV: 22??, diagonal FOV: 45?? Aperture: F1.6 Lens Mount: M12 Aperture Type: Fixed |
| Illuminator | IR Range: Up to 30 m Wavelength: 850nm |
| Video | Max. Resolution: 2688 ?? 1520 Main Stream: 50Hz:25fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720); 60Hz: 30fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720) Sub Stream: 50Hz: 25fps (640 ?? 480, 640 ?? 360, 320 ?? 240), 60Hz: 30fps (640 ?? 480, 640 ?? 360, 320 ?? 240) Third Stream: 50Hz: 25fps (1280 ?? 720, 640 ?? 360, 352 ?? 288), 60Hz: 30fps (1280 ?? 720, 640 ?? 360, 352 ?? 240) Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Audio | Environment Noise Filtering: Yes Audio Sampling Rate: 8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network | Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/Host: Up to 32 users, 3 levels: Administrator, Operator and User Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm | Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error Smart Event: Line crossing detection, intrusion detection, face detection |
| Image | Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S) Target Cropping: No DNR: 3D DNR Image Enhancement: BLC/3D DNR/HLC Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | Audio: 1 input (line in/mic in), 1 output (line out), terminal block, mono sound Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block Video Output: No On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Hardware Reset: Yes Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: Line crossing detection, intrusion detection, face detection |
| General | Firmware Version: 5.6.3 Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions: -30 ??C to +60 ??C (-22 ??F to +140 ??F), Humidity 95% or less (non-condensing) Power Supply: 12 VDC ?? 25%, ?? 5.5 mm coaxial power plug, PoE (802.3af, class 3) Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W Camera Dimension: Camera: ?? 111 ?? 82.4 mm (?? 4.4" ?? 3.2"), Package: 134 ?? 134 ?? 108 mm (5.3" ?? 5.3" ?? 4.3") Camera Weight: Camera: Approx. 610 g (1.3 lb.), With Package: Approx. 820 g (1.8 lb.) Approval: IK10, IP67 |
Specification
Hikvision DS-2CD2143G0-I(S) 4 MP IR Fixed Dome Black Network Camera, 1/3" Progressive Scan CMOS, 2688 ?? 1520 @30fps, 2.8/4/6/8 mm fixed lens, H.265+, 2 Behavior analyses, and face detection, H.265+, IP67, IK10, 3-Axis adjustment,
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75??, rotate: 0?? to 355?? |
| Lens | Focus: Fixed Lens Type: 2.8/4/6/8 mm FOV: 2.8 mm, horizontal FOV: 103??, vertical FOV: 58??, diagonal FOV: 123??; 4 mm, horizontal FOV: 83??, vertical FOV: 45??, diagonal FOV: 99??; 6 mm, horizontal FOV: 51??, vertical FOV: 29??, diagonal FOV: 58??; 8 mm, horizontal FOV: 39??, vertical FOV: 22??, diagonal FOV: 45?? Aperture: F1.6 Lens Mount: M12 Aperture Type: Fixed |
| Illuminator | IR Range: Up to 30 m Wavelength: 850nm |
| Video | Max. Resolution: 2688 ?? 1520 Main Stream: 50Hz:25fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720); 60Hz: 30fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720) Sub Stream: 50Hz: 25fps (640 ?? 480, 640 ?? 360, 320 ?? 240), 60Hz: 30fps (640 ?? 480, 640 ?? 360, 320 ?? 240) Third Stream: 50Hz: 25fps (1280 ?? 720, 640 ?? 360, 352 ?? 288), 60Hz: 30fps (1280 ?? 720, 640 ?? 360, 352 ?? 240) Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Audio | Environment Noise Filtering: Yes Audio Sampling Rate: 8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network | Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/Host: Up to 32 users, 3 levels: Administrator, Operator and User Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm | Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error Smart Event: Line crossing detection, intrusion detection, face detection |
| Image | Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S) Target Cropping: No DNR: 3D DNR Image Enhancement: BLC/3D DNR/HLC Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | Audio: 1 input (line in/mic in), 1 output (line out), terminal block, mono sound Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block Video Output: No On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Hardware Reset: Yes Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: Line crossing detection, intrusion detection, face detection |
| General | Firmware Version: 5.6.3 Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions: -30 ??C to +60 ??C (-22 ??F to +140 ??F), Humidity 95% or less (non-condensing) Power Supply: 12 VDC ?? 25%, ?? 5.5 mm coaxial power plug, PoE (802.3af, class 3) Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W Camera Dimension: Camera: ?? 111 ?? 82.4 mm (?? 4.4" ?? 3.2"), Package: 134 ?? 134 ?? 108 mm (5.3" ?? 5.3" ?? 4.3") Camera Weight: Camera: Approx. 610 g (1.3 lb.), With Package: Approx. 820 g (1.8 lb.) Approval: IK10, IP67 |
