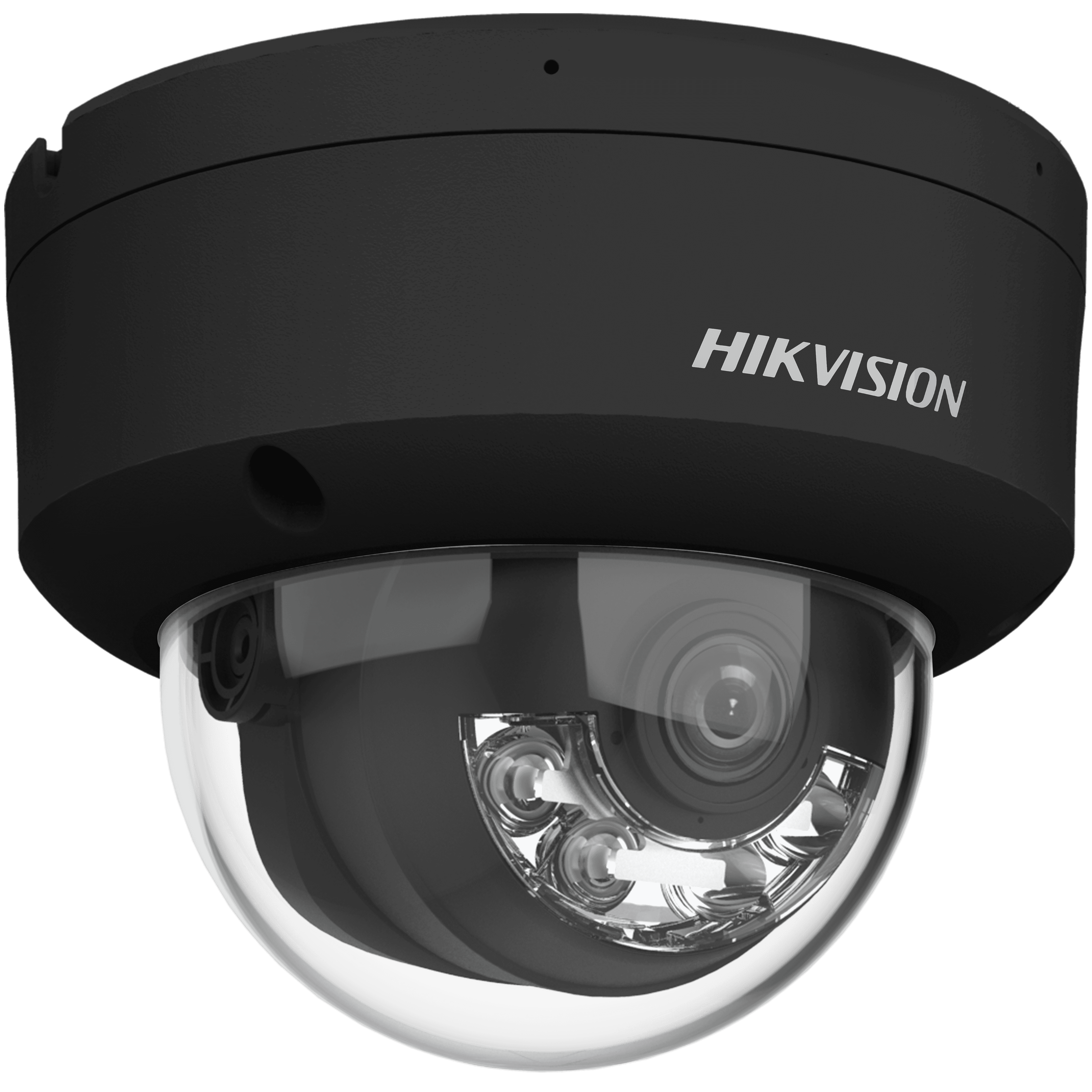

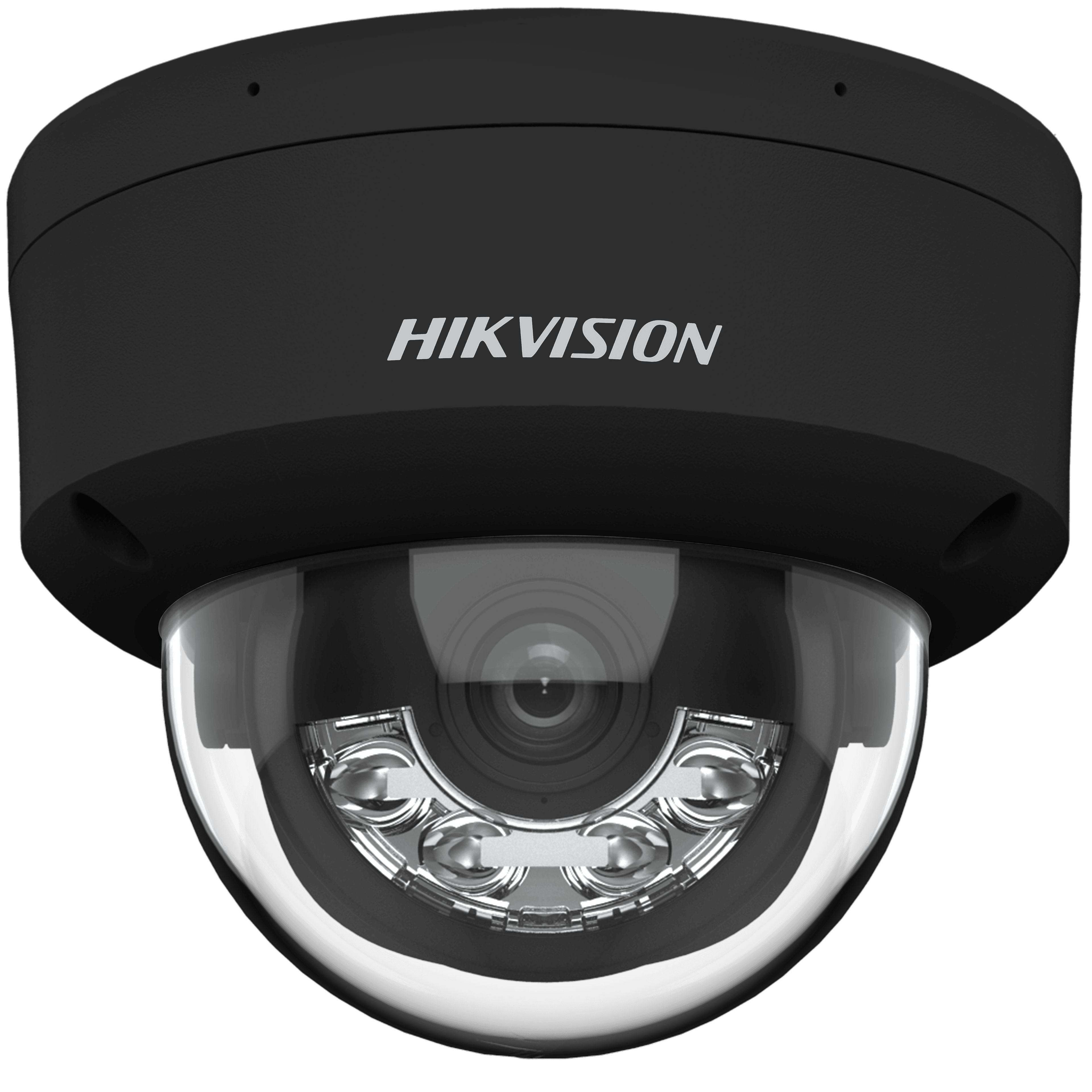

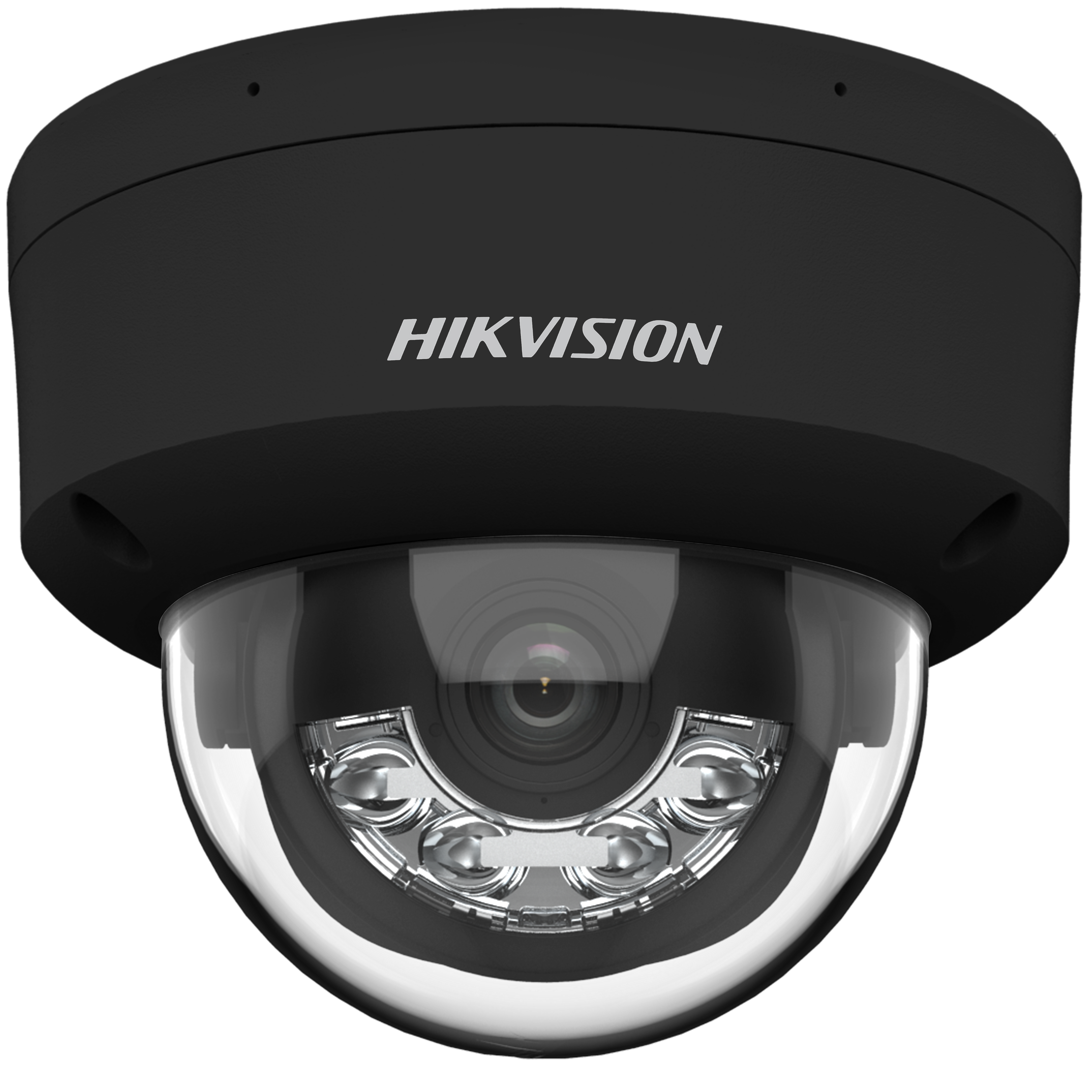

Hikvision DS-2CD2143G2-LIS2U Black 4 MP Acusense Smart Hybrid Light Fixed Dome Network Camera
Model :
SKU : DS-2CD2143G2-LIS2U BLACK
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Camera Specifications
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, H: 104°, V: 57°, D: 122° 4 mm, H: 84°, V: 45°, D: 100° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞ |
| DORI | 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Supported under certain settings |
| Video Compression | Main: H.265/H.264/H.264+/H.265+ Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps to 320 Kbps (depending on codec) |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, SNMP, IPv4, IPv6, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (S, G), ISAPI, SDK, ISUP |
| Security | Password, HTTPS, TLS 1.1/1.2/1.3, Audit Log |
| Users | Up to 32 users (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS, ANR, memory card encryption & health detection |
| Web Browser | IE 11, Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Image Settings | Rotate, Day/Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon masks |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive port |
| Audio I/O | Built-in mic, 1 line in, 1 line out |
| On-Board Storage | MicroSD/SDHC/SDXC up to 512 GB |
| Alarm | 1 input, 1 output |
| Power | 12 VDC ± 25% (7.2 W), PoE IEEE 802.3af (8.5 W) |
| Material | Aluminum alloy (base & cover) |
| Dimensions | Ø121.5 mm × 97.6 mm |
| Weight | Approx. 600 g (830 g with package) |
| Operating Conditions | -30 °C to 60 °C, Humidity ≤ 95% |
| Languages | 33 languages supported |
| Protection | IP67, IK10 |
