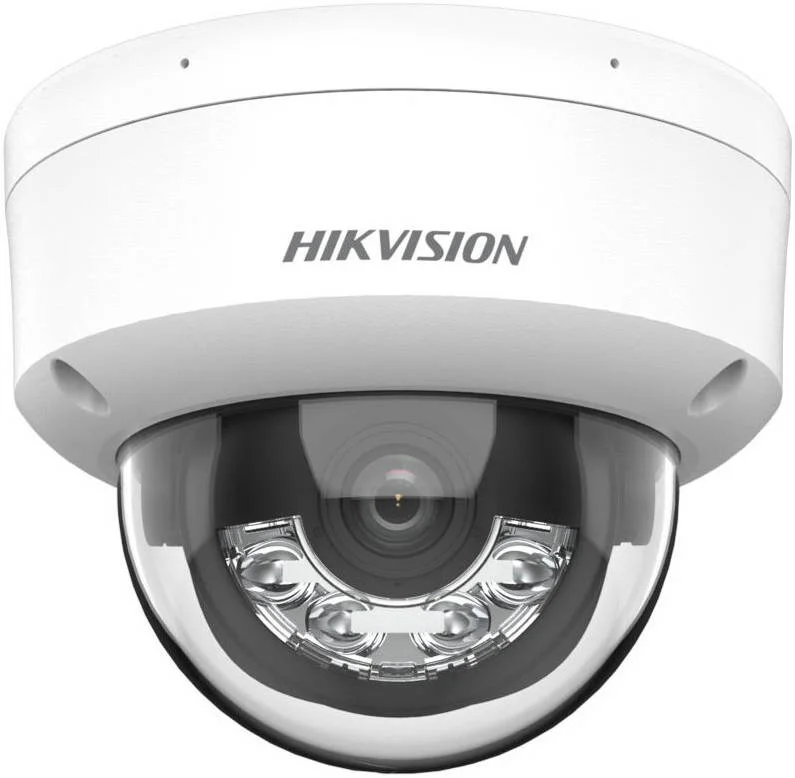

Hikvision DS-2CD2163G2-LI(S)(2U) 6 MP Acusense Smart Hybrid Light Fixed Dome Network Camera 6MP DOME CAMERA -DS-2CD2163G2-LIS2U
Model :
SKU : DS-2CD2163G2-LIS2U
About this item
About this item
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Specification
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355° |
| Lens Type | Fixed focal lens (2.8 mm and 4 mm optional) |
| FOV (2.8 mm) | Horizontal: 105°, Vertical: 55°, Diagonal: 127° |
| FOV (4 mm) | Horizontal: 78°, Vertical: 38°, Diagonal: 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.8 m to ∞ 4 mm: 3.1 m to ∞ |
| 2.8 mm | D: 76 m, O: 30 m, R: 15 m, I: 7 m |
| 4 mm | D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 25/30 fps (up to 3200 × 1800) |
| Sub-Stream | 25/30 fps (up to 1280 × 720) |
| Third Stream | 10 fps (up to 1920 × 1080, under certain settings) |
| Compression | H.265, H.264, MJPEG (multi-stream) |
| Bit Rate | 32 Kbps to 16 Mbps |
| SVC | Supported (H.264/H.265) |
| ROI | 1 fixed region (main & sub-stream) |
| Target Cropping | Yes |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Bit Rate | 8 to 320 Kbps (codec dependent) |
| Sampling Rate | 8/16/32/48 kHz |
| Noise Filtering | Yes |
| Protocols | TCP/IP, HTTP/S, FTP, NTP, SNMP, RTP/RTSP, IPv4/IPv6, etc. |
| Live View | Up to 6 channels |
| APIs | ONVIF (S/G), ISAPI, SDK, ISUP |
| Security | HTTPS, IP filtering, TLS 1.1/1.2/1.3, audit logs, etc. |
| Ethernet | 1 × RJ45 10/100M |
| Audio | Built-in mic, 1 input/1 output (-S models) |
| Storage | microSD (up to 512 GB) |
| Alarm I/O | 1 input, 1 output (-S models) |
| Reset Key | Yes |
| Basic | Motion, tamper, exception |
| Smart | Face detection |
| Perimeter Protection | Line crossing, intrusion (human/vehicle) |
| Linkage | Upload, notify, email, recording, alarm output (-S) |
| Power | 12V DC ±25% or PoE (IEEE 802.3af), Max 9.5W |
| Material | Aluminum alloy base and cover |
| Dimensions | Ø121.5 × 97.6 mm |
| Weight | Approx. 600 g (with package: 840 g) |
| Operating Conditions | -30°C to 60°C, Humidity ≤ 95% (non-condensing) |
| Languages | Supports 33 languages |
| EMC | CE-EMC, RCM, IC, KC |
| Safety | IEC 62368-1, CE-LVD, BIS, LOA |
| Environment | RoHS, WEEE, REACH |
| Protection | IP67, IK10 |
