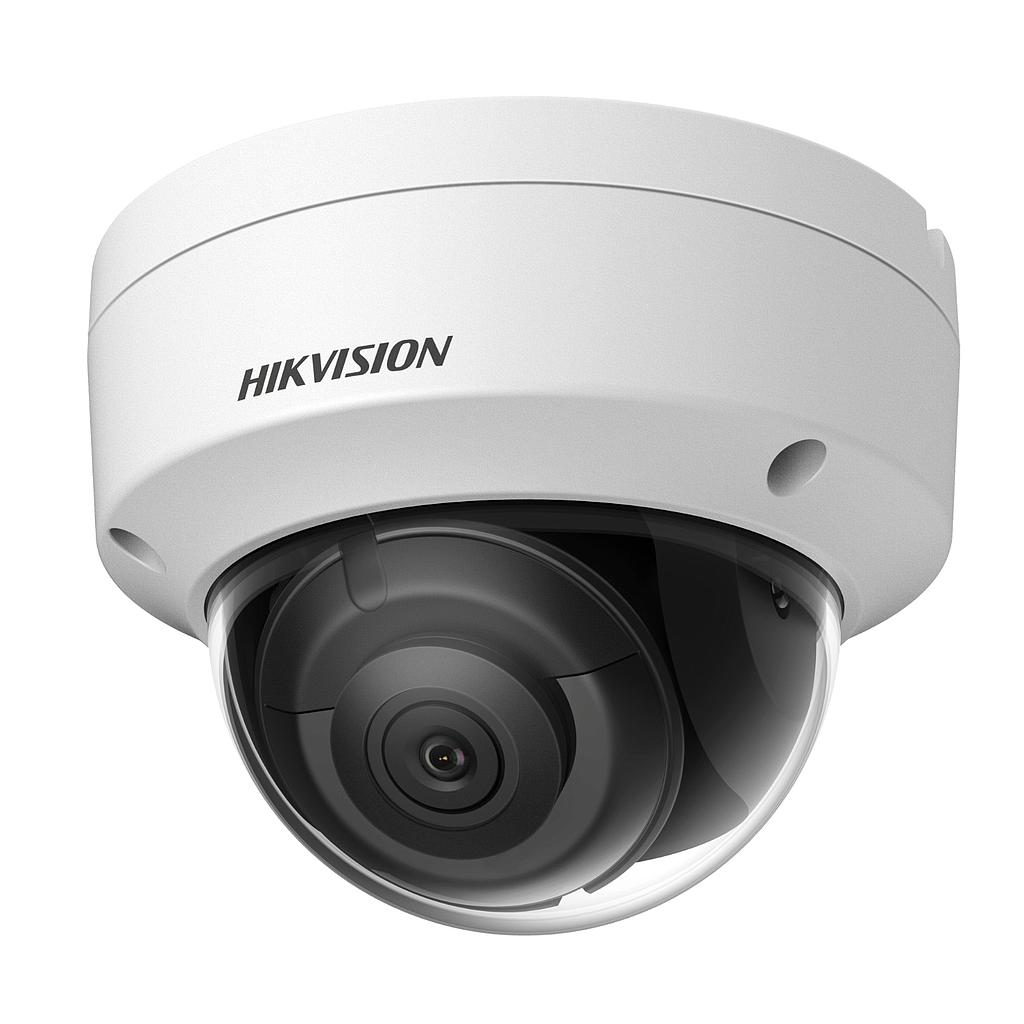

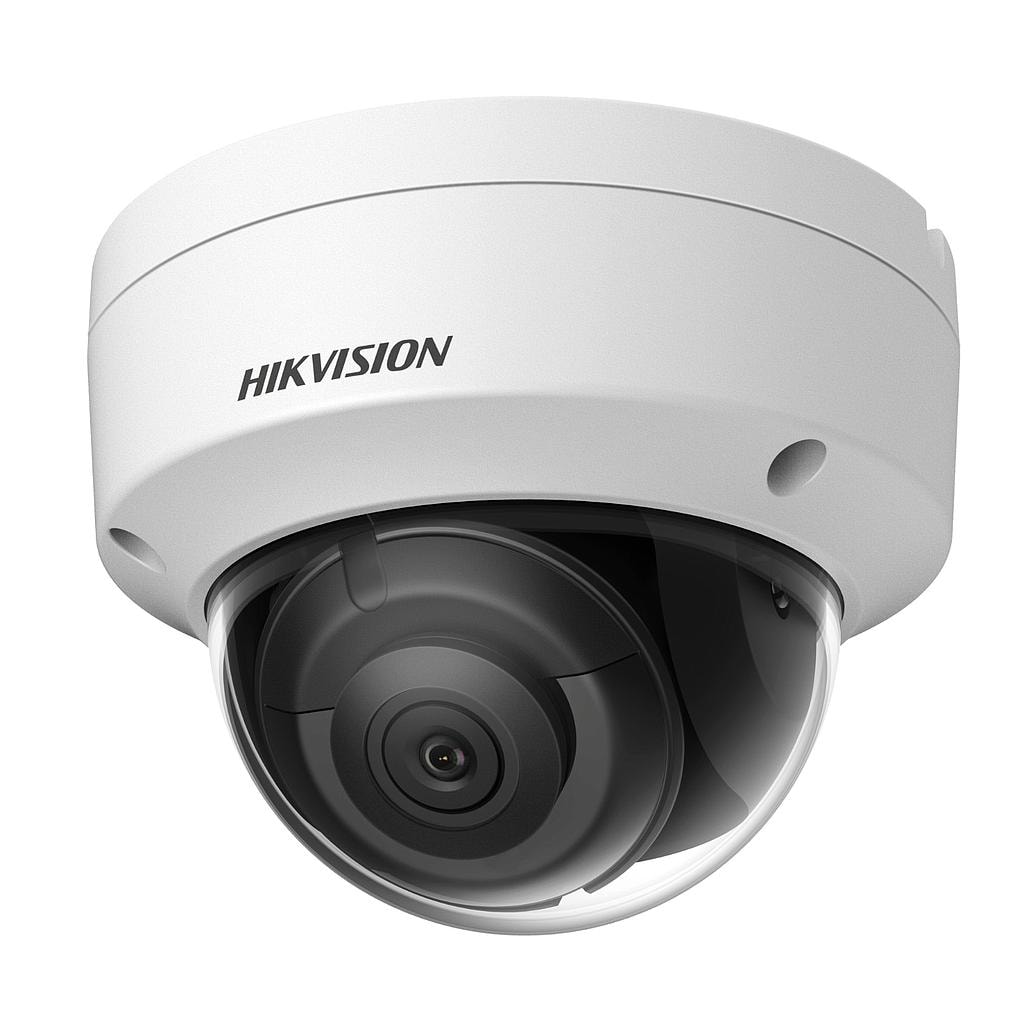

HIKVISION, DS-2CD2183G2-I, 8 MP AcuSense Vandal WDR Fixed Dome Network Camera

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution3840 ?? 2160
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0?? to 355??,tilt: 0?? to 75??,rotate: 0?? to 355??
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 107??, vertical FOV 57??, diagonal FOV 128??

4 mm, horizontal FOV 87??, vertical FOV 46??, diagonal FOV 105??
Lens MountM12
Iris TypeFixed
ApertureF1.6
DORI
DORI2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream

50 Hz: 20 fps (3840 ?? 2160) 25 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720); 60 Hz: 20 fps (3840 ?? 2160) 30 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
Sub-Stream

50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)

60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
Third Stream50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)

60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360),

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Video CompressionMain stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream

Audio
Audio Type-S: Mono sound
Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-S: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
User/HostUp to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR??? 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask4 programmable polygon privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes

Audio

-S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K??, interface type: non-equilibrium; 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium
Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
Power12 VDC ?? 25%, 0.5 A, max. 6 W,??5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension

??110.8 mm ?? 84.7 mm (??4.4 ?? 3.3\")"
MaterialAluminum alloy body, bubble: plastic
Package Dimension134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3")
WeightApprox. 520 g (1.1 lb.)
With Package WeightApprox. 720 g (1.6 lb.)
Storage Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter

Approval
EMCFCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015
EnvironmentCE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013;IK10: IEC 62262:2002
SafetyUL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017
