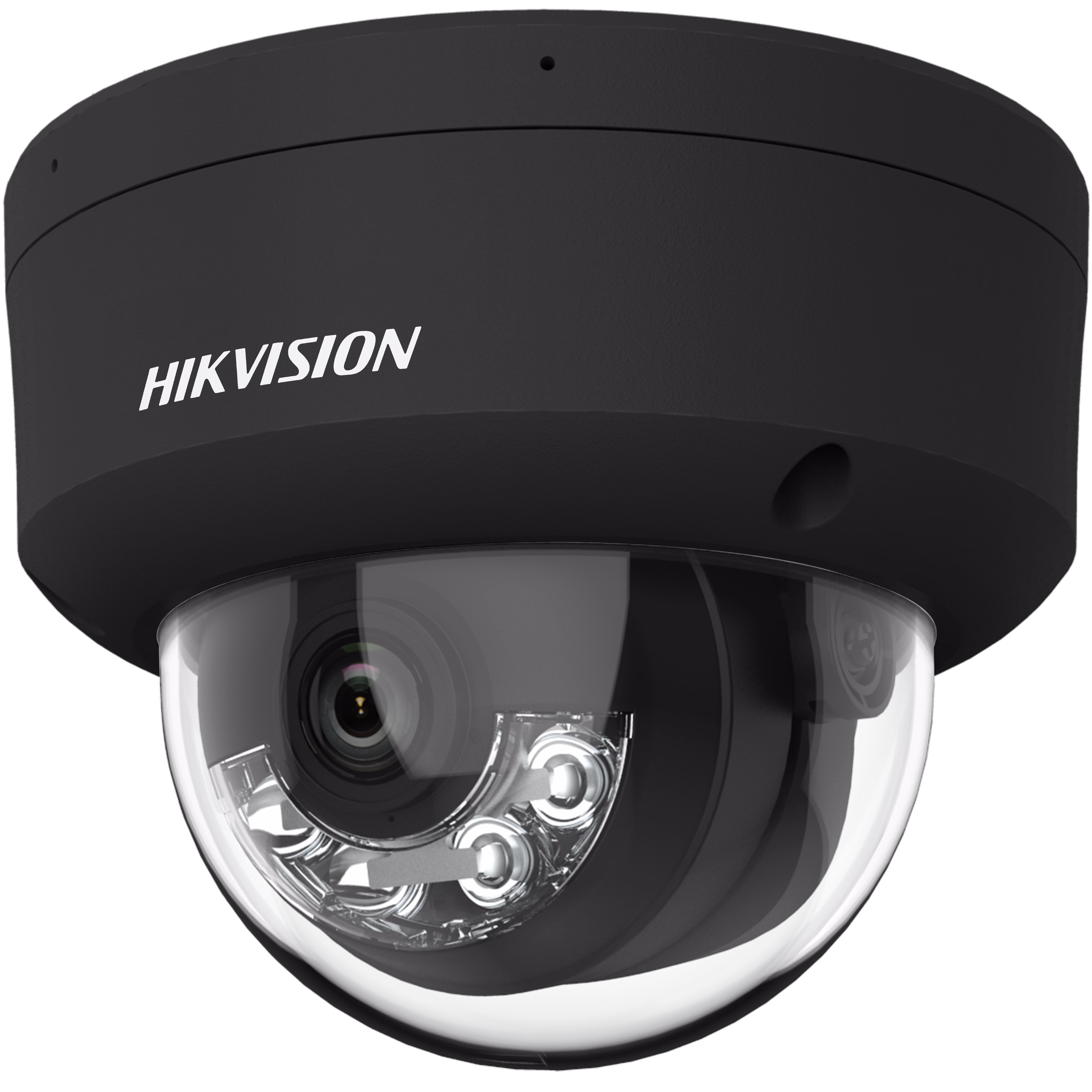

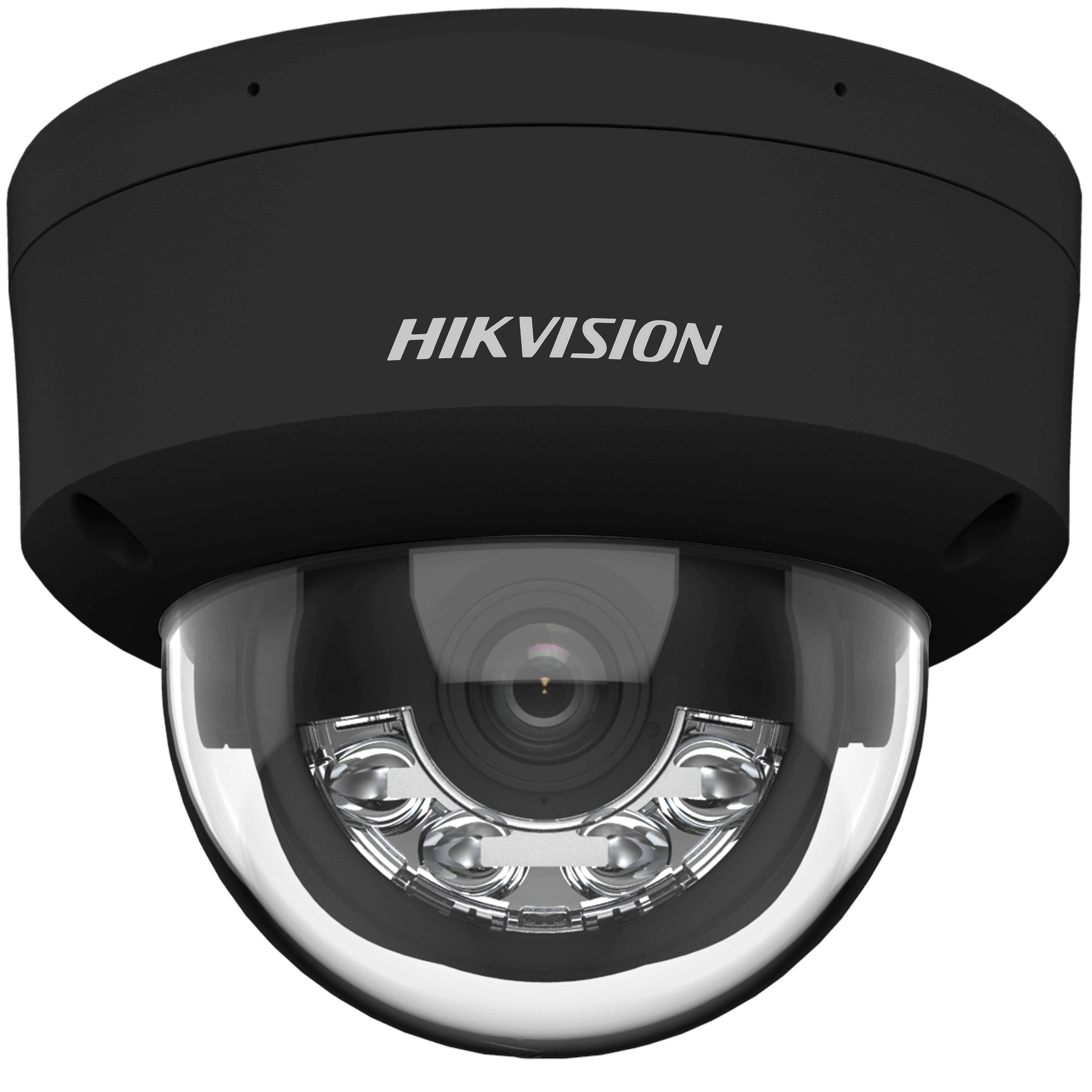

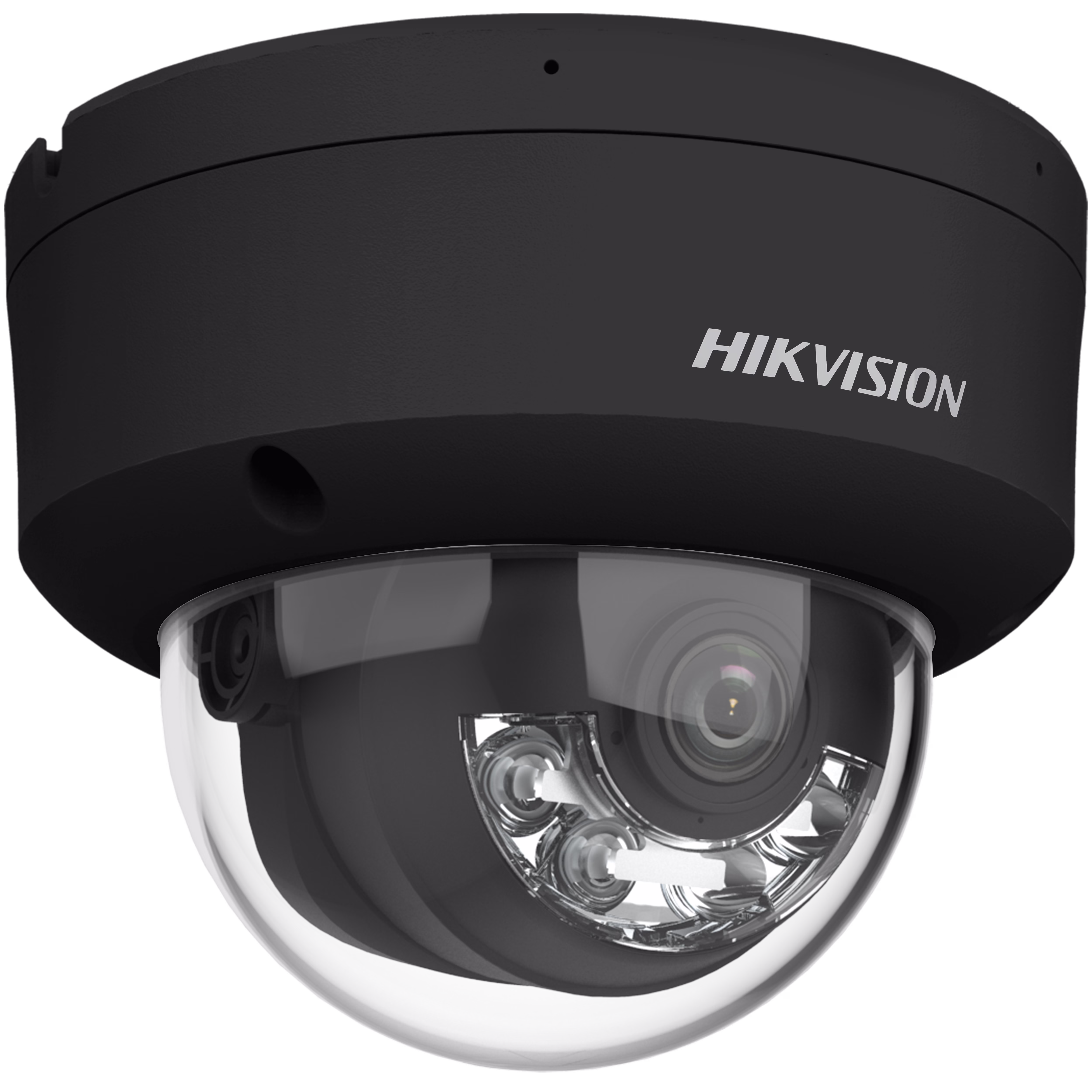

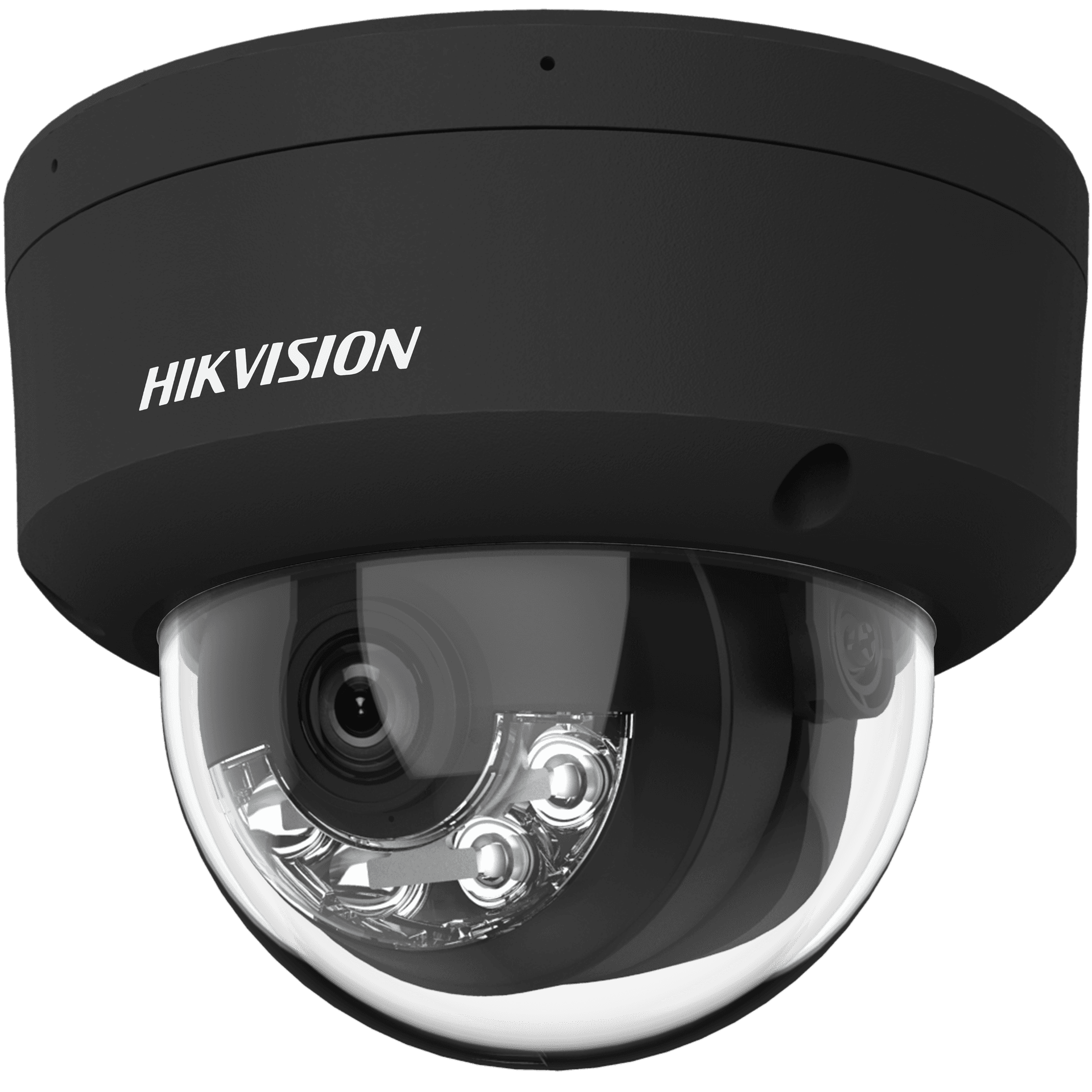

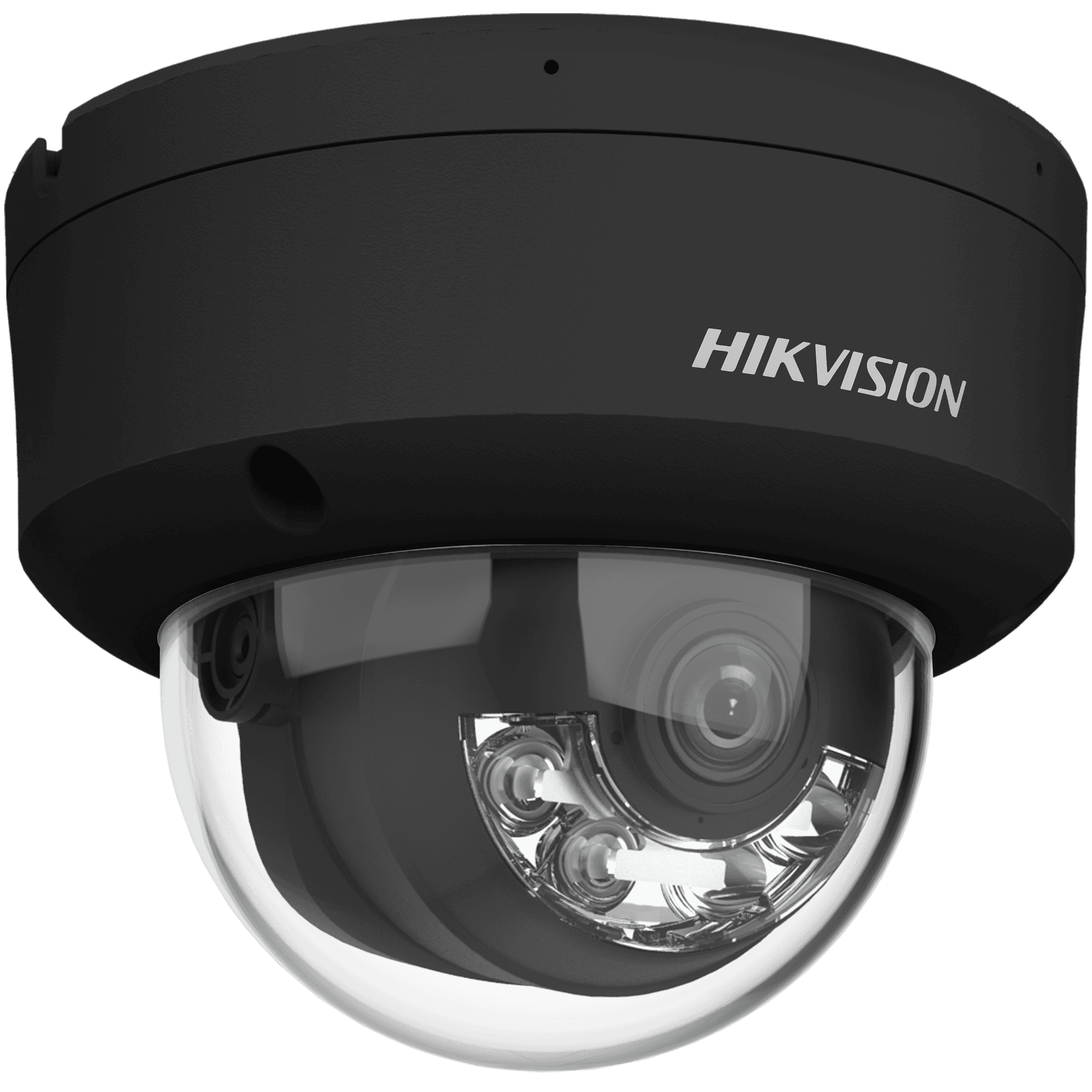

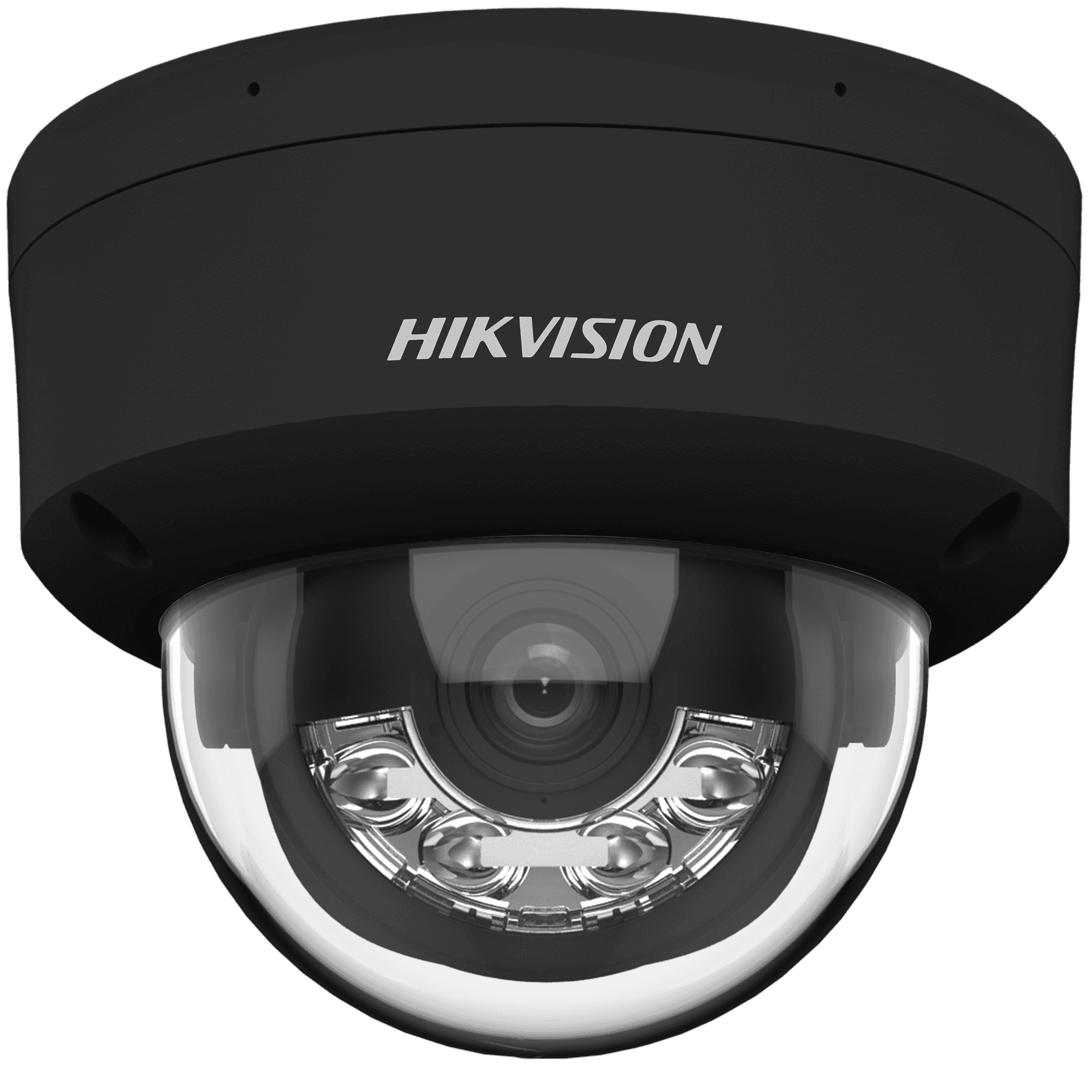

Hikvision DS-2CD2183G2-LI(S)(2U) 8 MP Acusense Smart Hybrid Light Fixed Dome Network Camera DS-2CD2183G2-LIS2U 8M BLK
Model :
SKU : DS-2CD2183G2-LIS2U 8M BLK
About this item
About this item
Description
Specification
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal 108°, Vertical 59°, Diagonal 127° 4 mm: Horizontal 88°, Vertical 44°, Diagonal 105° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ 4 mm: 2.6 m to ∞ |
| DORI | |
| DORI | 2.8 mm: D: 84 m, O: 33 m, R: 16 m, I: 8 m 4 mm: D: 117 m, O: 46 m, R: 23 m, I: 11 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps / 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Supported under certain settings |
| Video Compression | Main: H.265/H.264/H.264+/H.265+ Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region (main & sub-stream) |
| Target Cropping | Yes |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64–320 Kbps (depending on codec) |
| Audio Sampling Rate | 8/16/32/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/G), ISAPI, SDK, ISUP |
| Security | Password protection, HTTPS encryption, IP filter, TLS 1.1/1.2/1.3, Audit Log, WSSE & Digest authentication |
| User/Host | Up to 32 users (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS, ANR, memory card encryption & health detection |
| Web Browser | IE 11 (plugin) Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Image | |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Settings | Rotate mode |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Enhancements | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon masks |
| Interface | |
| Ethernet | 1 RJ45 10/100M self-adaptive |
| Audio | Built-in microphone, 1 input (line in), 1 output (line out) |
| On-Board Storage | MicroSD/SDHC/SDXC up to 512 GB |
| Alarm | 1 input, 1 output |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, tampering, exception |
| Smart Event | Face detection |
| Linkage | FTP/NAS/memory card, notify center, email, recording, capture, alarm output |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion (human & vehicle filtering) |
| General | |
| Power | 12 VDC ±25% (max. 7.8 W) or PoE IEEE 802.3af (max. 9.5 W) |
| Material | Aluminum alloy |
| Dimensions | Ø121.5 mm × 97.6 mm |
| Package Dimension | 150 × 150 × 141 mm |
| Weight | Approx. 600 g (1.3 lb) |
| With Package Weight | Approx. 840 g (1.9 lb) |
| Storage Conditions | -30 °C to 60 °C, 95% RH (non-condensing) |
| Startup & Operating Conditions | -30 °C to 60 °C, 95% RH (non-condensing) |
| Language | 33 languages |
| General Functions | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Approval | |
| EMC | CE, RCM, IC, KC |
| Safety | CB, CE-LVD, BIS, LOA |
| Environment | CE-RoHS, WEEE, Reach |
| Protection | IP67, IK10 |
