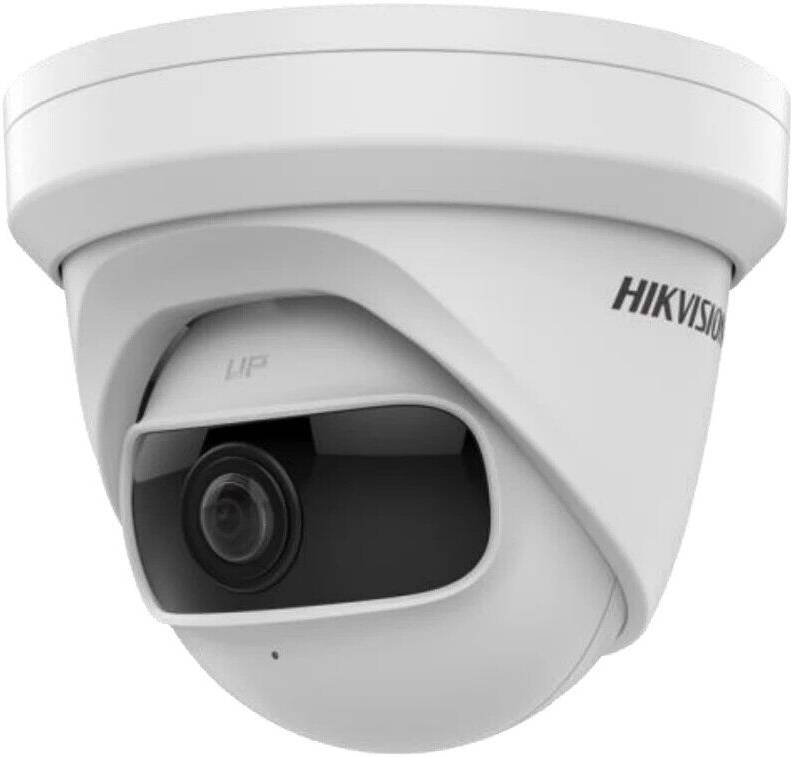

Hikvision DS-2CD2345G0P-I 4 MP Super Wide Angle Fixed Turret Network Camera, 180°super wide field of view
Model :
SKU : DS-2CD2345G0P-I 1.68MM
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
4 MP Super Wide Angle Fixed Turret Network Camera Specifications
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON) B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
Lens
| Lens Type | Fixed lens, 1.68 mm |
| FOV | 1.68 mm, Horizontal: 180°, Vertical: 101°, Diagonal: 180° |
| Aperture | F2.0 |
| Lens Mount | M12 |
Illuminator
| IR Range | Up to 10 m |
| Wavelength | 850 nm |
Video
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline/Main/High Profile |
| H.265 Type | Main Profile |
| SVC | H.264 and H.265 encoding support |
| ROI | 1 fixed region for main, sub, and third stream |
Network
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Users/Hosts | Up to 32 users (admin, operator, user) |
| Security | Password protection, HTTPS, 802.1X, watermark, IP filtering, TLS1.2 |
| Network Storage | microSD/SDHC/SDXC (256 GB), NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+ (plug-in), Chrome 57+, Firefox 52+, Safari 11+ |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance |
Interface
| On-board Storage | microSD up to 256 GB |
| Reset | Via button, browser, client |
| Communication | 1 RJ45 10M/100M self-adaptive Ethernet |
Event
| Basic Event | Motion detection, tampering, network exception |
| Smart Event | Line crossing, intrusion, unattended baggage, object removal, face detection, scene change |
General
| Linkage | Recording, picture upload (FTP/HTTP/NAS/Email), notifications |
| Web Client Languages | 32 languages |
| Functions | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset, pixel counter |
| Storage Conditions | -10 °C to 40 °C, 95% RH max (non-condensing) |
| Operating Conditions | -10 °C to 40 °C, 95% RH max (non-condensing) |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | 12 VDC, max. 5.8W; PoE, max. 6.8W |
| Dimensions | Camera: Φ127.3 × 104.1 mm; With package: 150 × 150 × 141 mm |
| Weight | Camera: 520 g; With package: 700 g |
Approval
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, BIS, LOA |
| Environment | CE-RoHS, WEEE, Reach |
