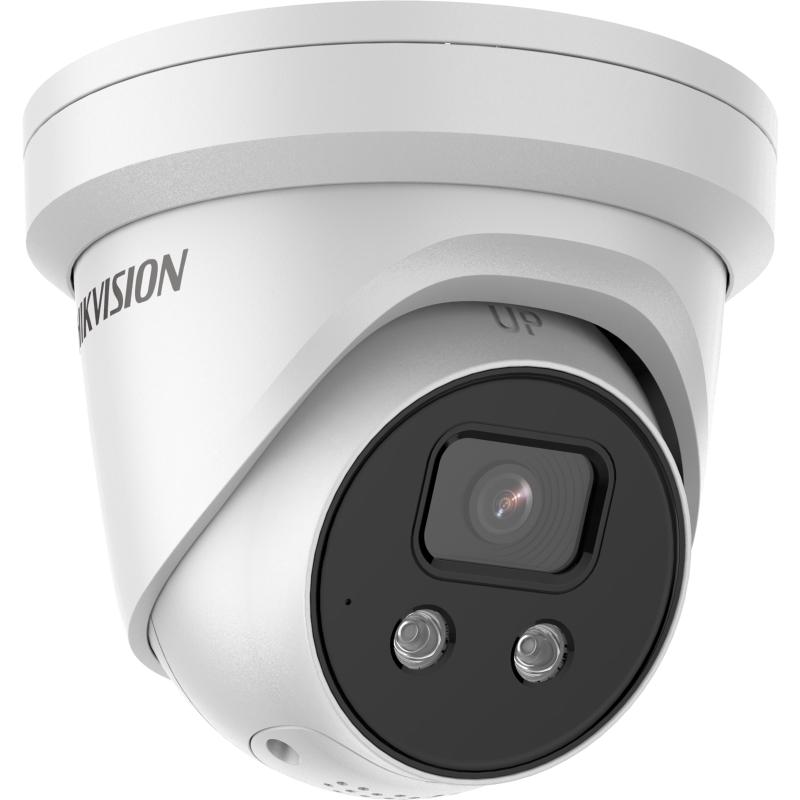

Hikvision DS-2CD2346G2-ISU/SL 4 MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
Model :
SKU : DS-2CD2346G2-ISU/SL 4MP
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Camera Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 75??, Rotate: 0?? to 360?? |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV |
2.8 mm: Horizontal FOV 103??, Vertical FOV 55??, Diagonal FOV 123% 4 mm: Horizontal FOV 83??, Vertical FOV 45??, Diagonal FOV 98?? 6 mm: Horizontal FOV 53??, Vertical FOV 29??, Diagonal FOV 62?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.4 |
| DORI | |
| Detection, Observation, Recognition, Identification |
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | Yes |
| Video | |
| Main Stream |
50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Third Stream |
50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| Security | Password protection, HTTPS encryption, IP address filter, etc. |
| General | |
| Power | 12 VDC ?? 25%, PoE: 802.3af |
| Dimensions | ??138.3 mm ?? 124.5 mm |
| Weight | Approx. 825 g |
| Operating Conditions | -30 ??C to 60 ??C, Humidity 95% or less (non-condensing) |
| Protection | IP67 |
Specification
Camera Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 75??, Rotate: 0?? to 360?? |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV |
2.8 mm: Horizontal FOV 103??, Vertical FOV 55??, Diagonal FOV 123% 4 mm: Horizontal FOV 83??, Vertical FOV 45??, Diagonal FOV 98?? 6 mm: Horizontal FOV 53??, Vertical FOV 29??, Diagonal FOV 62?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.4 |
| DORI | |
| Detection, Observation, Recognition, Identification |
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | Yes |
| Video | |
| Main Stream |
50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Third Stream |
50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| Security | Password protection, HTTPS encryption, IP address filter, etc. |
| General | |
| Power | 12 VDC ?? 25%, PoE: 802.3af |
| Dimensions | ??138.3 mm ?? 124.5 mm |
| Weight | Approx. 825 g |
| Operating Conditions | -30 ??C to 60 ??C, Humidity 95% or less (non-condensing) |
| Protection | IP67 |
