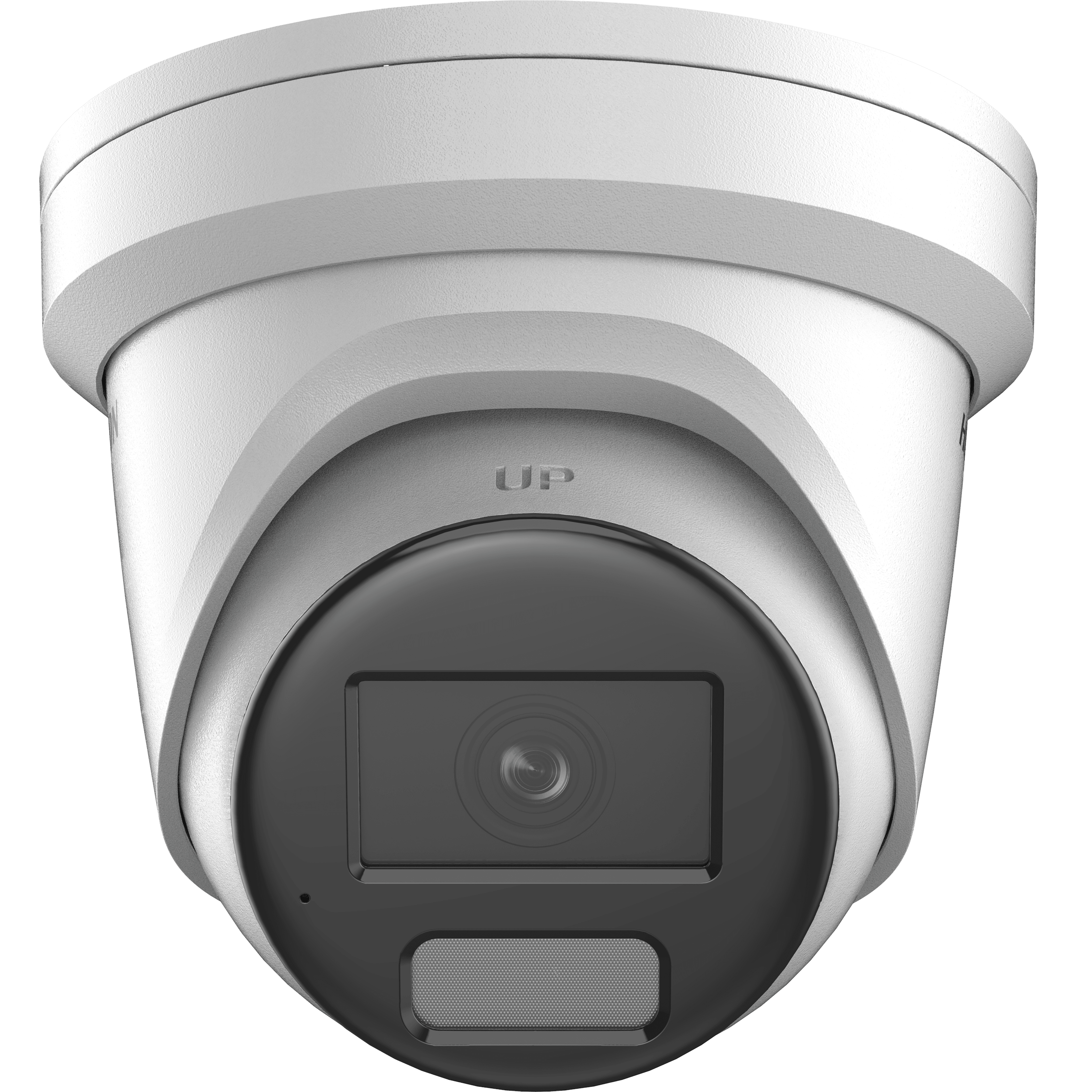

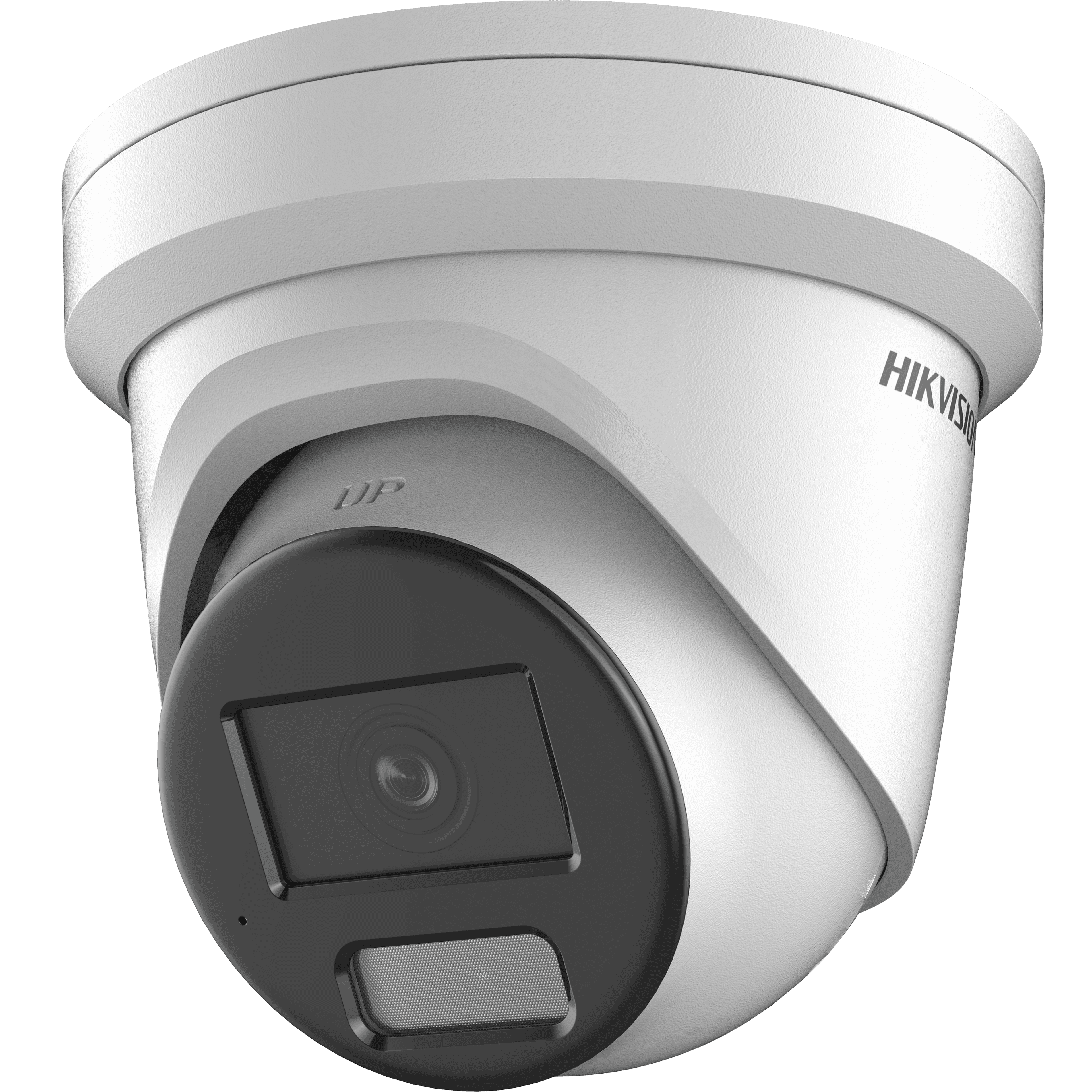

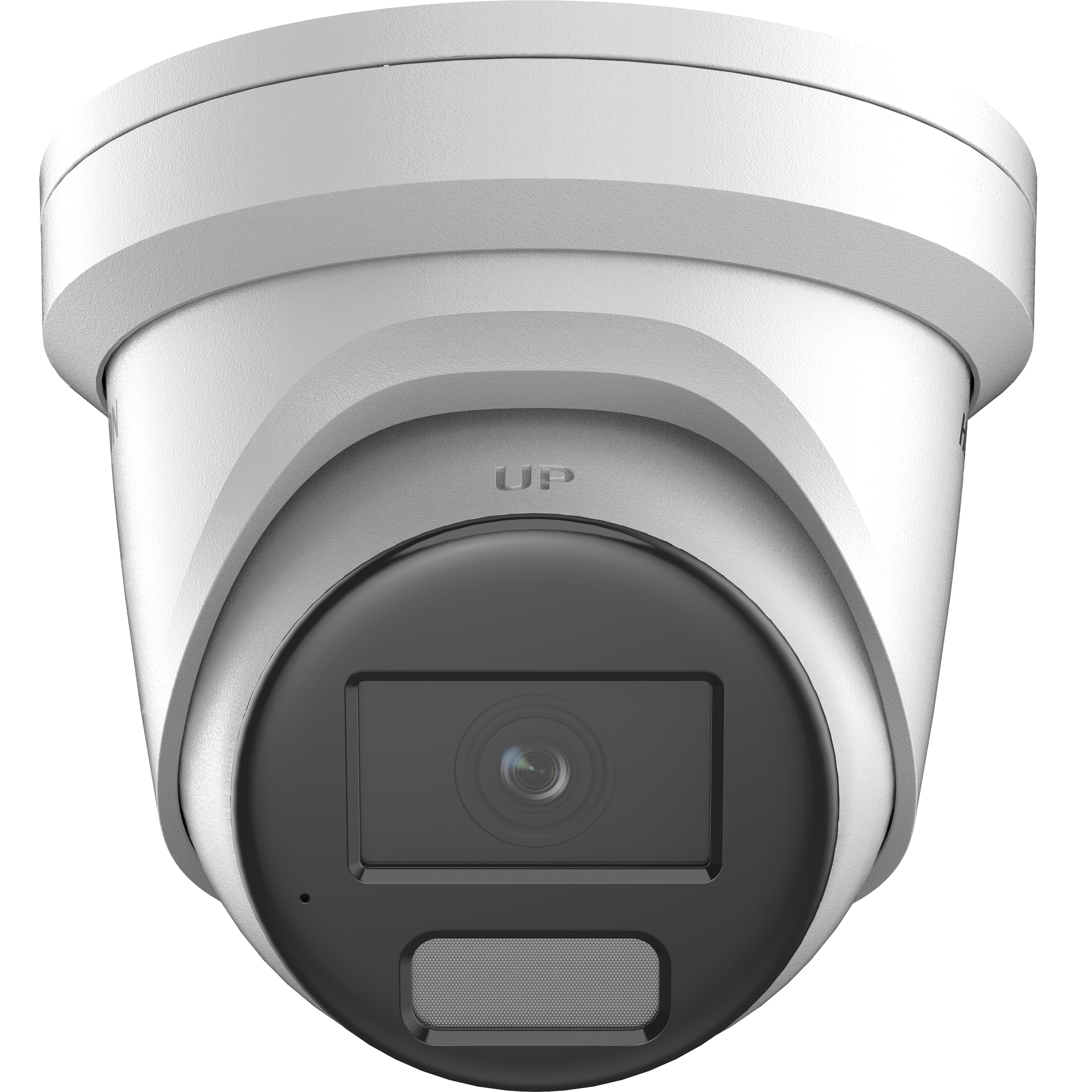

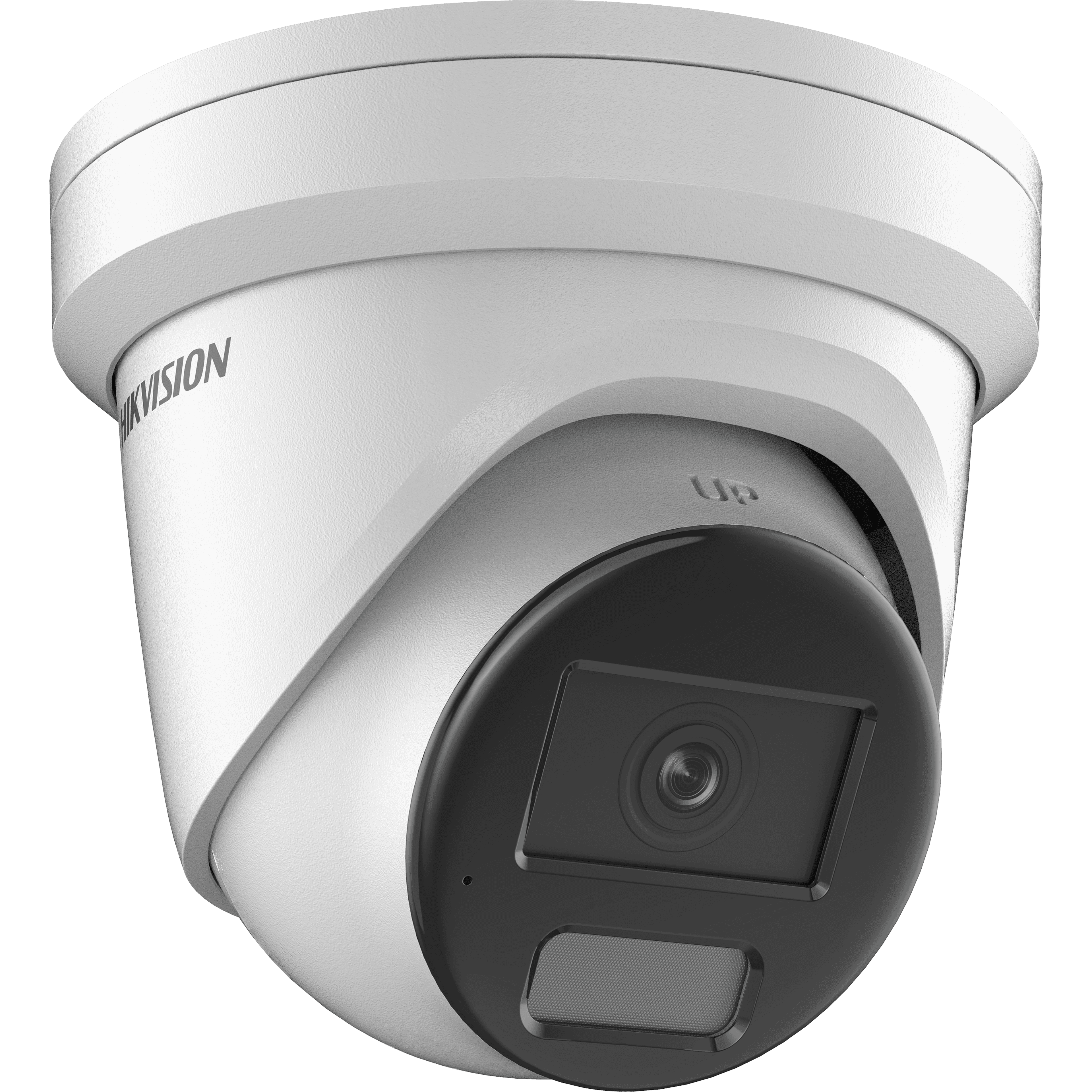

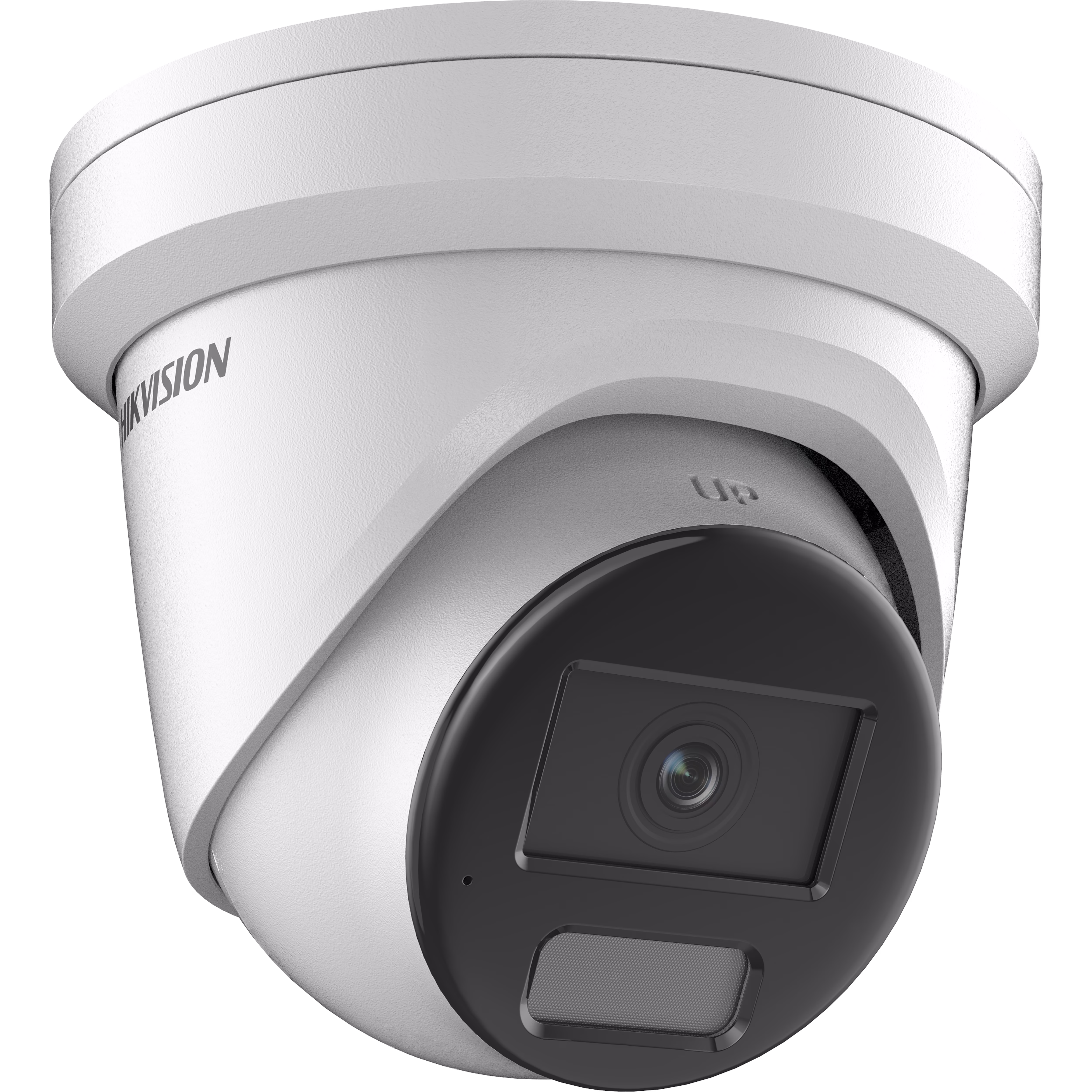

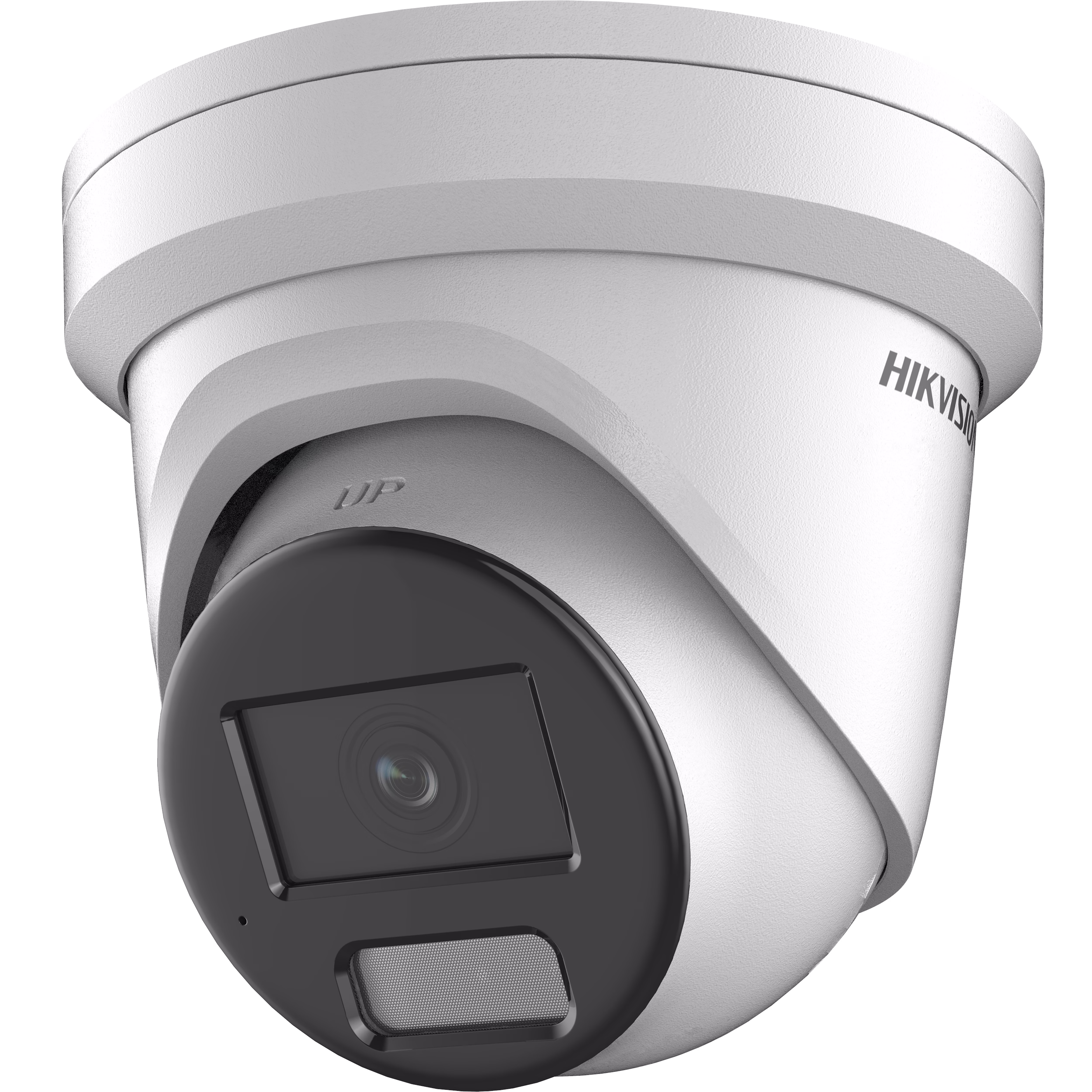

Hikvision DS-2CD2347G2H-LI(U) 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
Model :
SKU : DS-2CD2347G2H-LIU(2.8mm)
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
IP67 Dome Camera Specifications
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 111.1°, V 57.6°, D 138.5° 4 mm: H 95.2°, V 48.3°, D 117.4° |
| Lens Mount | M16 |
| Iris / Aperture | Fixed / F1.0 |
| Depth of Field | 2.8 mm: 2.5 m to ∞ | 4 mm: 3.1 m to ∞ |
| DORI | 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light | IR & White Light, up to 30 m, Smart Supplement Light, IR 850 nm |
| Video | Main: 25/30 fps @ 2688 × 1520, 1920 × 1080, 1280 × 720 Sub: 25/30 fps @ 1280 × 720, 640 × 480, 640 × 360 Third: 10 fps (under certain settings) |
| Video Compression | H.265/H.264/H.264+/H.265+, MJPEG (sub-stream), SVC (H.264/H.265) |
| Bitrate | 32 Kbps – 8 Mbps, CBR/VBR |
| ROI | 1 fixed region (main & sub-stream) |
| Audio | Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC Bit Rate: 16–320 Kbps depending on codec Sampling Rate: 8/16/32/44.1/48 kHz Noise Filtering: Yes |
| Network Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTP/RTSP, NTP, IGMP, IPv4/IPv6, SNMP, WebSocket, SRTP, SFTP and more |
| Live View / Users | Up to 6 channels, max 32 users (admin/operator/user) |
| Security | Password, HTTPS/TLS 1.1–1.3, IP filter, watermark, WSSE, MAC authentication |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client / Browser | iVMS-4200, Hik-Connect, Hik-Central Chrome 57+, Firefox 52+, Edge 89+ |
| Image Features | Rotate, saturation, brightness, contrast, sharpness, gain, WB Day/Night: Auto/Schedule Enhancements: BLC, HLC, 3D DNR WDR: 130 dB Privacy Mask: 4 programmable |
| SNR | ≥ 52 dB |
| Ethernet | 1 x RJ45 10/100M self-adaptive |
| Onboard Storage | MicroSD/SDHC/SDXC up to 512 GB |
| Microphone | Yes (built-in) |
| Reset Key | Yes |
| Events | Motion detection, tampering, exception Smart Event: Scene change detection Linkage: FTP, NAS, recording, snapshot, email |
| Deep Learning | Face Capture Perimeter Protection (line crossing, intrusion, region entrance/exit, human & vehicle filtering) |
| Power | 12 VDC ±25%, 5 W max / PoE IEEE 802.3af Class 3, 6 W max |
| Material | Metal cover & body |
| Dimensions | Ø138.3 × 115.4 mm (5.4" × 4.5") |
| Package Dimensions | 170 × 170 × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | 770 g (1.7 lb) | With package: 1040 g (2.3 lb) |
| Operating / Storage | -30 °C to 60 °C (-22 °F to 140 °F), 95% RH max (non-condensing) |
| Functions | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Languages | 33 (EN, RU, FR, ES, PT, DE, IT, TR, AR, ZH, JP, etc.) |
| Approvals | EMC: CE, RCM, IC, KC Safety: UL, CB, CE-LVD, BIS Environment: CE-RoHS Protection: IP67 (IEC 60529-2013) |
