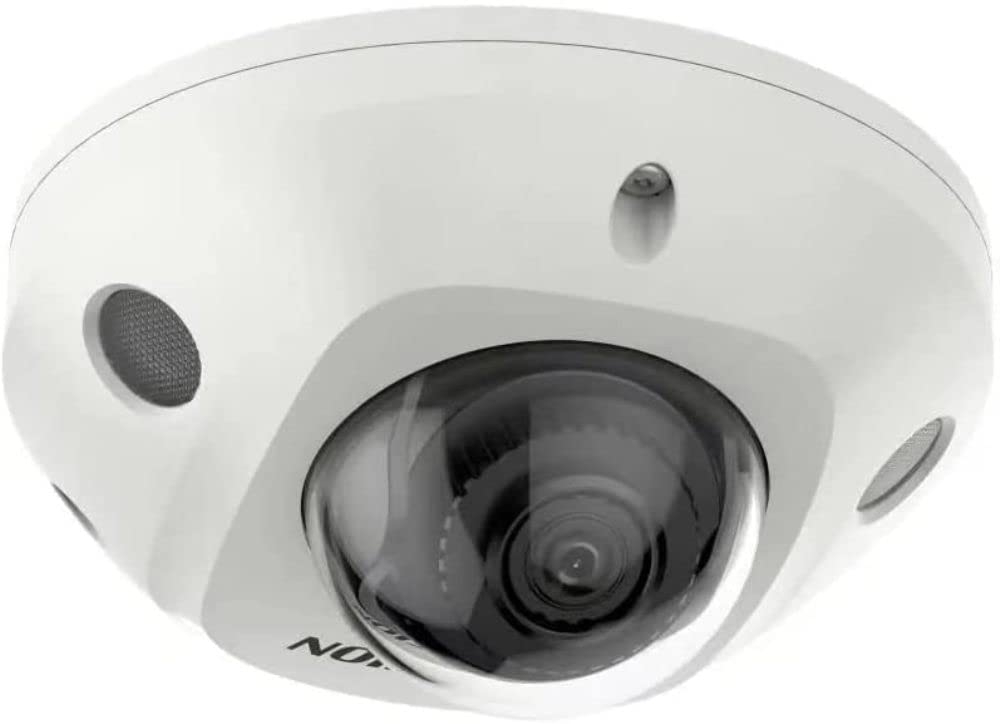

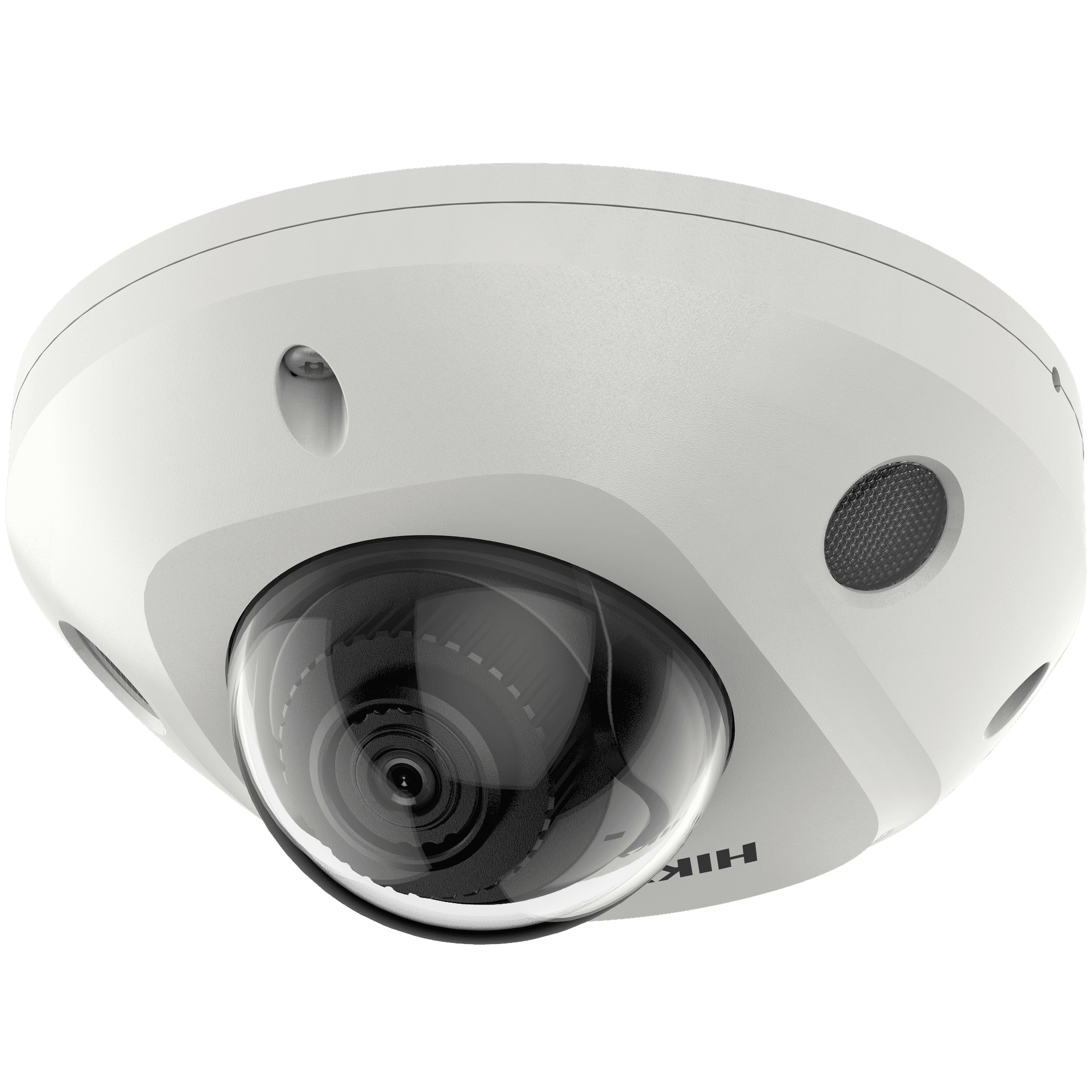

Hikvision DS-2CD2543G2-IS 2.8mm Lens 4MP AcuSense Built-in Mic Fixed Mini Dome Network Camera H.265+ 120 dB WDR IR IP67 IK10 International Version
Model :
SKU : DS-2CD2543G2-IS 2.8MM
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-2CD2543G2-IS 2.8mm Lens 4MP AcuSense Built-In Mic Fixed Mini Dome Network Camera H.265+ 120 DB WDR IR IP67 IK10 International Version
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30?? to 30??, tilt: 0?? to 75??, rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2 mm, horizontal FOV 128??, vertical FOV 75??, diagonal FOV 147?? 2.8 mm, horizontal FOV 104.3??, vertical FOV 55.9??, diagonal FOV 123.8?? 4 mm, horizontal FOV 83.7??, vertical FOV 43.0??, diagonal FOV 100.3?? |
| Aperture | F1.6 |
| Depth Of Field |
2 mm: 0.6 m to ??? 2.8 mm: 1.4 m to ??? 4 mm: 1.6 m to ??? |
| DORI |
2 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 2.8 mm, D: 64 m, O: 25 m, R: 13 m, I: 6 m 4 mm, D: 85 m, O: 34 m, R: 17 m, I: 9 m |
| Illuminator | Supplement Light Type: IR, Supplement Light Range: Up to 30 m, Smart Supplement Light: Yes, IR Wavelength: 850 nm |
| Video |
Main Stream: 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720), 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360), 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360), 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Wi-Fi |
Encryption Mode: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK Wi-Fi Protocol: 802.11b/g/n Frequency Range: 2.4 GHz to 2.4835 GHz Channel Bandwidth: 20/40 MHz Modulation: CCK, QPSK, BPSK (802.11b), OFDM (802.11g/n) Transfer Rate: 11 Mbps (802.11b), 54 Mbps (802.11g), up to 300 Mbps (802.11n) Wireless Range: Up to 80 m (The performance varies based on actual environment) |
| Lens Mount | M12 |
| Iris Type | Fixed |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Built-In Microphone | Yes |
| Alarm | 1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Power | -IS: 12 VDC ?? 25%, 0.45 A, max. 5.5 W, ??5.5 mm coaxial power plug, reverse polarity protection
-PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug, reverse polarity protection -PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W |
| Dimension | ??110 mm ?? 57.4 mm (?? 4.3" ?? 2.3") |
| Package Dimension | 134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3") |
| Weight | Approx. 380 g (0.8 lb.) |
| With Package Weight | Approx. 615 g (1.4 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
| Approval | RF
-W: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015) Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014/A11: 2017) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013); IK8 (IEC 62262:2002) |
Specification
Hikvision DS-2CD2543G2-IS 2.8mm Lens 4MP AcuSense Built-In Mic Fixed Mini Dome Network Camera H.265+ 120 DB WDR IR IP67 IK10 International Version
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30?? to 30??, tilt: 0?? to 75??, rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2 mm, horizontal FOV 128??, vertical FOV 75??, diagonal FOV 147?? 2.8 mm, horizontal FOV 104.3??, vertical FOV 55.9??, diagonal FOV 123.8?? 4 mm, horizontal FOV 83.7??, vertical FOV 43.0??, diagonal FOV 100.3?? |
| Aperture | F1.6 |
| Depth Of Field |
2 mm: 0.6 m to ??? 2.8 mm: 1.4 m to ??? 4 mm: 1.6 m to ??? |
| DORI |
2 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 2.8 mm, D: 64 m, O: 25 m, R: 13 m, I: 6 m 4 mm, D: 85 m, O: 34 m, R: 17 m, I: 9 m |
| Illuminator | Supplement Light Type: IR, Supplement Light Range: Up to 30 m, Smart Supplement Light: Yes, IR Wavelength: 850 nm |
| Video |
Main Stream: 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720), 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360), 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360), 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Wi-Fi |
Encryption Mode: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK Wi-Fi Protocol: 802.11b/g/n Frequency Range: 2.4 GHz to 2.4835 GHz Channel Bandwidth: 20/40 MHz Modulation: CCK, QPSK, BPSK (802.11b), OFDM (802.11g/n) Transfer Rate: 11 Mbps (802.11b), 54 Mbps (802.11g), up to 300 Mbps (802.11n) Wireless Range: Up to 80 m (The performance varies based on actual environment) |
| Lens Mount | M12 |
| Iris Type | Fixed |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Built-In Microphone | Yes |
| Alarm | 1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Power | -IS: 12 VDC ?? 25%, 0.45 A, max. 5.5 W, ??5.5 mm coaxial power plug, reverse polarity protection
-PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug, reverse polarity protection -PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W |
| Dimension | ??110 mm ?? 57.4 mm (?? 4.3" ?? 2.3") |
| Package Dimension | 134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3") |
| Weight | Approx. 380 g (0.8 lb.) |
| With Package Weight | Approx. 615 g (1.4 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
| Approval | RF
-W: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015) Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014/A11: 2017) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013); IK8 (IEC 62262:2002) |
