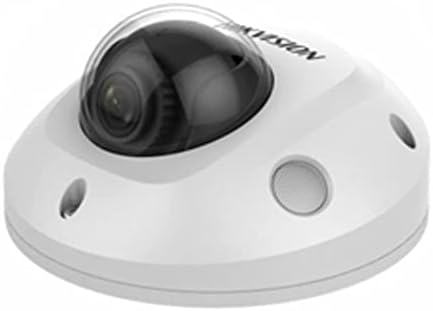

HIKVISION, DS-2CD2543GO-IS, 4 MP Outdoor EXIR Fixed Mini Dome Camera

Camera
Image Sensor1/3" Progressive Scan CMOS
Min. IlluminationColor: 0.018 lux @(F1.6, AGC ON), 0 lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: -30?? to 30??, tilt: 0?? to 75??, rotate: 0?? to 360??

Lens
Lens Type2.8, 4, 6 mm
FOV2.8 mm, horizontal FOV: 98??, vertical FOV: 55??, diagonal FOV: 114??

4 mm, horizontal FOV: 78??, vertical FOV: 42??, diagonal FOV: 93??

6 mm, horizontal FOV: 48??, vertical FOV: 27??, diagonal FOV: 54??
ApertureF1.6
Lens MountM12

Illuminator
IR RangeUp to 10 m
Wavelength850 nm

Video
Max. Resolution2688 ?? 1520
Main Stream50Hz: 25 fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720)

60Hz: 30 fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720)


Sub-Stream50Hz: 25 fps (640 ?? 480, 640 ?? 360, 320 ?? 240)

60Hz: 30 fps (640 ?? 480, 640 ?? 360, 320 ?? 240)
Third Stream50Hz: 25 fps (1280 ?? 720, 640 ?? 360, 352 ?? 288)

60Hz: 30 fps (1280 ?? 720, 640 ?? 360, 352 ?? 240)
Video CompressionMain stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)Support H.264 and H.265 encoding

Audio
Environment Noise FilteringYes
Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz
Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/HostUp to 32 users. 3 levels: administrator, operator and user
Network StorageSupport MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ClientWired network: Hik-Connect, iVMS-4200, Hik-Central

Wi-Fi: iVMS-4200, Hik-Central

*Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Wi-Fi
Encryption Mode-W: WPA, WPA2
Wi-Fi Protocol-W: IEEE 802.11b/g/n
Frequency Range-W: 2.412 GHz to 2.4835 GHz
Channel Bandwidth-W: 20 MHz
Transfer Rate-W:

11b: 11 Mbps

11g: 54 Mbps

11n: up to 150 Mbps
Wireless Range-W: Up to 50 m (The performance varies based on actual environment)

Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S model)
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface
Audio-S:

2 inputs: line in, or mic in (built-in microphone)

1 output: line out, mono sound, terminal block
Alarm-S:

1 input: alarm in

1 output: alarm out (max. 12 VDC, 30 mA), terminal block
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, face detection
Face DetectionYes

General
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware VersionV5.6.5
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 ??C to +60 ??C (-22 ??F to +140 ??F), humidity 95% or less (non-condensing)
Power Supply12 VDC ?? 25%

PoE (802.3af, class 3)
Power Consumption And Current12 VDC, 0.7 A, max. 8.5 W, ??5.5mm coaxial plug power

PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
Camera Dimension??120 mm ?? 67.4 mm (??4.7" ?? 2.7")
Camera WeightCamera: approx. 400 g (0.9 lb.)

Approval
ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
