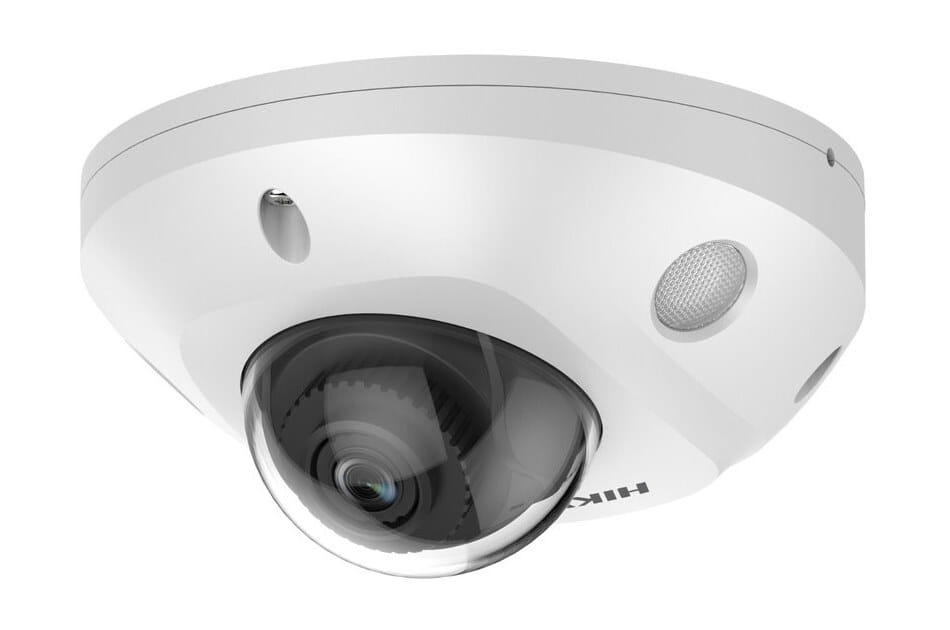

HIKVISION, DS-2CD2563G2-IS, 6 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera.

#html-body [data-pb-style=I903R3A]{background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;align-self:stretch}#html-body [data-pb-style=J9XV3M0]{display:flex;width:100%}#html-body [data-pb-style=J530HC2]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;width:50%;align-self:stretch}#html-body [data-pb-style=GKLACBM]{border-width:1px}#html-body [data-pb-style=OMNLH8W]{text-align:left}#html-body [data-pb-style=PK9L5NN]{border-width:1px;min-height:300px}#html-body [data-pb-style=DJBV3S5],#html-body [data-pb-style=XYR7JON]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body [data-pb-style=XYR7JON]{width:50%;align-self:stretch}

• SPECIFICATION

Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 ?? 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: -30?? to 30??, tilt: 0?? to 75??, rotate: 0?? to 360??

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 105??, vertical FOV 55??, diagonal FOV 127??;

4 mm, horizontal FOV 78??, vertical FOV 38??, diagonal FOV 96??
Lens MountM12
Iris TypeFixed
ApertureF1.6
Depth Of Field2.8 mm: 1.8 m to ???;

4 mm: 3.1 m to ???
DORI
DORI2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;

4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)

60 Hz: 30 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720)
Sub-Stream50 Hz: 25 fps (1280 x 720, 640 ?? 480, 640 ?? 360)

60 Hz: 30 fps (1280 x 720, 640 ?? 480, 640 ?? 360)
Third Stream50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)

60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360)

*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR??? 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
Built-In MicrophoneYes
Audio-IS:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium
Alarm-IS: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset KeyYes
Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

Face detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning (-IS), trigger alarm output (-IS)

General
Power12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7 W
MaterialBase: aluminum, cover: plastic
Dimension??110 mm ?? 57.4 mm (?? 4.3" ?? 2.3")
Package Dimension134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3")
WeightApprox. 375 g (0.8 lb.)
With Package WeightApprox. 610 g (1.3 lb.)
Storage Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
Language33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat, mirror, password reset via email, pixel counter, anti-flicker

Approval
EMCFCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

IK8 (IEC 62262:2002)
