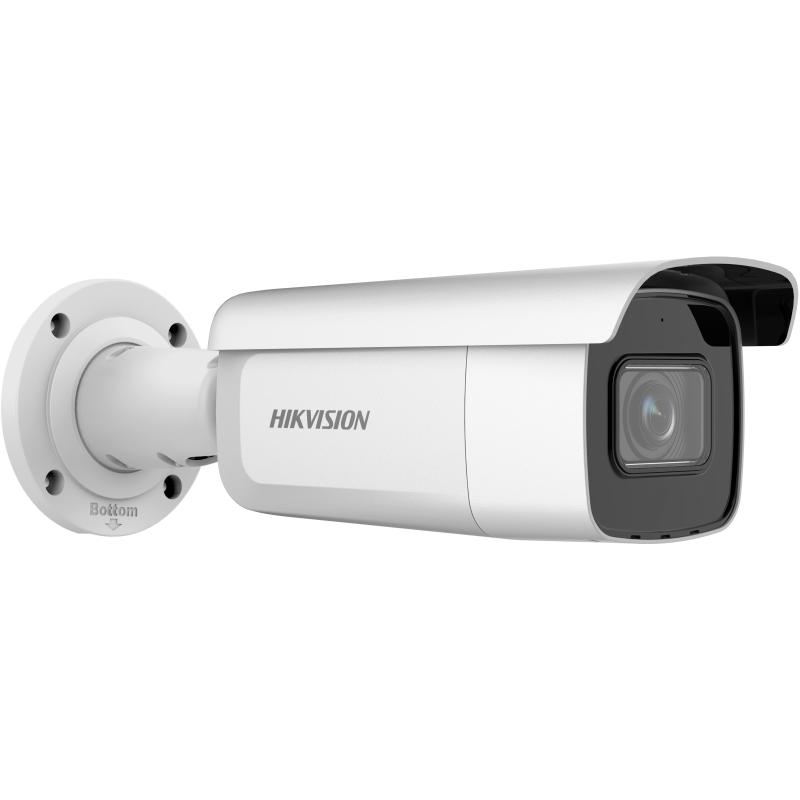

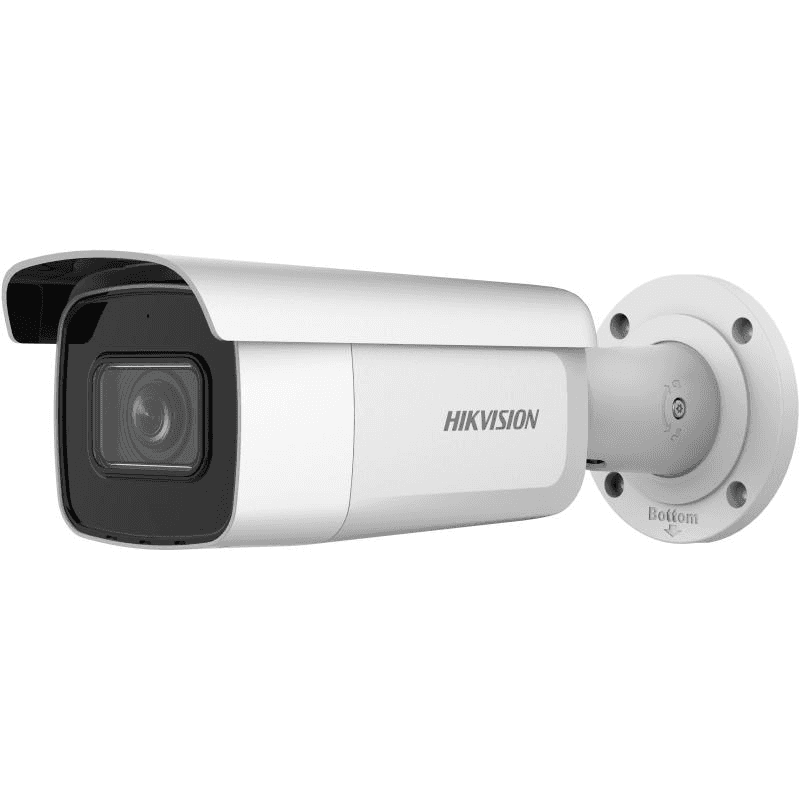

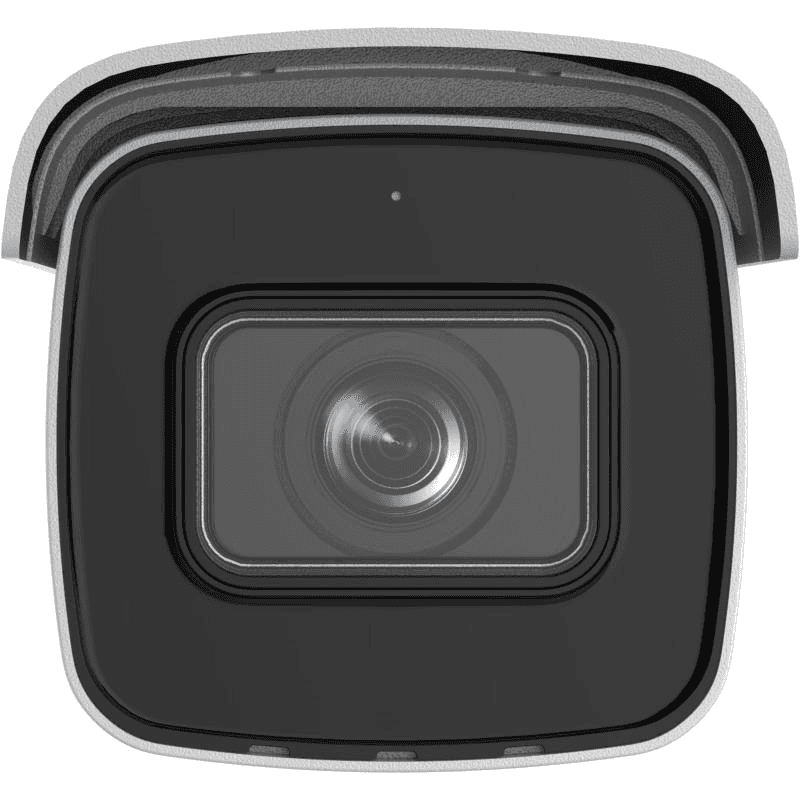

Hikvision DS-2CD2643G2-IZS 4 MP AcuSense Motorized Varifocal Bullet Network Outdoor Camera with Night Vision & 2.8-12mm Lens
Model :
SKU : DS-2CD2643G2-IZS
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-2CD2643G2-IZS 4 MP AcuSense Motorized Varifocal Bullet Network Outdoor Camera with Night Vision & 2.8-12mm Lens
| Image Sensor | 1/3??? Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 95.8?? to 29.2??, vertical FOV 50.6?? to 16.4??, diagonal FOV 114.6?? to 33.4?? Lens Mount: ??14 Iris Type: Fixed Aperture: F1.6 |
| DORI | 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11, Edge 89+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | Image Parameters Switch: Yes Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB Image Enhancement: BLC, HLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage: Built-in microSD, up to 512 GB Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 K??, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), Face detection Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email |
| General | Power: 12 VDC ?? 25%, 1.08 A, max. 13 W, ??5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W Dimension: 308.5 ?? 97.9 ?? 93 mm (12.2" ?? 3.9" ?? 3.7") Package Dimension: 385 ?? 190 ?? 180 mm (15.2" ?? 7.5" ?? 7.1") Weight: Approx. 1390 g (3.1 lb.) With Package Weight: Approx. 1961 g (4.3 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian) Approval: EMC - FCC, CE-EMC, RCM, IC, KC; Safety - UL, CB, CE-LVD, BIS; Environment - CE-RoHS, WEEE, Reach; Protection - IP67, IK10 |
Specification
Hikvision DS-2CD2643G2-IZS 4 MP AcuSense Motorized Varifocal Bullet Network Outdoor Camera with Night Vision & 2.8-12mm Lens
| Image Sensor | 1/3??? Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 95.8?? to 29.2??, vertical FOV 50.6?? to 16.4??, diagonal FOV 114.6?? to 33.4?? Lens Mount: ??14 Iris Type: Fixed Aperture: F1.6 |
| DORI | 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11, Edge 89+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | Image Parameters Switch: Yes Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB Image Enhancement: BLC, HLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage: Built-in microSD, up to 512 GB Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 K??, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), Face detection Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email |
| General | Power: 12 VDC ?? 25%, 1.08 A, max. 13 W, ??5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W Dimension: 308.5 ?? 97.9 ?? 93 mm (12.2" ?? 3.9" ?? 3.7") Package Dimension: 385 ?? 190 ?? 180 mm (15.2" ?? 7.5" ?? 7.1") Weight: Approx. 1390 g (3.1 lb.) With Package Weight: Approx. 1961 g (4.3 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian) Approval: EMC - FCC, CE-EMC, RCM, IC, KC; Safety - UL, CB, CE-LVD, BIS; Environment - CE-RoHS, WEEE, Reach; Protection - IP67, IK10 |
