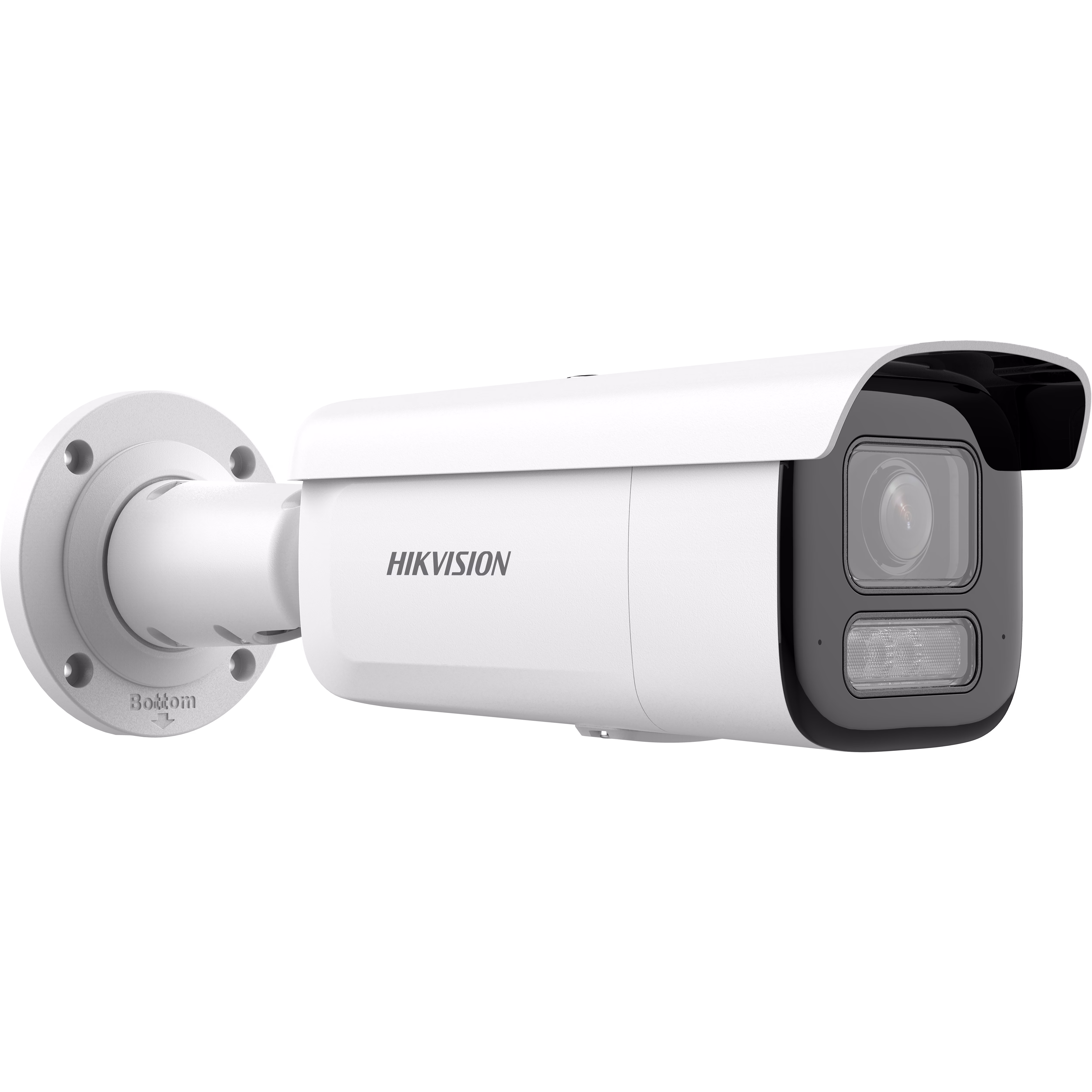

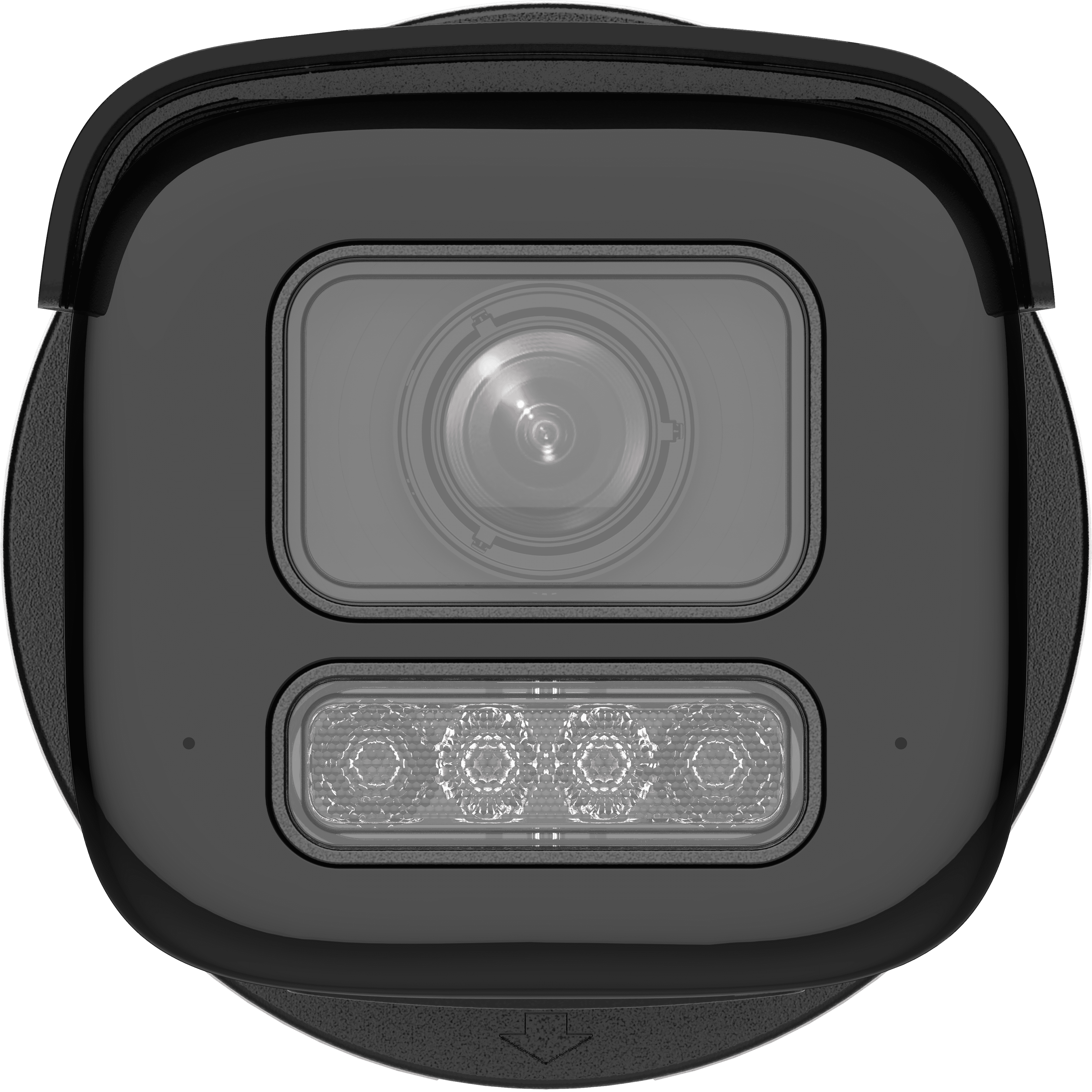

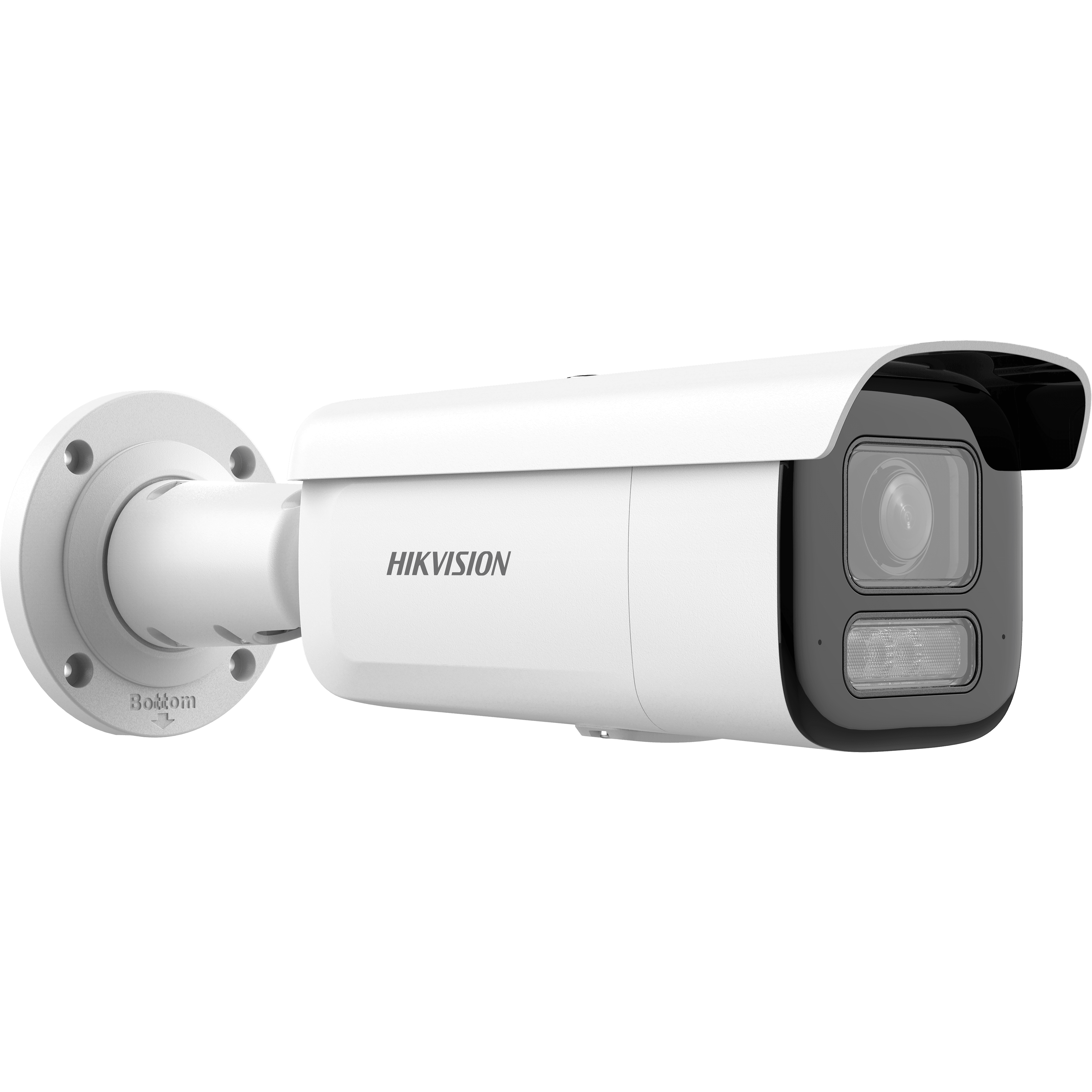

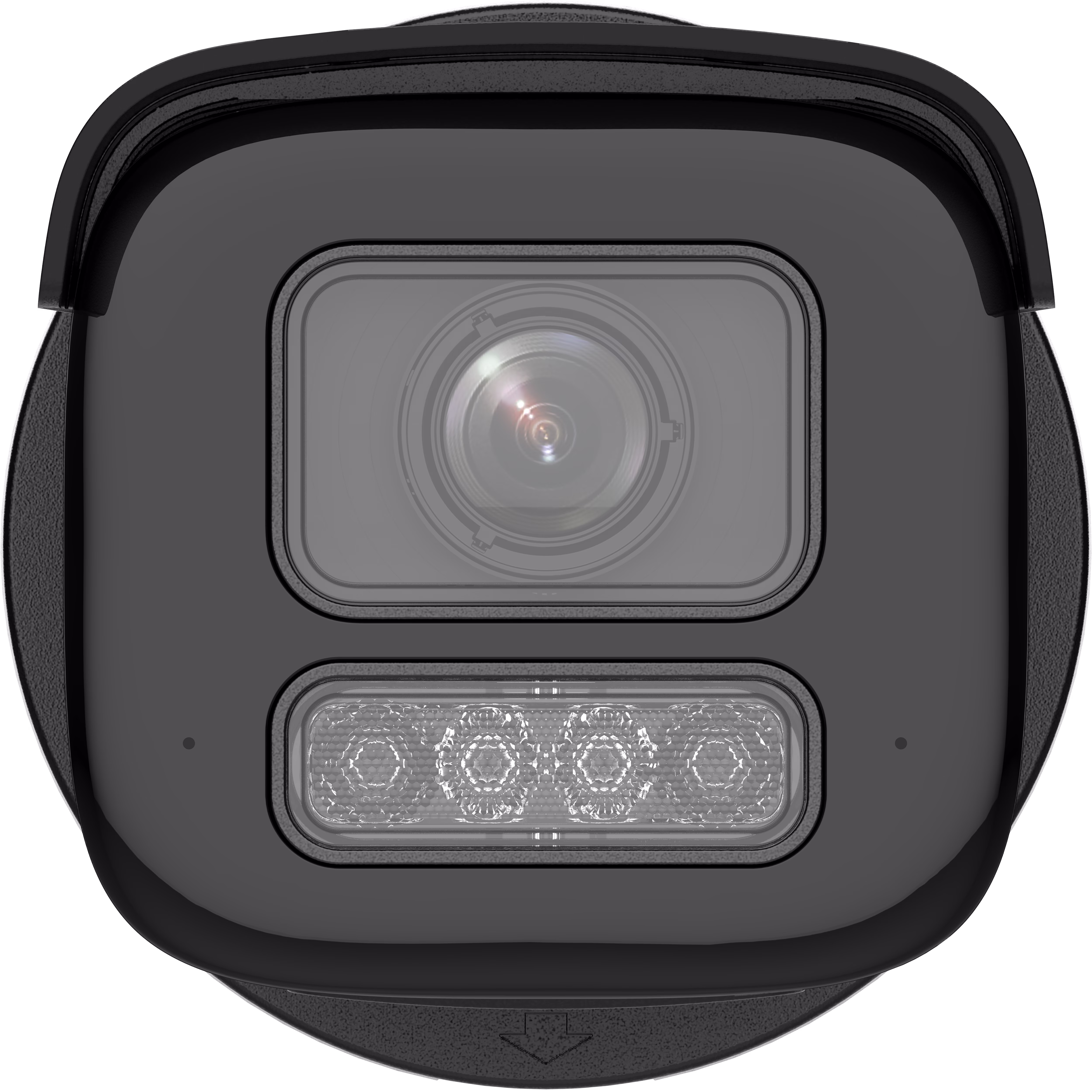

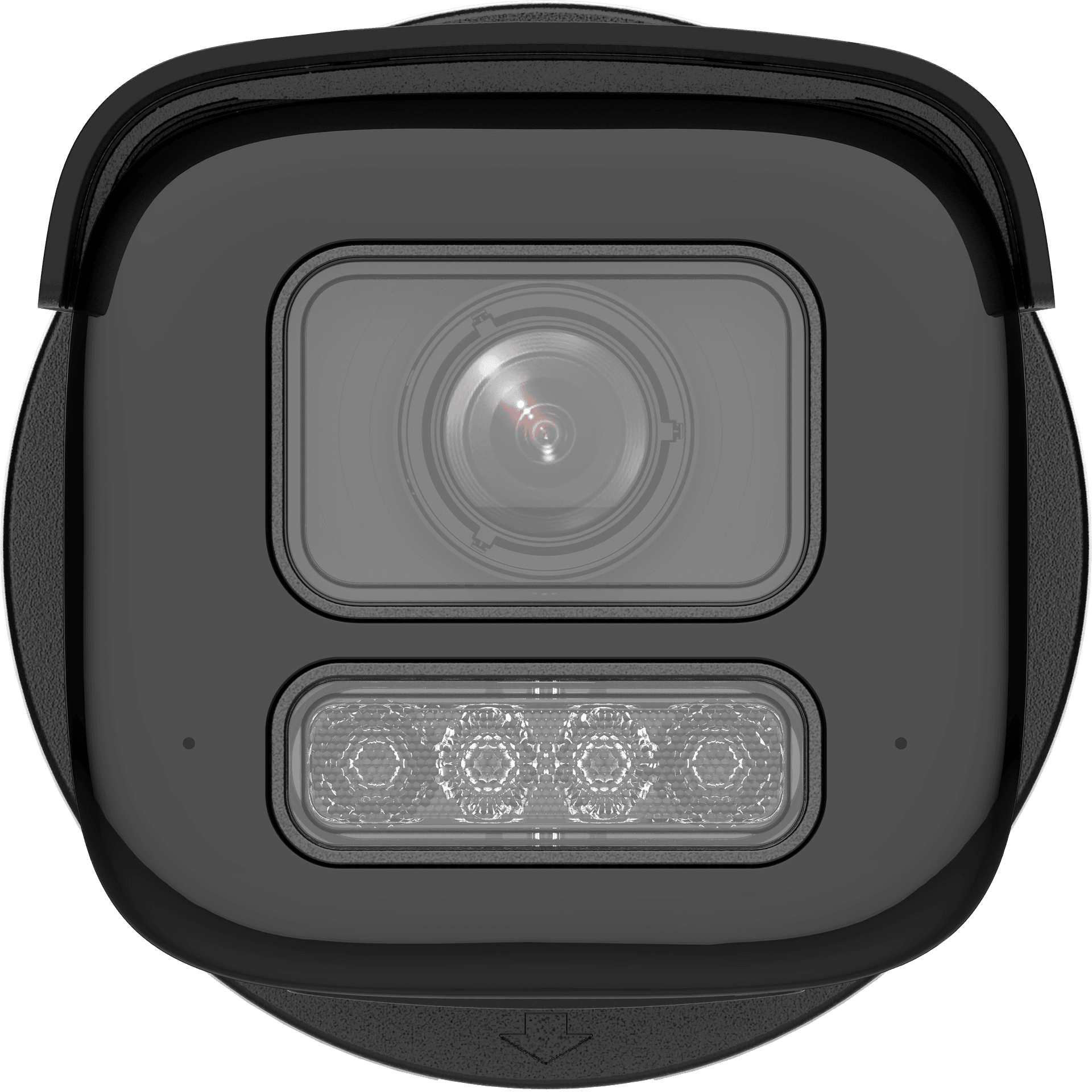

Hikvision DS-2CD2643G2-LIZS2U 4 MP Acusense Smart Hybrid Light Motorized Varifocal Bullet Network Camera, Built-in Dual-microphone, Human & Vehicle classification
Model :
SKU : DS-2CD2643G2-LIZ2U
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Specification
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm: Horizontal FOV 102.4° to 31.2°, Vertical FOV 54.7° to 17.6°, Diagonal FOV 122.1° to 35.8° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 to 12 mm: D: 64 m to 198 m, O: 25.4 m to 78.6 m, R: 12.8 m to 39.6 m, I: 6.4 m to 19.8 m |
| Supplement Light Range | Up to 60 m |
| Supplement Light Type | IR, White Light |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) — supported under certain settings |
| Video Compression | Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main and sub-stream |
| Target Cropping | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–160 Kbps (MP2L2)/8–320 Kbps (MP3)/16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv4/IPv6, SNMP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G), ISAPI, SDK, ISUP |
| Security | Password protection, HTTPS encryption, IP filter, Audit Log, TLS 1.1–1.3, Digest Auth |
| Users | Up to 32 users (Administrator, Operator, User) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, memory card encryption & health detection |
| Web Browser | Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ (Plug-in & Plug-in-free modes supported) |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon masks |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio Interface | Built-in dual mic, 1 line in/out (max 3.3Vpp), terminal block |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Basic Event | Motion detection (human/vehicle), video tampering, exception |
| Smart Event | Face detection |
| Linkage | Upload to FTP/NAS/memory card, email, alarm output, recording, capture |
| Deep Learning Function | Face Capture, Perimeter Protection (line crossing, intrusion) |
| Power | 12 VDC ±25%, 1.08 A (max 13 W), PoE IEEE 802.3at Class 4 (max 15 W) |
| Material | Aluminum alloy body |
| Dimension | 298 × 97.9 × 95.7 mm (11.8" × 3.9" × 3.8") |
| Package Dimension | 385 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | 1531 g (3.4 lb), with package: 2000 g (4.4 lb) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing) |
| Storage Conditions | -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing) |
| Language | 33 languages (English, Russian, German, French, Spanish, Chinese, Japanese, etc.) |
| General Functions | Heartbeat, Mirror, Flash log, Password reset via email, Pixel counter, Anti-banding |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021, RCM, ICES-003, KC |
| Safety | CB: IEC 62368-1:2014+A11, CE-LVD: EN 62368-1:2014/A11:2017, BIS, LOA |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, REACH: EC No 1907/2006 |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
