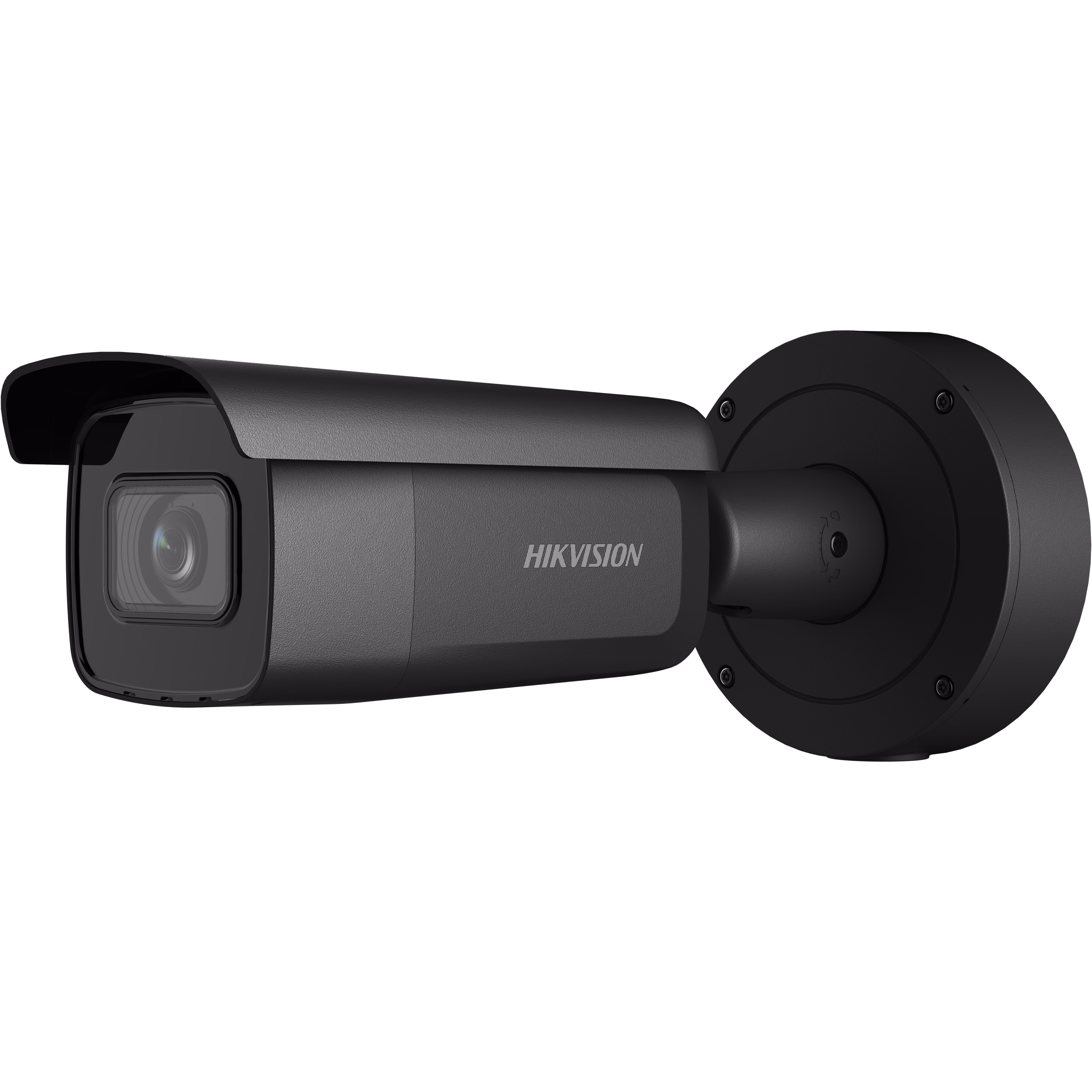

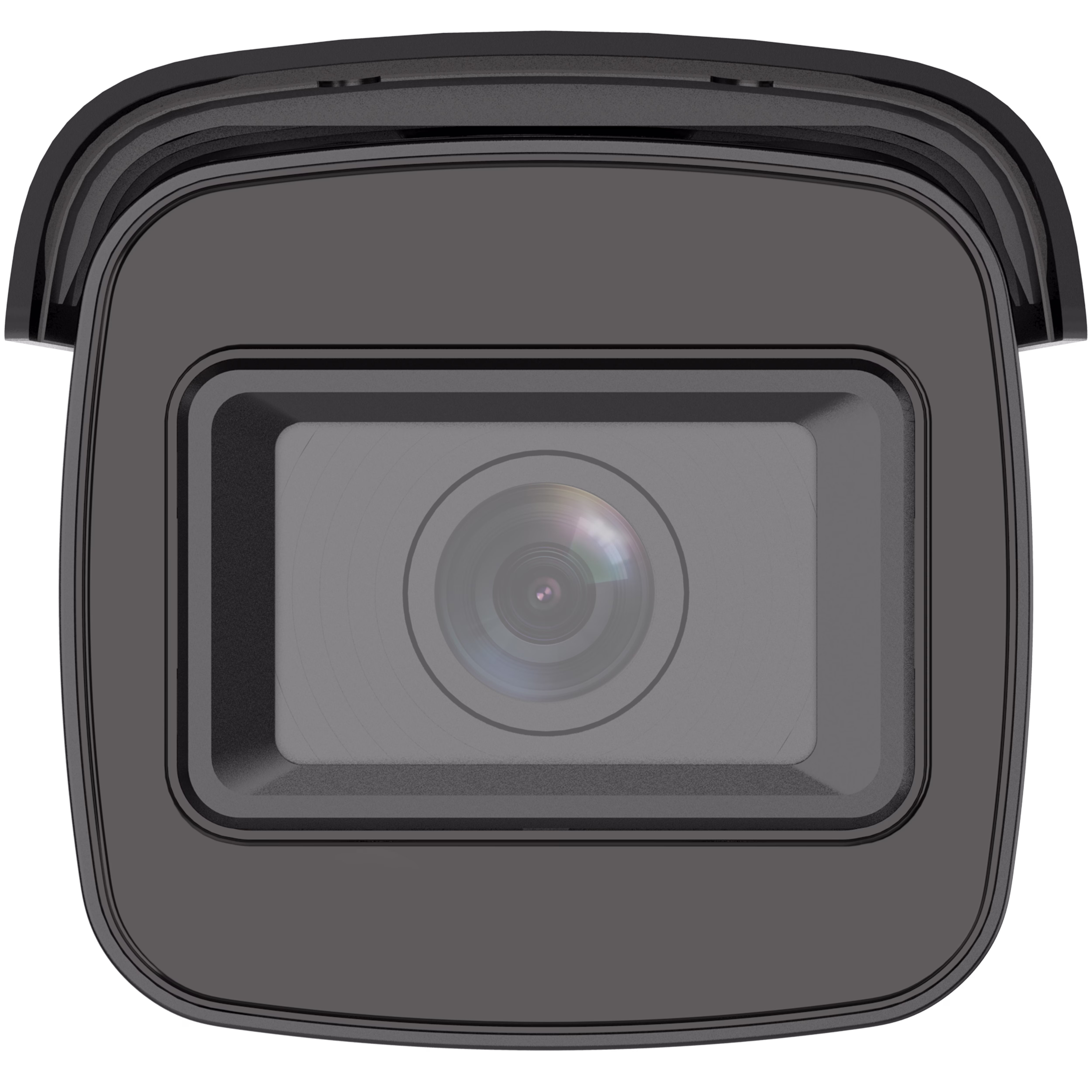

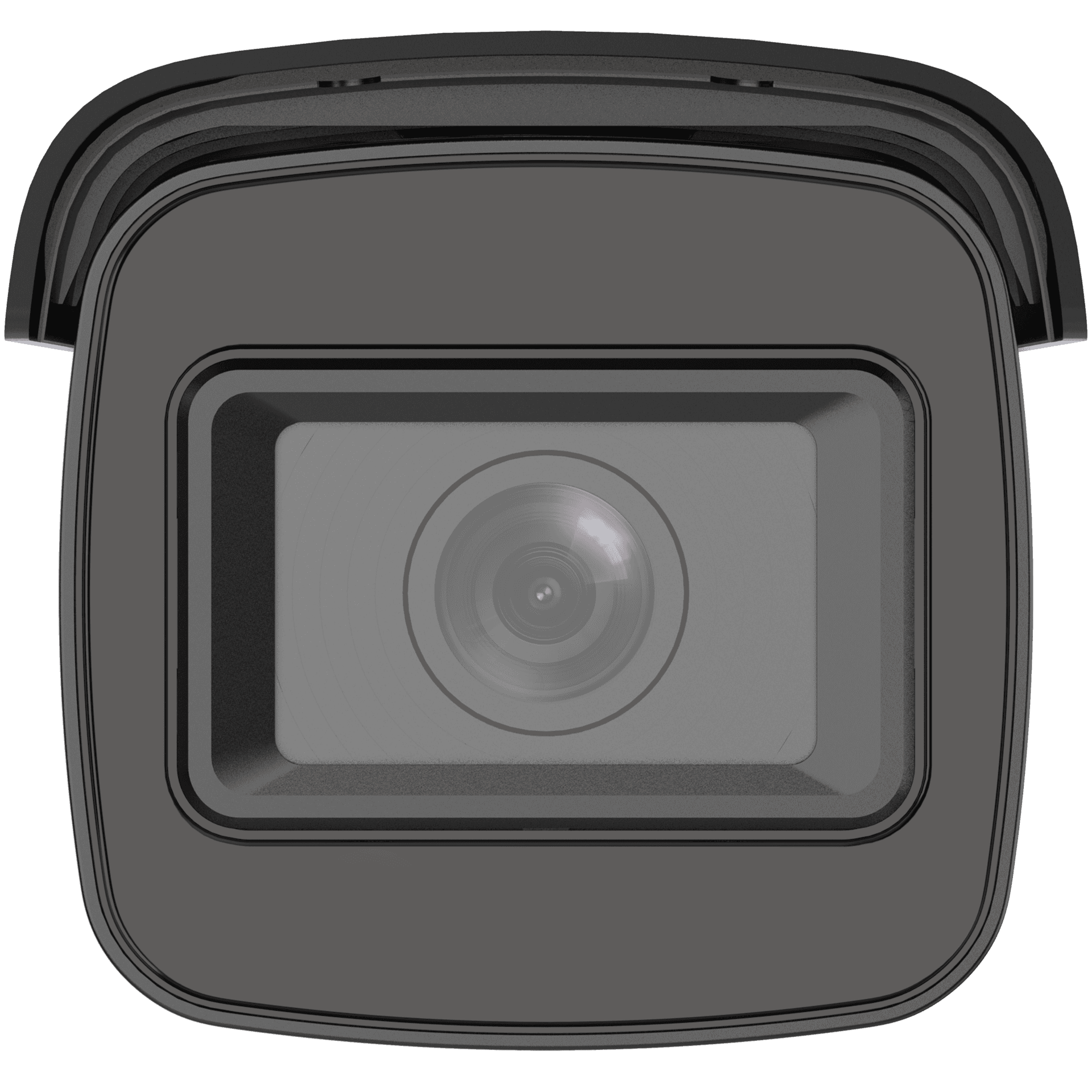

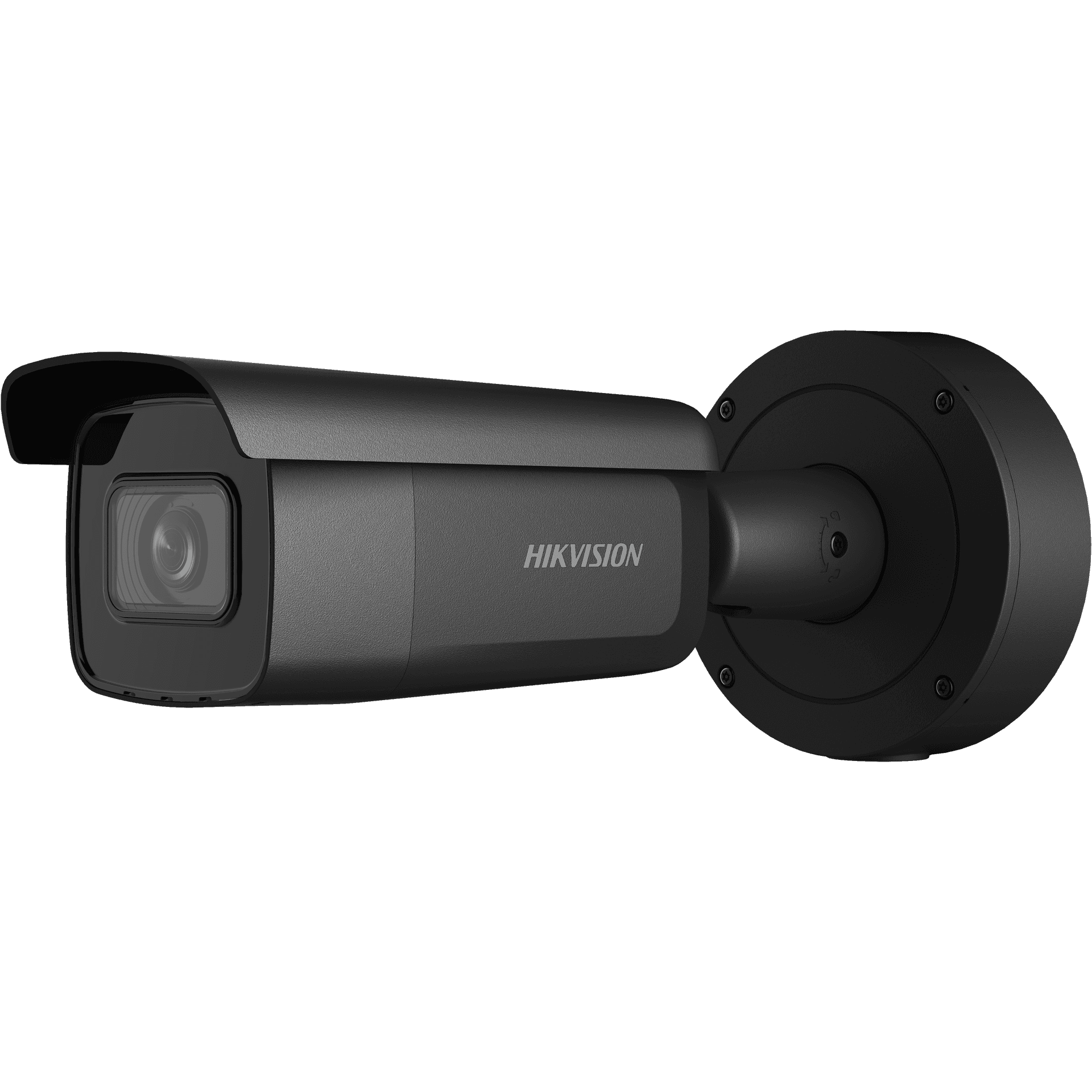

Hikvision DS-2CD2646G2-IZS (Black) 4MP AcuSense Motorized Varifocal Bullet IP Camera, DarkFighter, 120dB WDR, H.265+, Audio & Alarm I/O, IP66, IK10
Model :
SKU : DS-2CD2646G2-IZS- BLACK
About this item
About this item
Description
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Motorized varifocal lens for easy installation
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Audio and alarm interface available
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP66) and vandal-resistant (IK10)
Specification
4MP Varifocal IR Network Dome Camera – Technical Specifications
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON) B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0°–355° Tilt: 0°–90° Rotate: 0°–360° |
Lens
| Lens Type | Motor-driven Varifocal (2.8–12 mm) |
| FOV | Horizontal: 108°–30° Vertical: 56°–17° Diagonal: 131°–35° |
| Aperture | F1.4 |
| Iris Type | Fixed |
| DORI (Wide) | D: 64.0m / O: 25.4m / R: 12.8m / I: 6.4m |
| DORI (Tele) | D: 190m / O: 75.4m / R: 38.0m / I: 19.0m |
Illuminator
| Type | IR |
| Range | Up to 60 m |
| Smart Supplement Light | Yes |
Video
| Main Stream | 25/30 fps @ 2688×1520, 1920×1080, 1280×720 |
| Sub Stream | 25/30 fps @ 1280×720, 640×480, 640×360 |
| Third Stream | 10 fps @ 1920×1080, 1280×720, 640×480, 640×360 (Supported under certain settings) |
| Compression | H.265+/H.265/H.264+/H.264 (Main) H.265/H.264/MJPEG (Sub) H.265/H.264 (Third) |
| Bit Rate | 32 Kbps – 8 Mbps |
| Bit Rate Control | CBR / VBR |
| ROI | 1 fixed region (Main & Sub) |
| SVC | H.264 & H.265 Encoding |
Audio
| Audio Type | Mono |
| Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Sampling Rate | 8 kHz – 48 kHz |
| Noise Filtering | Yes |
Network
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, SSL/TLS, SNMP, WebSocket, etc. |
| Live View | Up to 6 channels |
| API | ONVIF (S/G/T), ISAPI, ISUP, SDK |
| User Access | Up to 32 users (Admin / Operator / User) |
| Security | Password protection, HTTPS, IP filter, TLS 1.1/1.2, WSSE authentication |
| Storage | NAS (NFS/SMB), ANR, microSD up to 512GB |
Smart Features
| Basic Events | Motion detection (Human/Vehicle classification), Tampering, Exception |
| Smart Events | Line crossing, Intrusion, Region entrance/exit, Scene change detection |
| Deep Learning | Face Capture |
| Linkage | NAS/FTP upload, Email alert, Recording, Snapshot, Audible warning |
Interface
| Ethernet | 1 × RJ45 (10/100 Mbps) |
| Audio I/O | Line In & Line Out (3.5mm) |
| Alarm I/O | 1 Input / 1 Output (Max. 24VDC/24VAC, 1A) |
| Reset | Yes |
General
| Power | 12 VDC ±25% (Max 13W) / PoE 802.3at (Max 15W) |
| Material | ADC12 |
| Dimensions | Ø144.1 mm × 345.7 mm |
| Weight | Approx. 1445 g |
| Operating Conditions | -30°C to 60°C, ≤95% RH |
| Protection | IP66, IK10 |
Certifications
| EMC | FCC, CE-EMC, RCM, KC |
| Safety | UL, CB, CE-LVD, LOA |
| Environmental | RoHS, WEEE, REACH |
