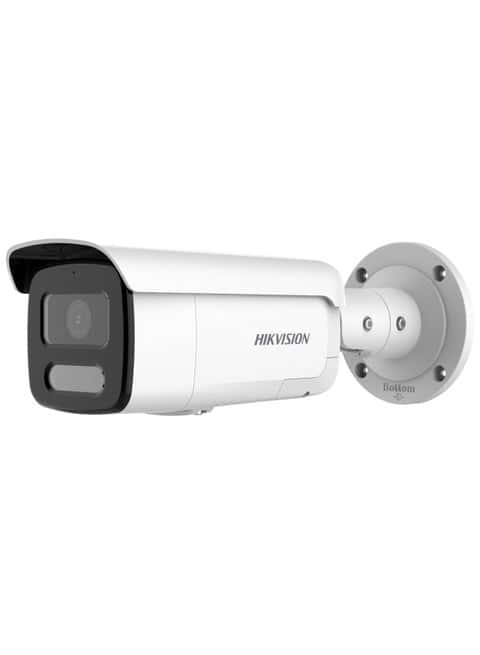

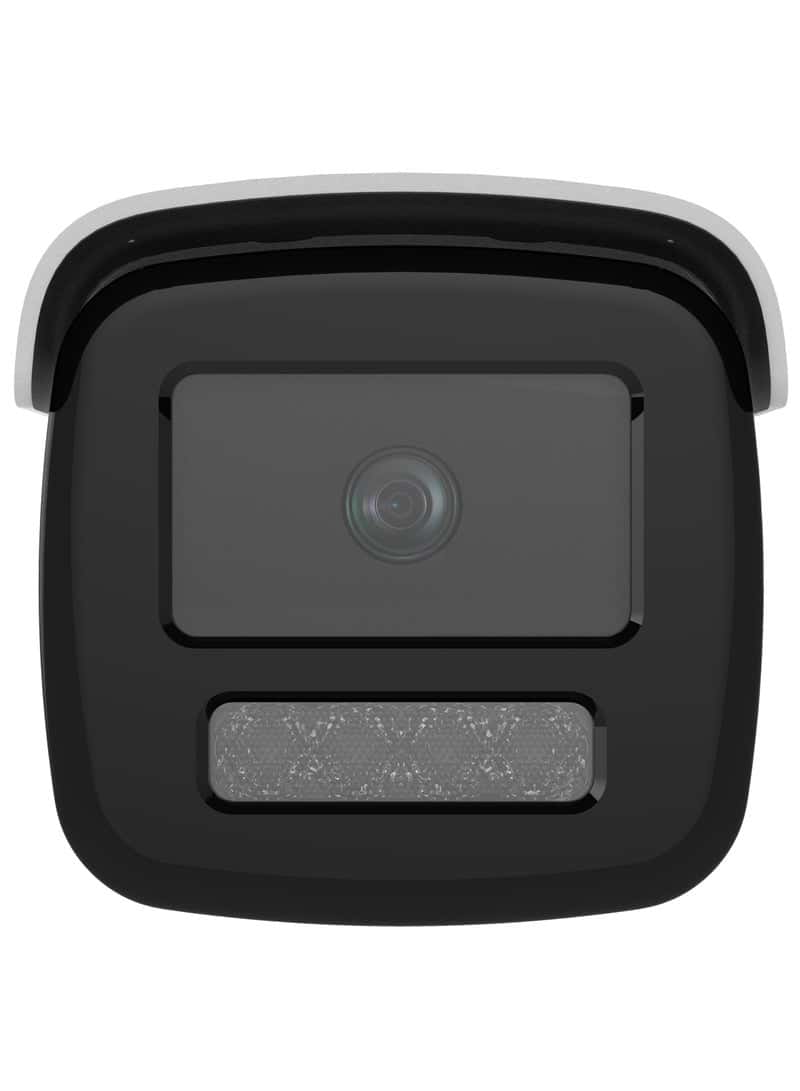

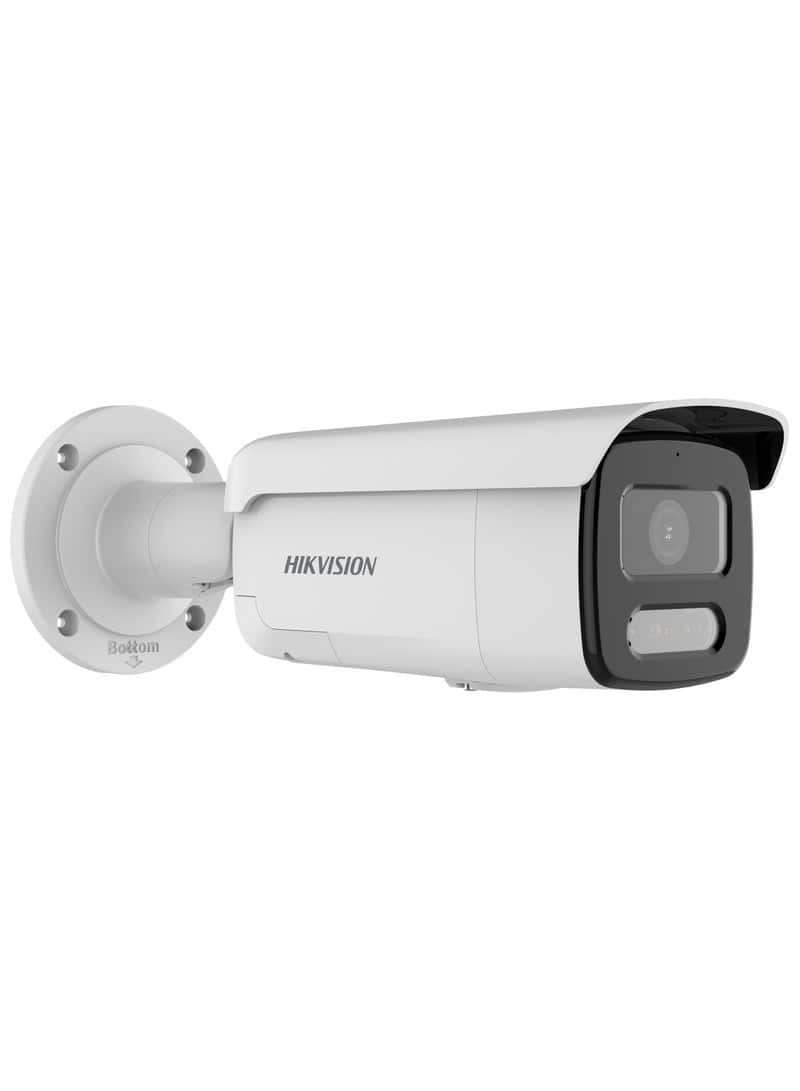

Home/Security Cameras & Surveillance/Hikvision DS-2CD2687G2HT-LIZS 8 MP Smart Hybrid Li...
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 ?? 2160 |
| Min. Illumination | Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Varifocal lens, motorized, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, Horizontal FOV: 112.3?? to 41.2??, Vertical FOV: 58.1?? to 23.1??, Diagonal FOV: 137.4?? to 47.3?? |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | F1.2 |
| Depth of Field | 1 m to ??? |
| DORI (Wide) | D: 87 m, O: 35 m, R: 17 m, I: 9 m |
| DORI (Tele) | D: 216 m, O: 86 m, R: 43 m, I: 22 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (3840??2160 to 1280??720); 60 Hz: 24 fps (3840??2160), 30 fps (others) |
| Sub-Stream | 50 Hz: 25 fps (1280??720 to 640??360); 60 Hz: 30 fps (same) |
| Third Stream | 10 fps under certain settings (up to 1920??1080) |
| Video Compression | Main: H.265/H.264/+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main & sub-stream |
| Audio Compression | G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | Various (8 to 320 Kbps depending on codec) |
| Audio Sampling Rate | 8 kHz to 48 kHz |
| Noise Filtering | Yes |
| Protocols | Full TCP/IP suite, HTTPS, FTP, RTP, RTSP, SNMP, WebSocket, SFTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 access levels |
| Security | Full suite incl. HTTPS, TLS 1.1???1.3, MAC auth, watermark, WSSE, audit log |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE10/11 (plugin), Chrome/Firefox/Edge (plugin-free) |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Auto, Day, Night, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ??? 52 dB |
| WDR | 130 dB |
| Privacy Mask | 4 polygon masks |
| Ethernet | 1 RJ45 10/100M self-adaptive |
| Storage | microSD card slot, up to 512 GB |
| Audio I/O | 1 input, 1 output (non-equilibrium) |
| Alarm | 1 input, 1 output |
| Reset Key | Yes |
| Basic Event | Motion detection, tampering, exceptions |
| Smart Event | Scene change detection |
| Linkage | FTP, NAS, SD, email, recording, alarm output |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, etc. with human/vehicle detection |
| Power | 12 VDC ?? 25%, max 14.5 W; PoE (802.3at, Class 4), max 18 W |
| Material | Metal (front cover, body, bracket) |
| Dimensions | 298 ?? 97.9 ?? 95.7 mm (11.8" ?? 3.9" ?? 3.8") |
| Package Dimensions | 386 ?? 190 ?? 180 mm (15.2" ?? 7.5" ?? 7.1") |
| Weight | 1085 g (2.4 lb) |
| Weight with Package | 1639 g (3.6 lb) |
| Storage Conditions | -30 ??C to 60 ??C, 95% RH or less |
| Operating Conditions | -30 ??C to 60 ??C, 95% RH or less |
| General Functions | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages supported |
| EMC | CE-EMC standards |
| Safety | UL 62368-1, IEC 62368-1, CE-LVD |
| Environmental | RoHS compliant |
| Protection | IP67, IK10 |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 ?? 2160 |
| Min. Illumination | Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Varifocal lens, motorized, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, Horizontal FOV: 112.3?? to 41.2??, Vertical FOV: 58.1?? to 23.1??, Diagonal FOV: 137.4?? to 47.3?? |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | F1.2 |
| Depth of Field | 1 m to ??? |
| DORI (Wide) | D: 87 m, O: 35 m, R: 17 m, I: 9 m |
| DORI (Tele) | D: 216 m, O: 86 m, R: 43 m, I: 22 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (3840??2160 to 1280??720); 60 Hz: 24 fps (3840??2160), 30 fps (others) |
| Sub-Stream | 50 Hz: 25 fps (1280??720 to 640??360); 60 Hz: 30 fps (same) |
| Third Stream | 10 fps under certain settings (up to 1920??1080) |
| Video Compression | Main: H.265/H.264/+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main & sub-stream |
| Audio Compression | G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | Various (8 to 320 Kbps depending on codec) |
| Audio Sampling Rate | 8 kHz to 48 kHz |
| Noise Filtering | Yes |
| Protocols | Full TCP/IP suite, HTTPS, FTP, RTP, RTSP, SNMP, WebSocket, SFTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 access levels |
| Security | Full suite incl. HTTPS, TLS 1.1???1.3, MAC auth, watermark, WSSE, audit log |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE10/11 (plugin), Chrome/Firefox/Edge (plugin-free) |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Auto, Day, Night, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ??? 52 dB |
| WDR | 130 dB |
| Privacy Mask | 4 polygon masks |
| Ethernet | 1 RJ45 10/100M self-adaptive |
| Storage | microSD card slot, up to 512 GB |
| Audio I/O | 1 input, 1 output (non-equilibrium) |
| Alarm | 1 input, 1 output |
| Reset Key | Yes |
| Basic Event | Motion detection, tampering, exceptions |
| Smart Event | Scene change detection |
| Linkage | FTP, NAS, SD, email, recording, alarm output |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, etc. with human/vehicle detection |
| Power | 12 VDC ?? 25%, max 14.5 W; PoE (802.3at, Class 4), max 18 W |
| Material | Metal (front cover, body, bracket) |
| Dimensions | 298 ?? 97.9 ?? 95.7 mm (11.8" ?? 3.9" ?? 3.8") |
| Package Dimensions | 386 ?? 190 ?? 180 mm (15.2" ?? 7.5" ?? 7.1") |
| Weight | 1085 g (2.4 lb) |
| Weight with Package | 1639 g (3.6 lb) |
| Storage Conditions | -30 ??C to 60 ??C, 95% RH or less |
| Operating Conditions | -30 ??C to 60 ??C, 95% RH or less |
| General Functions | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages supported |
| EMC | CE-EMC standards |
| Safety | UL 62368-1, IEC 62368-1, CE-LVD |
| Environmental | RoHS compliant |
| Protection | IP67, IK10 |
