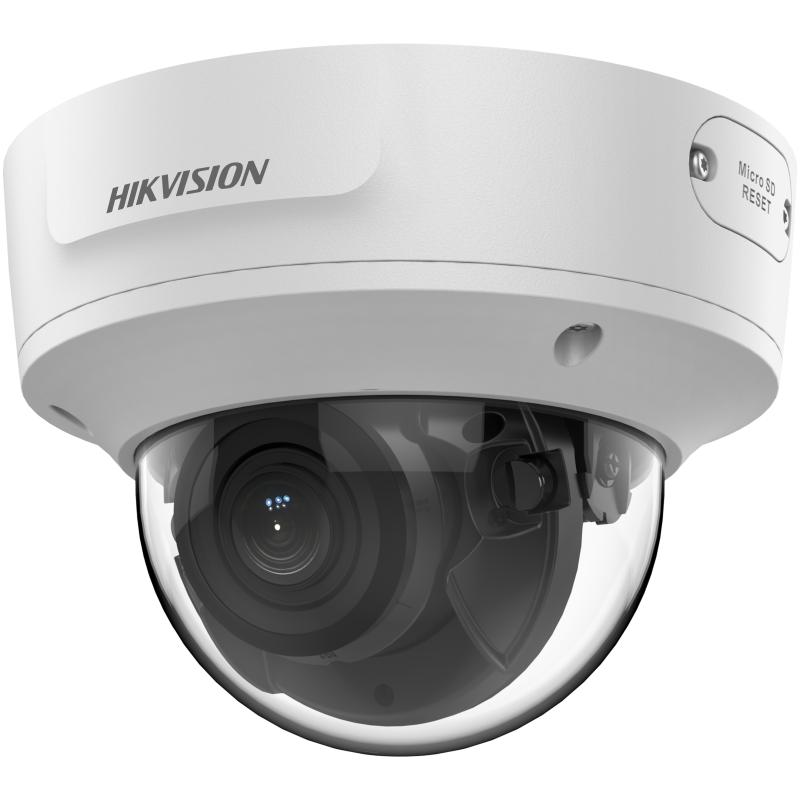

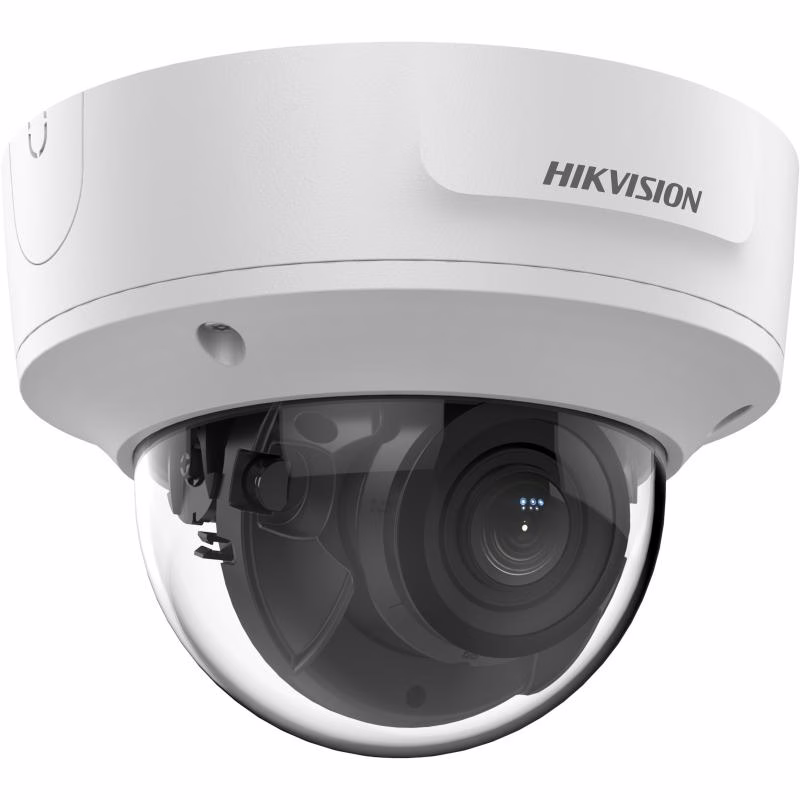

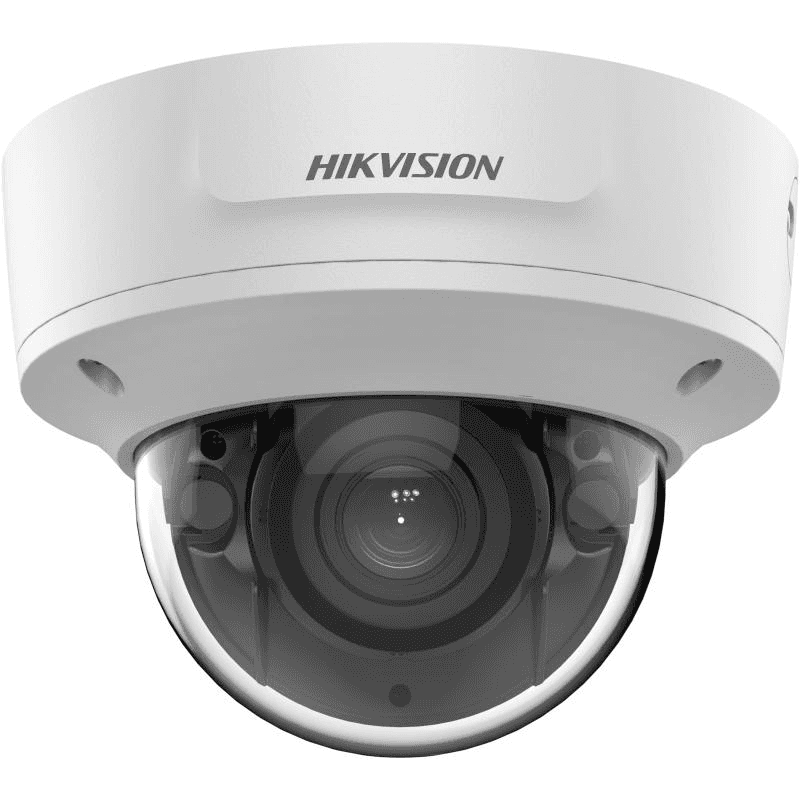

Hikvision DS-2CD2763G2-IZS 6 MP AcuSense Motorized Varifocal Dome Network Camera, 1/2.4" Progressive Scan CMOS, Up to 40 m IR Range, H.265+, IP67, IK10
Model :
SKU : DS-2CD2763G2-IZS(2.8-12mm
About this item
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-2CD2763G2-IZS 6 MP AcuSense Motorized Varifocal Dome Network Camera, 1/2.4" Progressive Scan CMOS, Up to 40 m IR Range, H.265+, IP67, IK10
| Attribute | Specification |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
| Max. Resolution | 3200 ?? 1800 |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, Horizontal FOV 106?? to 35??, Vertical FOV 56?? to 20??, Diagonal FOV 127?? to 41?? |
| Lens Mount | ??14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | Wide: D: 68 m, O: 27 m, R: 13 m, I: 7 m Tele: D: 200 m, O: 79 m, R: 40 m, I: 20 m |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Supplement Light Range | Up to 40 m |
| Main Stream | 50 Hz: 25 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 x 720, 640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ??? 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection |
| General | Upper cover and base: metal, bubble: plastic |
| Dimension | ??153.3 mm ?? 111.6 mm (??6.1 ?? 4.4") |
| Package Dimension | 244 mm ?? 174 mm ?? 173 mm (9.7" ?? 6.9" ?? 6.9") |
| Weight | Approx. 885 g (1.9 lb.) |
| With Package Weight | Approx. 1479 g (3.1 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-flicker |
| Power | 12 VDC ?? 25%, 0.88 A, max. 10.5 W, ??5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision DS-2CD2763G2-IZS 6 MP AcuSense Motorized Varifocal Dome Network Camera, 1/2.4" Progressive Scan CMOS, Up to 40 m IR Range, H.265+, IP67, IK10
| Attribute | Specification |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
| Max. Resolution | 3200 ?? 1800 |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, Horizontal FOV 106?? to 35??, Vertical FOV 56?? to 20??, Diagonal FOV 127?? to 41?? |
| Lens Mount | ??14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | Wide: D: 68 m, O: 27 m, R: 13 m, I: 7 m Tele: D: 200 m, O: 79 m, R: 40 m, I: 20 m |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Supplement Light Range | Up to 40 m |
| Main Stream | 50 Hz: 25 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (3200 ?? 1800, 2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 x 720, 640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ??? 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection |
| General | Upper cover and base: metal, bubble: plastic |
| Dimension | ??153.3 mm ?? 111.6 mm (??6.1 ?? 4.4") |
| Package Dimension | 244 mm ?? 174 mm ?? 173 mm (9.7" ?? 6.9" ?? 6.9") |
| Weight | Approx. 885 g (1.9 lb.) |
| With Package Weight | Approx. 1479 g (3.1 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-flicker |
| Power | 12 VDC ?? 25%, 0.88 A, max. 10.5 W, ??5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
