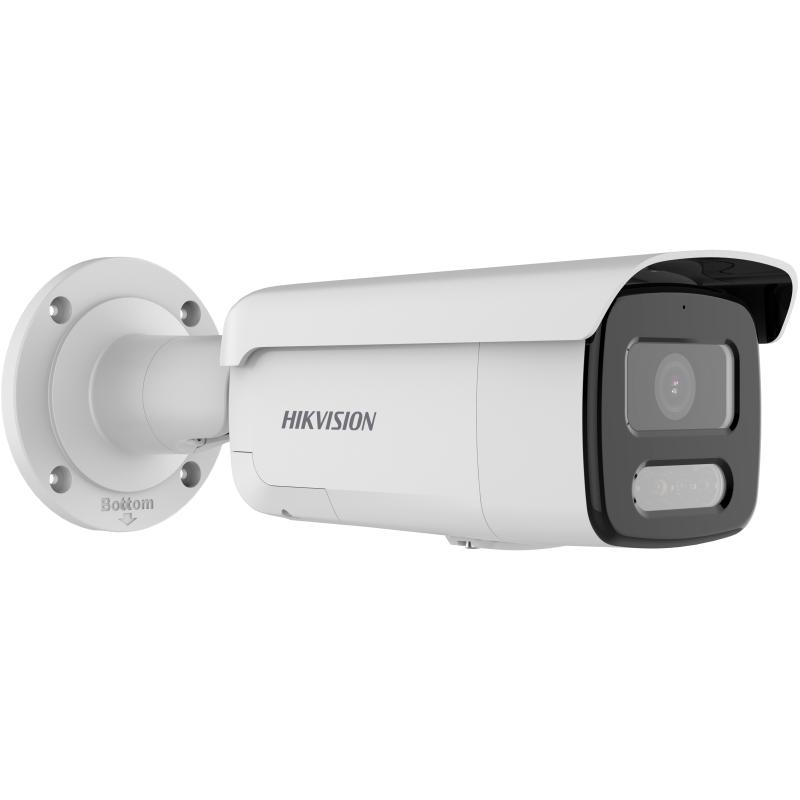

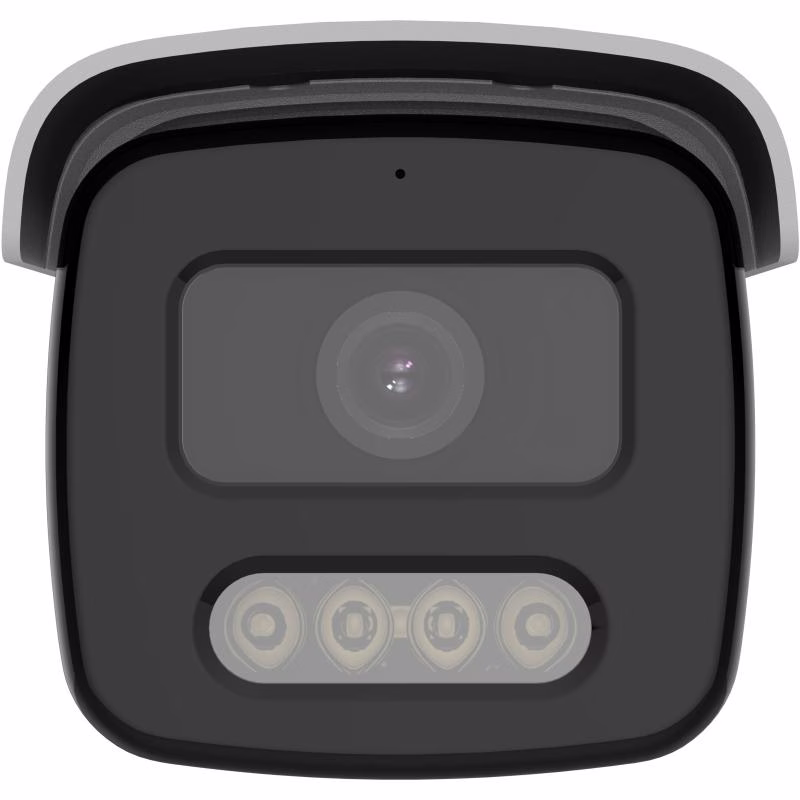

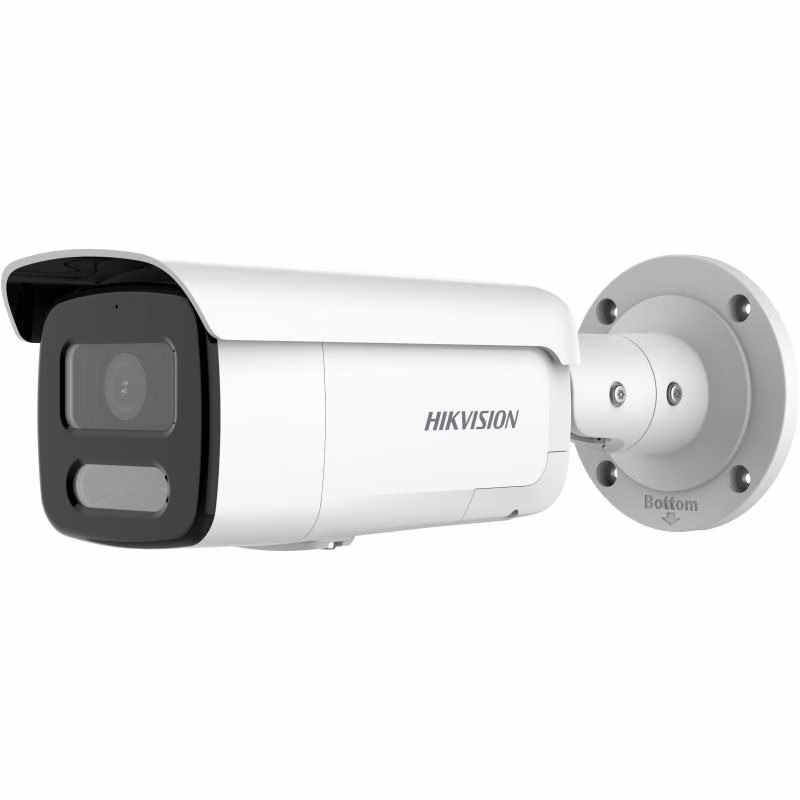

Hikvision DS-2CD2T47G2-LSU/SL 4 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 1/1.8" Progressive Scan CMOS, Focus on human and vehicle targets classification, H.265+, Built-in two-way audio, IP67
Model :
SKU : DS-2CD2T47G2-LSU/SL
About this item
Description
Hikvision DS-2CD2T47G2-LSU/SL 4 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 1/1.8" Progressive Scan CMOS, Focus on human and vehicle targets classification, H.265+, Active strobe light, IP67
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | 2.8 mm, horizontal FOV 111.9??, vertical FOV 60.5??, diagonal FOV 133.6?? 4 mm, horizontal FOV 95.2??, vertical FOV 50.6??, diagonal FOV 114.7?? 6 mm, horizontal FOV 58.4??, vertical FOV 31??, diagonal FOV 68.7?? |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2.8 mm: 3.1 m to ??? 4 mm: 5.4 m to ??? 6 mm: 12.1 m to ??? |
| DORI | 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m 4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m 6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m |
| Supplement Light Type | White light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Video | Main Stream: 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage. Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11. Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+. Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-In Microphone: Yes Built-In Speaker: 2 W, 10 cm: 97 dB Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium. 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: Visual alarm, 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Reset Key: Yes |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)). Scene change detection Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output |
| Deep Learning Function | Face Capture: Yes |
| General | Power: 12 VDC ?? 25%, 0.67 A, max. 8 W, ??5.5 mm coaxial power plug, reverse polarity protection. PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W Dimension: 289.5 mm ?? ??105 mm (11.4"?? ??4.1") Package Dimension: 386 mm ?? 156 mm ?? 155 mm (15.2" ?? 6.1" ?? 6.1") Weight: Approx. 1165 g (2.6 lb.) With Package Weight: Approx. 1639 g (3.6 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Approval | EMC: FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015 Safety: UL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; LOA: IEC/EN 60950-1 Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 Protection: IP67: IEC 60529-2013 |
