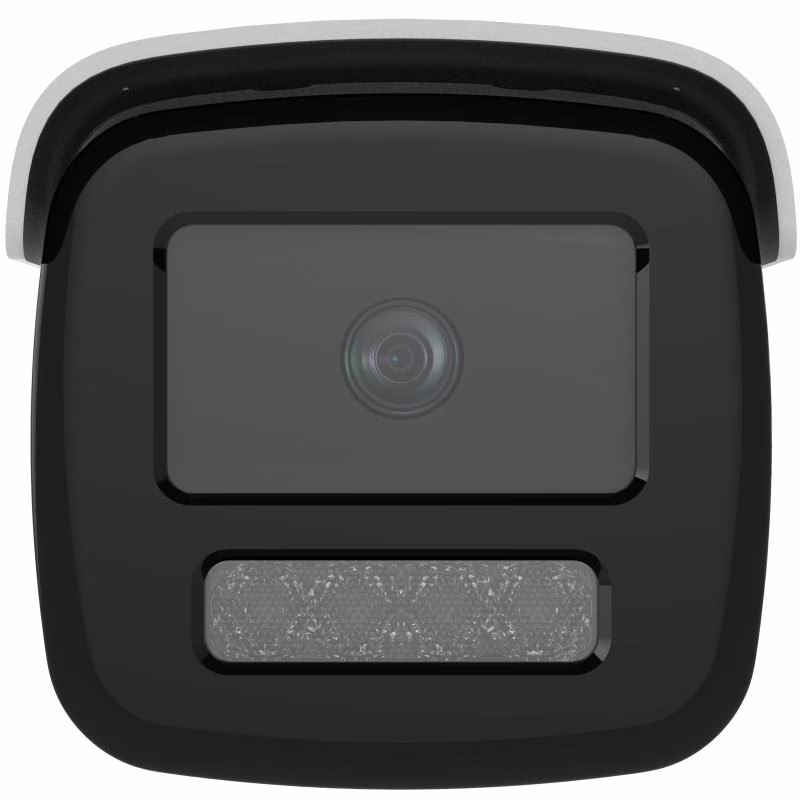

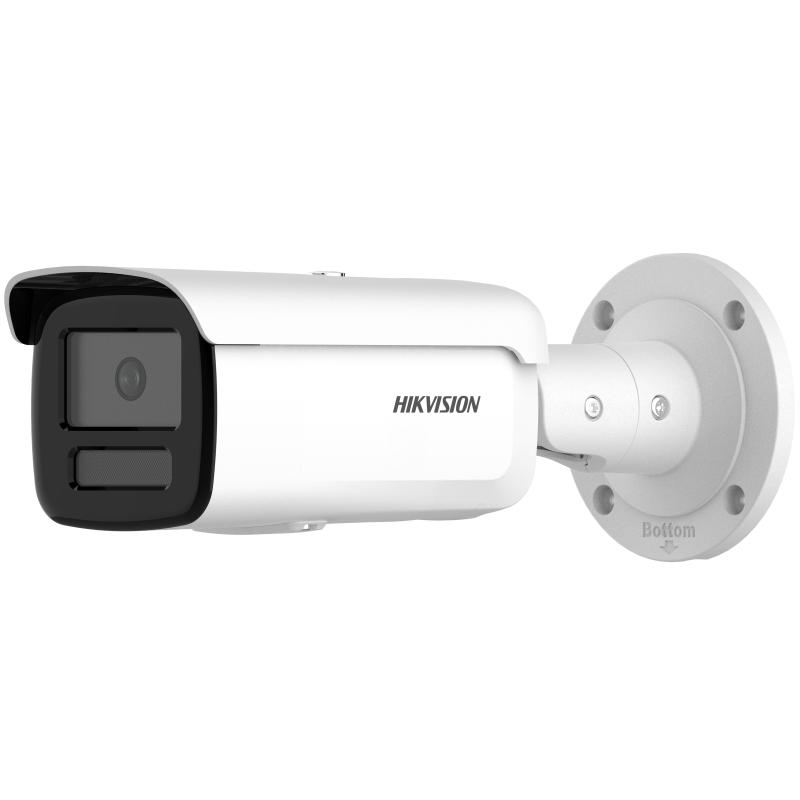

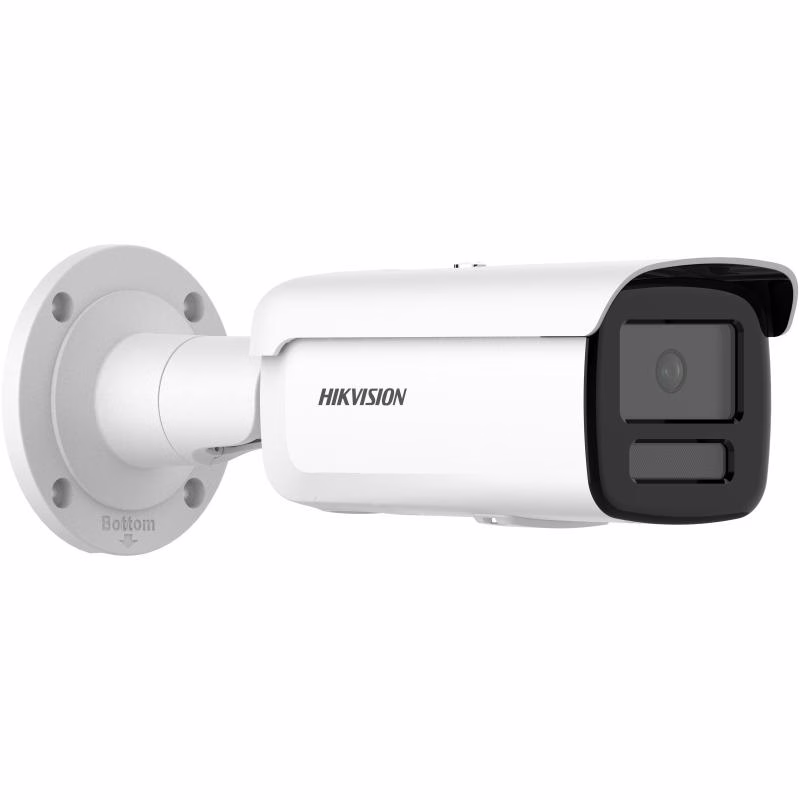

Hikvision DS-2CD2T47G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera
Model :
SKU : DS-2CD2T47G2H-LI-2.8MM
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 104.0??, Vertical FOV 54.4??, Diagonal FOV 126.7?? 4 mm: Horizontal FOV 89.2??, Vertical FOV 45.5??, Diagonal FOV 108.2?? |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 2.5 m to ??? 4 mm: 3.1 m to ??? |
| DORI | |
| DORI Distance | 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IPv4, IPv6, etc. |
| Simultaneous Live View | Up to 6 channels |
| Security | Password protection, HTTPS encryption, 802.1X authentication, IP filtering, security audit log |
| General | |
| Power | 12 VDC ?? 25%, 0.66 A, max. 8 W; PoE: IEEE 802.3af, Class 3, max. 9 W |
| Material | Front cover: Metal, Body: Metal, Bracket: Metal |
| Dimensions | 286.7 mm ?? 93.3 mm ?? 91.2 mm (11.3" ?? 3.7" ?? 3.6") |
| Weight | Approx. 1085 g (2.4 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F), Humidity ??? 95% (non-condensing) |
| Protection | IP67 (IEC 60529-2013) |
