Model :
SKU : DS-2CD2T47G2H-LI-4MM

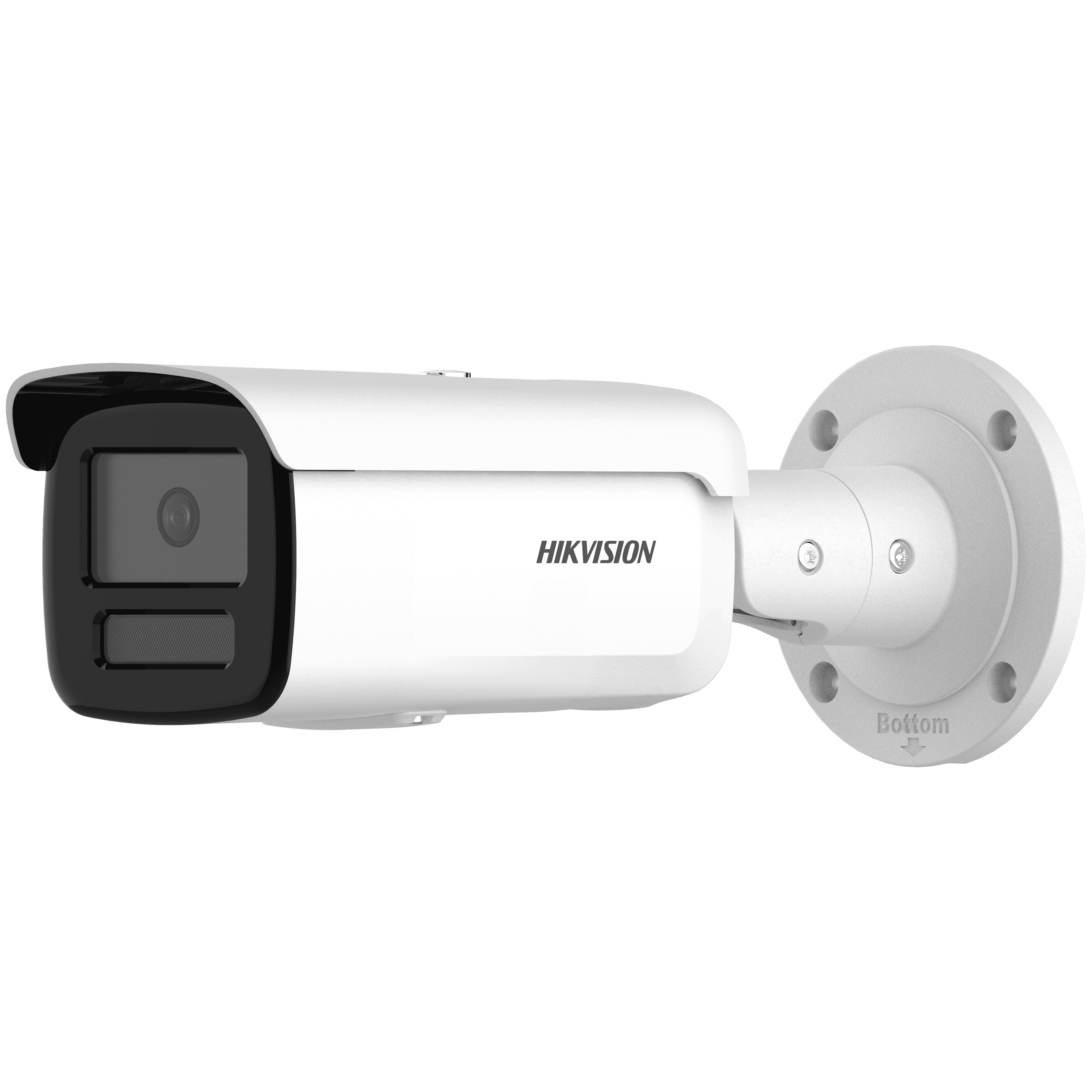

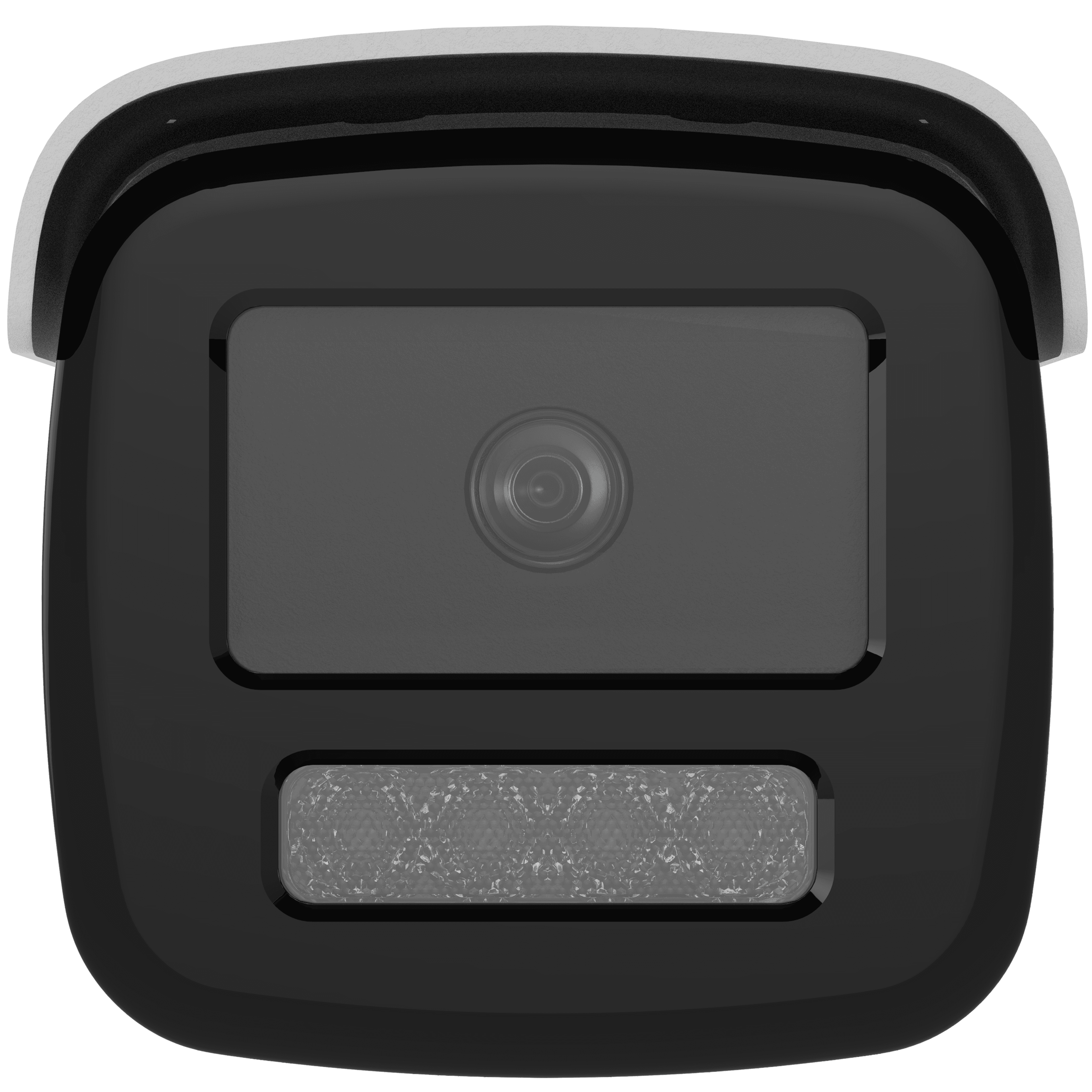

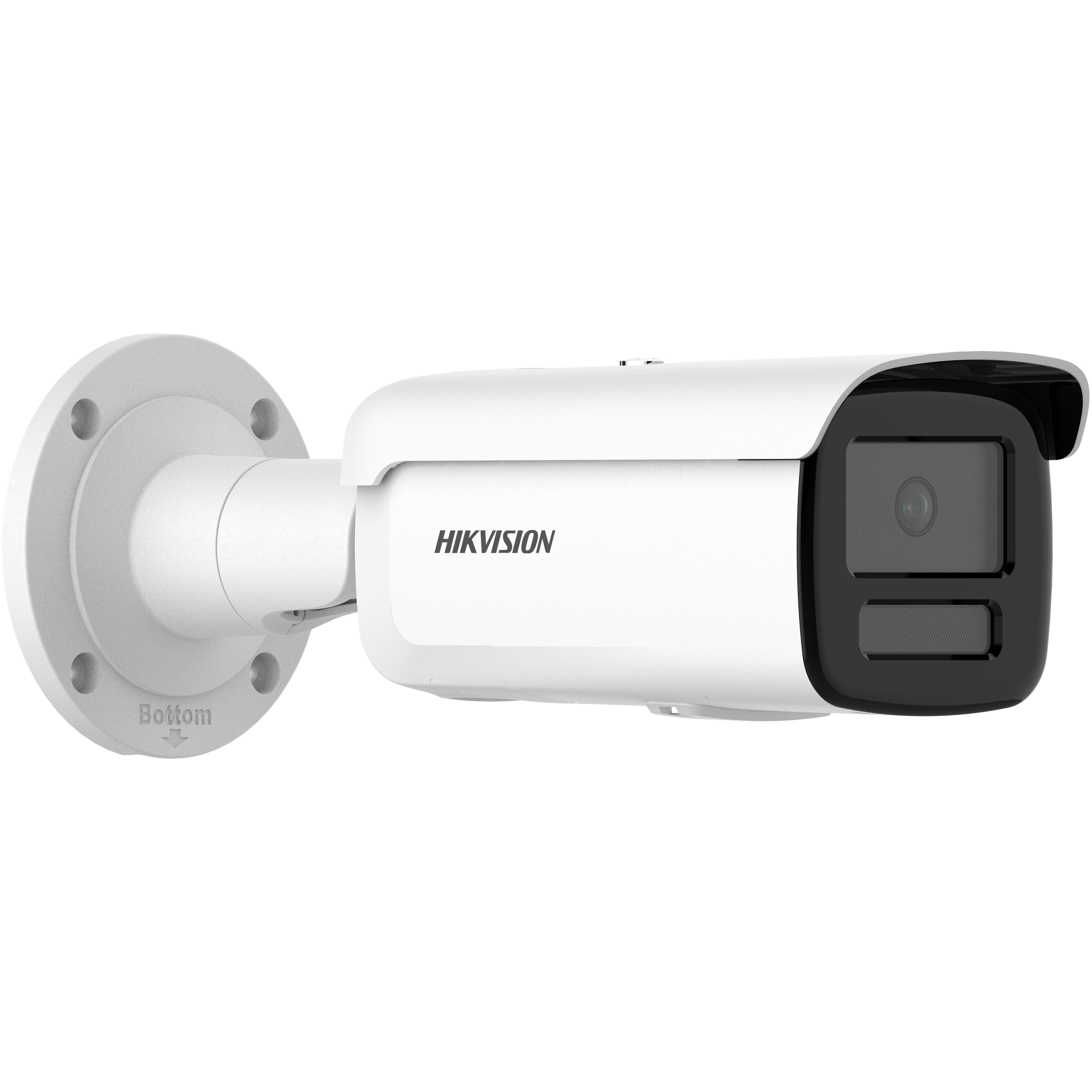

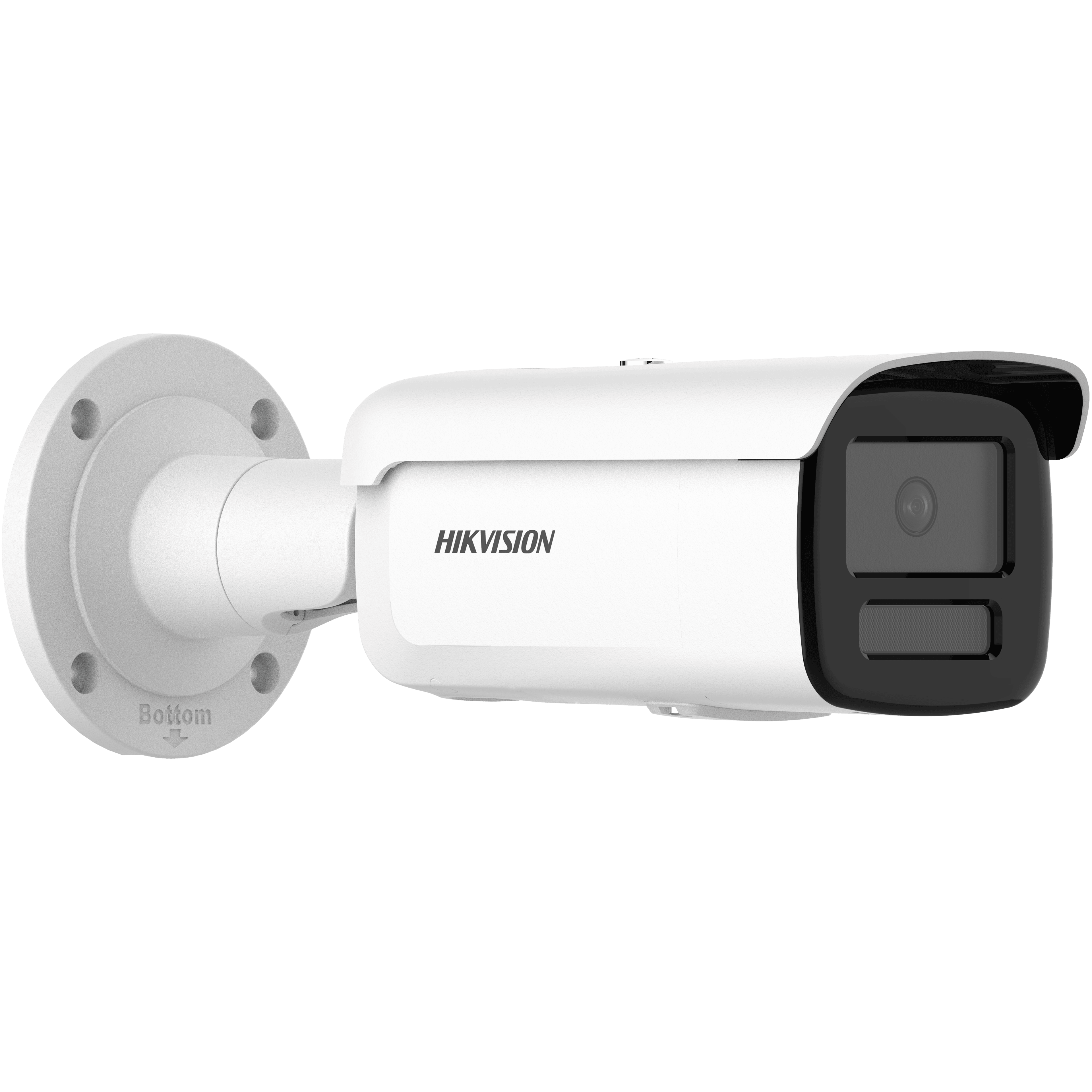

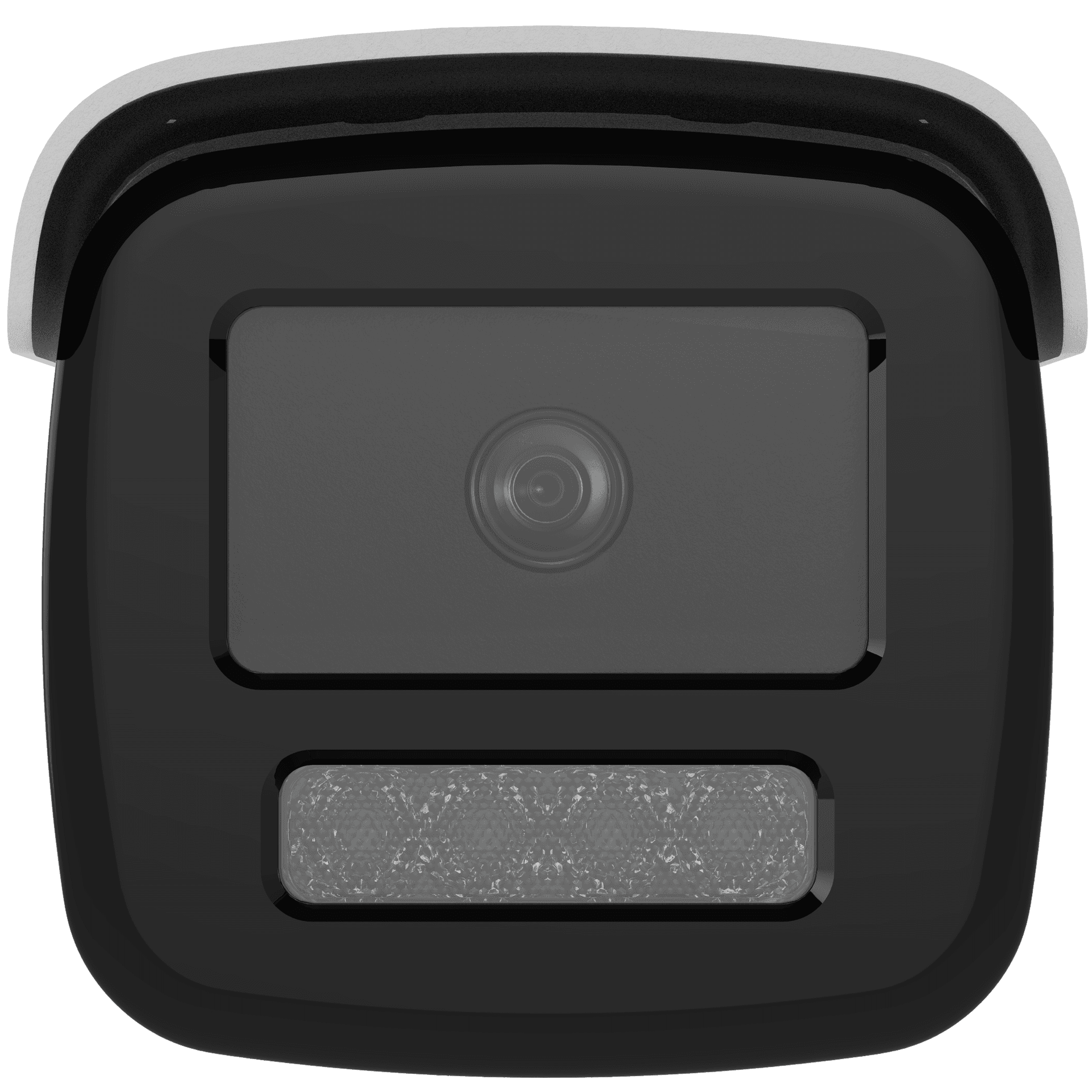

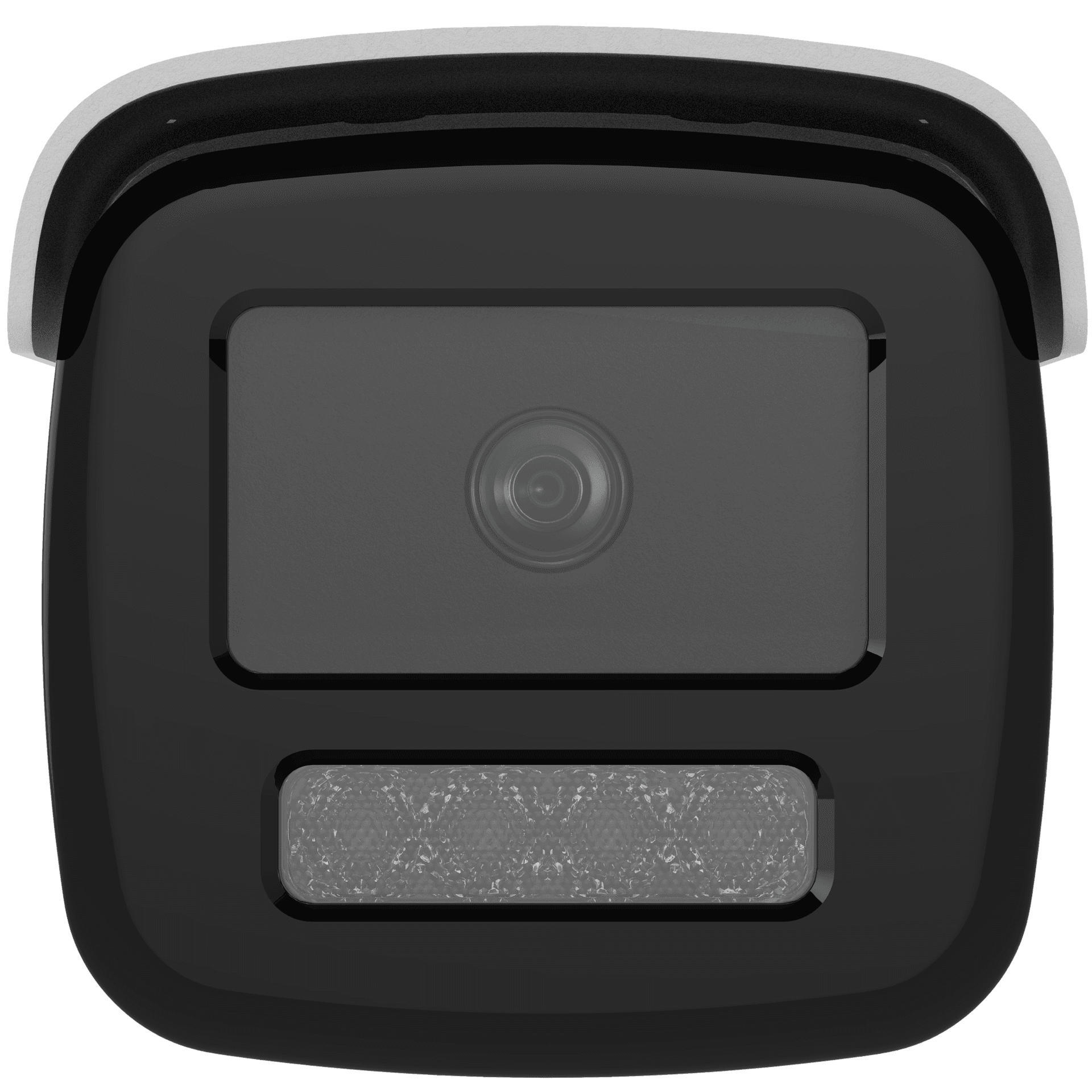

The Hikvision DS-2CD2T47G2H-LI (6942160415765) represents a surgical fusion of high-resolution 2K imaging and high-bandwidth intelligent illumination. Designed for security professionals who operate within zero-compromise hardware environments requiring total clarity at significant distances, this camera utilizes a high-impact 1/1.8" Progressive Scan CMOS sensor to capture surgical 4MP resolution. The specialized Smart Hybrid Light architecture is surgically engineered to allow the camera to switch from discreet IR to vivid full-color visuals upon detecting a human or vehicle, acting as a reliable pillar for forensic-level evidence. Whether you are managing a high-stakes logistics hub or a high-production commercial perimeter, the DS-2CD2T47G2H-LI provides the technical refinement and structural integrity required to maintain absolute situational awareness.
Key Features
4MP High-Definition Clarity: Meticulously designed for surgical precision, providing 2688 × 1520 resolution that captures critical details with high-impact sharpness at 30fps.
Smart Hybrid Light (Dual Illumination): Equipped with a surgical lighting system that offers IR, White Light, and Smart modes, providing a visual advantage by activating color mode only when a threat is detected.
4mm Fixed Lens Performance: Features a surgical 90° horizontal field of view, designed to provide a high-velocity advantage in monitoring narrow passages and long-range perimeters.
ColorVu F1.0 Optics: Surgically engineered with a super-aperture to capture a massive amount of light, acting as a reliable anchor for colorful images in extremely low-light conditions.
AcuSense Deep Learning: Surgically engineered to provide technical dominance in target classification, focusing strictly on human and vehicle threats to eliminate false alarms in the UAE.
130dB True WDR Technology: Meticulously crafted for surgical backlight compensation, ensuring clear imagery in environments with harsh desert sunlight and deep shadows.
60m Supplemental Light Range: Equipped with a surgical light array, providing a high-velocity advantage for monitoring expansive outdoor areas in total darkness.
IP67 Weatherproof Protection: Meticulously designed for surgical durability, ensuring high-impact performance against sand, dust, and the extreme heat of the UAE climate.
Why This Product Stands Out
The DS-2CD2T47G2H-LI stands out by offering flagship-tier Smart Hybrid Illumination and specialized ColorVu optics within a single high-velocity, professional bullet solution. While standard color cameras often rely on constant white light, the refined LI Series architecture of this model acts as a major differentiator, providing a surgical advantage by remaining discreet until an actual target is identified. Its professional industrial finish and ultra-precise hardware internals are high-impact benefits for users in the UAE who demand professional-grade hardware for a reliable digital security ecosystem. For the property owner who requires technical dominance and a flagship-tier color anchor, this camera offers a level of refinement and mechanical excellence that redefines the 4MP hybrid category.
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 104.0°, V 54.4°, D 126.7° 4 mm: H 89.2°, V 45.5°, D 108.2° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞ |
| DORI | 2.8 mm: D 61 m, O 24 m, R 12 m, I 6 m 4 mm: D 75 m, O 30 m, R 15 m, I 7 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings. |
| Video Compression | Main: H.265/H.264/H.264+/H.265+ Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users (3 levels: admin, operator, user) |
| Security | Password protection, HTTPS encryption, 802.1X authentication, IP filter, TLS 1.1/1.2/1.3, audit log, MAC host authentication |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE 10/11 (plugin), Chrome 57+, Firefox 52+, Edge 89+ |
| Image Parameters | Switchable |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| WDR | 130 dB |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Reset Key | Yes |
| Events | Motion detection, video tampering, exception |
| Linkage | Upload FTP/NAS/memory card, notify center, trigger recording/capture/email |
| Smart Event | Scene change detection |
| Deep Learning | Face capture, perimeter protection (line crossing, intrusion, region enter/exit) |
| Power | 12 VDC ±25% (0.66 A, max 8 W), PoE (IEEE 802.3af, Class 3, max 9 W) |
| Material | Metal (front cover, body, bracket) |
| Dimension | 286.7 × 93.3 × 91.2 mm (11.3" × 3.7" × 3.6") |
| Package Dimension | 386 × 156 × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Approx. 1085 g (2.4 lb) |
| With Package Weight | Approx. 1639 g (3.6 lb) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Operating Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| General Functions | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages |
| EMC | CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, RCM, IC, KC |
| Safety | UL 62368-1, CB IEC 62368-1, CE-LVD EN 62368-1, BIS IS 13252 (Part 1) |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013 |
