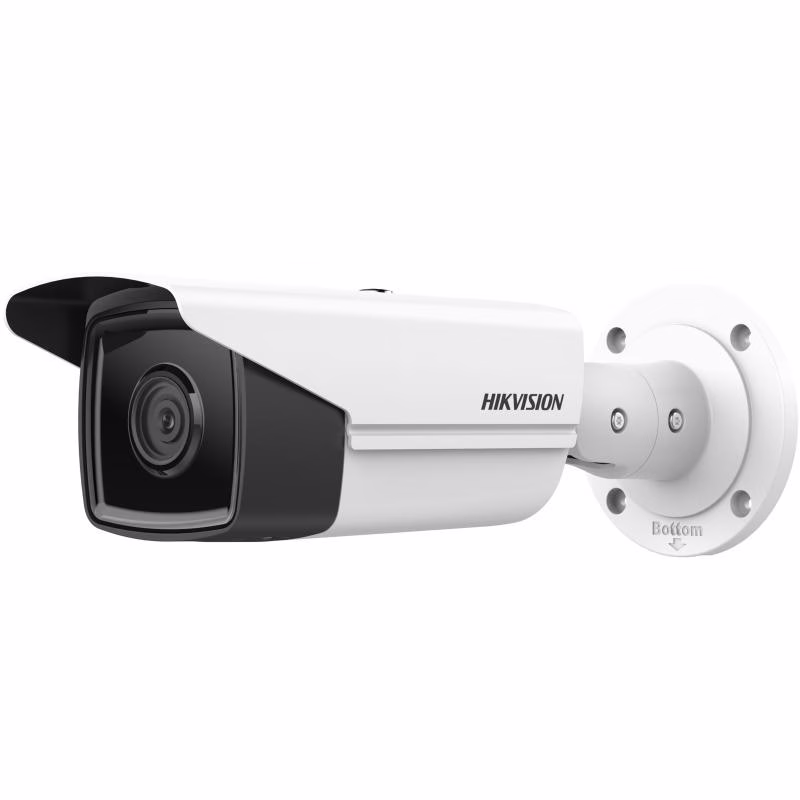

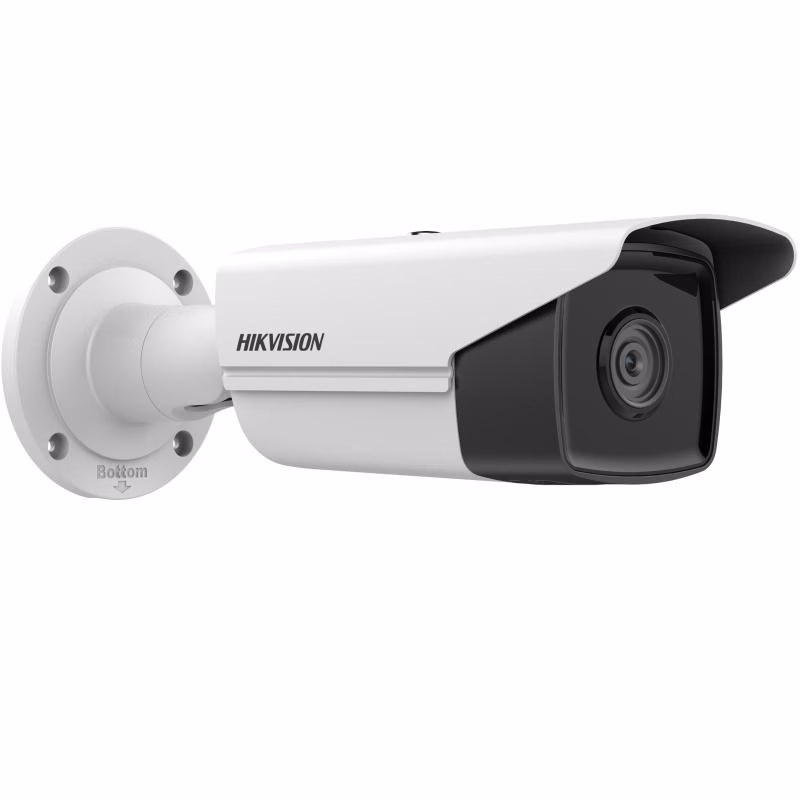

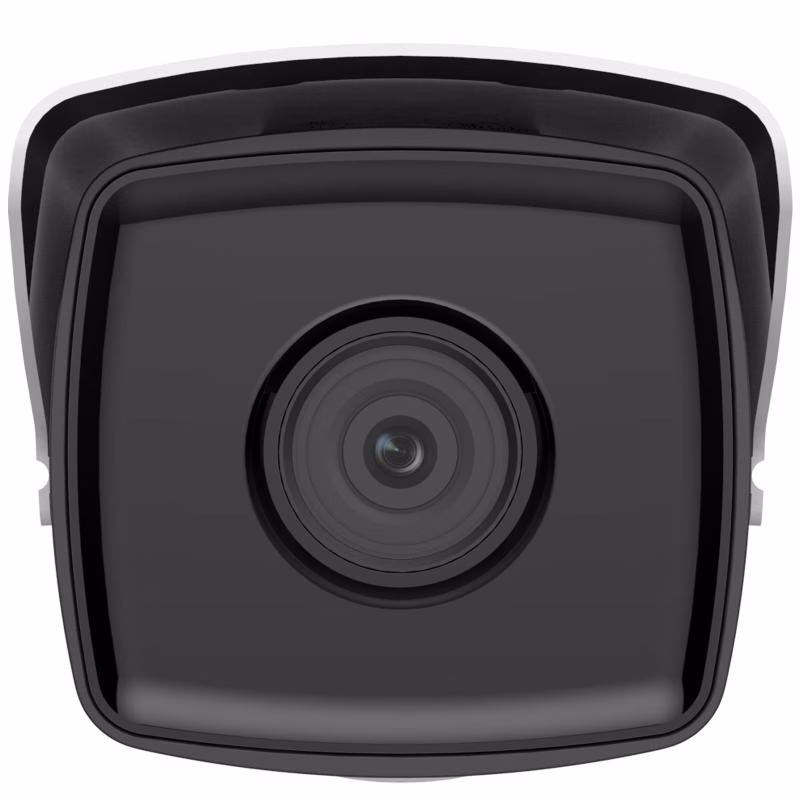

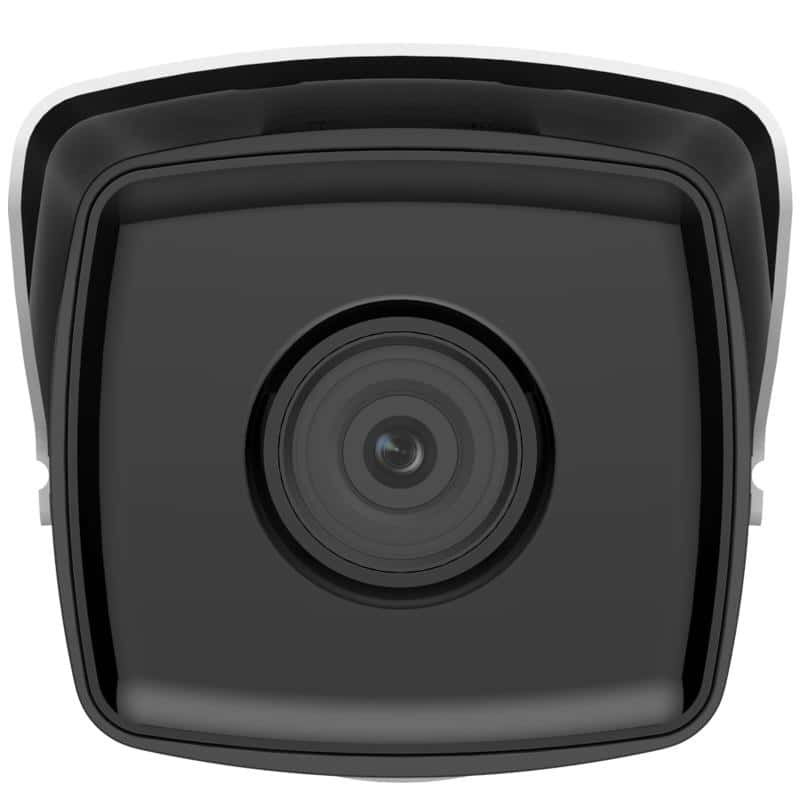

Hikvision DS-2CD2T63G2-4I 6MP AcuSense Fixed Bullet Network Camera | DS-2CD2T63G2-4I(2.8mm)
Model :
SKU : DS-2CD2T63G2-4I 2.8MM 6MP
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Camera Specifications
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 ?? 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Fixed lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV |
2.8 mm: Horizontal FOV 105??, Vertical FOV 55??, Diagonal FOV 127?? 4 mm: Horizontal FOV 78??, Vertical FOV 38??, Diagonal FOV 96?? 6 mm: Horizontal FOV 51??, Vertical FOV 26??, Diagonal FOV 59?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI Distance |
2.8 mm: Detect 76 m, Observe 30 m, Recognize 15 m, Identify 7 m 4 mm: Detect 115 m, Observe 45 m, Recognize 23 m, Identify 11 m 6 mm: Detect 164 m, Observe 65 m, Recognize 32 m, Identify 16 m |
| Supplement Light Type | IR |
| Supplement Light Range | -2I: Up to 60 m, -4I: Up to 80 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video Compression |
Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IPv4, IPv6, UDP, SSL/TLS, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP |
| User Management | Up to 32 users, 3 user levels: Administrator, Operator, User |
| Security Features | Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filtering, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client Support | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser Support | IE 10/11, Chrome 57+, Firefox 52+, Edge 89+ |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Supports microSD/microSDHC/microSDXC card up to 512 GB |
| Reset Key | Yes |
| Basic Events | Motion detection, video tampering alarm, exception |
| Smart Events | Line crossing detection, intrusion detection, face detection |
| Power |
-2I: 12 VDC ?? 25%, 0.67 A, max. 8 W, PoE (IEEE 802.3af, Class 3, max. 9 W) -4I: 12 VDC ?? 25%, 0.92 A, max. 11 W, PoE (IEEE 802.3af, Class 3, max. 12.5 W) |
| Material | Aluminum alloy body, Plastic sun shield & IR cover |
| Dimensions | ??105 mm ?? 299.7 mm (??4.1" ?? 11.8") |
| Weight | Approx. 1065 g (2.4 lb.), With Package: 1560 g (3.5 lb.) |
| Protection | IP67 (IEC 60529-2013) |
Specification
Camera Specifications
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 ?? 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Fixed lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV |
2.8 mm: Horizontal FOV 105??, Vertical FOV 55??, Diagonal FOV 127?? 4 mm: Horizontal FOV 78??, Vertical FOV 38??, Diagonal FOV 96?? 6 mm: Horizontal FOV 51??, Vertical FOV 26??, Diagonal FOV 59?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI Distance |
2.8 mm: Detect 76 m, Observe 30 m, Recognize 15 m, Identify 7 m 4 mm: Detect 115 m, Observe 45 m, Recognize 23 m, Identify 11 m 6 mm: Detect 164 m, Observe 65 m, Recognize 32 m, Identify 16 m |
| Supplement Light Type | IR |
| Supplement Light Range | -2I: Up to 60 m, -4I: Up to 80 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video Compression |
Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IPv4, IPv6, UDP, SSL/TLS, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP |
| User Management | Up to 32 users, 3 user levels: Administrator, Operator, User |
| Security Features | Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filtering, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client Support | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser Support | IE 10/11, Chrome 57+, Firefox 52+, Edge 89+ |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Supports microSD/microSDHC/microSDXC card up to 512 GB |
| Reset Key | Yes |
| Basic Events | Motion detection, video tampering alarm, exception |
| Smart Events | Line crossing detection, intrusion detection, face detection |
| Power |
-2I: 12 VDC ?? 25%, 0.67 A, max. 8 W, PoE (IEEE 802.3af, Class 3, max. 9 W) -4I: 12 VDC ?? 25%, 0.92 A, max. 11 W, PoE (IEEE 802.3af, Class 3, max. 12.5 W) |
| Material | Aluminum alloy body, Plastic sun shield & IR cover |
| Dimensions | ??105 mm ?? 299.7 mm (??4.1" ?? 11.8") |
| Weight | Approx. 1065 g (2.4 lb.), With Package: 1560 g (3.5 lb.) |
| Protection | IP67 (IEC 60529-2013) |
