HIKVISION DS-2CD2T87G2P-LSU/SL, 8 MP Panoramic ColorVu Fixed Bullet Network Camera, 24/7 colorful imaging, Water and dust resistant (IP67), AI
Model :
SKU : DS-2CD2T87G2P-LSU/SL
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
HIKVISION DS-2CD2T87G2P-LSU/SL, 8 MP Panoramic ColorVu Fixed Bullet Network Camera, 24/7 colorful imaging, Water and dust resistant (IP67), AI
| Image Sensor | 2 ?? 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 5120 ?? 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, dual lens: 4 mm |
| Focal Length & FOV | 4 mm, horizontal FOV: 180??, vertical FOV: 44?? |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 3.6 m to ??? |
| DORI | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Main Stream Video | When WDR is On: 50 Hz: 12.5 fps (5120 ?? 1440), 60 Hz: 15 fps (5120 ?? 1440); When WDR is Off: 50 Hz: 20 fps (5120 ?? 1440), 60 Hz: 20 fps (5120 ?? 1440) |
| Sub-Stream Video | When WDR is On: 50 Hz: 12.5 fps (1920 ?? 536, 960 ?? 272), 60 Hz: 15 fps (1920 ?? 536, 960 ?? 272); When WDR is Off: 50 Hz: 20 fps (1920 ?? 536, 960 ?? 272), 60 Hz: 20 fps (1920 ?? 536, 960 ?? 272) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users (3 user levels: administrator, operator, and user) |
| Password Protection | Yes |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes |
| Built-In Speaker | Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Smart Event | Scene change detection |
| Deep Learning Function | Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (Support alarm triggering by specified target types (human and vehicle)) |
| Power | 12 VDC ?? 25%, 0.88 A, max. 10.5 W, ??5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material | Front cover: metal, body: metal, bracket: metal |

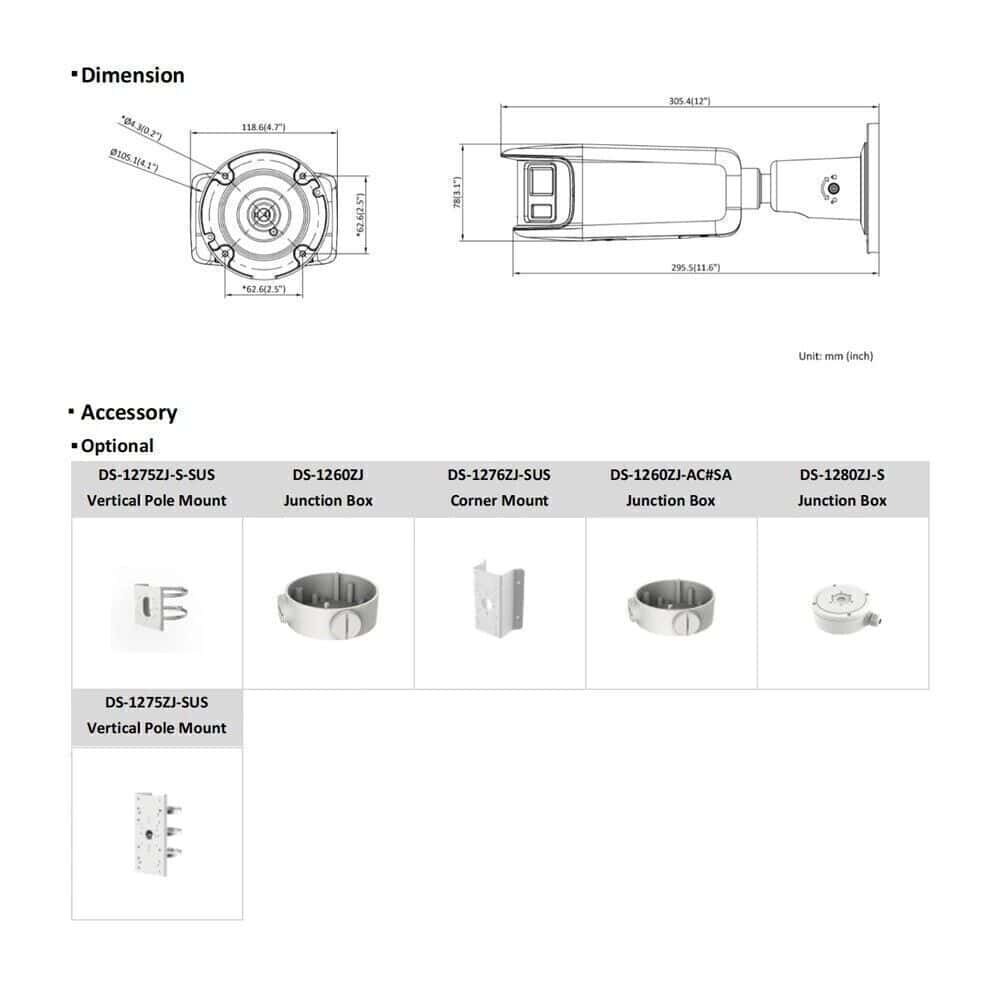

| Dimension | 118.6 mm ?? 105.1 mm ?? 305.4 mm (4.7" ?? 4.1" ?? 12") |
| Package Dimension | 405 mm ?? 190 mm ?? 180 mm (16" ?? 7.5" ?? 7.1") |
| Weight | Approx. 1420 g (3.1 lb.) |
| With Package Weight | Approx. 2228 g (4.9 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, password reset via email, password protection, one-key reset |
| Flashing Light | Yes |
| Approval | EMC: FCC, CE-EMC, RCM, IC, Safety: UL, CB, CE-LVD, Environment: CE-RoHS, WEEE, Reach, Protection: IP67 |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
HIKVISION DS-2CD2T87G2P-LSU/SL, 8 MP Panoramic ColorVu Fixed Bullet Network Camera, 24/7 colorful imaging, Water and dust resistant (IP67), AI
| Image Sensor | 2 ?? 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 5120 ?? 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, dual lens: 4 mm |
| Focal Length & FOV | 4 mm, horizontal FOV: 180??, vertical FOV: 44?? |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 3.6 m to ??? |
| DORI | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Main Stream Video | When WDR is On: 50 Hz: 12.5 fps (5120 ?? 1440), 60 Hz: 15 fps (5120 ?? 1440); When WDR is Off: 50 Hz: 20 fps (5120 ?? 1440), 60 Hz: 20 fps (5120 ?? 1440) |
| Sub-Stream Video | When WDR is On: 50 Hz: 12.5 fps (1920 ?? 536, 960 ?? 272), 60 Hz: 15 fps (1920 ?? 536, 960 ?? 272); When WDR is Off: 50 Hz: 20 fps (1920 ?? 536, 960 ?? 272), 60 Hz: 20 fps (1920 ?? 536, 960 ?? 272) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users (3 user levels: administrator, operator, and user) |
| Password Protection | Yes |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes |
| Built-In Speaker | Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Smart Event | Scene change detection |
| Deep Learning Function | Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (Support alarm triggering by specified target types (human and vehicle)) |
| Power | 12 VDC ?? 25%, 0.88 A, max. 10.5 W, ??5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material | Front cover: metal, body: metal, bracket: metal |
| Dimension | 118.6 mm ?? 105.1 mm ?? 305.4 mm (4.7" ?? 4.1" ?? 12") |
| Package Dimension | 405 mm ?? 190 mm ?? 180 mm (16" ?? 7.5" ?? 7.1") |
| Weight | Approx. 1420 g (3.1 lb.) |
| With Package Weight | Approx. 2228 g (4.9 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, password reset via email, password protection, one-key reset |
| Flashing Light | Yes |
| Approval | EMC: FCC, CE-EMC, RCM, IC, Safety: UL, CB, CE-LVD, Environment: CE-RoHS, WEEE, Reach, Protection: IP67 |
