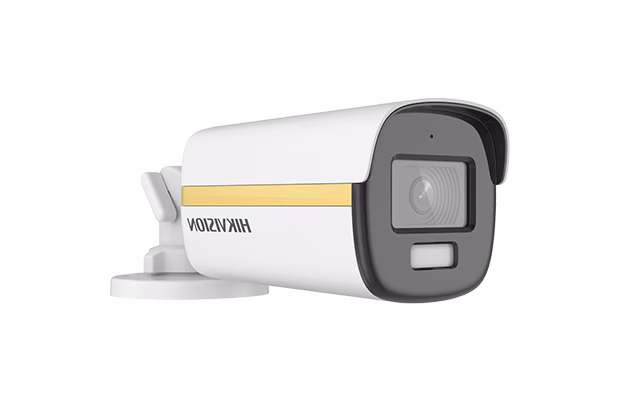

Hikvision DS-2CE12DF3T-F 2 MP ColorVu Fixed Bullet Camera, 2 MP, 1920 ?? 1080 resolution, 3D DNR technology, Up to 40 m, One port for four switchable signals, (IP67)

#html-body [data-pb-style=D6F6TJG]{background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;align-self:stretch}#html-body [data-pb-style=UNJIMHX]{display:flex;width:100%}#html-body [data-pb-style=IKEGM6R],#html-body [data-pb-style=N7VDY0B]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;width:50%;align-self:stretch}#html-body [data-pb-style=CWLPUG3]{border-width:1px}#html-body [data-pb-style=DUAWOXX]{text-align:left}#html-body [data-pb-style=SKXVNMH]{border-width:1px;min-height:300px}#html-body [data-pb-style=Y420P95]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

• Specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) ?? 1080 (V)
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0 to 360??, Tilt: 0 to 180??, Rotation: 0 to 360??
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 98??, vertical FOV: 52??, diagonal FOV: 116??

3.6 mm, horizontal FOV: 77??, vertical FOV: 42??, diagonal FOV: 91??

6 mm, horizontal FOV: 51??, vertical FOV: 28??, diagonal FOV: 59??
Lens MountM12

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness;Sharpness;Mirror;AGC;Contrast;Anti-Banding;Defective Pixel Correction
Frame RateTVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC
Day/Night ModeColor
Wide Dynamic Range (WDR)???130 dB
Image EnhancementBLC;HLC;Global;HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto/Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
AlarmSolid Light Alarm (White Light)
Built-In MicrophoneYes

Event
Motion Detection4 programmable motion areas

General
Power12 VDC ?? 25%, max. 5.7 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMetal
Dimension194.2 mm ?? 78 mm ?? 74.5 mm (7.65" ?? 3.07" ?? 2.93")
WeightApprox. 515 g (1.13 lb.)
Operating Condition-40 ??C to 50 ??C (-40 ??F to 122 ??F), humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67
