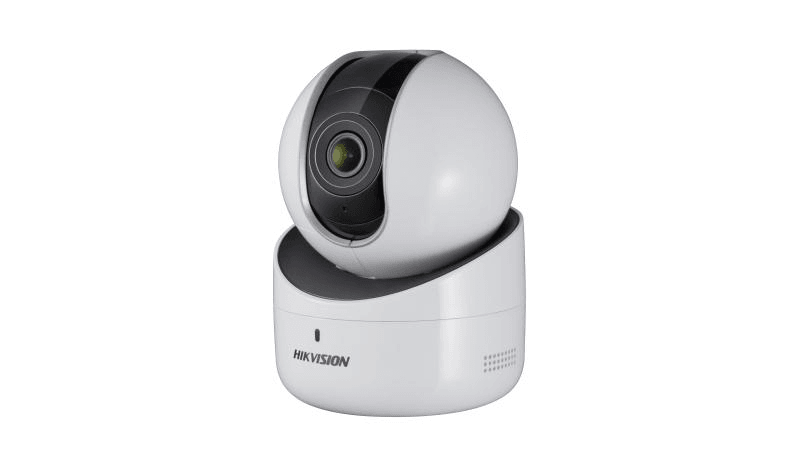

Hikvision DS-2CV2Q21FD-IW 2 MP Indoor Audio Fixed PT Network Camera, 1/2.8" Progressive Scan CMOS, 1920 ?? 1080, Up to 5 meters, Support mono soundtrack, Digital WDR, Motion Detection
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter with auto switch |
| Angle Adjustment | Pan: 0?? to 355??; Tilt: -10?? to 90?? |
| Lens Type | Fixed Lens |
| Focal Length & FOV | 2.8 mm, horizontal field of view 105.8?? |
| Lens Mount | M12 |
| Aperture | F2.0 |
| Illuminator | IR |
| Supplement Light Range | Up to 5 meters |
| Main Stream | 50 Hz: 25 fps (1920 ?? 1080, 1280 ??720), 60Hz: 30fps (1920 ?? 1080, 1280 ??720) |
| Sub-Stream | 50 Hz: 25 fps (704 ?? 576, 352 ?? 288, 640 ?? 480, 320 ?? 240), 60 Hz: 30 fps (704 ?? 480, 352 ?? 240, 640 ?? 480, 320 ?? 240) |
| Video Bit Rate | 32 Kbps ??? 8 Mbps |
| Video Compression | Main stream: H.264, Sub stream: H.264 |
| H.264 Type | Baseline Profile/Main Profile |
| Region Of Interest (ROI) | Support 1 fixed region for each stream |
| Audio Type | Support mono soundtrack |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Audio Sampling Rate | Max. 16 kHz |
| Environment Noise Filtering | Support |
| Network Storage | Support Micro SD/SDHC/SDXC card, up to 128 GB local storage |
| Wi-Fi Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Wi-Fi Protocol | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Frequency Range | 2.4 GHz - 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support |
| Transfer Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps |
| Wireless Range | 50 meters (The performance varies based on actual environment) |
| Image Settings | Brightness, saturation, sharpness, contrast are adjustable via client software |
| Day/Night Switch | Support auto/scheduled |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC???3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Audio | Support mono soundtrack, 1 built-in microphone, 1 built-in speaker |
| Reset Key | Yes |
| Basic Event | Motion Detection???Video Tampering Alarm, exception (HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login) |
| Power | DC 5V ?? 10 %???Max. 1.4 A, Max. 7 W???micro USB interface |
| Material | Plastic |
| Dimension | ?? 82.4 ?? 113.6 mm (?? 3.25'' ?? 4.47'') |
| Weight | Approx. 510 g (1.12 lb) |
| Startup And Operating Conditions | -10 ??C to 40 ??C (14 ??F to 104 ??F), Humidity 95% or less (non-condensing) |
| General Function | One-key reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark |
