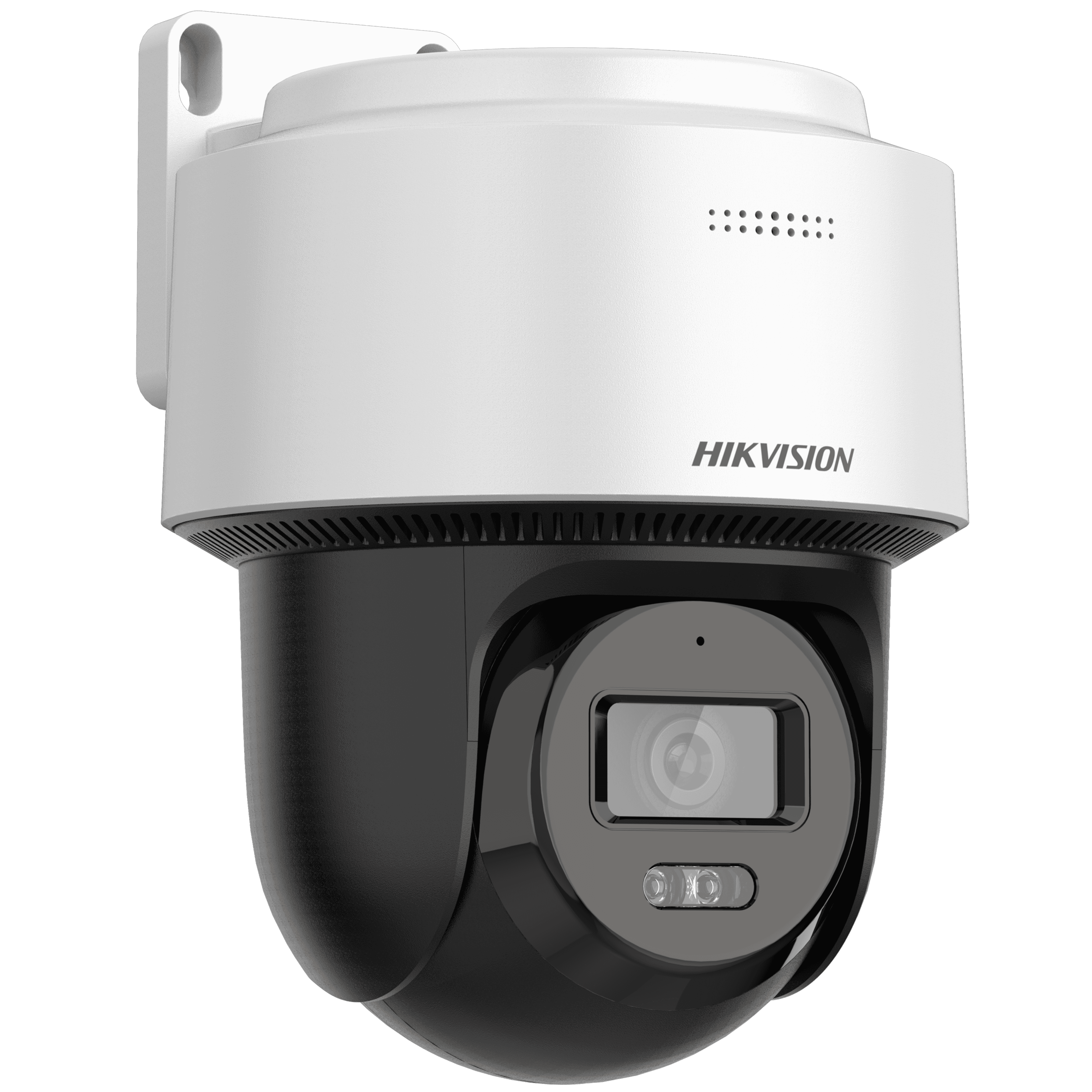

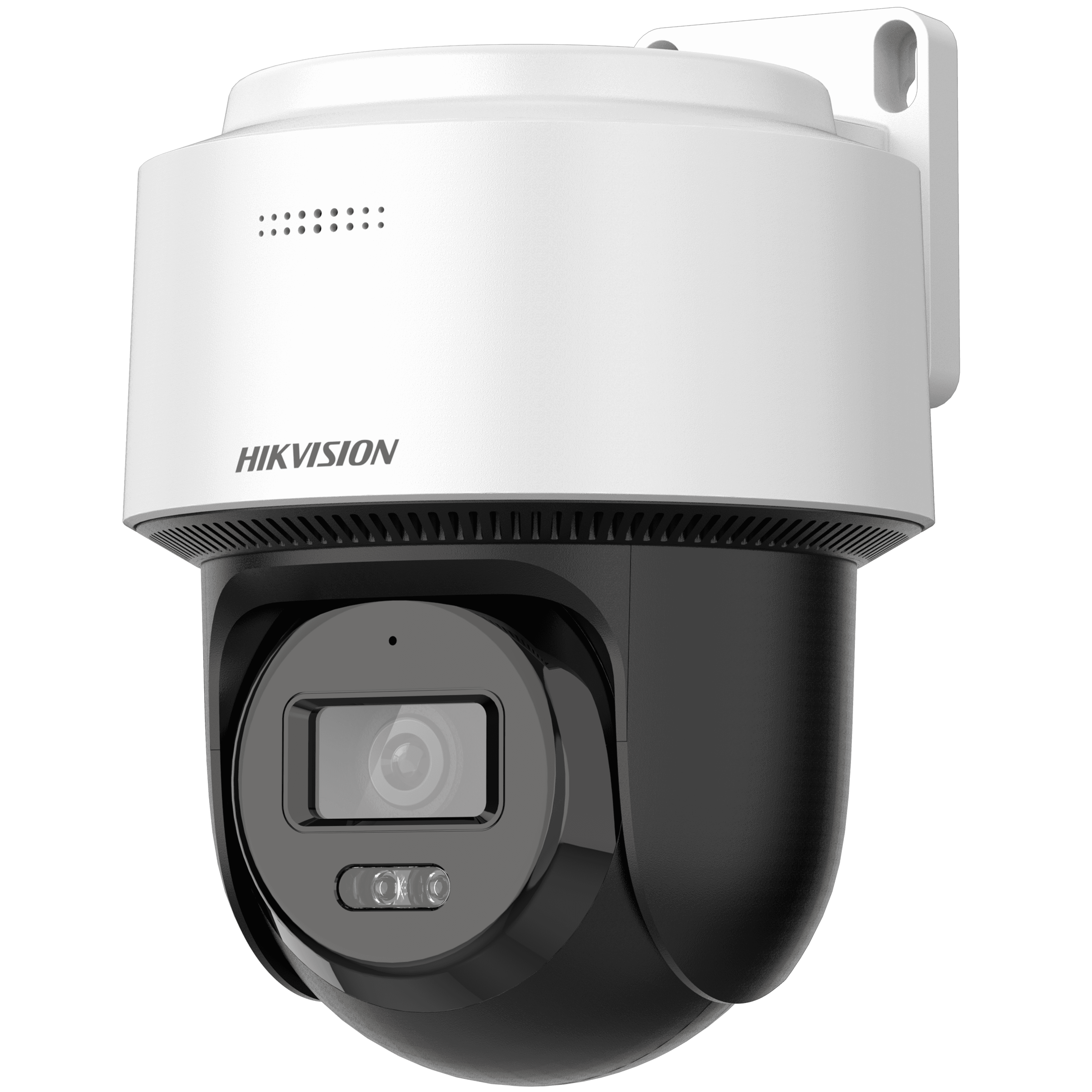

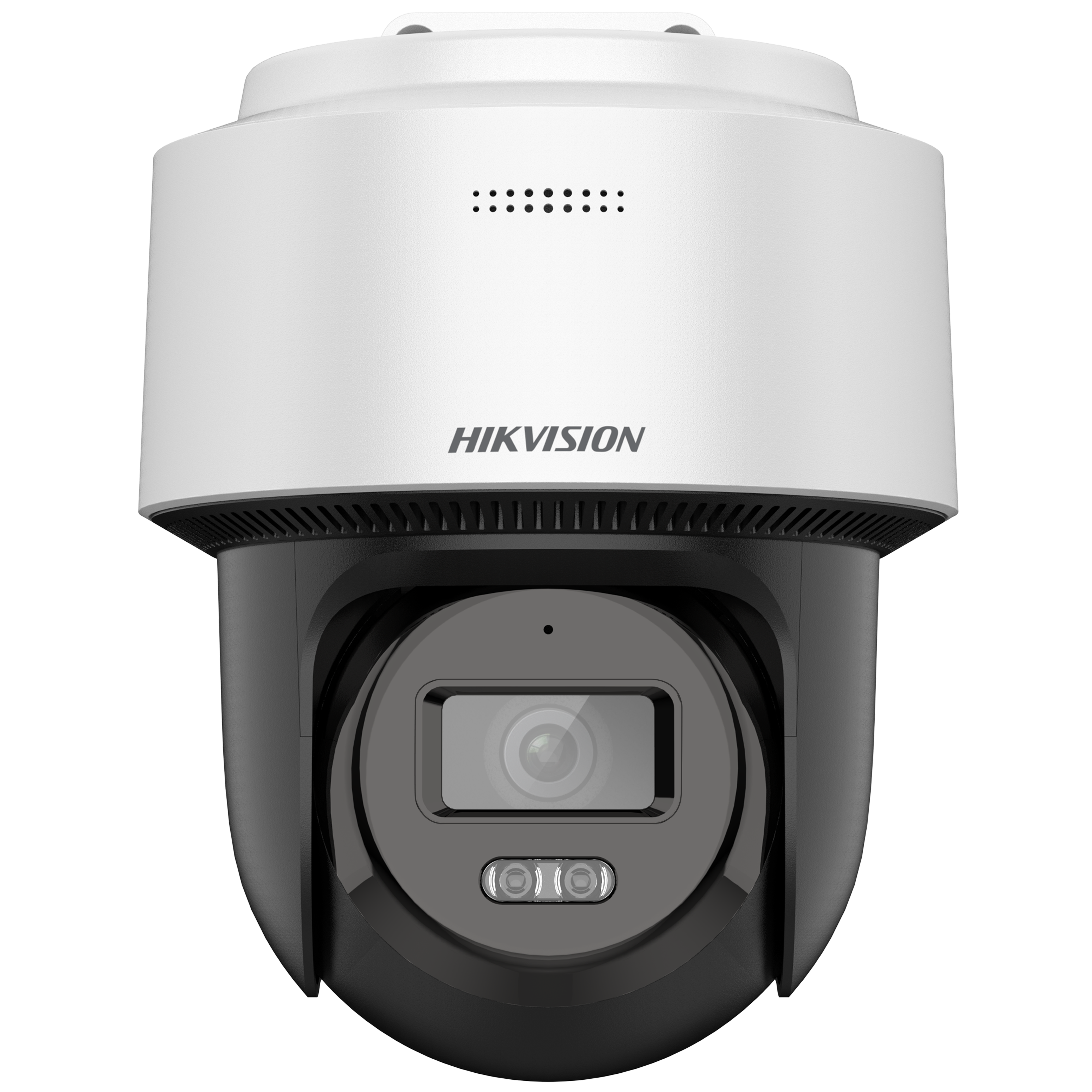

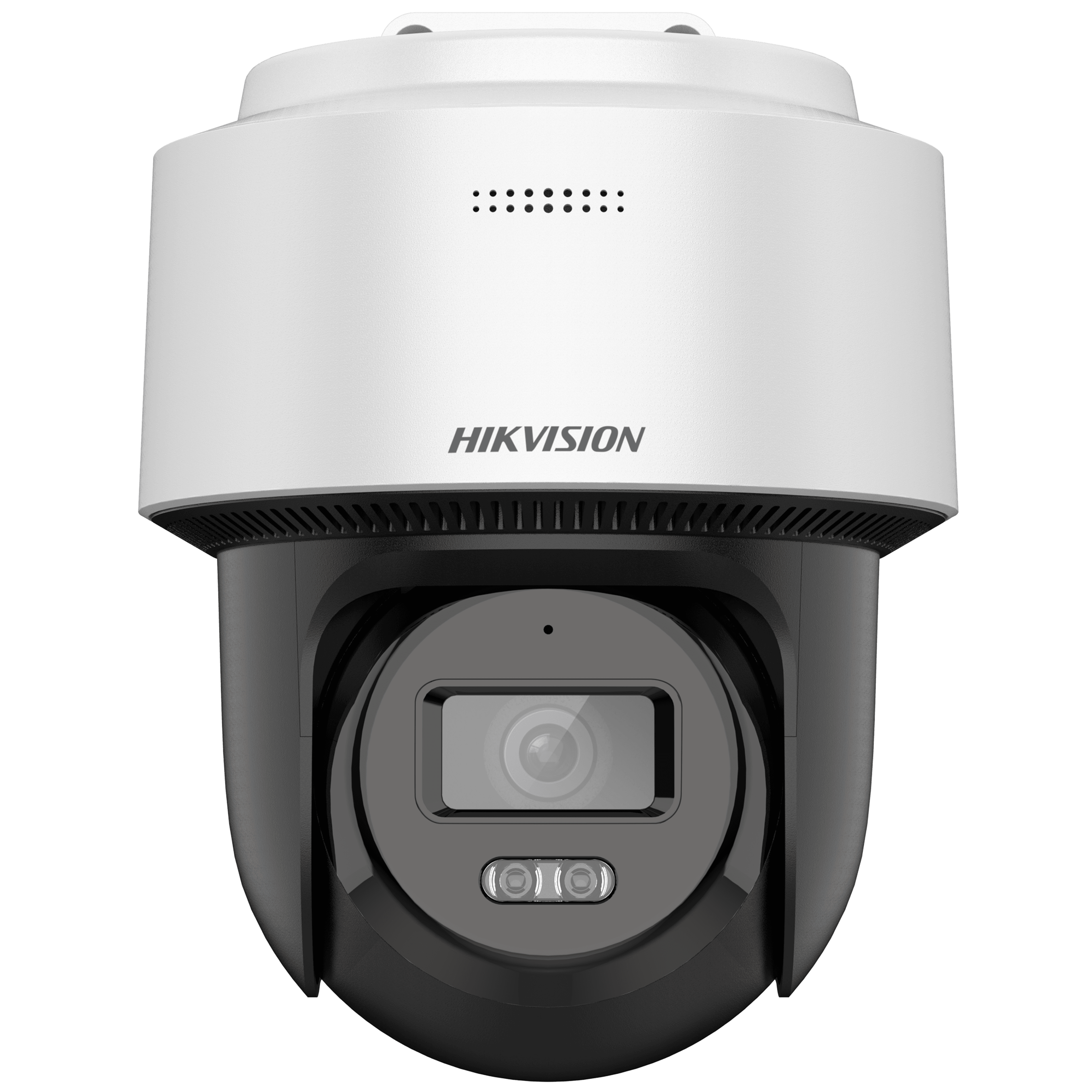

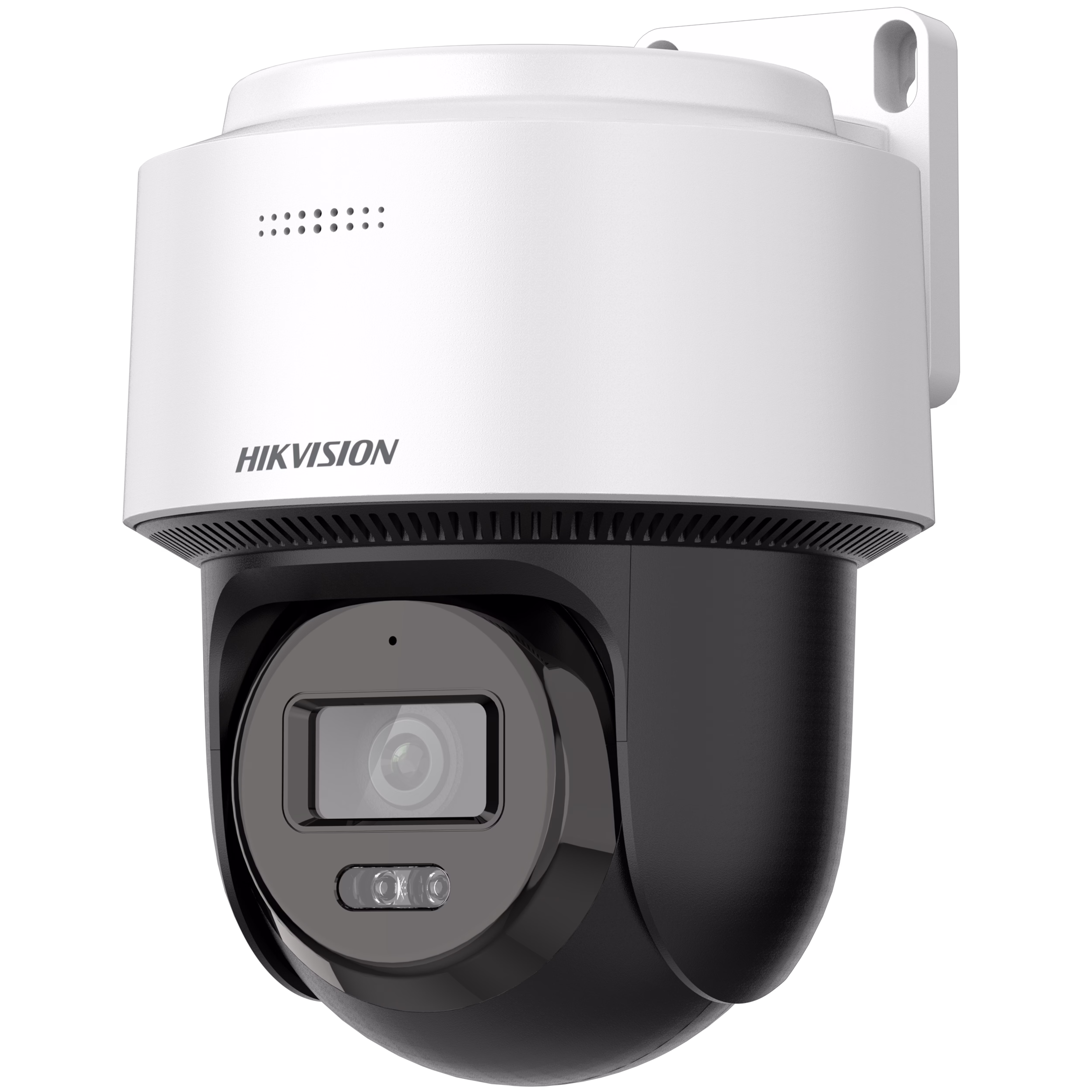

Hikvision DS-2DE2C200MWG-E 2 MP Fixed Outdoor Smart Hybrid-light PT Network Camera
Model :
SKU : DS-2DE2C200MWG-E
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Camera Specifications
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light |
| Focal Length | 2.8 mm, 4 mm |
| Field of View (FOV) | 2.8 mm: Horizontal 105°, Vertical 58°, Diagonal 123° 4 mm: Horizontal 81°, Vertical 44°, Diagonal 97° |
| Aperture | F2.0 |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | White light: up to 30 m, IR: up to 30 m |
| IR Wavelength | 850 nm |
| Pan/Tilt Range | Pan: 0° to 345°, Tilt: 0° to 80° |
| Pan/Tilt Speed | Pan: Up to 25°/s, Tilt: Up to 20°/s |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Main, High profile |
| H.265 Type | Main profile |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 16 Kbps (G.722.1) / 64 Kbps (G.711) / 32–192 Kbps (MP2L2) / 16 Kbps (G.726) / 16–64 Kbps (AAC-LC) / 8–48 Kbps (PCM) |
| Audio Sampling Rate | 8 kHz, 16 kHz |
| Environment Noise Filtering | Yes |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| API | ONVIF (Profile S, G, T), ISAPI, SDK |
| Image Settings | Saturation, brightness, contrast, sharpness adjustable |
| WDR | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| On-board Storage | microSD/microSDHC/microSDXC, up to 512 GB |
| Built-in Speaker | Yes |
| Event | Motion detection, video tampering, exception |
| Linkage | FTP upload, memory card, surveillance center, email, capture, audible warning, auto-tracking lite |
| Power | 12 VDC ± 25%, 0.75 A, max. 9 W PoE: IEEE 802.3af, 36–57 V, 0.2–0.3 A, max. 10.5 W |
| Dimension | Camera: 163.9 × 185.8 × 131.9 mm (6.45" × 7.31" × 5.19") Package: 224 × 164 × 230 mm (8.82" × 6.46" × 9.06") |
| Weight | Camera: 600 g (1.32 lb), With package: 900 g (2.0 lb) |
| Material | Plastic |
| Operating Condition | -30 °C to 40 °C (-22 °F to 104 °F), Humidity ≤ 90% (non-condensing) |
| General Functions | Mirror, password protection, watermark |
| Approvals | EMC: CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014) Safety: CB (IEC 62368-1:2014+A11), CE-LVD (EN 62368-1:2014/A11:2017) Environment: CE-RoHS (2011/65/EU), REACH (EC 1907/2006) Protection: IP66 (IEC 60529-2013) |
