Model :

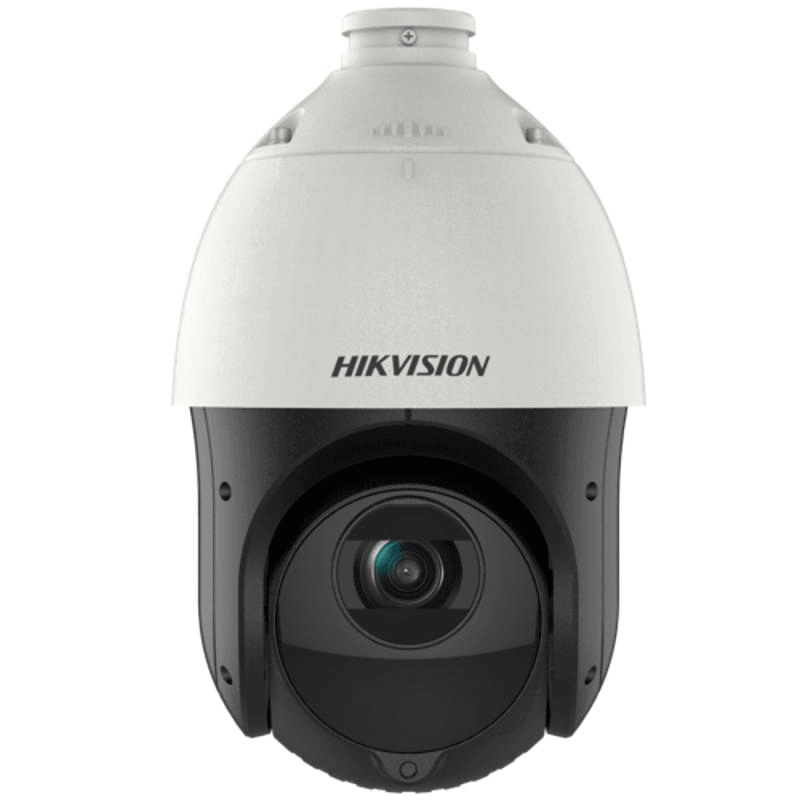

SKU : DS-2DE4225IW-DE T5
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 25 ?? optical, 16 ?? digital |
| Slow Shutter | Yes |
| Lens |
Focal Length: 4.8 mm to 120 mm FOV: Horizontal field of view: 57.6?? to 2.5?? (wide-tele), Vertical field of view: 34.4?? to 1.4?? (wide-tele), Diagonal field of view: 64.5?? to 2.9?? (wide-tele) Focus: Auto, semi-auto, manual Aperture: Max. F1.6 Zoom Speed: Approx. 3.6 s |
| Illuminator |
Supplement Light Type: IR Supplement Light Range: IR Distance: up to 100 m |
| PTZ |
Movement Range (Pan): 360?? Movement Range (Tilt): -15?? to 90?? (auto flip) Pan Speed: Pan speed: configurable from 0.1?? to 80??/s; preset speed: 80??/s Tilt Speed: Tilt speed: configurable from 0.1?? to 80??/s, preset speed 80??/s Proportional Pan: Yes Presets: 300 Preset Freezing: yes Patrol Scan: 8 patrols, up to 32 presets for each patrol Pattern Scan: 4 pattern scans Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning: Yes PTZ Status Display: Yes |
| Power-Off Memory | Yes |
| Video |
Main Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (704 ?? 576, 640 ?? 480, 352 ?? 288) 60 Hz: 30 fps (704 ?? 480, 640 ?? 480, 352 ?? 240) Third Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720, 704 ?? 576, 640 ?? 480, 352 ?? 288) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720, 704 ?? 480, 640 ?? 480, 352 ?? 240) Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG Video Bit Rate: 32 kbps to 16384 kbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main profile Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 8 fixed regions for each stream |
| Audio |
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes |
| Network |
Simultaneous Live View: Up to 20 channels API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host: Up to 32 users, 3 user levels: administrator, operator, and user Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, HikCentral Pro, Hik-Connect Web Browser: Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11 |
| Image |
Image Parameters Switch: Yes Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: > 52 dB Defog: Digital defog Image Stabilization: No Image Enhancement: BLC, HLC, 3D DNR Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus: Yes Regional Exposure: Yes |
| Interface |
Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 k?? ?? 10%; 1 output (line out), line level, output impedance: 600 ?? Alarm: 1 input, 1 output Reset: Yes |
| Event |
Basic Event: Motion detection, video tampering alarm, exception, alarm input and output Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Perimeter Protection: Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
| General |
Power: 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at) Dimension: ?? 164.5 mm ?? 290 mm (?? 6.48" ?? 11.42") Weight: Approx. 2 kg (4.41 lb.) Material: ADC12 Operating Condition: -30 ??C to 65 ??C (-22 ??F to 149 ??F). Humidity 90% or less (non-condensing) Demist: Yes |
| Environment |
CE-RoHS: (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 25 ?? optical, 16 ?? digital |
| Slow Shutter | Yes |
| Lens |
Focal Length: 4.8 mm to 120 mm FOV: Horizontal field of view: 57.6?? to 2.5?? (wide-tele), Vertical field of view: 34.4?? to 1.4?? (wide-tele), Diagonal field of view: 64.5?? to 2.9?? (wide-tele) Focus: Auto, semi-auto, manual Aperture: Max. F1.6 Zoom Speed: Approx. 3.6 s |
| Illuminator |
Supplement Light Type: IR Supplement Light Range: IR Distance: up to 100 m |
| PTZ |
Movement Range (Pan): 360?? Movement Range (Tilt): -15?? to 90?? (auto flip) Pan Speed: Pan speed: configurable from 0.1?? to 80??/s; preset speed: 80??/s Tilt Speed: Tilt speed: configurable from 0.1?? to 80??/s, preset speed 80??/s Proportional Pan: Yes Presets: 300 Preset Freezing: yes Patrol Scan: 8 patrols, up to 32 presets for each patrol Pattern Scan: 4 pattern scans Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning: Yes PTZ Status Display: Yes |
| Power-Off Memory | Yes |
| Video |
Main Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (704 ?? 576, 640 ?? 480, 352 ?? 288) 60 Hz: 30 fps (704 ?? 480, 640 ?? 480, 352 ?? 240) Third Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720, 704 ?? 576, 640 ?? 480, 352 ?? 288) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720, 704 ?? 480, 640 ?? 480, 352 ?? 240) Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG Video Bit Rate: 32 kbps to 16384 kbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main profile Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 8 fixed regions for each stream |
| Audio |
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes |
| Network |
Simultaneous Live View: Up to 20 channels API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host: Up to 32 users, 3 user levels: administrator, operator, and user Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, HikCentral Pro, Hik-Connect Web Browser: Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11 |
| Image |
Image Parameters Switch: Yes Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: > 52 dB Defog: Digital defog Image Stabilization: No Image Enhancement: BLC, HLC, 3D DNR Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus: Yes Regional Exposure: Yes |
| Interface |
Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 k?? ?? 10%; 1 output (line out), line level, output impedance: 600 ?? Alarm: 1 input, 1 output Reset: Yes |
| Event |
Basic Event: Motion detection, video tampering alarm, exception, alarm input and output Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Perimeter Protection: Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
| General |
Power: 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at) Dimension: ?? 164.5 mm ?? 290 mm (?? 6.48" ?? 11.42") Weight: Approx. 2 kg (4.41 lb.) Material: ADC12 Operating Condition: -30 ??C to 65 ??C (-22 ??F to 149 ??F). Humidity 90% or less (non-condensing) Demist: Yes |
| Environment |
CE-RoHS: (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection |
