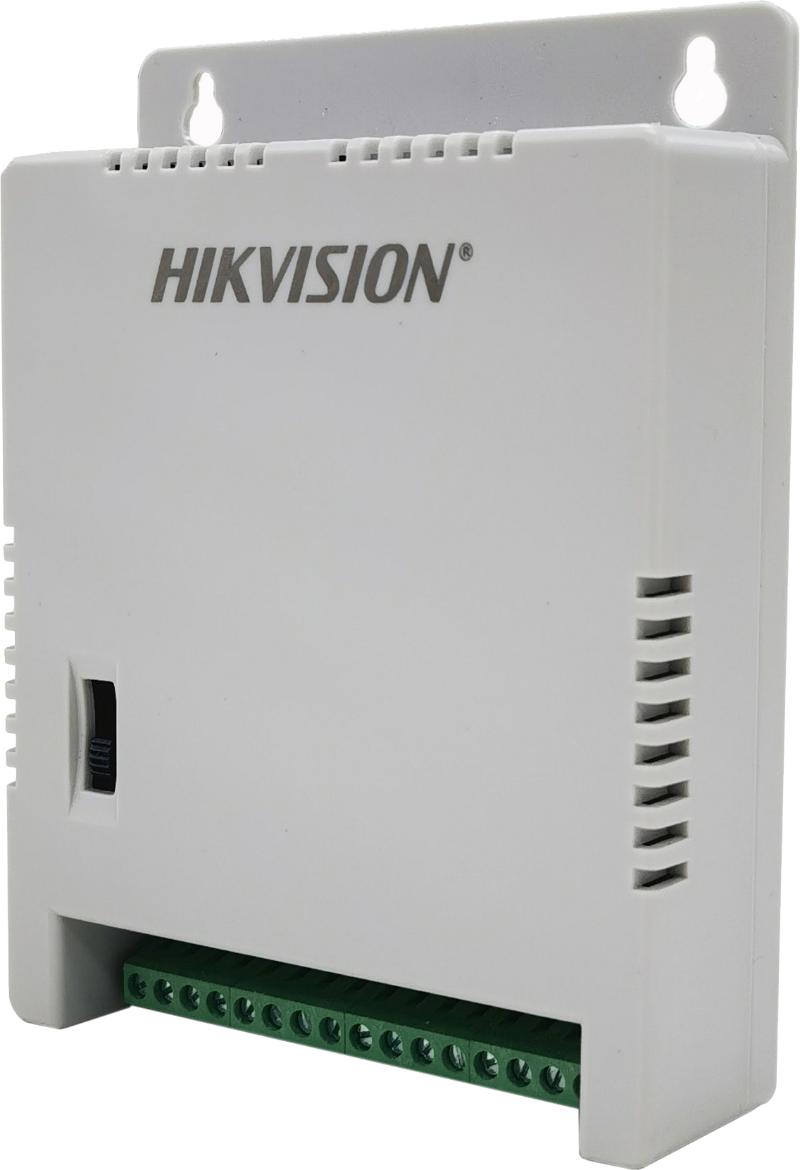

Hikvision DS-2FA1205-C8 Switching Mode Power Supply, 60 W, 12 VDC/1 A max per channel, max total current is 5 A, 150 to 285 VAC wide voltage input
Model :
SKU : DS-2FA1205-C8(UK)F20 8CH
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-2FA1205-C8 Switching Mode Power Supply, 60 W, 12 VDC/1 A max per channel, max total current is 5 A, 150 to 285 VAC wide voltage input Specifications
| Parameter | Details |
| Appearance | White |
| Dimension | 144 mm ?? 109.5 mm ?? 33 mm (5.67" ?? 4.31" ?? 1.30") |
| Operating Conditions | 0??C to 40??C (32??F to 104??F), Humidity: 10% to 95% (non-condensing) |
| LED Indicator | Green |
| Input | 150 to 285 VAC, 47 Hz to 63 Hz |
| Output | 12 VDC / 1 A per channel |
| Ripple & Noise | 150 mVp-p (0.15 Vp-p) |
| AC Input Connector | C8 |
| DC Output Connector | DC Plug: grid terminal |
| Storage Conditions | -40??C to 80??C (-40??F to 176??F), Humidity: 5% to 95% (non-condensing) |
| Cable Length Compensation | Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-2FA1205-C8 Switching Mode Power Supply, 60 W, 12 VDC/1 A max per channel, max total current is 5 A, 150 to 285 VAC wide voltage input Specifications
| Parameter | Details |
| Appearance | White |
| Dimension | 144 mm ?? 109.5 mm ?? 33 mm (5.67" ?? 4.31" ?? 1.30") |
| Operating Conditions | 0??C to 40??C (32??F to 104??F), Humidity: 10% to 95% (non-condensing) |
| LED Indicator | Green |
| Input | 150 to 285 VAC, 47 Hz to 63 Hz |
| Output | 12 VDC / 1 A per channel |
| Ripple & Noise | 150 mVp-p (0.15 Vp-p) |
| AC Input Connector | C8 |
| DC Output Connector | DC Plug: grid terminal |
| Storage Conditions | -40??C to 80??C (-40??F to 176??F), Humidity: 5% to 95% (non-condensing) |
| Cable Length Compensation | Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC |
