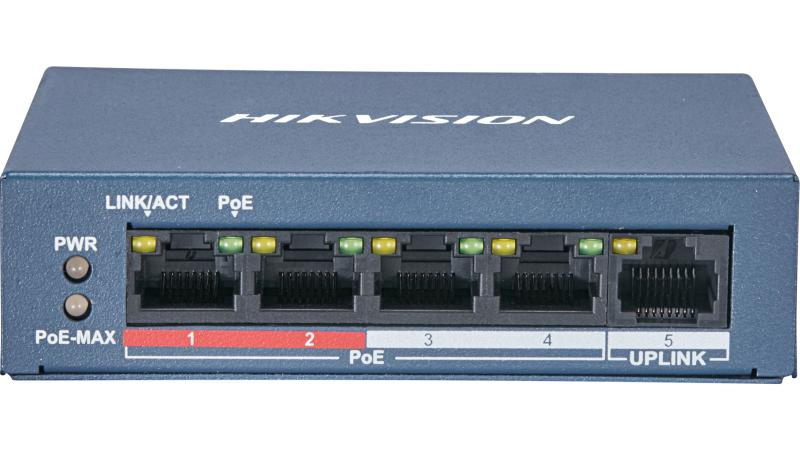

Hikvision DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged PoE Switch, 4 x 10/100 Mbps PoE port,1?? 10/100 Mbps RJ45 port, Up to 300 m Long Range PoE Transmission
Model :
SKU : NS-HIK DS-3E0105P-E/M
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged PoE Switch, 4 x 10/100 Mbps PoE port,1?? 10/100 Mbps RJ45 port, Up to 300 m Long Range PoE Transmission
| Shell | Metal material |
| Net Weight | 0.2 kg (0.4 lb) |
| Gross Weight | 0.48 kg (1.06 lb) |
| Dimensions (W ?? H ?? D) | 105 mm ?? 27.6 mm ?? 83.1 mm (4.1'' ?? 1.1'' ?? 3.3'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | ???40 ??C to 85 ??C (???40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 0.8 A |
| Max. Power Consumption | 38 W |
| Power Consumption In Idle | 3 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 KV |
Network Parameters
| Ports | 4 x 10/100 Mbps PoE port, 1 x 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74 Mpps |
| Internal Cache | 768 Kbits |
| PoE Power Supply |
|
| Dialing Function | Long Range: Ports 1 to 4 : up to 300 m. (Long range performance may vary depend on camera model or cable condition.) |
Approval
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged PoE Switch, 4 x 10/100 Mbps PoE port,1?? 10/100 Mbps RJ45 port, Up to 300 m Long Range PoE Transmission
| Shell | Metal material |
| Net Weight | 0.2 kg (0.4 lb) |
| Gross Weight | 0.48 kg (1.06 lb) |
| Dimensions (W ?? H ?? D) | 105 mm ?? 27.6 mm ?? 83.1 mm (4.1'' ?? 1.1'' ?? 3.3'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | ???40 ??C to 85 ??C (???40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 0.8 A |
| Max. Power Consumption | 38 W |
| Power Consumption In Idle | 3 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 KV |
Network Parameters
| Ports | 4 x 10/100 Mbps PoE port, 1 x 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74 Mpps |
| Internal Cache | 768 Kbits |
| PoE Power Supply |
|
| Dialing Function | Long Range: Ports 1 to 4 : up to 300 m. (Long range performance may vary depend on camera model or cable condition.) |
Approval
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
