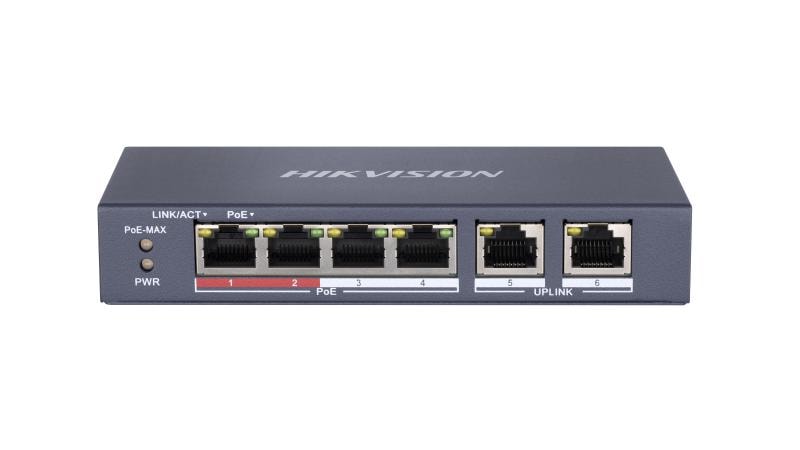

Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch
Model :
SKU : NS-HIKVI DS-3E0106P-E/M
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch Specifications
| General | |
|---|---|
| Shell | Metal material |
| Net Weight | 0.27 kg (0.60 lb) |
| Gross Weight | 0.52 kg (1.15 lb) |
| Dimensions (W ?? H ?? D) | 145 mm ?? 68.45 mm ?? 25.6 mm (5.71'' ?? 2.69'' ?? 1.01'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | ???40 ??C to 85 ??C (???40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 0.8 A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 30 W |
| Power Consumption in Idle | 3 W |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 4 x 10/100 Mbps PoE ports, 2 ?? 10/100 Mbps RJ45 ports |
| MAC Address Table | 2 K |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Internal Cache | 768 Kbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af; IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 35 W |
| Dialing Function | |
| Long Range | Ports 1 to 4: up to 300 m. Performance may vary based on camera model or cable condition. |
| Software Function | |
| VIP Port | Ports 1 to 2: prioritizes forwarding when bandwidth is limited |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32:2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 2nd Ed.), CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); REACH (EC No. 1907/2006) |
Specification
Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch Specifications
| General | |
|---|---|
| Shell | Metal material |
| Net Weight | 0.27 kg (0.60 lb) |
| Gross Weight | 0.52 kg (1.15 lb) |
| Dimensions (W ?? H ?? D) | 145 mm ?? 68.45 mm ?? 25.6 mm (5.71'' ?? 2.69'' ?? 1.01'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | ???40 ??C to 85 ??C (???40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 0.8 A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 30 W |
| Power Consumption in Idle | 3 W |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 4 x 10/100 Mbps PoE ports, 2 ?? 10/100 Mbps RJ45 ports |
| MAC Address Table | 2 K |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Internal Cache | 768 Kbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af; IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 35 W |
| Dialing Function | |
| Long Range | Ports 1 to 4: up to 300 m. Performance may vary based on camera model or cable condition. |
| Software Function | |
| VIP Port | Ports 1 to 2: prioritizes forwarding when bandwidth is limited |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32:2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 2nd Ed.), CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); REACH (EC No. 1907/2006) |
