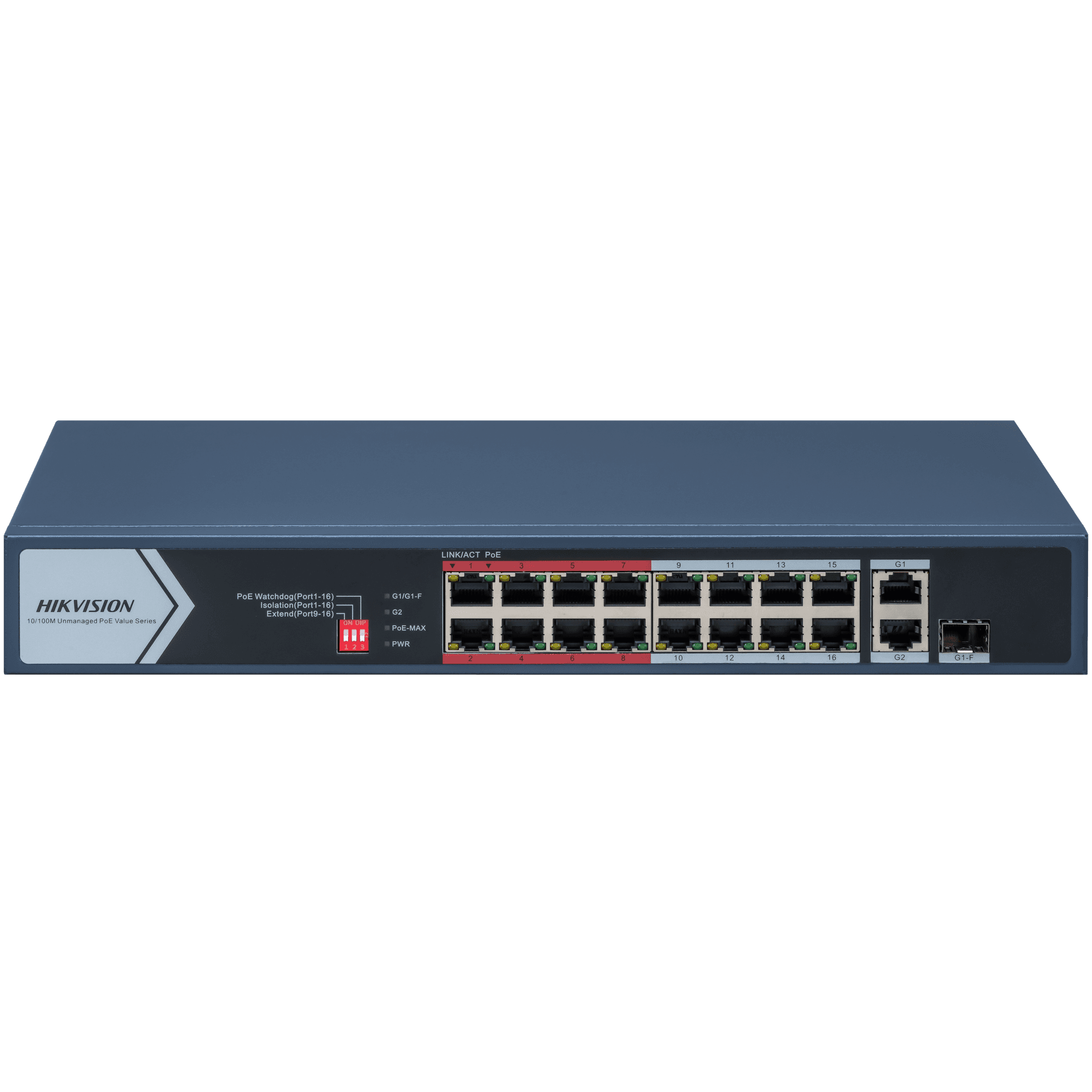

Hikvision DS-3E0318P-E/M(C) 16-Port Fast Ethernet Unmanaged POE Switch, 300m Long Range PoE, 2x Gigabit Combo Uplinks, 6KV Surge Protection, VIP Port Optimization
Model :
SKU : NS-HIK DS-3E0318P-E/M(C)
The Hikvision DS-3E0318P-E/M(C) is a professional-grade 16-port unmanaged PoE switch tailored for high-stability IP surveillance networks. It features Long Range PoE transmission up to 300 meters, allowing for flexible camera placement without the need for additional extenders. Equipped with intelligent power management, 6KV surge protection, and a specialized VIP port for priority video data, this switch ensures consistent, lightning-protected performance for small to medium-sized security systems.
Description
Reliability is the backbone of any security system, and the Hikvision DS-3E0318P-E/M(C) is engineered to provide just that. This 16-port Fast Ethernet PoE switch is more than a simple networking hub; it is a specialized power and data management center designed specifically for video transmission. Whether you are securing a retail space, an office, or a residential complex, this switch simplifies your infrastructure by combining power and high-speed data into a single cable.
Key Features
- 300m Ultra-Long Range PoE: Break the traditional 100-meter Ethernet limit. When switched to long-range mode, this switch can power and transmit data to IP cameras up to 300 meters away, significantly reducing the cost of wiring and mid-span equipment in large-scale installations.
- Intelligent PoE Power Management: To protect your hardware and extend the switch’s lifespan, the DS-3E0318P-E/M(C) features an intelligent monitoring system. If the total power draw exceeds the budget, the switch will automatically prioritize and manage power delivery to ensure the most critical ports remain operational.
- VIP Port Priority for Video: Network congestion shouldn't result in lost footage. The integrated VIP ports (typically the first few ports) ensure that critical video data is prioritized during traffic spikes, guaranteeing smooth playback and recording even when the network is under heavy load.
- Industrial-Grade 6KV Surge Protection: Designed to thrive in harsh environments, the switch features built-in 6KV surge protection. This robust shielding protects your internal circuitry from lightning strikes and electrical surges, minimizing downtime and maintenance costs.
Performance / Efficiency Efficiency is at the core of the DS-3E0318P-E/M(C)’s design. It utilizes an 8-core adaptive power supply method, which significantly reduces power loss over long cable runs compared to traditional 4-core systems. This ensures that your cameras receive stable voltage even at the end of a 300m run, improving image quality and device longevity.
Specification
16-Port PoE Switch – Technical Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Dialing Function | |
| Certifications & Compliance | |
| Shell | Metal Material |
| Net Weight | 1.80 kg (4.00 lb) |
| Gross Weight | 2.58 kg (5.69 lb) |
| Dimensions (W × H × D) | 335.0 × 44.5 × 175.8 mm (13.19" × 1.75" × 6.92") |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (No Condensation) |
| Relative Humidity | 5% to 95% (No Condensation) |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Power Consumption (Idle) | 20 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 KV |
| Ports | 16 × 10/100 Mbps PoE Ports 1 × Gigabit RJ45 Port 1 × Gigabit Combo Port |
| MAC Address Table | 8 K |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbits |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Long Range Mode | Ports 9 to 16: up to 300 m Long range performance may vary depending on camera model or cable condition. |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019) EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 IC (ICES-003: Issue 7:2020) RCM (AS/NZS CISPR 32:2015) |
| Safety | UL (UL 60950-1) CB (IEC 62368-1:2014, AMD1:2009, AMD2:2013) CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemistry Compliance | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) REACH (EC No.1907/2006) |
