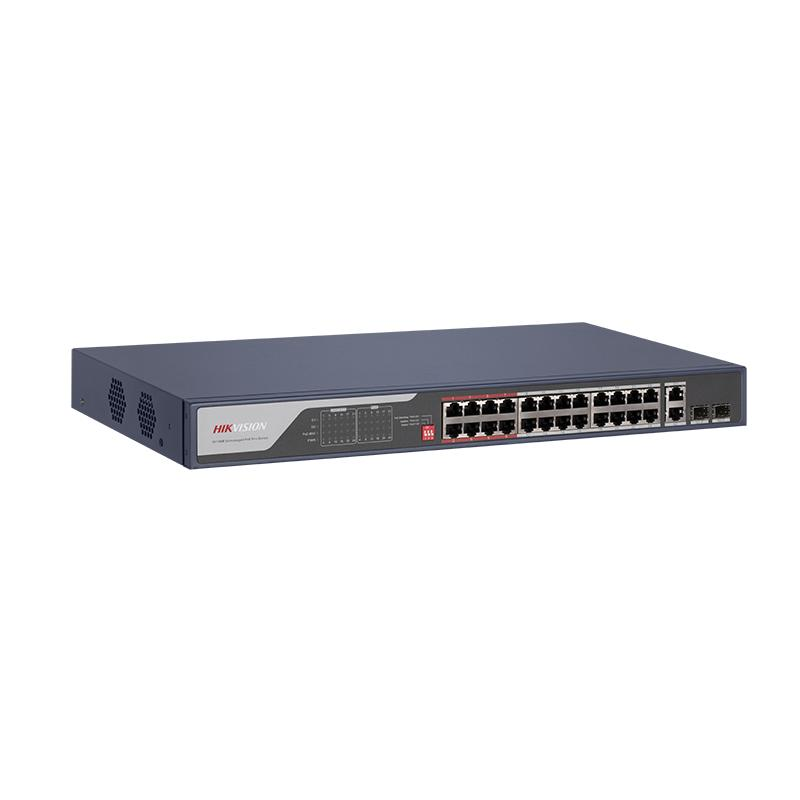

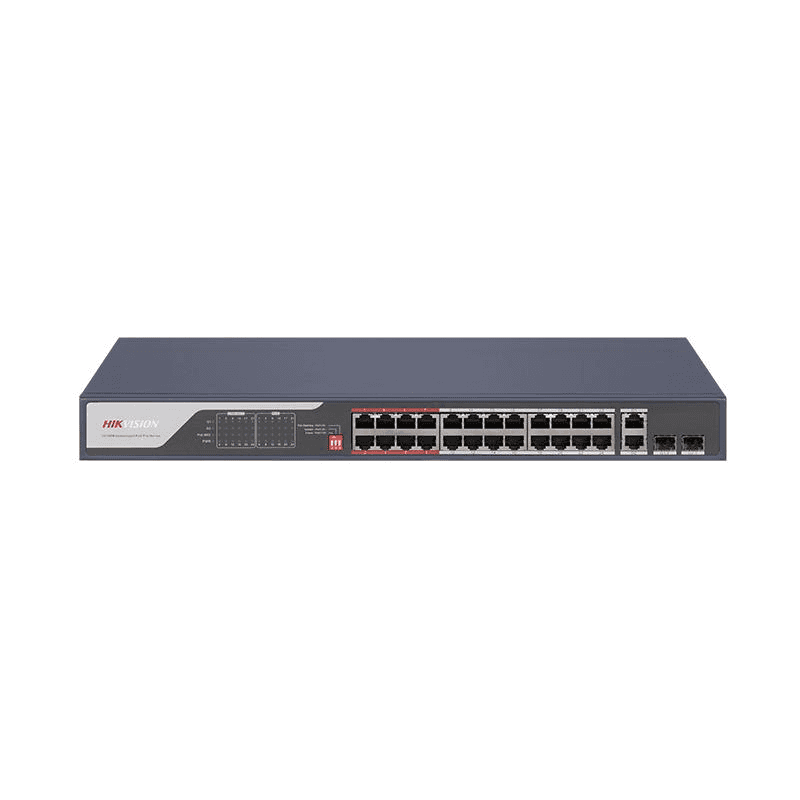

Hikvision DS-3E0326P-E(C) 100 Mbps Long Range PoE Switch, 24 ?? 10/100 Mbps PoE port,2 ?? Gigabit combo, Up to 300 m, Port isolation to improve network security, 6 kV surge protection, PoE watchdog function

Hikvision DS-3E0326P-E(C) 100 Mbps Long Range PoE Switch, 24 ?? 10/100 Mbps PoE port,2 ?? Gigabit combo, Up to 300 m, Port isolation to improve network security, 6 kV surge protection, PoE watchdog function

Shell	Metal material
Net Weight	2.785 kg (6.14 lb)
Gross Weight	3.54 kg (7.80 lb)
Dimensions (W ?? H ?? D)	440.0 mm ?? 44.0 mm ?? 220.8 mm (17.3'' ?? 1.7'' ?? 8.7'')
Operating Temperature	0 ??C to 45 ??C (32 ??F to 113 ??F)
Storage Temperature	-40 ??C to 85 ??C (-40 ??F to 185 ??F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100~240 VAC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption	400 W
Power Consumption In Idle	30 W
Installation Mode	Rack (equipped with mounting ears)
Surge Protection	6 KV

Network Parameters

Ports	24 ?? 10/100 Mbps PoE port, 2 ?? Gigabit combo
MAC Address Table	16 K
Switching Capacity	8.80 Gbps
Packet Forwarding Rate	6.55 Mpps
Internal Cache	4 Mbits

PoE Power Supply

PoE Standard	IEEE 802.3af; IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 24
Max. Port Power	30 W
PoE Power Budget	370 W

Dialing Function

Long Range	Ports 17 to 24: up to 300 m Long range performance may vary depending on camera model or cable condition.
Port Isolation	Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 24: auto detect and restart the cameras that do not respond.

Software Function

VIP Port

Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

Approval

EMC	FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU)
