Home/Networking/Commercial Networking/Switches/Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet ...

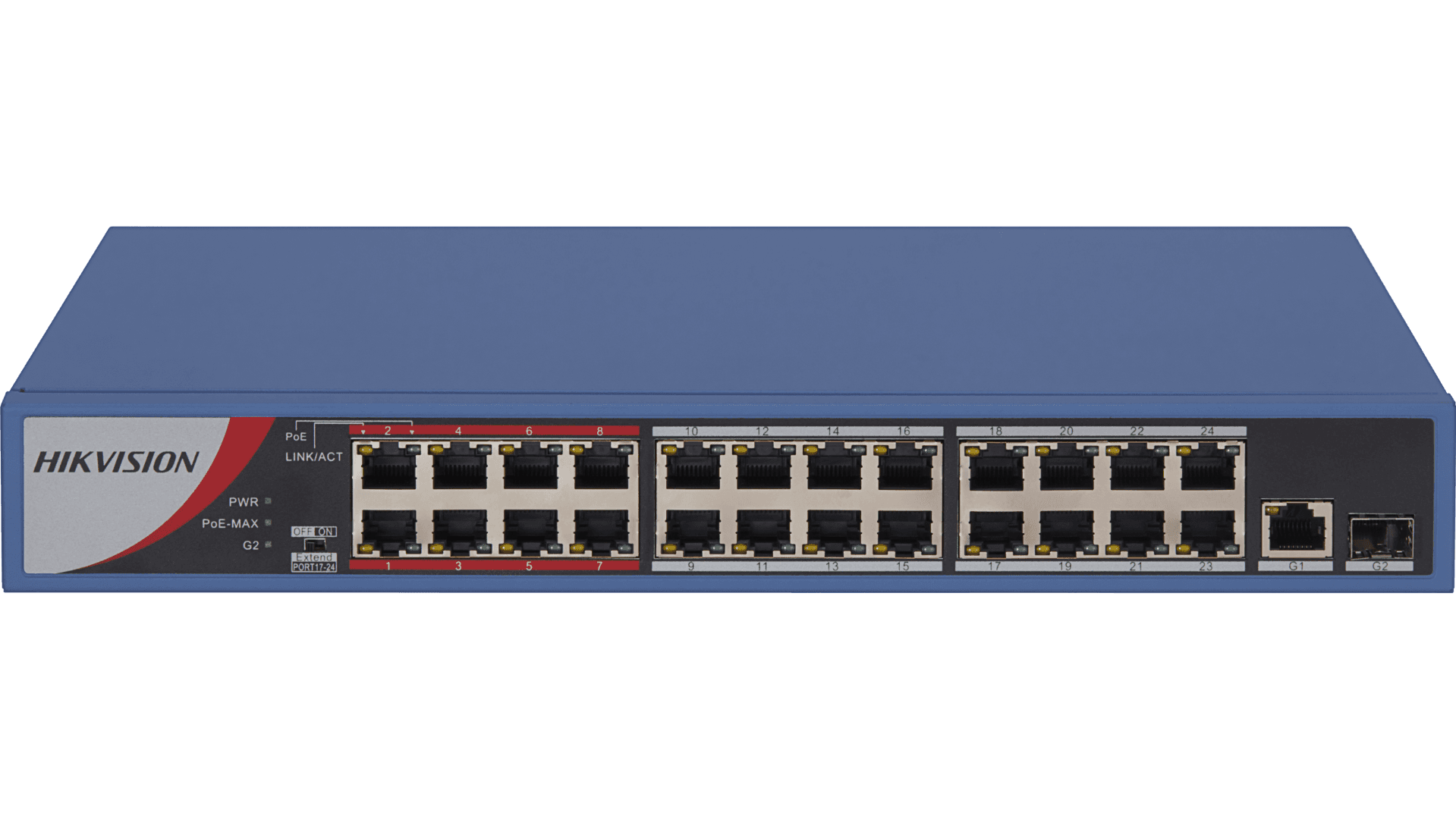

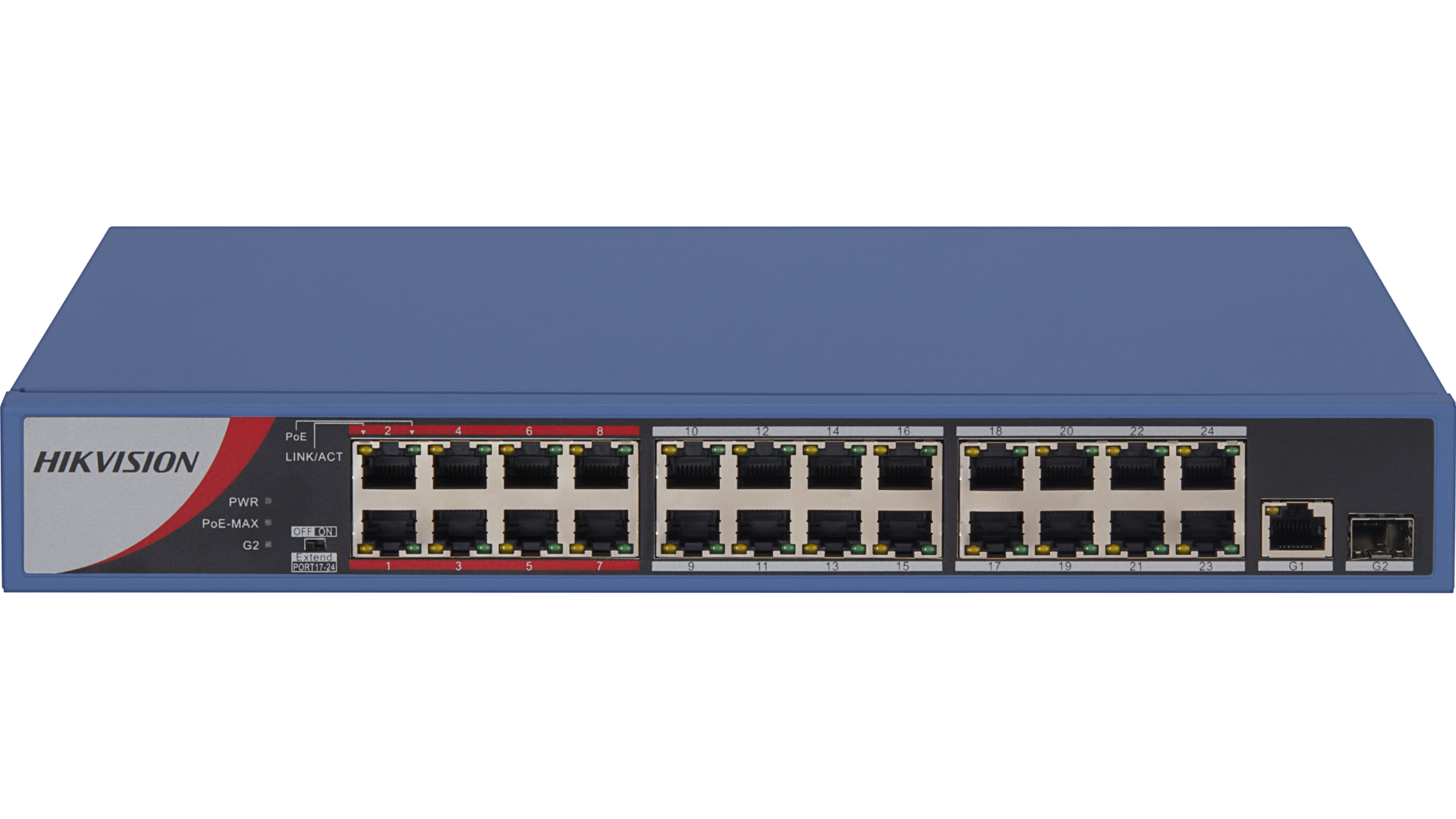

Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet Unmanaged POE Switch, Up to 300 m Long Range PoE Transmission.
Model :
SKU : NS-HIK DS-3E0326P-E/M(B)
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
24-Port PoE Network Switch Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Dialing Function | |
| Compliance & Approvals | |
| Dimensions (W × H × D) | 335 × 44.5 × 226 mm (13.2” × 1.8” × 8.9”) |
| Shell | Metal material |
| Gross Weight | 3.33 kg (7.34 lb) |
| Net Weight | 2.55 kg (5.60 lb) |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 100 to 240 VAC, 50/60 Hz, Max. 4 A |
| Power Consumption (Idle) | 20 W |
| Max. Power Consumption | 250 W |
| Ports | 24 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit fiber optical |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Working Mode | Standard mode (default), Extend mode |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding Mode | Store-and-forward switching |
| High Priority Ports | Ports 1 to 8 |
| MAC Address Table | 4 K |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.547 Mpps |
| Internal Cache | 2.75 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Long Range | Ports 17 to 24: up to 300 m at 10 Mbps |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015), RCM (AS/NZS CISPR 32:2015), IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1), CB (IEC 60950-1:2005 + A1:2009 + A2:2013), CE-LVD (EN 60950-1:2005 + A1:2009 + A2:2013) |
| Chemical Compliance | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (Regulation (EC) No 1907/2006) |
