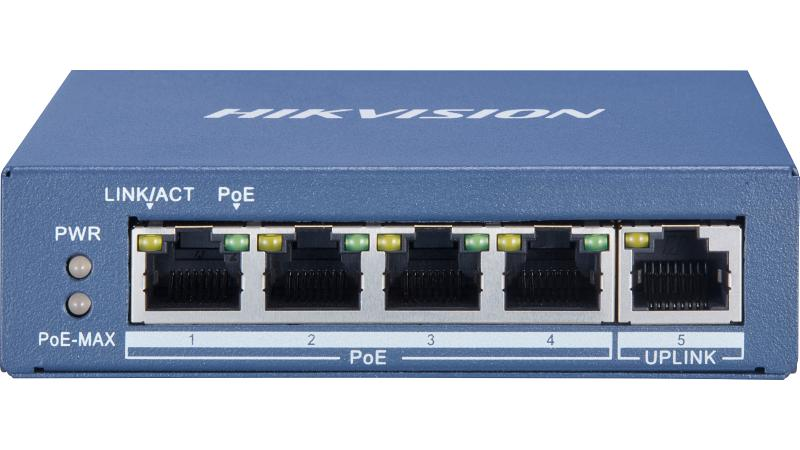

Hikvision DS-3E0505P-E 4 Port Gigabit Unmanaged PoE Switch

4 Port Gigabit Unmanaged POE Switch

Layer 2 network switch designed for video data transmission
4 x 10/100/1000 Mbps ethernet port and 1 x 10/100/1000 Mbps uplink ethernet port
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
IEEE 802.3 af & at high PoE power supply
Store-and-forward switching
Safe and reliable using 6 KV high surge protection
Plug and play ensures simplicity and convenience.

4-Port Gigabit PoE Switch Specifications

Shell Material	Metal, Fan-Free Design
Net Weight	0.26 kg (0.57 lb)
Gross Weight	0.84 kg (1.85 lb)
Dimensions (W × H × D)	105.0 × 27.6 × 83.1 mm (4.1" × 1.1" × 3.3")
Installation Mode	Desk-Mounted, Wall-Mounted
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	5% to 95% RH (Non-Condensing)
Relative Humidity	5% to 95% RH (Non-Condensing)
Power Supply	48 VDC, 1.35 A
Maximum Power Consumption	65 W
Idle Power Consumption	5 W
Surge Protection	6 kV
Ports	4 × Gigabit PoE Ports 1 × Gigabit RJ45 Uplink Port
MAC Address Table	2K Entries
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.44 Mpps
Internal Cache	1 Mbit
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Power Pin Assignment	End-span: 1/2 (+), 3/6 (-)
PoE Ports	Ports 1 to 4
Maximum PoE Power per Port	30 W
Total PoE Power Budget	60 W
EMC Certifications	FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032:2015+A11:2020) EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 ICES-003 Issue 7:2020 RCM (AS/NZS CISPR 32:2015)
Safety Certifications	UL 60950-1 CB (IEC 62368-1:2014, Second Edition) CE-LVD (EN 62368-1:2014+A11:2017)
Environmental Compliance	CE-RoHS (2011/65/EU)

Description

4 Port Gigabit Unmanaged POE Switch

Layer 2 network switch designed for video data transmission
4 x 10/100/1000 Mbps ethernet port and 1 x 10/100/1000 Mbps uplink ethernet port
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
IEEE 802.3 af & at high PoE power supply
Store-and-forward switching
Safe and reliable using 6 KV high surge protection
Plug and play ensures simplicity and convenience.

Specification

4-Port Gigabit PoE Switch Specifications

Shell Material	Metal, Fan-Free Design
Net Weight	0.26 kg (0.57 lb)
Gross Weight	0.84 kg (1.85 lb)
Dimensions (W × H × D)	105.0 × 27.6 × 83.1 mm (4.1" × 1.1" × 3.3")
Installation Mode	Desk-Mounted, Wall-Mounted
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	5% to 95% RH (Non-Condensing)
Relative Humidity	5% to 95% RH (Non-Condensing)
Power Supply	48 VDC, 1.35 A
Maximum Power Consumption	65 W
Idle Power Consumption	5 W
Surge Protection	6 kV
Ports	4 × Gigabit PoE Ports 1 × Gigabit RJ45 Uplink Port
MAC Address Table	2K Entries
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.44 Mpps
Internal Cache	1 Mbit
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Power Pin Assignment	End-span: 1/2 (+), 3/6 (-)
PoE Ports	Ports 1 to 4
Maximum PoE Power per Port	30 W
Total PoE Power Budget	60 W
EMC Certifications	FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032:2015+A11:2020) EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 ICES-003 Issue 7:2020 RCM (AS/NZS CISPR 32:2015)
Safety Certifications	UL 60950-1 CB (IEC 62368-1:2014, Second Edition) CE-LVD (EN 62368-1:2014+A11:2017)
Environmental Compliance	CE-RoHS (2011/65/EU)
