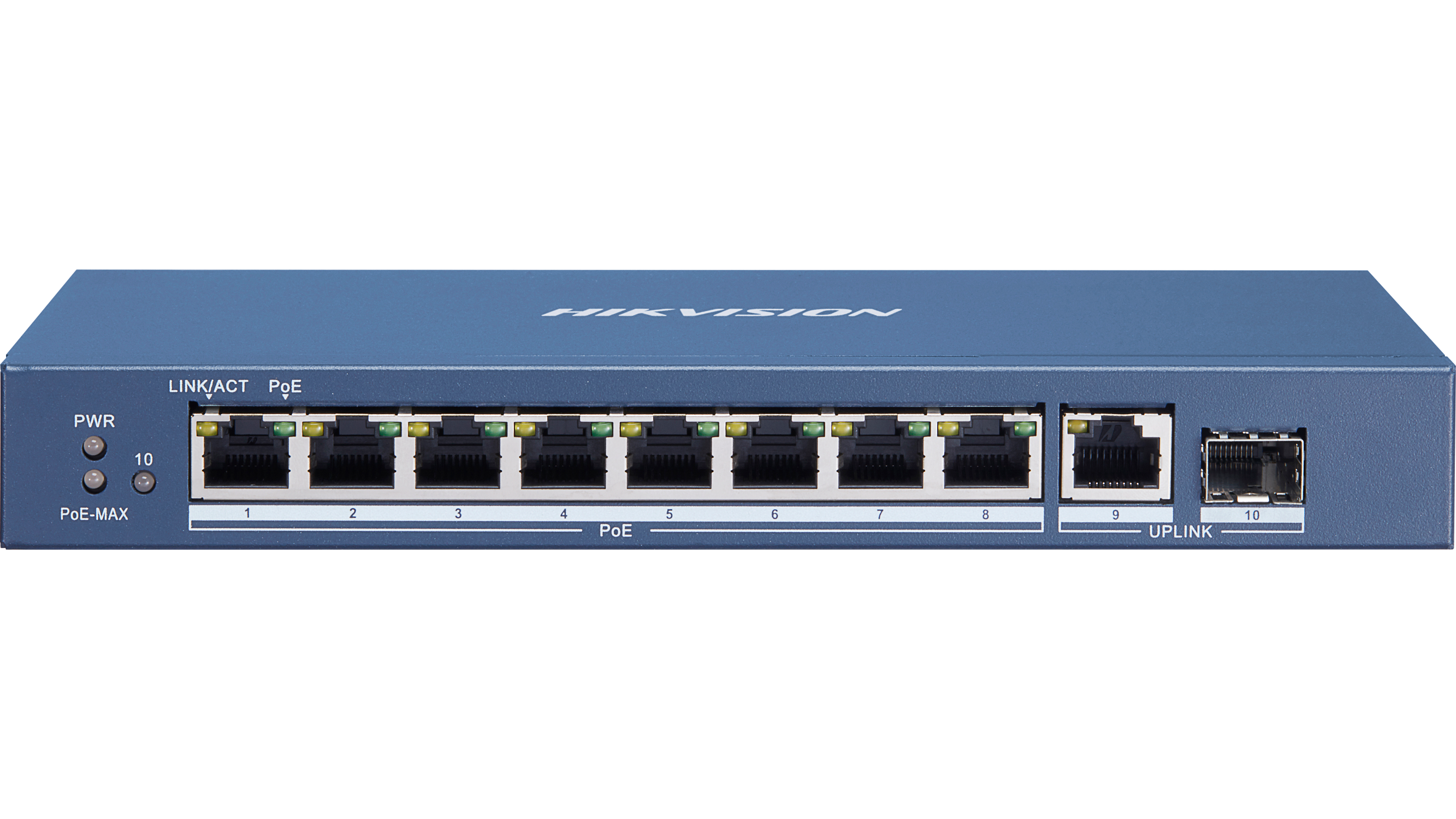

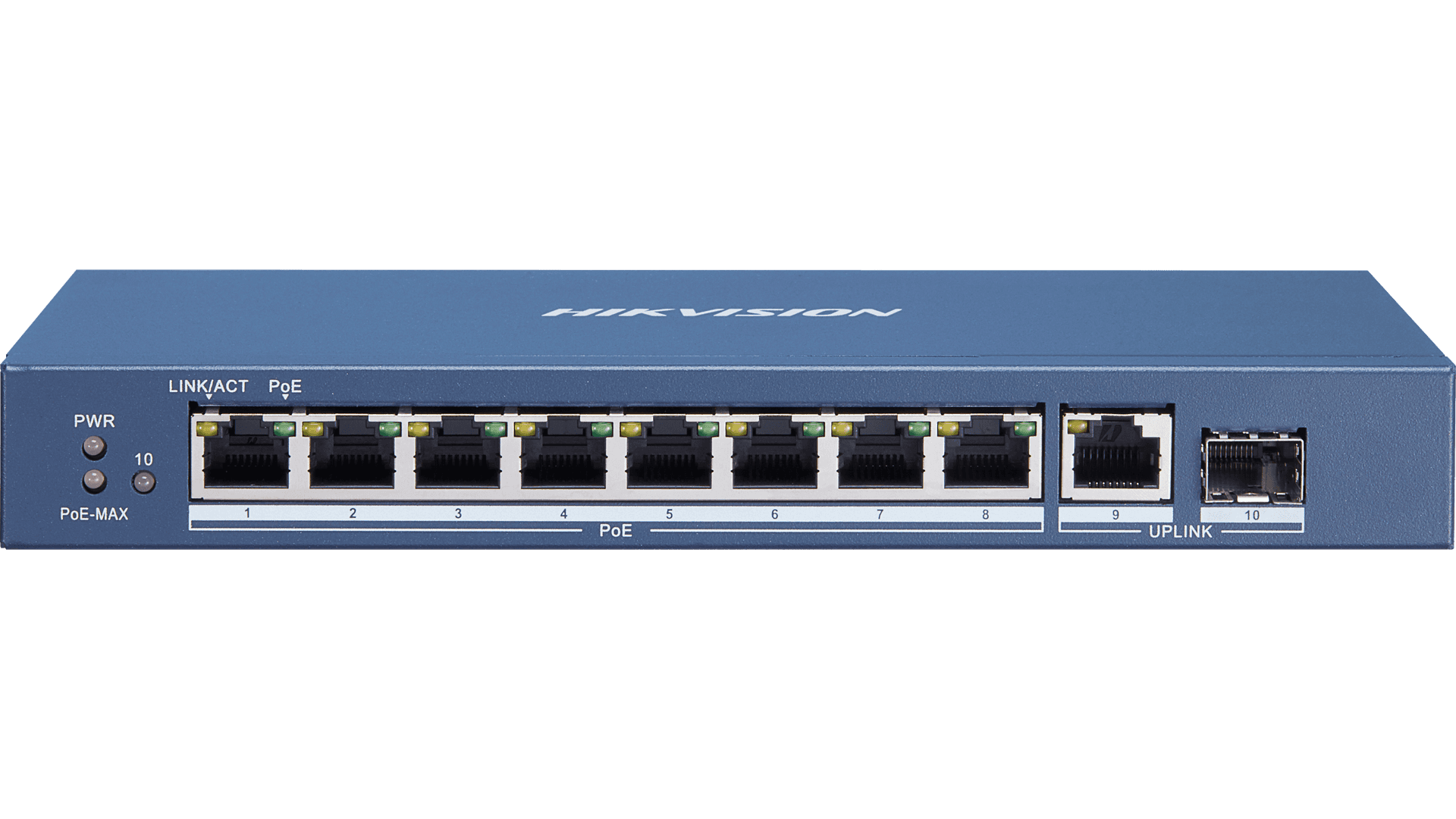

Hikvision DS-3E0510P-E/M 8-Port Gigabit PoE Switch, 58W Budget, 1x Gigabit Uplink & 1x SFP Fiber Port, 6KV Surge Protection, Unmanaged Fanless Metal Design
Model :
SKU : NS-HIK DS-3E0510P-E/M
The Hikvision DS-3E0510P-E/M is a high-performance 8-port Gigabit unmanaged PoE switch designed for seamless, high-speed network integration. Featuring eight Gigabit PoE ports, a Gigabit RJ45 uplink, and an SFP fiber optical port, it provides versatile connectivity for IP cameras, access points, and long-distance fiber backbones. With its rugged metal shell, fanless silent design, and 6KV surge protection, it offers industrial-grade reliability for small businesses and high-demand home surveillance setups.
Description
Achieve lightning-fast data speeds and reliable power delivery with the Hikvision DS-3E0510P-E/M. This Gigabit PoE switch is engineered for environments where standard Fast Ethernet simply isn't enough. By providing full Gigabit speeds across all ports, it ensures that high-resolution 4K cameras and high-bandwidth wireless access points operate at their full potential without data bottlenecks or latency.
Key Features
- Full Gigabit Connectivity: Unlike standard switches, the DS-3E0510P-E/M offers Gigabit network access on every port. This 10/100/1000 Mbps architecture is essential for modern security systems that utilize high-bitrate video streaming and rapid data transfers.
- Dual Uplink Versatility (RJ45 & SFP): This switch features a dedicated Gigabit RJ45 port for local network connection and an SFP fiber optical port. The SFP slot allows for high-speed fiber uplinks over long distances, making it perfect for connecting remote buildings or floors to a central server.
- Intelligent PoE Power Management: Supporting both IEEE 802.3af and 802.3at standards, the switch delivers up to 30W per port with a total budget of 58W. The built-in power management intelligently monitors consumption to ensure stable operation of all connected devices.
- Rugged & Fanless Design: Housed in a solid, high-strength metal shell, this switch is built for longevity. Its reliable fan-free design ensures silent operation, making it ideal for installation in office environments, classrooms, or quiet residential spaces.
Performance / Reliability The DS-3E0510P-E/M utilizes a wire-speed forwarding and non-blocking design, ensuring that data packets move through the switch at the maximum possible speed. To combat the risks of outdoor camera installations, the PoE ports are equipped with 6KV surge protection, shielding your network infrastructure from sudden lightning strikes and electrical spikes.
Specification
8-Port Gigabit PoE Switch – Technical Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Certifications & Compliance | |
| Shell | Metal Material |
| Net Weight | 0.635 kg (1.40 lb) |
| Gross Weight | 1.366 kg (3.01 lb) |
| Dimensions (W × H × D) | 217.6 × 27.8 × 108.55 mm (8.6" × 1.1" × 4.3") |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (No Condensation) |
| Relative Humidity | 5% to 95% (No Condensation) |
| Power Supply | 48 VDC, 1.35 A |
| Max. Power Consumption | 65 W |
| Power Consumption (Idle) | 7 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 kV |
| Ports | 8 × Gigabit PoE Ports 1 × Gigabit RJ45 Port 1 × Gigabit Fiber Optical Port |
| MAC Address Table | 4 K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 1.5 Mbits |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) |
| PoE Ports | Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 58 W |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019) EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 IC (ICES-003: Issue 7:2020) RCM (AS/NZS CISPR 32:2015) |
| Safety | UL (UL 60950-1) CB (IEC 62368-1:2014, AMD1:2009, AMD2:2013) CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemistry Compliance | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) REACH (EC No.1907/2006) |
