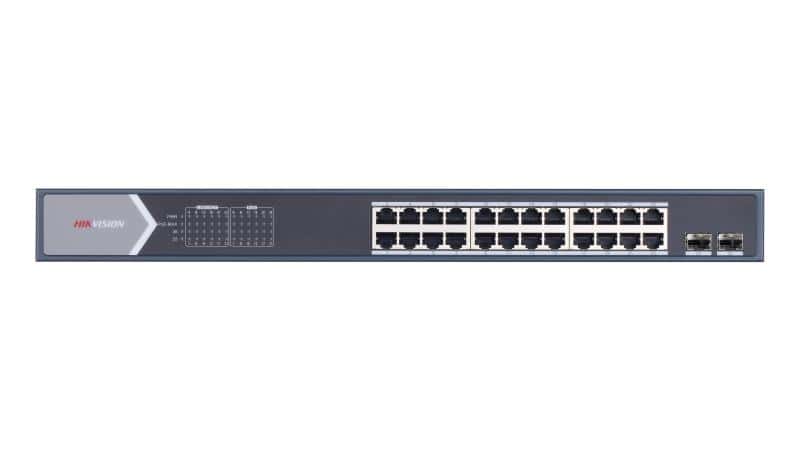

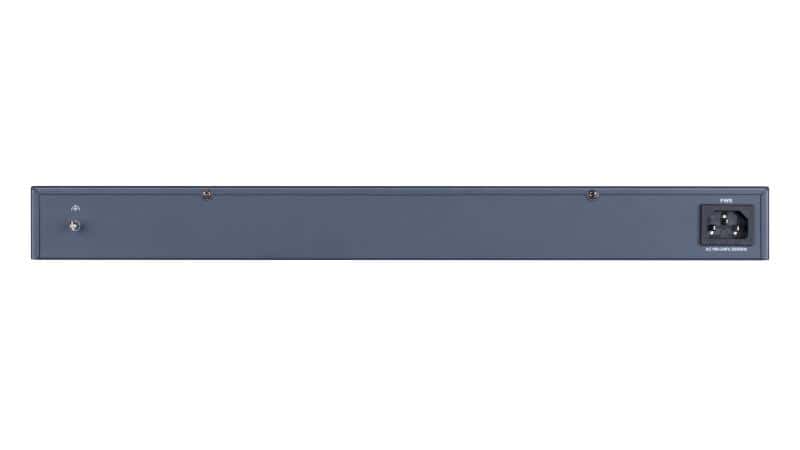

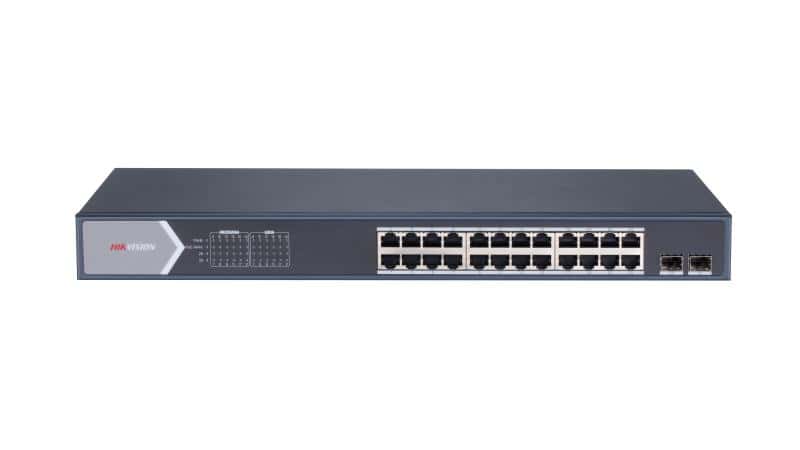

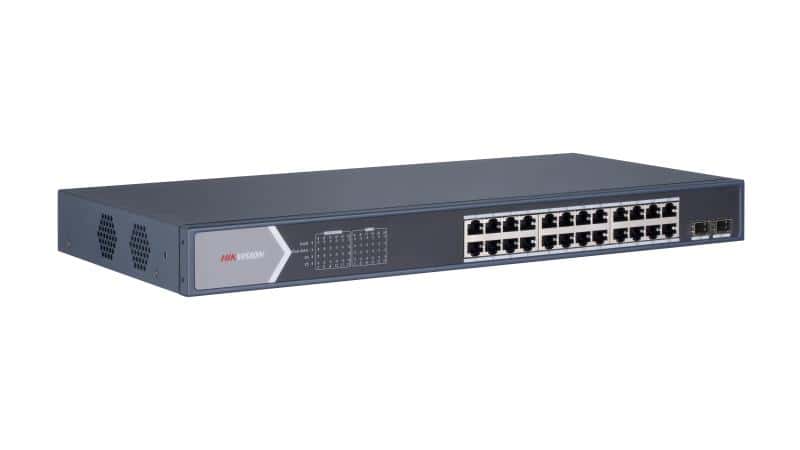

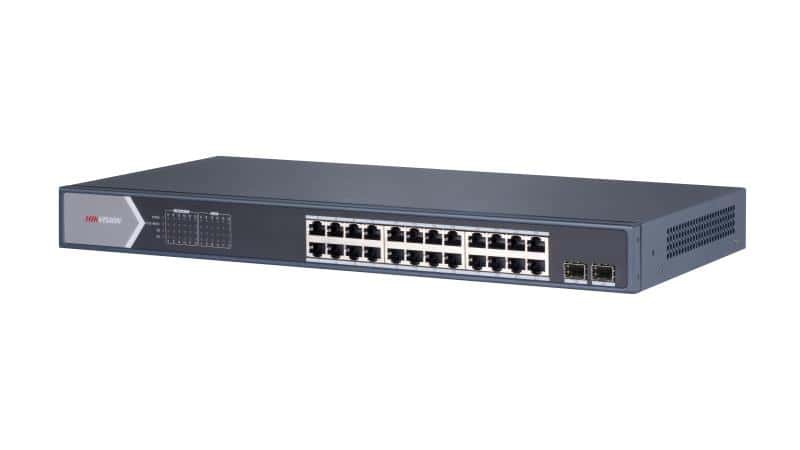

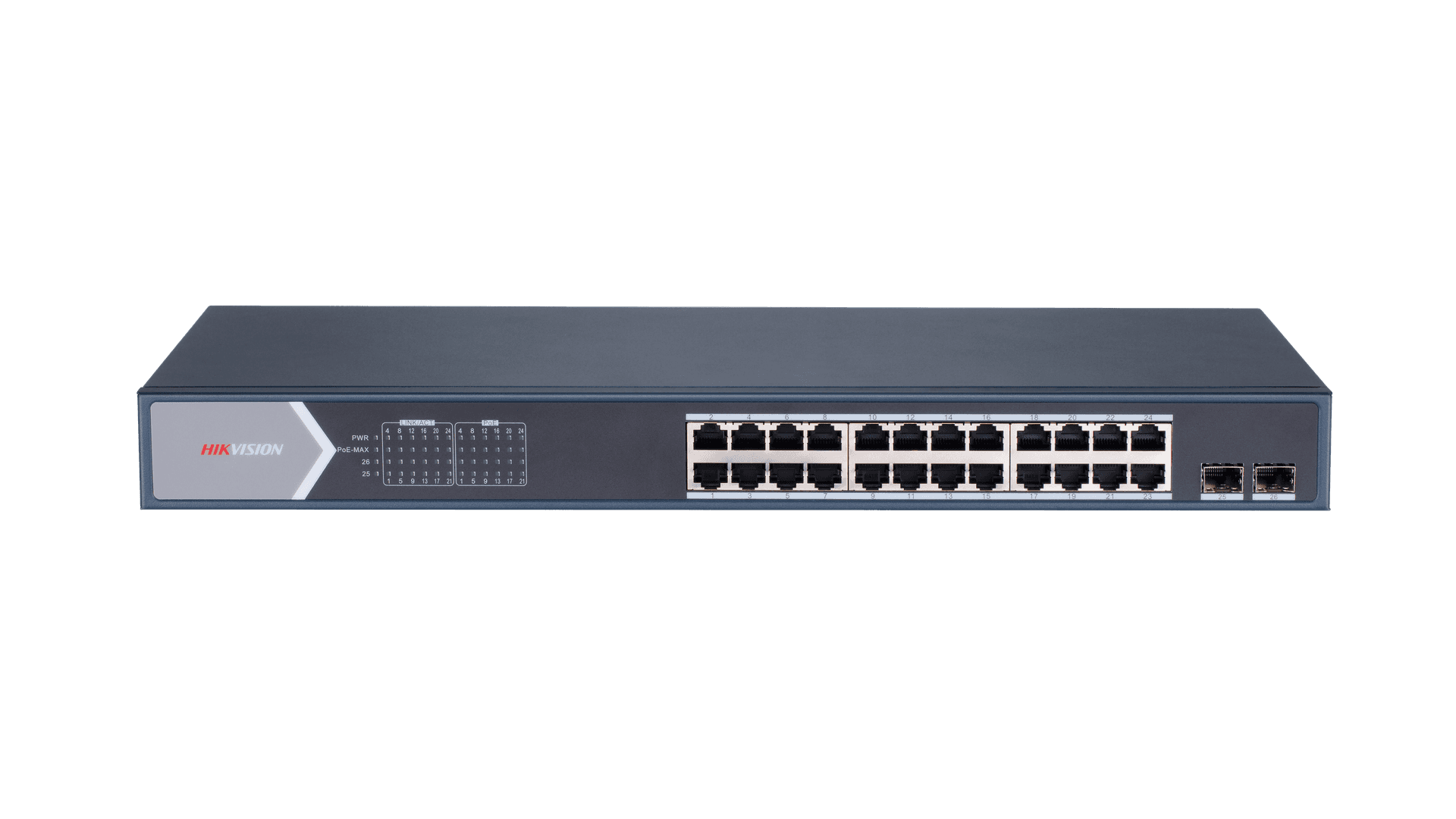

Hikvision DS-3E0526P-E/M 24 Port Gigabit Unmanaged PoE Switch, 24x Gigabit PoE port, 2x Gigabit SFP fiber optical port
Model :
SKU : NS-HIK DS-3E0526P-E/M-
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-3E0526P-E/M 24 Port Gigabit Unmanaged PoE Switch, 24x Gigabit PoE port, 2x Gigabit SFP fiber optical port Specification
| Shell | Metal material |
| Net Weight | 2.92 kg (6.44 lb) |
| Gross Weight | 4.12 kg (9.08 lb) |
| Dimensions (W ?? H ?? D) | 440 mm ?? 44 mm ?? 220.8 mm (17.3'' ?? 1.7'' ?? 8.7'') |
| Operating Temperature | 0 ??C to 45 ??C (32 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 4 A |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 25 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
Network Parameters
| Ports | 24 ?? Gigabit PoE port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 38.69 Mpps |
| Internal Cache | 4.1 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 225 W |
Approval
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU), WEEE (201219EU), Reach (Regulation (EC) No.19072006) |
Specification
Hikvision DS-3E0526P-E/M 24 Port Gigabit Unmanaged PoE Switch, 24x Gigabit PoE port, 2x Gigabit SFP fiber optical port Specification
| Shell | Metal material |
| Net Weight | 2.92 kg (6.44 lb) |
| Gross Weight | 4.12 kg (9.08 lb) |
| Dimensions (W ?? H ?? D) | 440 mm ?? 44 mm ?? 220.8 mm (17.3'' ?? 1.7'' ?? 8.7'') |
| Operating Temperature | 0 ??C to 45 ??C (32 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 4 A |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 25 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
Network Parameters
| Ports | 24 ?? Gigabit PoE port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 38.69 Mpps |
| Internal Cache | 4.1 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 225 W |
Approval
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU), WEEE (201219EU), Reach (Regulation (EC) No.19072006) |
