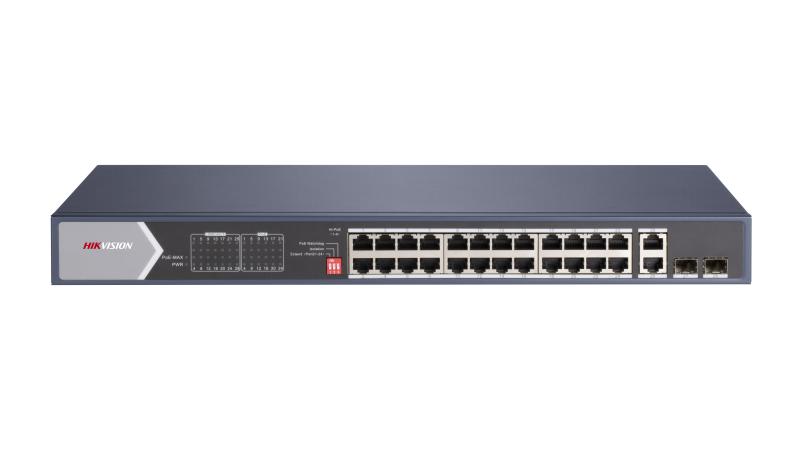

Hikvision DS-3E0528HP-E 24 Port Gigabit Unmanaged PoE Switch, 20x gigabit PoE port, 4x gigabit Hi-PoE port, 2x gigabit RJ45 port, and 2x gigabit fiber optical port, Up to 300m long-range transmission.
Model :
SKU : NS-HIKVISIO DS-3E0528HP-E
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-3E0528HP-E 24 Port Gigabit Unmanaged PoE Switch, 20x gigabit PoE port, 4x gigabit Hi-PoE port, 2x gigabit RJ45 port, and 2x gigabit fiber optical port, Up to 300 m long-range transmission. Specifications
| Shell | Metal material |
| Net Weight | 2.98 kg (6.57 lb) |
| Dimensions (W ?? H ?? D) | 440.0 mm ?? 220.8 mm ?? 44.0 mm (17.32'' ?? 8.69'' ?? 1.73'') |
| Operating Temperature | 0 ??C to 45 ??C (32 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 6.5 A |
| Max. Power Consumption | 400 W |
| Power Consumption in Idle | 30 W |
| Installation Mode | Desk-Mounted |
| Surge Protection | 6 KV |
| Ports | 24 ?? Gigabit PoE port, 2 ?? Gigabit RJ45 port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.664 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Port |
Hi-PoE: Ports 1 to 4 PoE: Ports 1 to 24 |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Max. Port Power | Ports 1 to 4: 90 W Ports 5 to 24: 30 W |
| PoE Power Budget | 370 W |
| Long Range | Ports 21 to 24: up to 300 m Long range performance may vary depending on camera model or cable condition. |
| Port Isolation |
Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL, CB, CE-LVD |
| Chemistry | CE-RoHS (2011/65/EU) |
Specification
Hikvision DS-3E0528HP-E 24 Port Gigabit Unmanaged PoE Switch, 20x gigabit PoE port, 4x gigabit Hi-PoE port, 2x gigabit RJ45 port, and 2x gigabit fiber optical port, Up to 300 m long-range transmission. Specifications
| Shell | Metal material |
| Net Weight | 2.98 kg (6.57 lb) |
| Dimensions (W ?? H ?? D) | 440.0 mm ?? 220.8 mm ?? 44.0 mm (17.32'' ?? 8.69'' ?? 1.73'') |
| Operating Temperature | 0 ??C to 45 ??C (32 ??F to 113 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 6.5 A |
| Max. Power Consumption | 400 W |
| Power Consumption in Idle | 30 W |
| Installation Mode | Desk-Mounted |
| Surge Protection | 6 KV |
| Ports | 24 ?? Gigabit PoE port, 2 ?? Gigabit RJ45 port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.664 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Port |
Hi-PoE: Ports 1 to 4 PoE: Ports 1 to 24 |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Max. Port Power | Ports 1 to 4: 90 W Ports 5 to 24: 30 W |
| PoE Power Budget | 370 W |
| Long Range | Ports 21 to 24: up to 300 m Long range performance may vary depending on camera model or cable condition. |
| Port Isolation |
Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL, CB, CE-LVD |
| Chemistry | CE-RoHS (2011/65/EU) |
