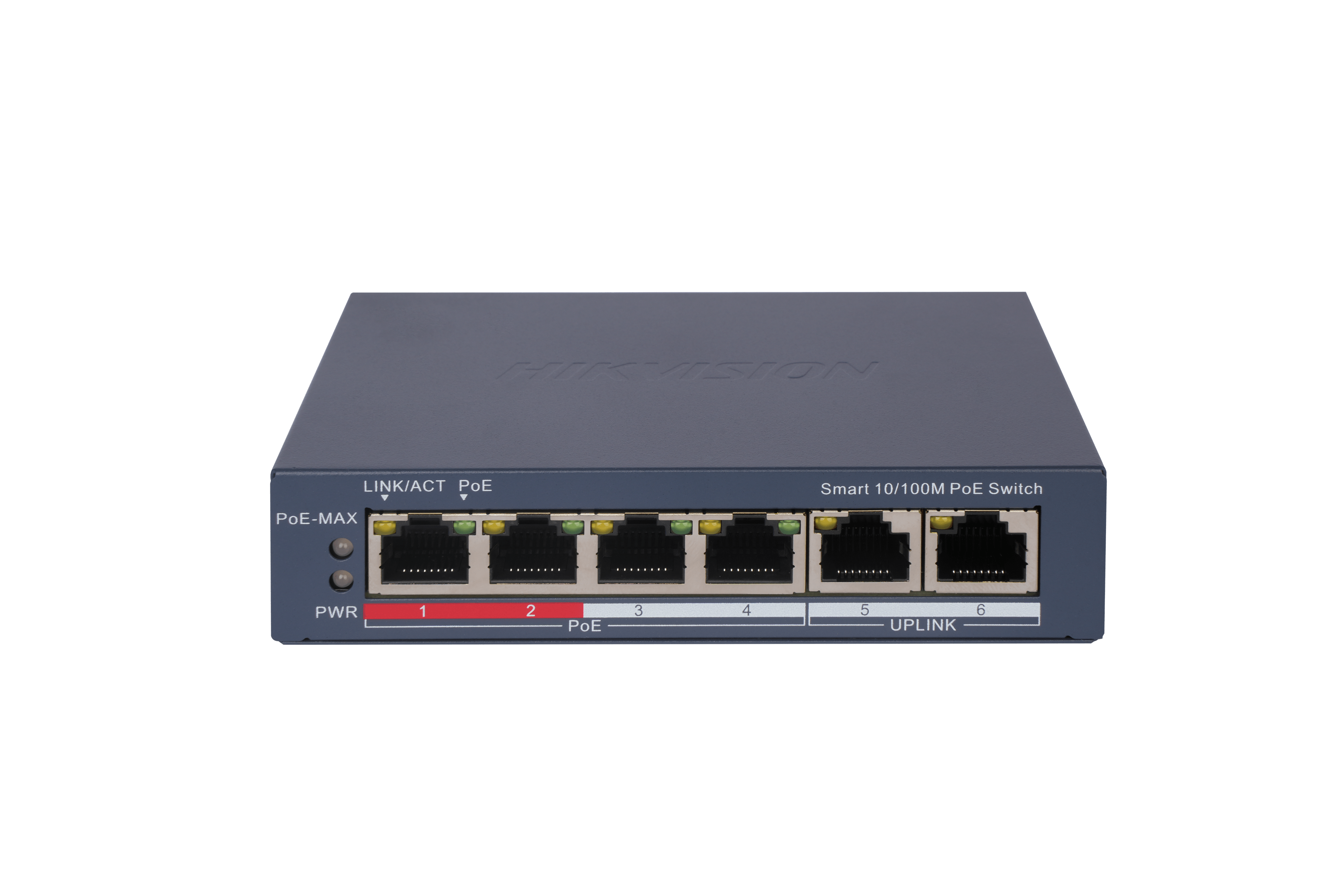

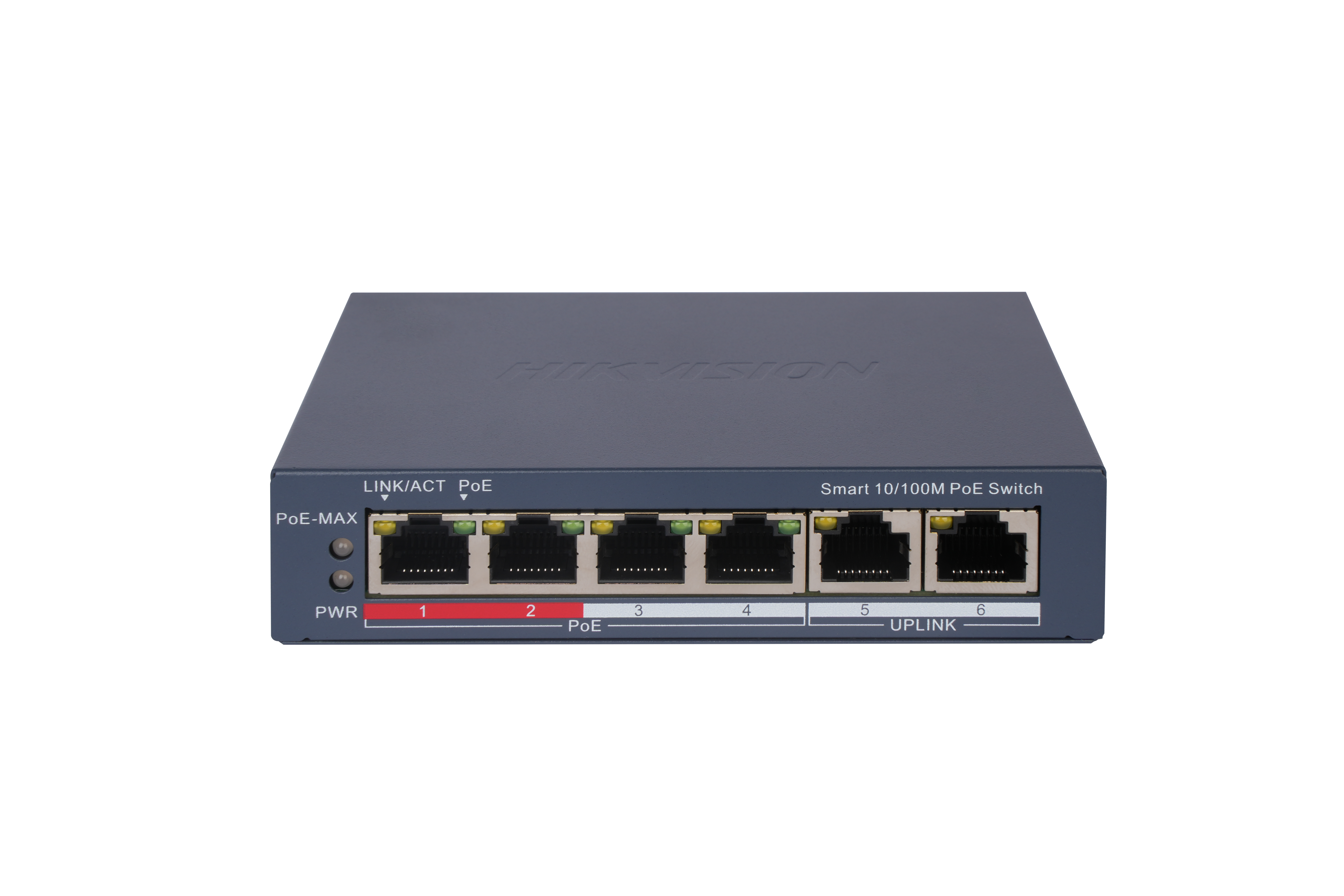

Hikvision DS-3E1106P-EI 4 Port Fast Ethernet Smart POE Switch, 4× 10/100 Mbps PoE port, 2× 10/100 Mbps RJ45 port
Model :
SKU : NS-HIKVISIO DS-3E1106P-EI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
General
| Shell | Metal material |
| Net Weight | 0.27 kg (0.6 lb) |
| Gross Weight | 0.77 kg (1.7 lb) |
| Dimensions (W × H × D) | 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54VDC, 1.2A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 1.6 W |
| Surge Protection | 6 KV |
Network Parameters
| Ports | 4 × 10/100 Mbps PoE port, 2 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 10.42 Mpps |
| Internal Cache | 1 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
Software Function
| Long Range | Ports 1 to 4: up to 300 m. (Performance may vary depending on camera model or cable condition) |
| VIP Port | Ports 1 to 2: preferential forwarding when bandwidth is insufficient |
| Port Isolation | Ports 1 to 4: port isolation mode to improve security |
| PoE Watchdog | Ports 1 to 4: auto detect and restart non-responding cameras |
| Link Aggregation | Supports static link aggregation, 2 aggregation groups |
| Loop Prevention | Supports 802.1D STP, 802.1w RSTP (disabled by default) |
| VLAN | Supports 802.1Q, VLAN ID 1-4094, Trunk/Access mode, up to 32 VLANs |
| HPP | Supports one-click activation and remote management via Hik-Partner Pro (port rate, bandwidth, PoE usage, topology, alarms, restart, upgrades) |
| System Maintenance | Web management, DHCP Client, Super IP (10.180.190.200), Hik-Central Pro, Hik-Partner Pro, cable detection, 802.1ab LLDP, port mirroring |
Approval
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | Reach (Regulation (EC) No.1907/2006), WEEE (2012/19/EU), CE-RoHS (2011/65/EU) |
