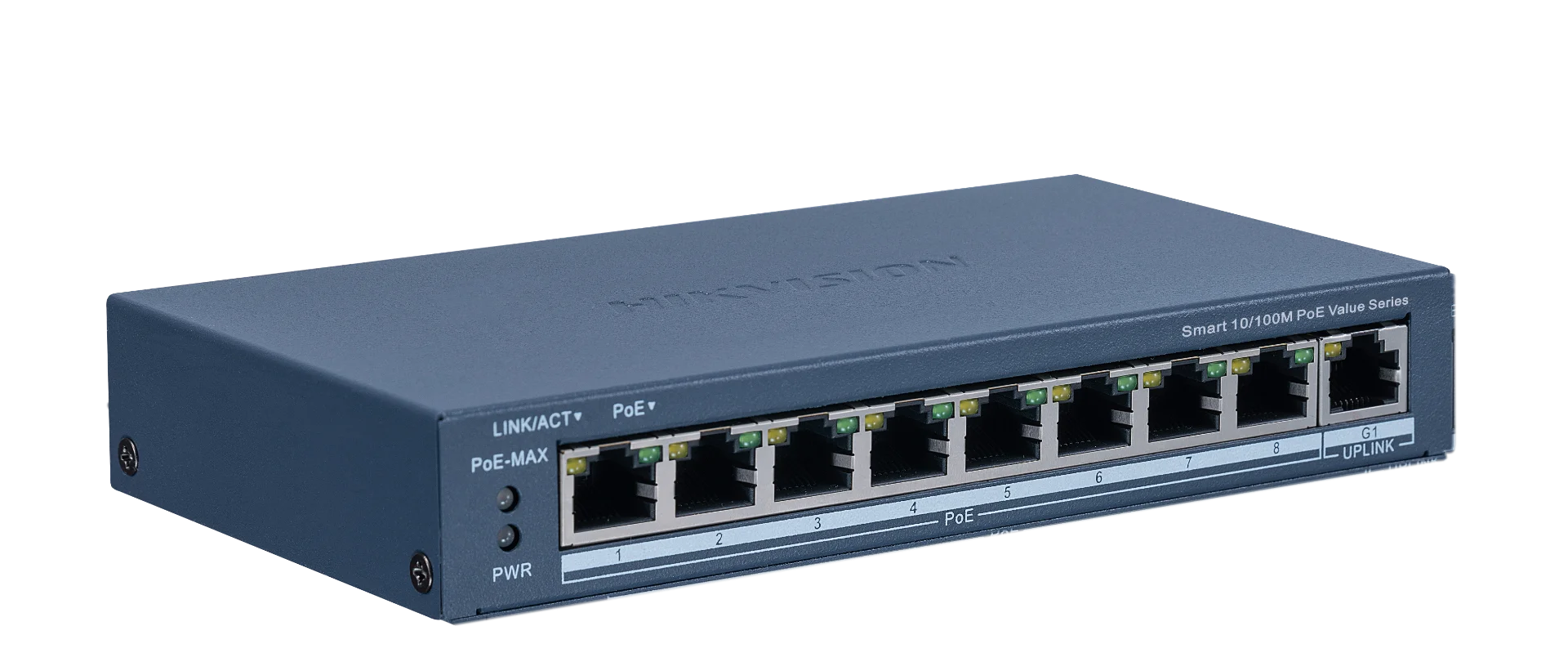

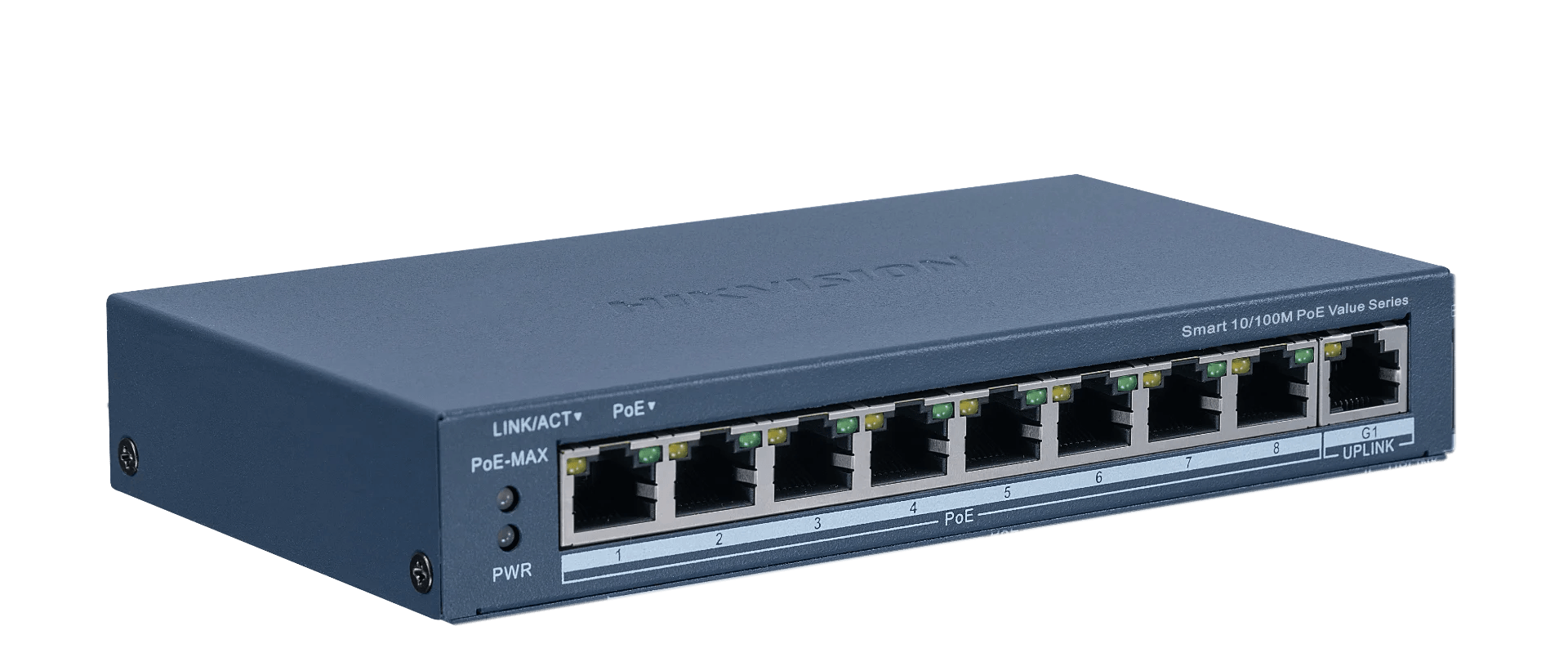

Hikvision DS-3E1309P-EI/M 8 Port Fast Ethernet Smart POE Switch

Model :

SKU : NS-HIKVIS DS-3E1309P-EI/M

About this item

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

AED 0.00

stock : 1

About this item

Description

Specification

8-Port PoE Switch - Technical Specifications

General
Network Parameters
PoE Parameters
Software Features
Certifications
Shell	Metal material, fan-free design
Net Weight	0.4 kg (0.9 lb)
Gross Weight	0.9 kg (2.0 lb)
Dimensions (W × H × D)	170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating/Relative Humidity	5% to 95% (no condensation)
Power Supply	54VDC, 1.2A
Installation Mode	Desk-Mounted, Wall-Mounted
Max. Power Consumption	65 W
Idle Power Consumption	5 W
Surge Protection	6 kV
Ports	8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port
MAC Address Table	8 K
Switching Capacity	Whole Device: 5.6 Gbps, Port: 3.6 Gbps
Packet Forwarding Rate	Whole Device: 4.17 Mpps, Port: 2.68 Mpps
Internal Cache	4 Mbits
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Pin Assignment	End-span: 1/2(-), 3/6(+)
PoE Ports	Ports 1 to 8
Max. Port Power	30 W
Total PoE Budget	60 W
Long Range	Up to 300 m on Ports 1 to 8 (depends on camera/cable)
Hik-Partner Pro Features	Display port rate, bandwidth, PoE usage Show topology and alarm status Restart ports/devices Enable long-range mode Remote firmware upgrade
Port Isolation	Ports 1 to 8 support isolation mode
System Management	Web-based management DHCP Client (enabled by default) Super IP: 10.180.190.200 Support via Hik-Central Pro and Hik-Partner Pro Cable diagnostics 802.1ab LLDP, Port mirroring
PoE Watchdog	Auto detect and restart unresponsive cameras (Ports 1–8)
Loop Prevention	Supports 802.1D STP, 802.1w RSTP
VLAN	IEEE 802.1Q VLAN Supports Access/Trunk modes VLAN IDs: 1–4094 Max 4094 VLANs
EMC	CE-EMC, EN 55032:2015+A11:2020, and related
Safety	CB, CE-LVD (EN 62368-1:2014+A11:2017)
Chemical	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (EC No.1907/2006)
