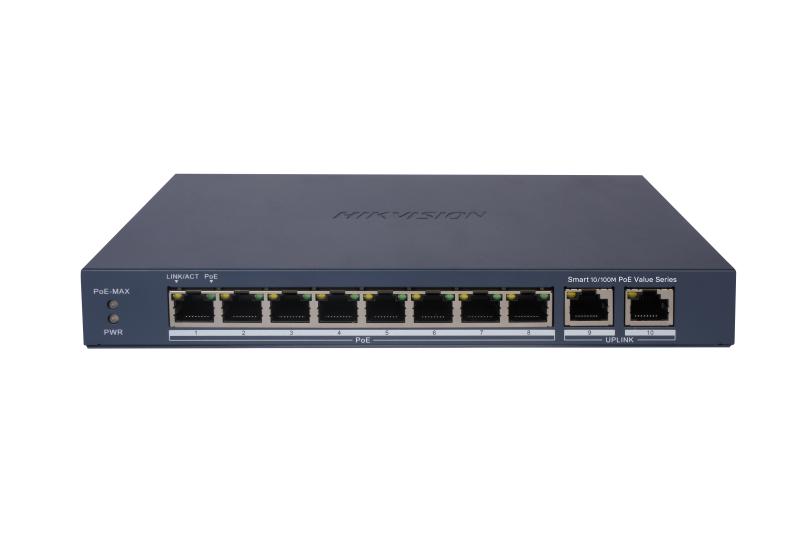

Hikvision DS-3E1310P-EI/M 8 Port Fast Ethernet Smart PoE Switch, 8x 10/100 Mbps PoE ports,2x Gigabit RJ45 port, Up to 300 m Long Range PoE Transmission
Model :
SKU : NS-HIKVIS DS-3E1310P-EI/M
About this item
About this item
Description
Specification
| Parameter | Details |
| Shell | Metal material |
| Net Weight | 0.54 kg (1.19 lb) |
| Gross Weight | 1.08 kg (2.38 lb) |
| Dimensions (W ?? H ?? D) | 217.6 mm ?? 27.6 mm ?? 108.5 mm (8.57'' ?? 1.09'' ?? 4.27'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | DC54 V, 1.2 A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Surge Protection | 6 kV |
Network Parameters
| Parameter | Details |
| Ports | 8 ?? 10/100 Mbps PoE port, 2 ?? Gigabit RJ45 port |
| MAC Address Table | 4 K |
| Switching Capacity | Whole-Device Performance: 9.6 Gbps Port Performance: 5.6 Gbps |
| Packet Forwarding Rate | Whole-Device Performance: 7.14 Mpps Port Performance: 4.17 Mpps |
| Internal Cache | 2 Mbits |
PoE Power Supply
| Parameter | Details |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
Software Function
- Long Range: Ports 1 to 8: up to 300 m. (Performance varies based on camera model or cable condition)
- Port Isolation: Improves network security by restricting communication within isolation groups.
- PoE Watchdog: Auto-detect and restart unresponsive cameras on Ports 1 to 8.
- Loop Prevention: Prevents network loops; supports 802.1D STP and 802.1w RSTP.
- VLAN: Supports 802.1Q with configurable VLAN ID (1-4094).
- HPP: Supports one-click activation and remote management via Hik-Partner Pro.
- System Maintenance: Supports device management via web, Hik-Central Pro, and Hik-Partner Pro.
Approval
| Parameter | Details |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
