Model :
SKU : NS-HIK DS-3E1318P-EI/M-

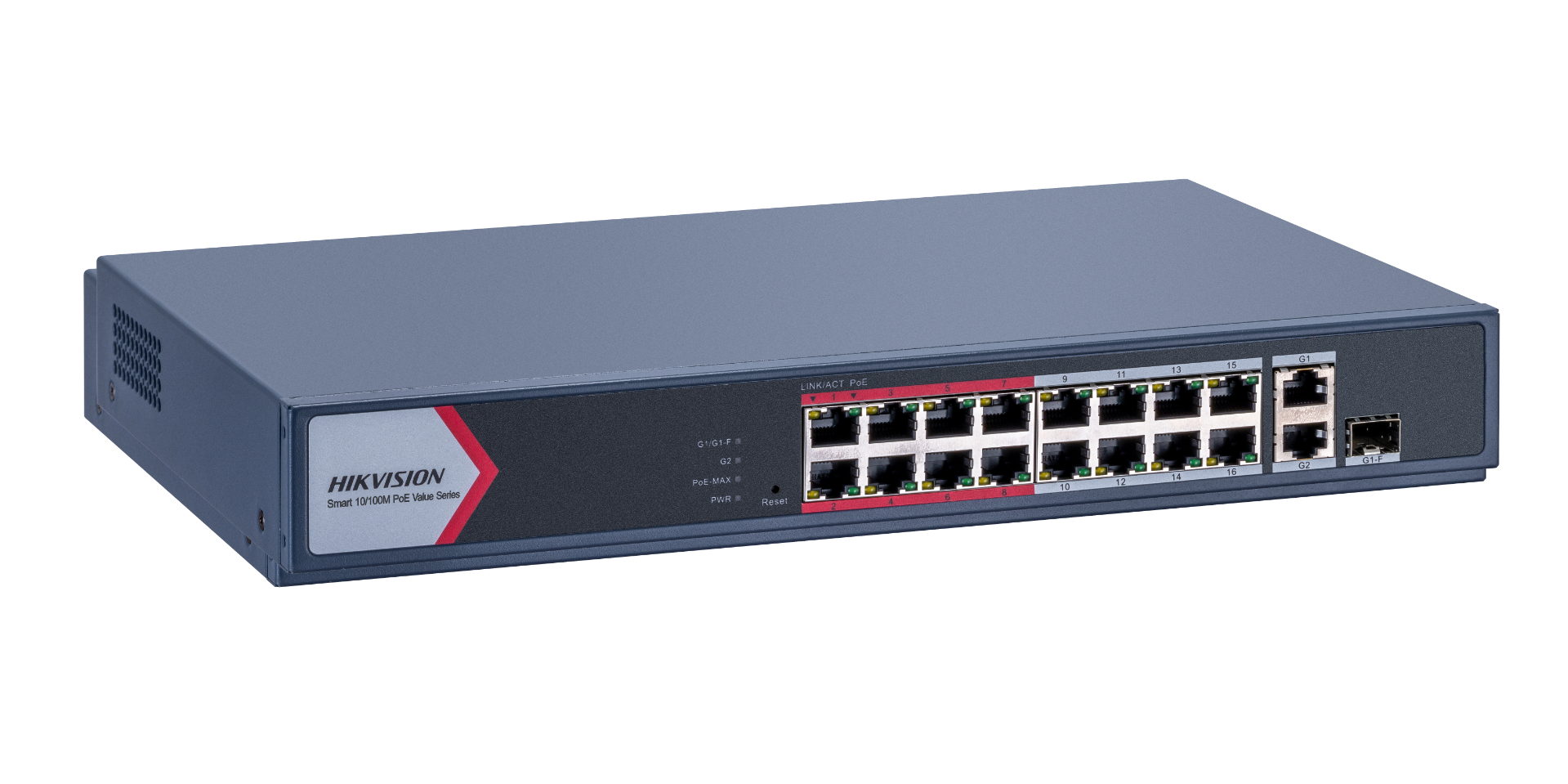

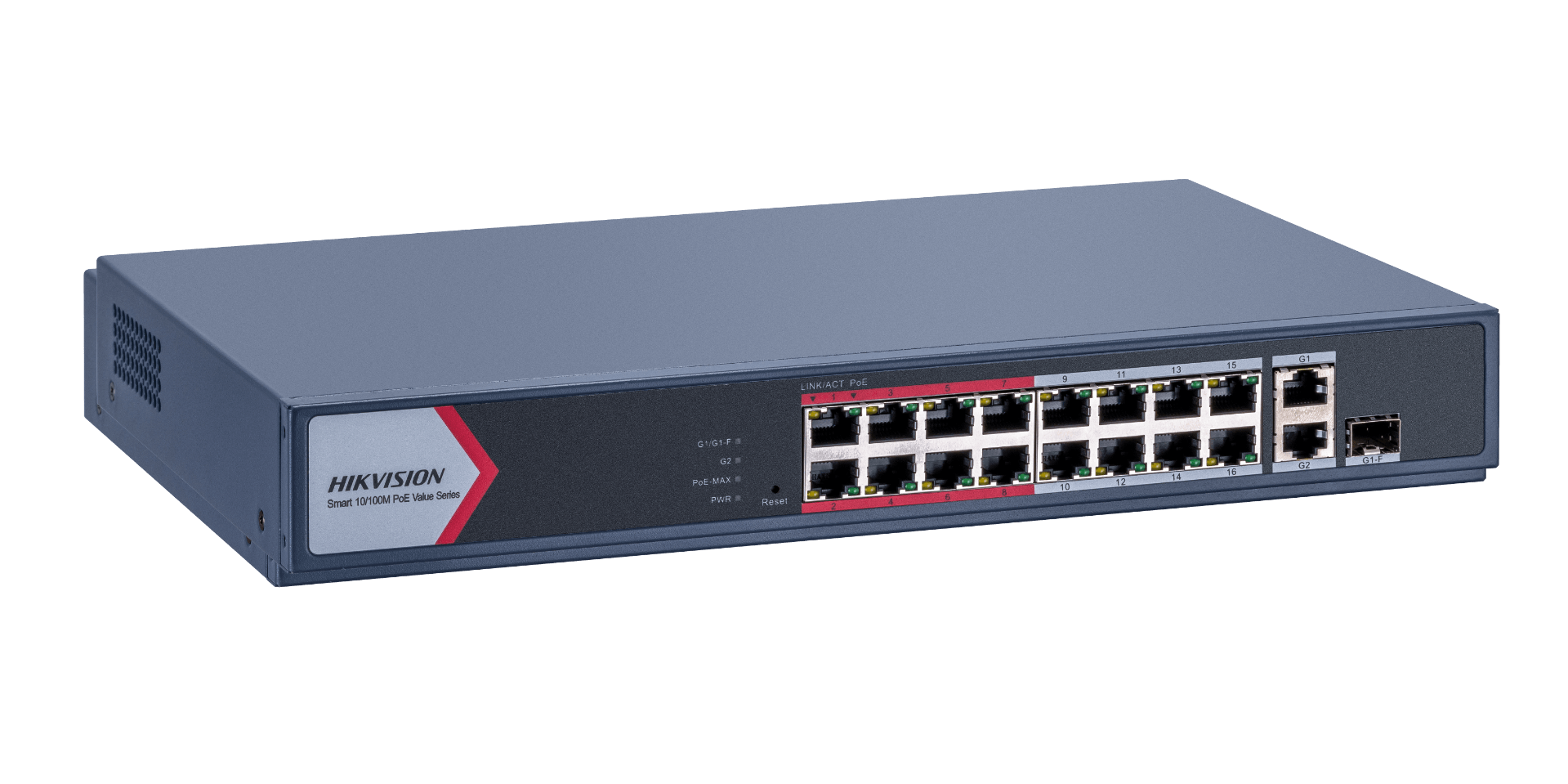

DS-3E1318P-EI/M
16 Port Fast Ethernet Smart POE Switch
16 × 10/100M PoE ports, 1 × Gigabit RJ45 port,1 × Gigabit combo
Total PoE Power Budget 130 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6 kV Surge Protection
The Hikvision DS-3E1318P-EI/M represents a calculated fusion of reliable data routing and intuitive Smart Managed architecture. Engineered from the ground up for IT administrators, network deployment teams, and security contractors who require a zero-compromise hardware foundation, this switch effortlessly powers multiple network cameras, access points, and VoIP phones using its 130W intelligent power allocation matrix. Moving far beyond traditional unmanaged hubs, it gives installers the exact digital framework required to monitor system health remotely. Through the Hik-Partner Pro app or web interface, operators can visualize the network topology, monitor real-time bandwidth utilization, and receive instant alarm pushes from anywhere in the world.
Surgical PoE Watchdog and Ultra-Long-Range Transmission
At the interactive core of its hardware layout is a highly responsive self-healing topology that completely slashes unnecessary maintenance visits to remote sites. The switch features an automated PoE Watchdog function, providing a profound functional advantage by actively monitoring the heartbeat of connected IP cameras and instantly restarting them if they become unresponsive. When deploying hardware across expansive warehouses, massive parking lots, or large perimeters common in Abu Dhabi and Dubai, the switch can be configured to push stable PoE power and video data over distances up to an extraordinary 300 meters, completely eliminating the need for expensive network repeaters or mid-span extenders.
Industrial-Grade Reliability and Network Optimization
Meticulously optimized for long-term operational survivability inside dense equipment racks, the internal circuitry is encased within a high-strength, fan-free metal chassis that operates completely silently. Defying extreme physical environments, it features heavy-duty 6 kV surge protection to perfectly safeguard your network assets from sudden electrical spikes and lightning. To guarantee absolute technical dominance during heavy data loads, the switch supports 802.1Q VLAN configuration, STP/RSTP Loop Prevention, and Port Isolation. These enterprise-tier functions ensure that mission-critical video streams are securely segregated and forwarded flawlessly without the risk of broadcast storms or communication failures.
Feature | Details |
|---|---|
Network Interface | 16× 10/100 Mbps PoE ports | 1× Gigabit RJ45 Uplink | 1× Gigabit Combo Uplink |
PoE Architecture | IEEE 802.3af/at | Max 30W per port | 130W Total Power Budget |
Switching Capacity | 9.2 Gbps Whole-Device Performance | 6.84 Mpps Packet Forwarding Rate |
Surge Protection | 6 kV integrated surge protection on ports |
Security & Traffic Control | VIP Ports (1-8) for prioritized traffic | Port Isolation | 802.1Q VLAN (Up to 4094) |
Camera-Specific Features | PoE Watchdog (Auto-reboots unresponsive devices) | Long Range Mode (up to 300 m) |
Management Ecosystem | Web GUI, Hik-Partner Pro (HPP), Hik-Central Pro, LLDP, SNMP |
Thermal Range | 0 °C to 45 °C (32 °F to 113 °F) | 5% to 95% Humidity (non-condensing) |
Physical Dimensions | 440 × 44 × 220.8 mm (17.32" × 1.73" × 8.69") | Standard 1U Rackmount |
Net Weight | 1.8 kg (4.0 lb) | Full Metal Shell |
