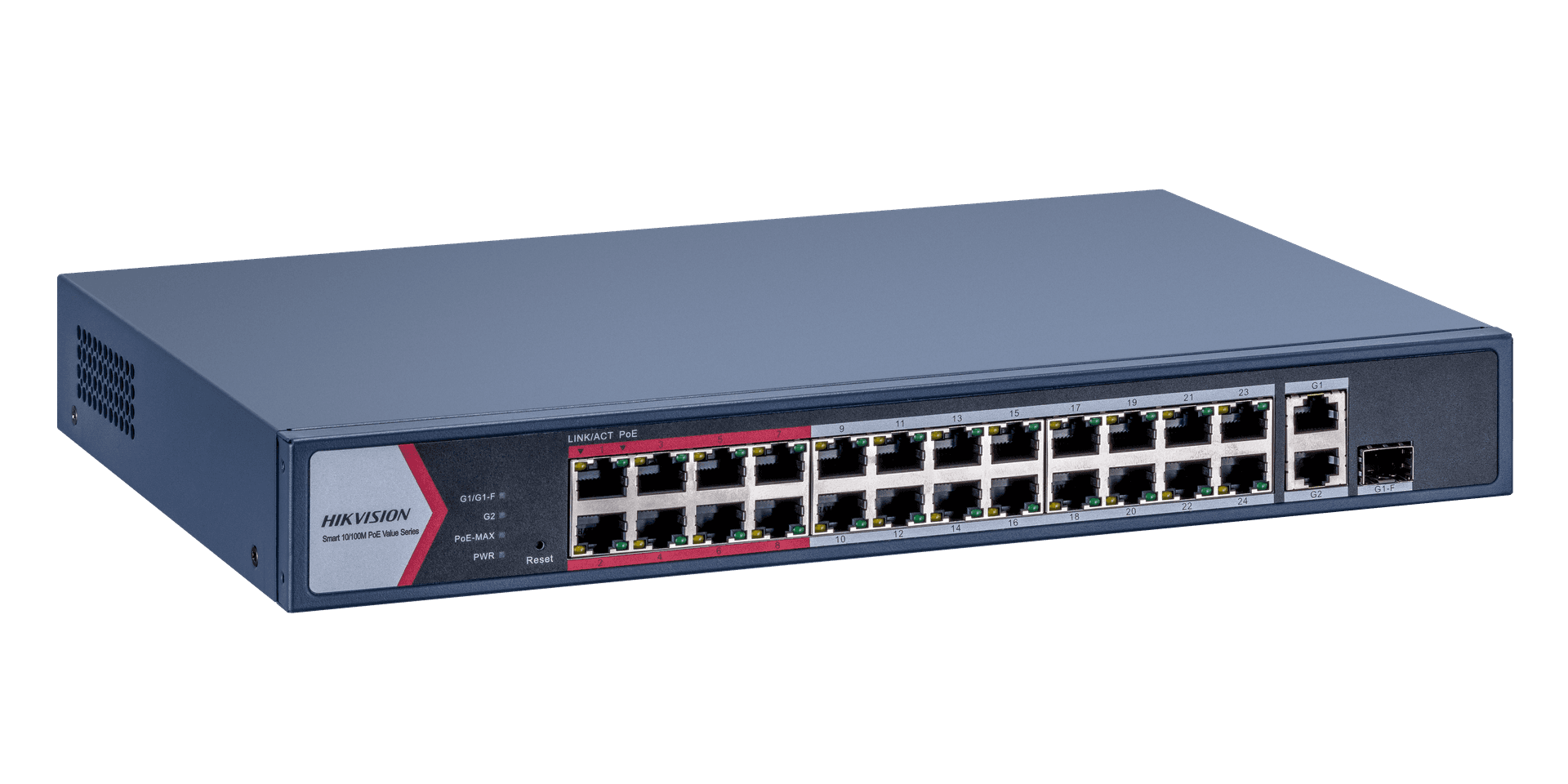

Hikvision DS-3E1326P-EI/M 24-Port Smart PoE Switch, 230W Budget, 300m Long Range PoE, Gigabit Uplinks, PoE Watchdog & VLAN Support
Model :
SKU : NS-HIK DS-3E1326P-EI/M
The Hikvision DS-3E1326P-EI/M is a high-capacity 24-port Smart Managed PoE switch designed for professional surveillance networks requiring intelligent oversight. Featuring a robust 230W power budget and ultra-long-range transmission up to 300 meters, it ensures reliable connectivity for extensive camera deployments. With integrated PoE Watchdog technology to automatically restart unresponsive cameras and 6kV surge protection, this rack-mountable switch provides a secure, self-healing foundation for mid-to-large scale security systems.
Description
Empower your security infrastructure with the Hikvision DS-3E1326P-EI/M, a 24-port Fast Ethernet Smart Managed Switch that bridges the gap between simple connectivity and advanced network management. Designed specifically for video surveillance, this switch offers 24 PoE-enabled ports alongside high-speed Gigabit uplink options, ensuring that high-definition video data reaches your NVR or core network without bottlenecks.
Key Features
- Intelligent PoE Watchdog: Minimize maintenance costs and system downtime. The built-in PoE Watchdog automatically monitors the status of connected cameras; if a device stops responding, the switch intelligently restarts the specific PoE port to restore the camera's function without manual intervention.
- 300m Ultra-Long Range Transmission: Overcome the limitations of standard networking. In long-range mode, ports 1 through 24 support data and power transmission up to 300 meters, making it the ideal solution for large perimeters and expansive facilities where traditional 100m limits are insufficient.
- Smart Management & Remote Maintenance: Unlike unmanaged switches, the DS-3E1326P-EI/M supports Web management, Hik-Central Pro, and Hik-Partner Pro. This allows installers to view topology, monitor PoE power usage, and even restart ports remotely from a smartphone or PC.
- Priority Video Transmission (VIP Ports): Ports 1 through 8 are designated as VIP ports. When the network faces heavy traffic, data on these ports is prioritized, ensuring that your most critical camera feeds remain smooth and uninterrupted even during bandwidth spikes.
Performance / Reliability Built for 24/7 operation, the switch features a durable metal shell and 6kV surge protection to withstand harsh electrical environments and lightning strikes. It supports advanced networking protocols like 802.1Q VLAN for traffic isolation and STP/RSTP to prevent network loops. For quick troubleshooting, the switch includes cable detection technology that can locate short circuits, open circuits, and even measure cable length.
Specification
24-Port PoE Switch – Technical Specifications
| Shell | Metal Material |
| Net Weight | 2.13 kg (4.7 lb) |
| Gross Weight | 3.1 kg (6.8 lb) |
| Dimensions (W × H × D) | 440.0 × 44.0 × 220.8 mm (17.32" × 1.73" × 8.69") |
| Operating Temperature | 0 °C to 45 °C (0 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (No Condensation) |
| Relative Humidity | 5% to 95% (No Condensation) |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 4 A |
| Installation Mode | Rack-Mounted (Equipped with Mounting Ears) |
| Max. Power Consumption | 250 W |
| Power Consumption (Idle) | 20 W |
| Surge Protection | 6 kV |
| Ports | 24 × 10/100 Mbps PoE Ports 1 × Gigabit Combo Port 1 × Gigabit RJ45 Port |
| MAC Address Table | 16 K |
| Switching Capacity | Whole Device: 14.8 Gbps Port Performance: 8.8 Gbps |
| Packet Forwarding Rate | Whole Device: 11.01 Mpps Port Performance: 6.55 Mpps |
| Internal Cache | 4 Mbits |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Long Range Mode | Ports 1 to 24: up to 300 m Long range performance may vary depending on camera model or cable condition. |
| VIP Port | Ports 1 to 8: Data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| Port Isolation | Ports 1 to 24 support isolation mode to improve network security. Isolated ports cannot communicate with each other but can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 24: Automatically detects and restarts unresponsive cameras. |
| Link Aggregation | Supports static link aggregation. Supports 1 aggregation group for load balancing, bandwidth expansion, and port protection. |
| Loop Prevention | Supports IEEE 802.1D STP and IEEE 802.1w RSTP. Disabled by default. |
| VLAN | Supports IEEE 802.1Q VLAN. VLAN ID range: 1–4094. Supports Trunk and Access port modes. Maximum 4094 VLANs supported. |
| Hik-Partner Pro (HPP) | One-click activation and remote management. Functions include port rate, bandwidth usage, PoE power usage, topology display, alarm status, device restart, long-range mode, and remote upgrade. |
| System Maintenance | Web-based management DHCP Client (enabled by default) Super IP: 10.180.190.200 Management via Hik-Central Pro & Hik-Partner Pro Cable detection and length measurement IEEE 802.1ab LLDP support Port mirroring support |
| EMC | CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019) EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020 IC (ICES-003: Issue 7:2020) RCM (AS/NZS CISPR 32:2015) |
| Safety | CB (IEC 62368-1:2014, AMD1:2009, AMD2:2013) CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemistry Compliance | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) REACH (EC No.1907/2006) |
