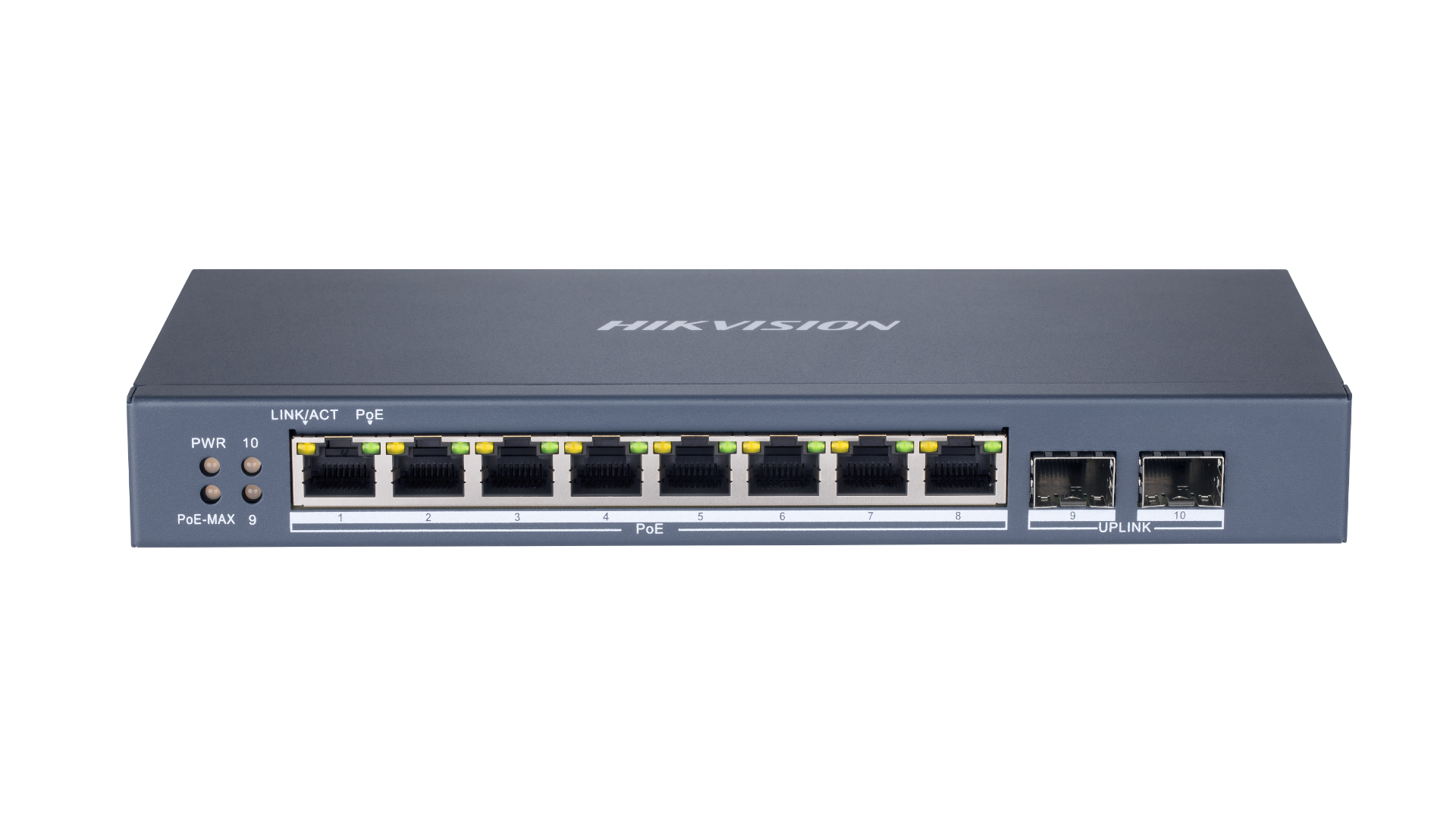

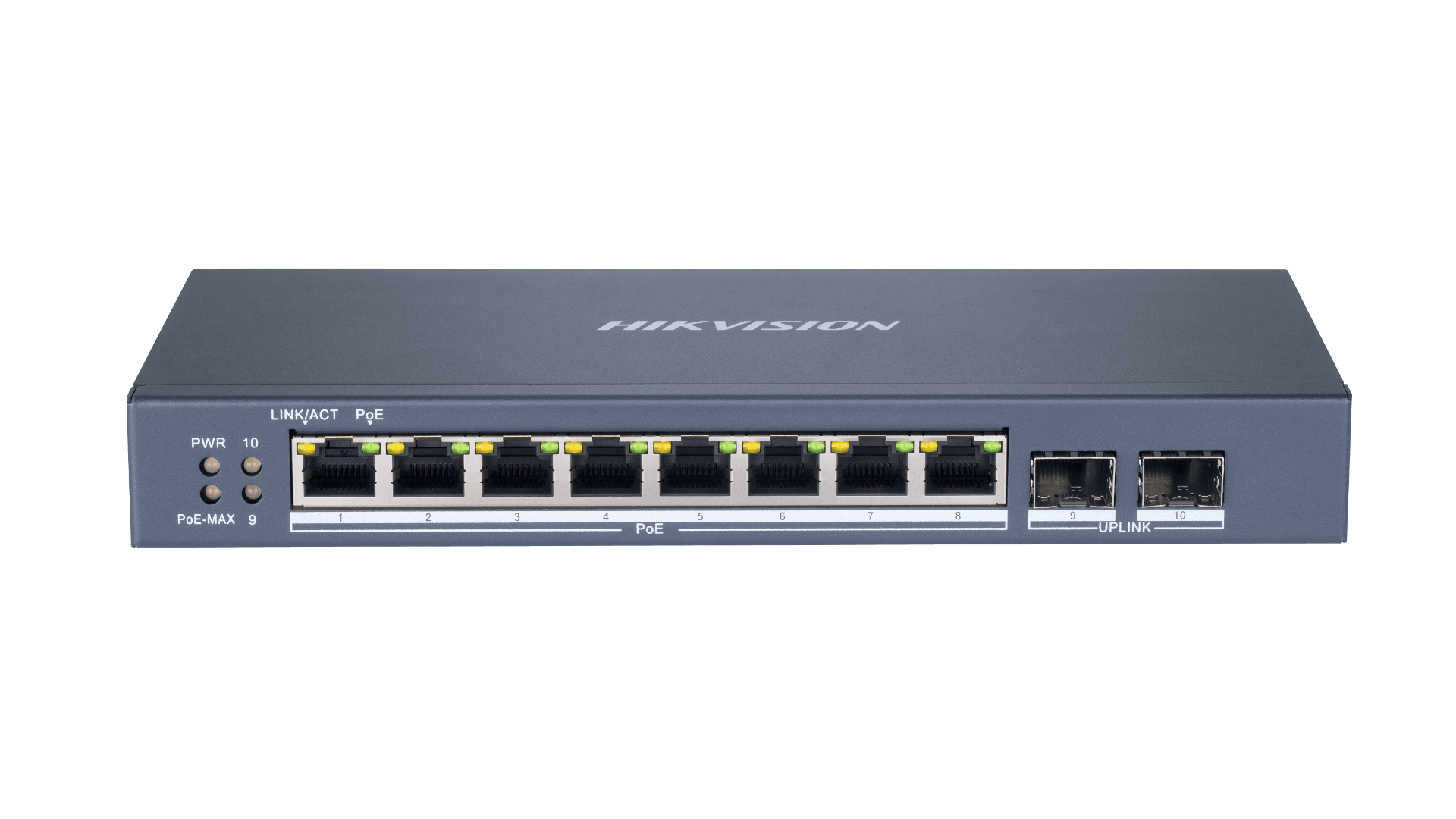

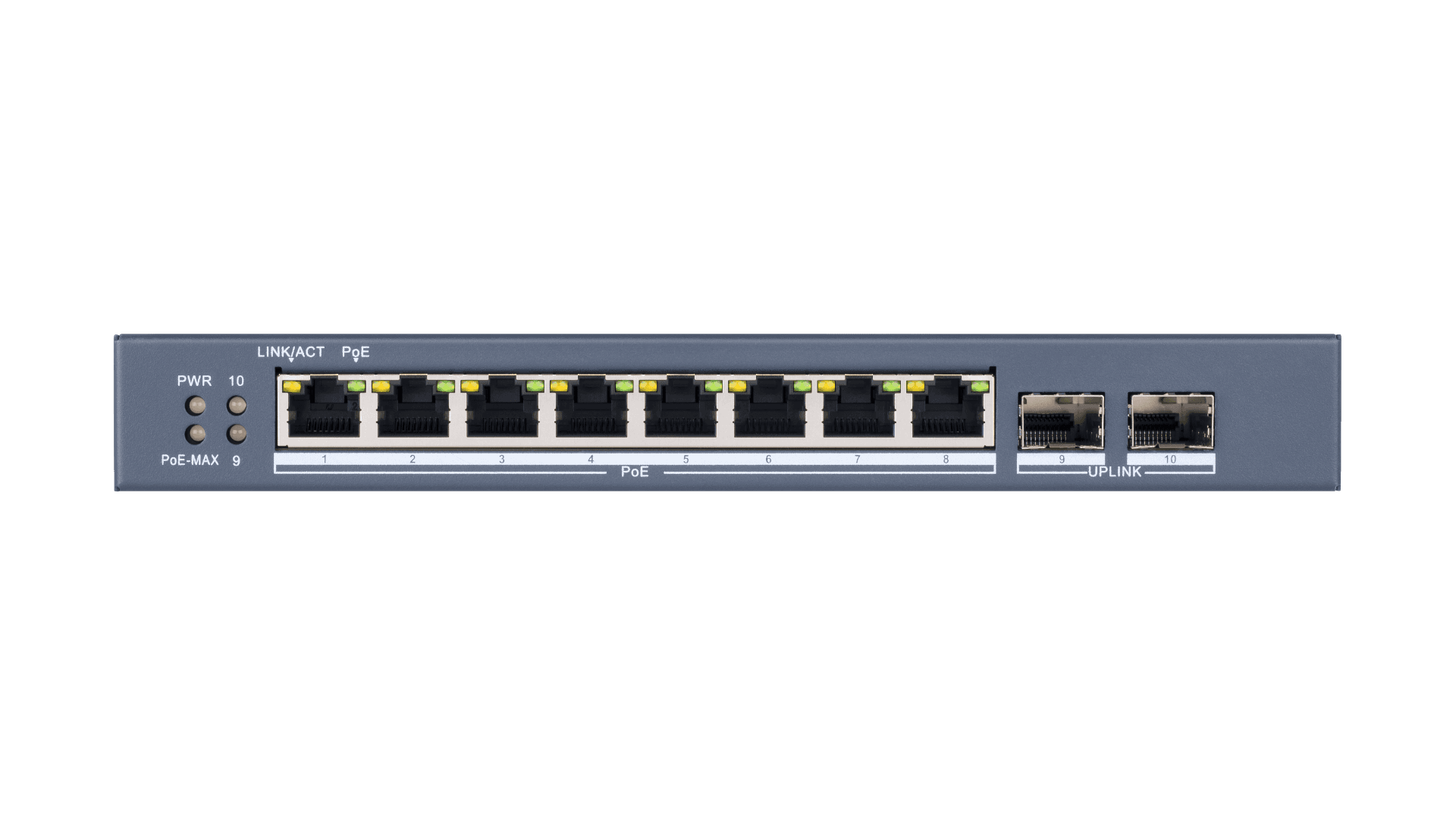

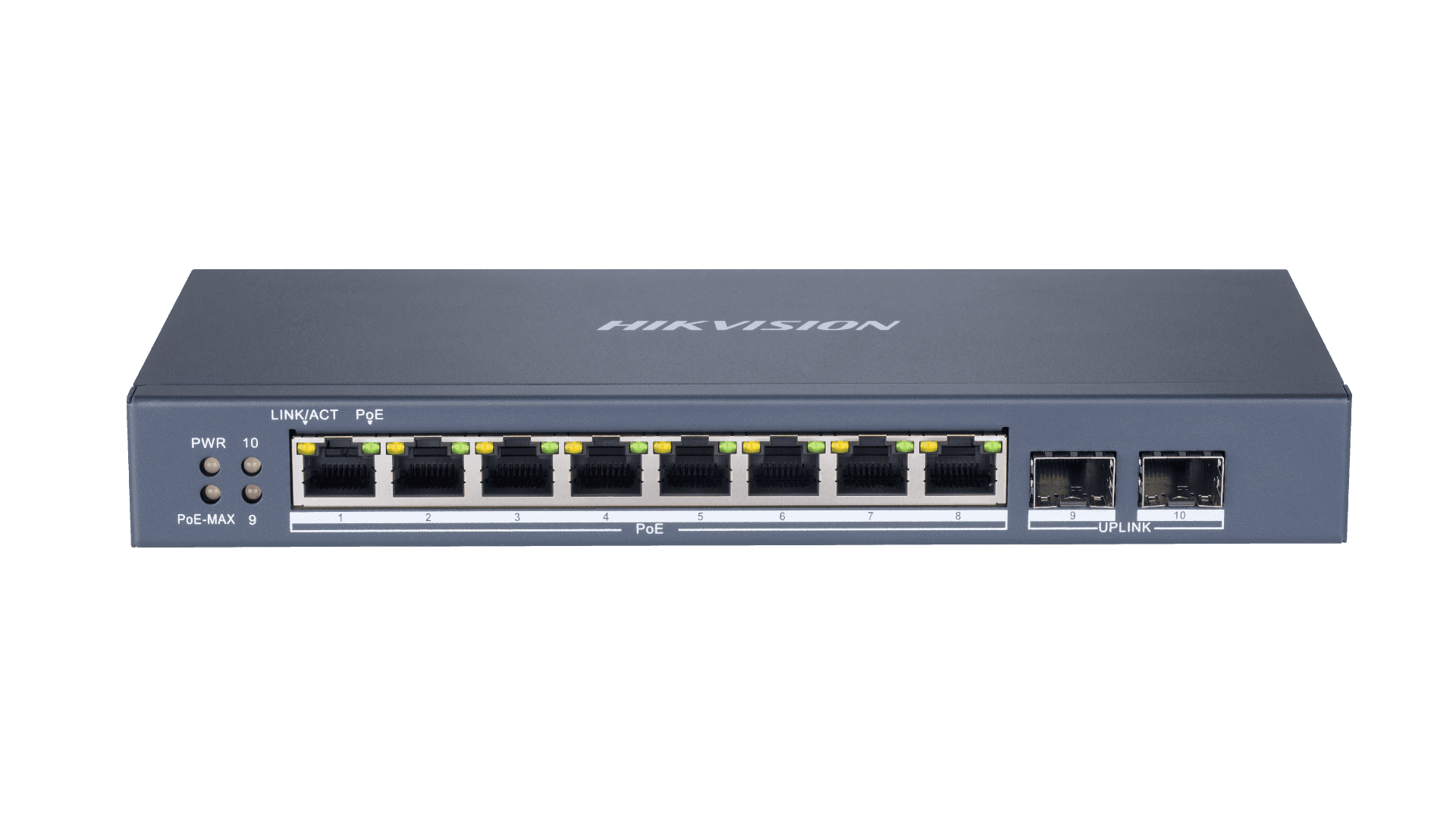

Hikvision DS-3E1510P-E 8 Port Gigabit Web POE Switch, 8 ?? gigabit PoE ports, 2 ?? gigabit fiber optical ports, 20 Gbps, Reliable fan-free design
Model :
SKU : DS-3E1510P-E/M
About this item
Description
Hikvision DS-3E1510P-E 8 Port Gigabit Web POE Switch, 8 ?? gigabit PoE ports, 2 ?? gigabit fiber optical ports, 20 Gbps, Reliable fan-free design Specifications
| General | |
|---|---|
| Shell | Metal material, fan-free design |
| Net weight | 1.21 kg (2.67 lb) |
| Storage temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 2.5 A |
| Gross weight | 1.3 kg (2.87 lb) |
| Dimension (L ?? H ?? D) | 217.6 mm ?? 108.55 mm ?? 27.8 mm (8.57??? ?? 4.27??? ?? 1.09???) |
| Operating temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Relative humidity | 5% to 95% (no condensation) |
| Power source | 120 W |
| Max. power consumption | 120 W |
| Power consumption in idle | 7 W |
| Network Parameters | |
| Port number | 8 ?? gigabit PoE ports, and 2 ?? gigabit fiber optical ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| MAC address table | 8 K |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| Internal cache | 4.1 Mbits |
| PoE Power Supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cables 1/2/3/6 provide power supply |
| PoE port | Ports 1 to 8 |
| Max. port power | 30 W |
| PoE power budget | 110 W |
| Software Function | |
| Device maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync |
| Port configuration | Support the configuration of port rate and slow control, and ports enabling |
| Long range | Support up to 300 m transmission |
| PoE watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond |
| Port rate-limiting | Support rate-limiting for ingress and egress ports |
| Storm control | Support the storm control of unknown unicast, multicast, and broadcast |
| Port mirroring | Support port mirroring function |
| QoS | Support WRR and SP scheduling and port priority |
| VLAN | Support 128 VLANs |
| STP | Support STP and RSTP |
| SNMP | Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition |
| PoE | Support IEEE 802.3at/af power supply |
Specification
Hikvision DS-3E1510P-E 8 Port Gigabit Web POE Switch, 8 ?? gigabit PoE ports, 2 ?? gigabit fiber optical ports, 20 Gbps, Reliable fan-free design Specifications
| General | |
|---|---|
| Shell | Metal material, fan-free design |
| Net weight | 1.21 kg (2.67 lb) |
| Storage temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 2.5 A |
| Gross weight | 1.3 kg (2.87 lb) |
| Dimension (L ?? H ?? D) | 217.6 mm ?? 108.55 mm ?? 27.8 mm (8.57??? ?? 4.27??? ?? 1.09???) |
| Operating temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Relative humidity | 5% to 95% (no condensation) |
| Power source | 120 W |
| Max. power consumption | 120 W |
| Power consumption in idle | 7 W |
| Network Parameters | |
| Port number | 8 ?? gigabit PoE ports, and 2 ?? gigabit fiber optical ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| MAC address table | 8 K |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| Internal cache | 4.1 Mbits |
| PoE Power Supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cables 1/2/3/6 provide power supply |
| PoE port | Ports 1 to 8 |
| Max. port power | 30 W |
| PoE power budget | 110 W |
| Software Function | |
| Device maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync |
| Port configuration | Support the configuration of port rate and slow control, and ports enabling |
| Long range | Support up to 300 m transmission |
| PoE watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond |
| Port rate-limiting | Support rate-limiting for ingress and egress ports |
| Storm control | Support the storm control of unknown unicast, multicast, and broadcast |
| Port mirroring | Support port mirroring function |
| QoS | Support WRR and SP scheduling and port priority |
| VLAN | Support 128 VLANs |
| STP | Support STP and RSTP |
| SNMP | Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition |
| PoE | Support IEEE 802.3at/af power supply |
