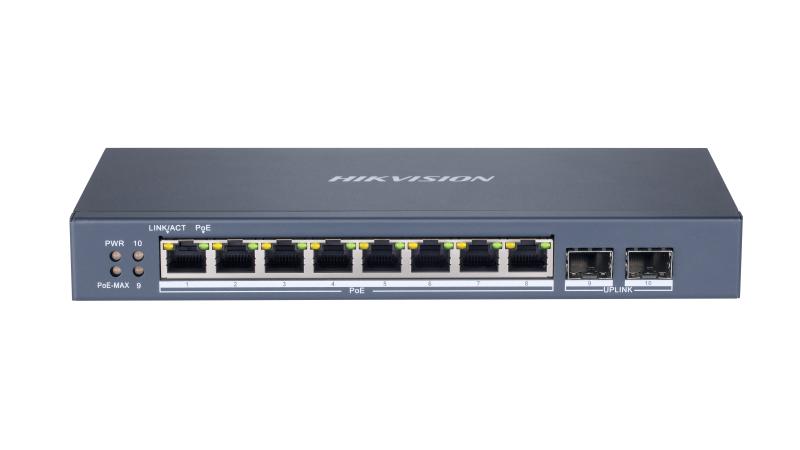

Hikvision DS-3E1510P-SI Smart Managed 8-Port Gigabit PoE Switch, 8x Gigabit PoE Ports, and 2x Gigabit Fiber Optical Ports
Model :
SKU : DS-3E1510P-SI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-3E1510P-SI Smart Managed 8-Port Gigabit PoE Switch, 8x Gigabit PoE Ports, and 2x Gigabit Fiber Optical Ports Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Software Functions | |
| Approval | |
| Shell | Metal material |
| Net Weight | 1.21 kg (2.67 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Dimensions (W ?? H ?? D) | 217.60 mm ?? 27.80 mm ?? 108.55 mm (8.57'' ?? 1.09'' ?? 4.27'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 2.5 A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 7 W |
| Surge Protection | 6 KV |
| Ports | 8 ?? Gigabit PoE port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
| Long Range | Ports 1 to 8: up to 300 m (Performance may vary based on camera model or cable condition) |
| Port Isolation | Ports 1 to 8: Port isolation mode to improve network security |
| PoE Watchdog | Ports 1 to 8: Auto-detect and restart unresponsive cameras |
| Link Aggregation | Support for static link aggregation with 8 aggregation groups |
| Loop Prevention | Disabled by default; supports 802.1D STP |
| QoS | Bandwidth allocation and SP, WRR priority schedule mode |
| VLAN | 802.1Q with configurable VLAN ID from 1-4094; supports Trunk and Access port modes |
| HPP | One-click activation and remote management via Hik-Partner Pro |
| System Maintenance | Remote upgrade, default recovery, logs viewing, network configuration |
| Port Rate-Limiting | Adjustable port bandwidth to prevent congestion |
| Storm Control | Limits broadcast, multicast, and unknown unicast packets to prevent network issues |
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL, CB, CE-LVD |
| Chemistry | CE-RoHS, WEEE, Reach |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-3E1510P-SI Smart Managed 8-Port Gigabit PoE Switch, 8x Gigabit PoE Ports, and 2x Gigabit Fiber Optical Ports Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Software Functions | |
| Approval | |
| Shell | Metal material |
| Net Weight | 1.21 kg (2.67 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Dimensions (W ?? H ?? D) | 217.60 mm ?? 27.80 mm ?? 108.55 mm (8.57'' ?? 1.09'' ?? 4.27'') |
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Storage Temperature | -40 ??C to 85 ??C (-40 ??F to 185 ??F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 2.5 A |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 7 W |
| Surge Protection | 6 KV |
| Ports | 8 ?? Gigabit PoE port, 2 ?? Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
| Long Range | Ports 1 to 8: up to 300 m (Performance may vary based on camera model or cable condition) |
| Port Isolation | Ports 1 to 8: Port isolation mode to improve network security |
| PoE Watchdog | Ports 1 to 8: Auto-detect and restart unresponsive cameras |
| Link Aggregation | Support for static link aggregation with 8 aggregation groups |
| Loop Prevention | Disabled by default; supports 802.1D STP |
| QoS | Bandwidth allocation and SP, WRR priority schedule mode |
| VLAN | 802.1Q with configurable VLAN ID from 1-4094; supports Trunk and Access port modes |
| HPP | One-click activation and remote management via Hik-Partner Pro |
| System Maintenance | Remote upgrade, default recovery, logs viewing, network configuration |
| Port Rate-Limiting | Adjustable port bandwidth to prevent congestion |
| Storm Control | Limits broadcast, multicast, and unknown unicast packets to prevent network issues |
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL, CB, CE-LVD |
| Chemistry | CE-RoHS, WEEE, Reach |
