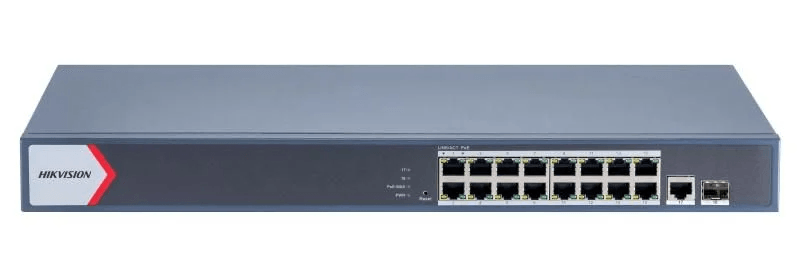

Hikvision DS-3E1518P-EI/M 16 Port Gigabit Smart POE Switch
Model :
SKU : NS-HIKVISI DS-3E1309P-E/M
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
16-Port Gigabit PoE Network Switch Specifications
| General | |
|---|---|
| Network Parameters | |
| PoE Power Supply | |
| Software Features | |
| Compliance & Approvals | |
| Shell | Metal material |
| Net Weight | 2.7 kg (5.9 lb) |
| Gross Weight | 2.9 kg (6.4 lb) |
| Dimensions (W × H × D) | 440.0 × 220.8 × 44.0 mm (17.32'' × 8.69'' × 1.73'') |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | −40 °C to 85 °C (−40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 2.5 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 150 W |
| Power Consumption (Idle) | 20 W |
| Surge Protection | 6 KV |
| Ports | 16 × Gigabit PoE, 1 × Gigabit RJ45, 1 × Gigabit fiber optical |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | 8-pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Long Range | Ports 1 to 16: up to 300 m (performance depends on camera or cable) |
| Port Isolation | Ports 1 to 16 can be isolated to improve security |
| PoE Watchdog | Auto detect and restart non-responsive cameras on Ports 1 to 16 |
| Link Aggregation | Support up to 8 static aggregation groups for load balancing and port protection |
| Loop Prevention | Support 802.1D STP and 802.1w RSTP (disabled by default) |
| VLAN | 802.1Q, VLAN ID 1–4094, Trunk/Access modes, max. 32 VLANs |
| HPP (Hik-Partner Pro) | One-click activation, remote management including: - Port rate & bandwidth - PoE usage & alarms - Topology info - Port/device restart - Remote upgrade |
| System Maintenance | - Web management - DHCP Client (enabled by default) - Super IP: 10.180.190.200 - Remote via Hik-Partner Pro - Cable diagnostics (length, shorts) - LLDP support - Port mirroring |
| EMC | CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 2nd Ed.), CE-LVD (EN 62368-1:2014+A11:2017) |
| Chemical Compliance | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (Regulation (EC) No 1907/2006) |
